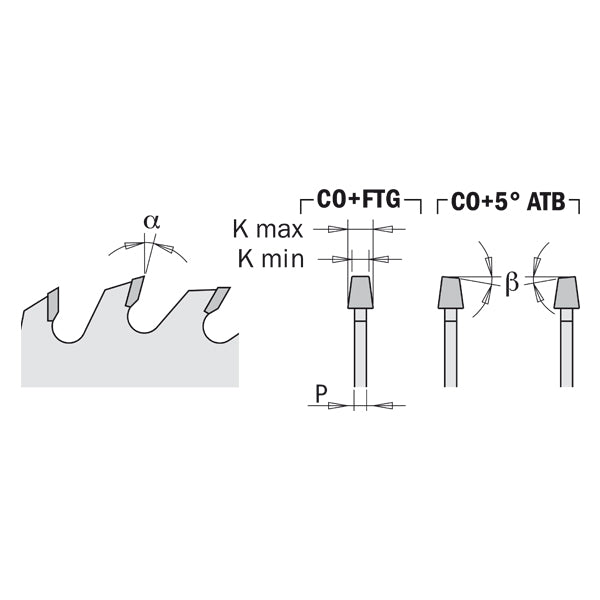

| SKU | Pin Hole (FT) | Diameter (D) | Kerf Thickness (K) | Bore Diameter (B) | Type of Grind (β) | Number of Cutting Edges (Z) | Plate Thickness (P) | Hook Angle (α) |
|---|---|---|---|---|---|---|---|---|
| 288.100.20H | N/A | 100mm | 3.1-4.0mm | 20mm | CO+5°ATB | 20 | 2.5mm | 5° |
| 288.100.20K | N/A | 100mm | 3.1-4.0mm | 22mm | CO+5°ATB | 20 | 2.5mm | 5° |
| 288.120.24H | N/A | 120mm | 3.1-4.0mm | 20mm | CO+5°ATB | 24 | 2.5mm | 5° |
| 288.120.24K | N/A | 120mm | 3.1-4.0mm | 22mm | CO+5°ATB | 24 | 2.5mm | 5° |
| 288.125.24H | N/A | 125mm | 3.1-4.0mm | 20mm | CO+5°ATB | 24 | 2.5mm | 5° |
| 288.125.24H2 | N/A | 125mm | 4.3-5.5mm | 20mm | CO+FTG | 24 | 3.2mm | 10° |
| 288.125.24K | N/A | 125mm | 3.1-4.0mm | 22mm | CO+5°ATB | 24 | 2.5mm | 5° |
| 288.125.24Q | N/A | 125mm | 4.3-5.5mm | 45mm | CO+FTG | 24 | 3.2mm | 10° |
| 288.150.36Q | 3/11/70 | 150mm | 4.3-5.5mm | 45mm | CO+FTG | 36 | 3.2mm | 10° |
| 288.160.36O | 3/7/66+3/6/84 | 160mm | 4.3-5.5mm | 55mm | CO+FTG | 36 | 3.2mm | 10° |
| 288.160.36Q | 3/11/70 | 160mm | 4.3-5.5mm | 45mm | CO+FTG | 36 | 3.2mm | 10° |
| 288.180.36M | N/A | 180mm | 4.45-5.3mm | 30mm | CO+FTG | 36 | 3.2mm | 10° |
| 288.180.36O | N/A | 180mm | 5.0-6.2mm | 55mm | CO+FTG | 36 | 3.5mm | 10° |
| 288.180.36Q | N/A | 180mm | 4,8-5,6mm | 45mm | CO+FTG | 36 | 0.138 | 10° |
| 288.180.36Q2 | N/A | 180mm | 4,3-5,5mm | 45mm | CO+ATB | 36 | 0.126 | 8° |
| 288.180.44T | 3/12.5/80 | 180mm | 4.3-5.5mm | 50mm | CO+FTG | 44 | 3.2mm | 10° |
| 288.200.36H | N/A | 200mm | 4.4-5.3mm | 20mm | CO+FTG | 36 | 3.2mm | 10° |
| 288.200.36J | 2/9/100 + 2/9/110 | 200mm | 4.45-5.3mm | 65mm | CO+FTG | 36 | 3.2mm | 10° |
| 288.200.36Q | N/A | 200mm | 4.7-6.0mm | 45mm | CO+FTG | 36 | 3.5mm | 10° |
| 288.215.42T | 3/15/80 | 215mm | 4.3-5.5mm | 50mm | CO+FTG | 42 | 3.2mm | 8° |
| 288.300.48T | 3/15/80 | 300mm | 4.3-5.5mm | 50mm | CO+FTG | 48 | 3.2mm | 10° |
| 288.300.72J | 2/9/100 + 2/9/110 | 300mm | 4.3-5.5mm | 65mm | CO+FTG | 72 | 3.2mm | 10° |
TECHNICAL DETAILS OF CARBIDE TEETH:
- Teeth height mm: 6~10
- Chromium ISO grade: KCR05
- Hardness (V10): 2.150
- Transverse rupture strength (N/mm2): 2.500
APPLICATION

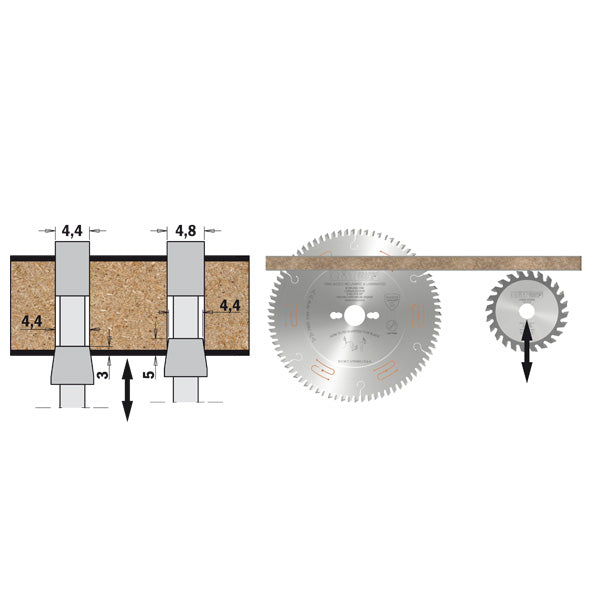

- Application: for chip-free scoring on plastic-laminated panels.
- Machines: horizontal and vertical sizing machines equipped with scoring device for vertical adjustment.
- Material: single or double-sided plastic-laminated panels, MDF.
