Description

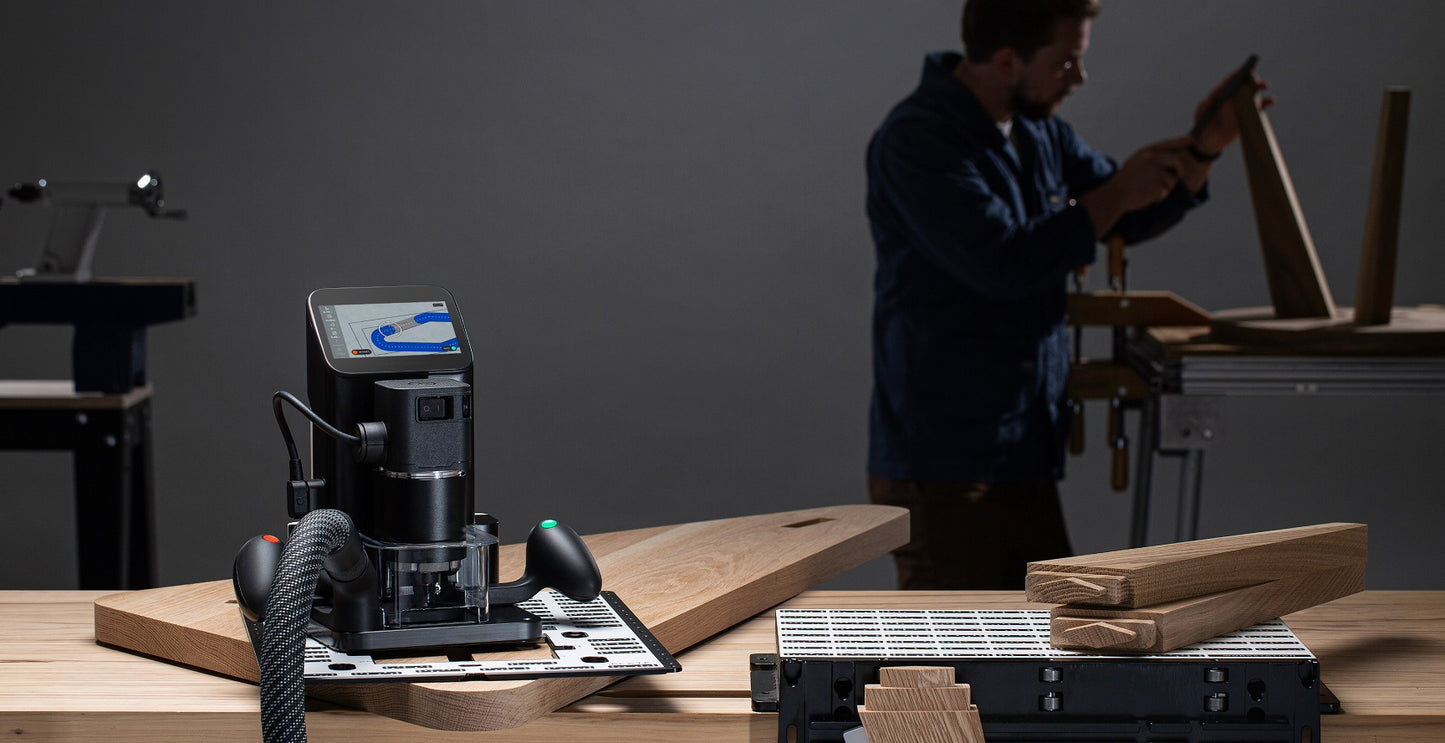

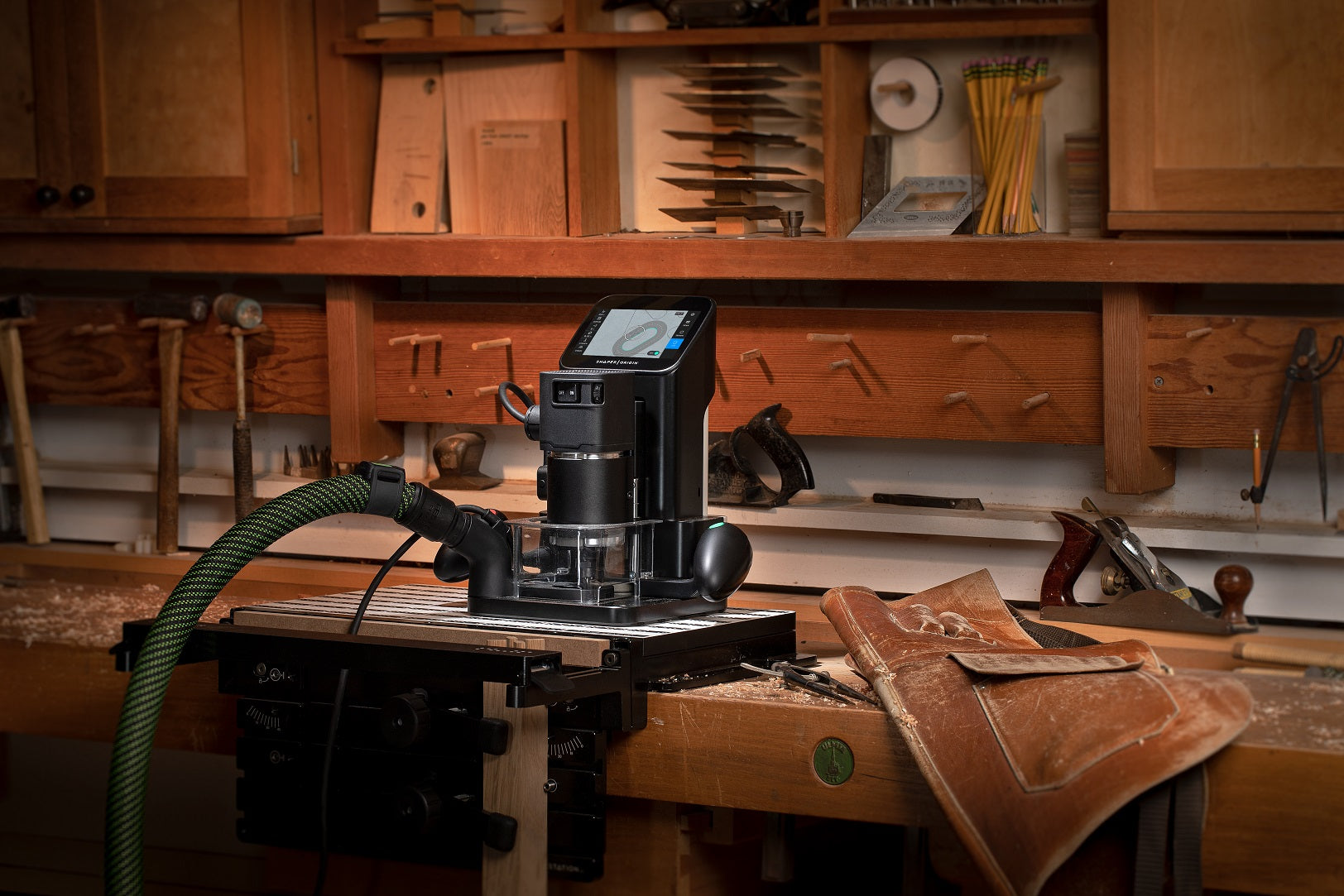

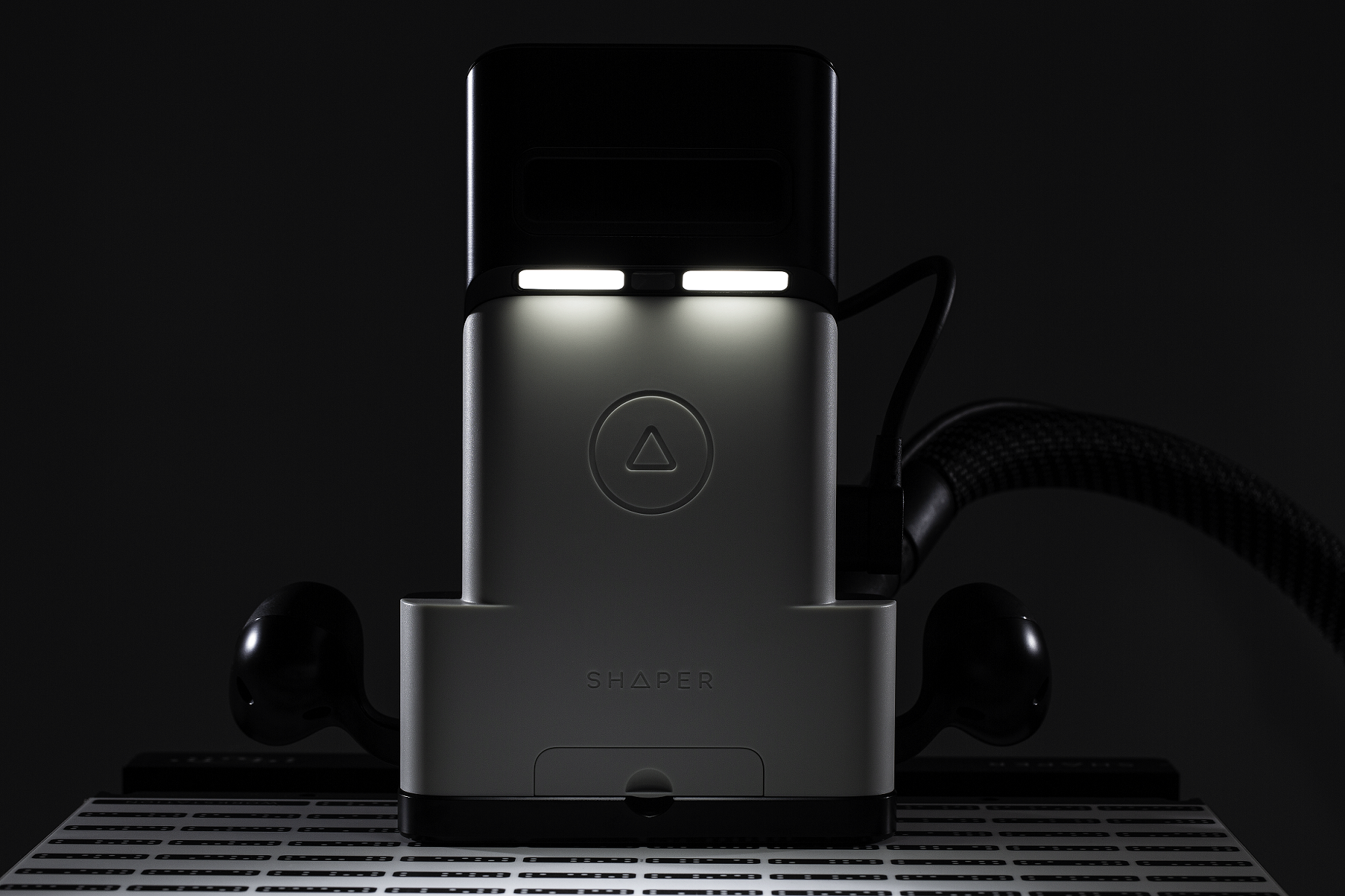

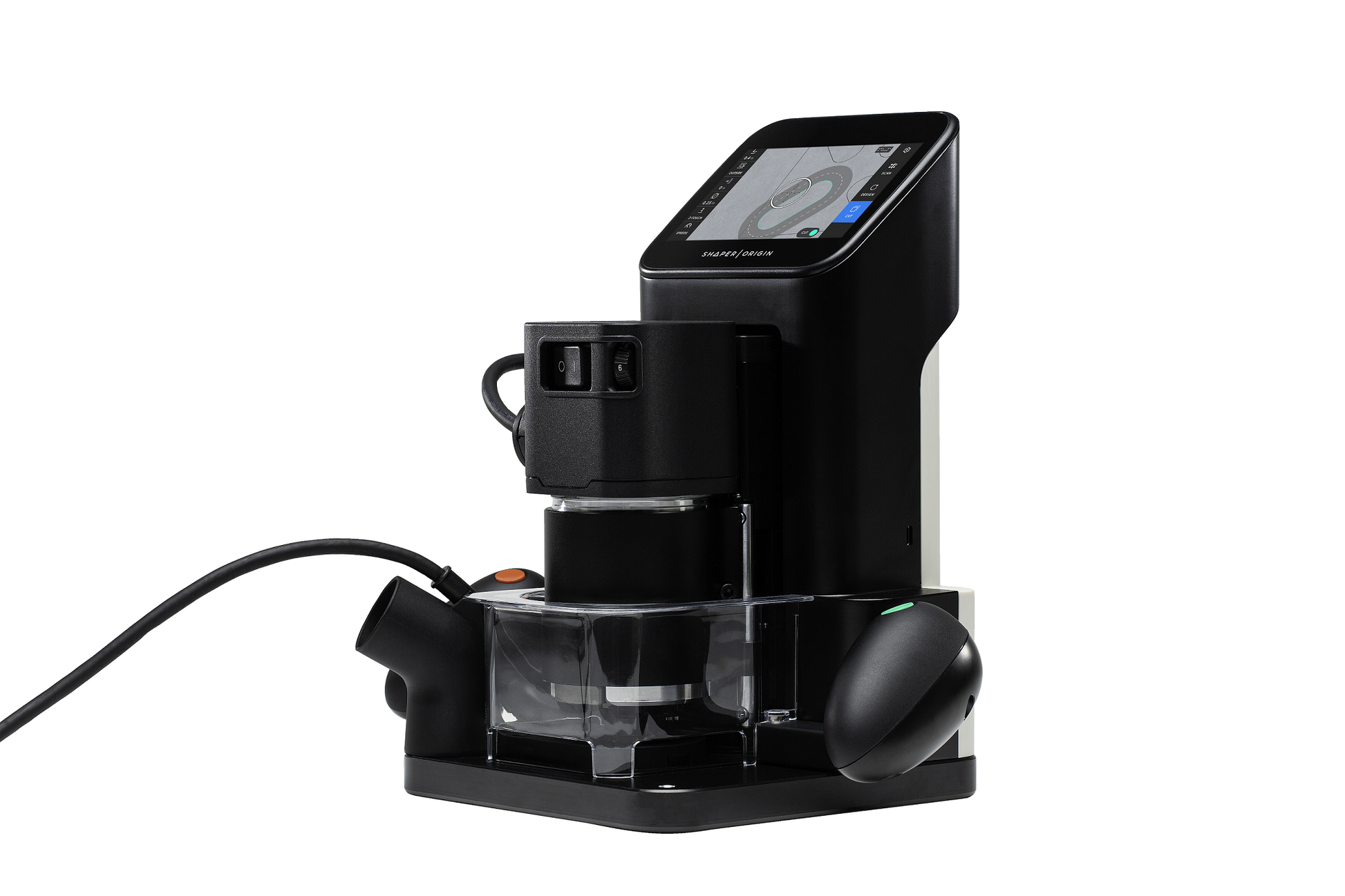

Bring digital precision to the craft of woodworking with Origin – the handheld CNC router. Cut with unparalleled precision, flexibility and efficiency.

Origin is the world’s first hand-held CNC router. With onboard automatic cut correction, Origin makes precision cutting easy. Avoid the envelope limits of traditional CNC machines and tackle projects at a wide range of scales with a single, compact tool. With annual system updates and optional extensions, Origin is the only power tool that gets better with age. Create simple designs on the tool itself, or using Shaper Studio. You can also upload an existing design of your own. Additionally, Origin-ready files and hardware templates are available on ShaperHub.

Features and Benefits

  • Automatic cut correction
  • No programming required

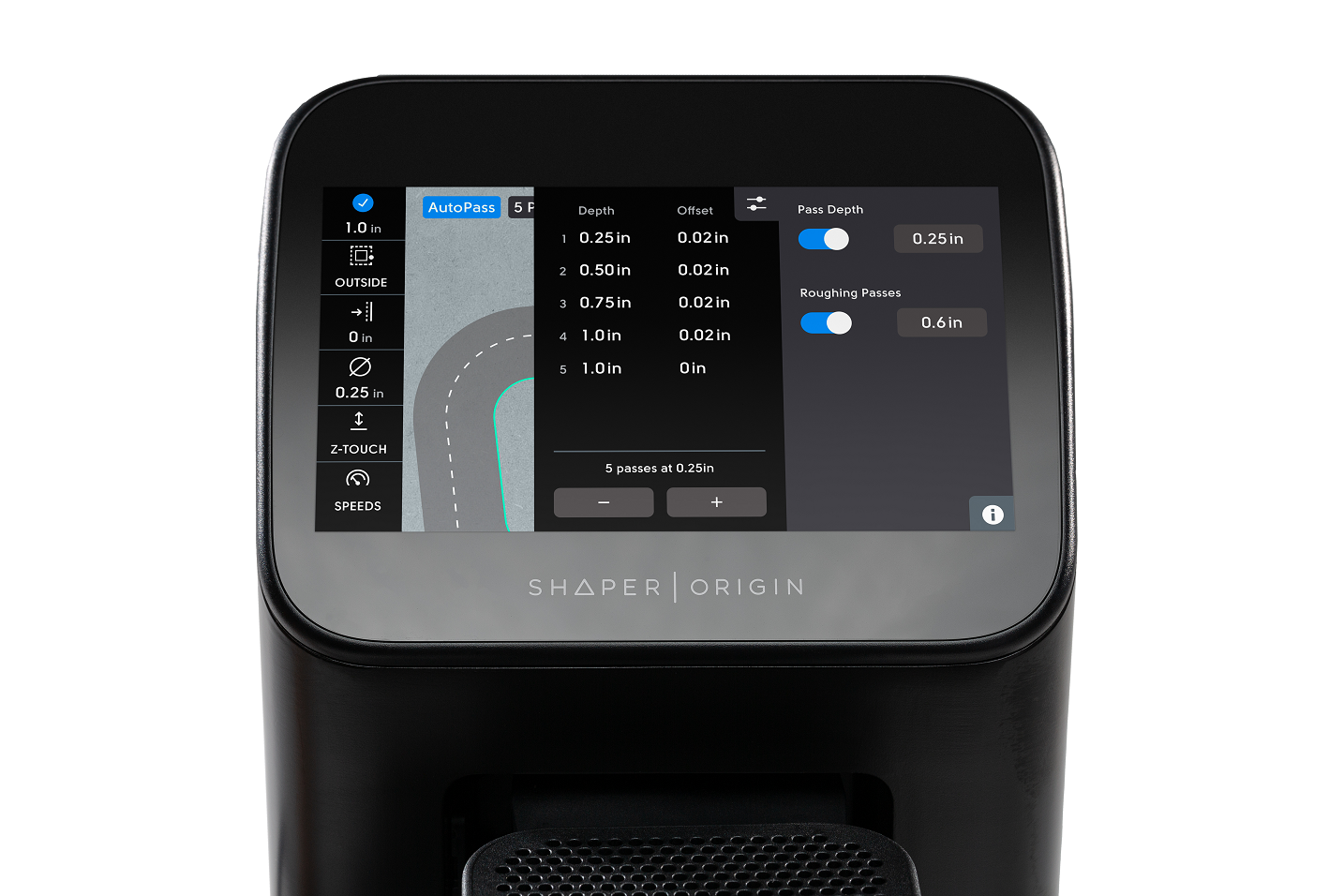

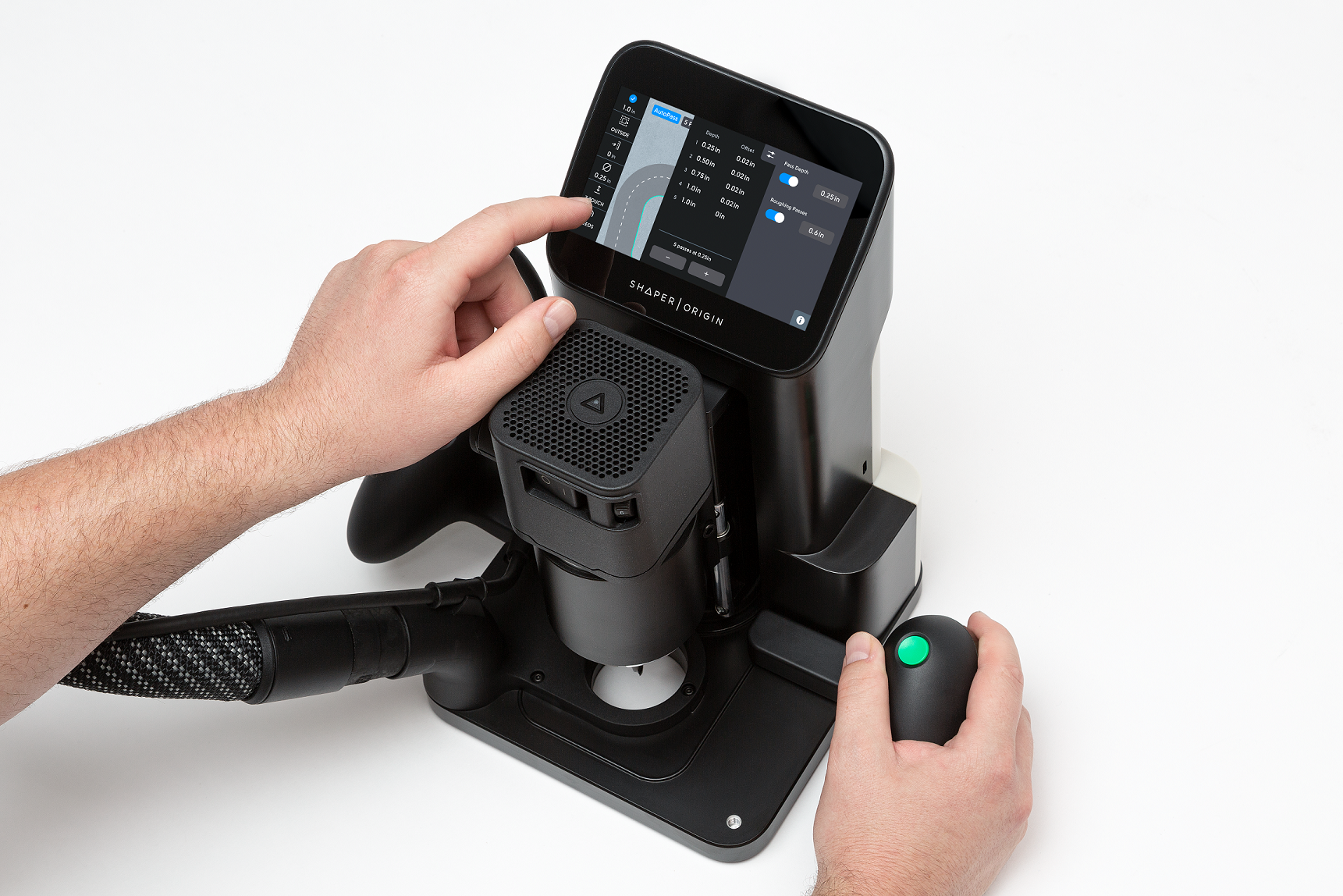

  • Intuitive touch screen interface
  • On-tool design
  • Suitable with a range of router bits
  • Precise depth control
  • Easy adjustments for tight fitting joints
  • Cut perfect box joints and mortise and tenons
  • Work at any scale

Specifications

  • Input Power: 120VAC, 60Hz. 7A
  • Spindle Motor: 720W brushed AC motor. 10,000-26,000 RPM with load-compensating speed control soft-start, over-temperature and over-load safety cut-offs. Produce by Festool to Shaper specifications.
  • Collet: Includes a 1/4" collet that accepts any commonly available 1/4" shank router bits. 1/8" collet sold seperately, available from Shaper.
  • Depth Control: 43mm (1/7") of total Z-axis travel. Digitally adjustable depth-of-cut. Automated touch-off sensor.
  • Dust Extraction Port: Designed with the SM-1 spindle to provide optimal debris extraction. 34mm inner diameter by 39mm outer diameter port dimensions. Fits most standard 27mm (35mm OD) and 36mm suction hoses (e.g. Festool, Fein).
  • Connectivity: Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates. USB port allows easy offline transfer of design files.
  • Digital Cut Files: Works with standard vector files (SVG). Includes on-tool design capabilities.
  • Touch Screen: Capacitive multi-touch full-color LCD
  • Dimensions: Origin: 13-3/4” (handle-to-handle) x 7-3/4” x 11-3/4”. Systainer: 15-1/2” x 11-1/2” x 17” (SYS 5 T-LOC Systainer).
  • Weight: Origin: 14.5 lbs. Packaged (with accessories) in Systainer: 23.5 lbs
In stock, 1 units

Shaper Tools Origin Handheld CNC Router Generation 2

Shaper Tools Origin Handheld CNC Router Generation 2

Add to wishlist Add to wishlist

SKU: ST-SO2-UN

$2,899.00
$2,899.00 $2,899.00
4.8 67 Reviews Instock
100% of buyers have recommended this.
Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within 1-2 business days . (Minimum order quantity: 1)

Description

Bring digital precision to the craft of woodworking with Origin – the handheld CNC router. Cut with unparalleled precision, flexibility and efficiency.

Origin is the world’s first hand-held CNC router. With onboard automatic cut correction, Origin makes precision cutting easy. Avoid the envelope limits of traditional CNC machines and tackle projects at a wide range of scales with a single, compact tool. With annual system updates and optional extensions, Origin is the only power tool that gets better with age. Create simple designs on the tool itself, or using Shaper Studio. You can also upload an existing design of your own. Additionally, Origin-ready files and hardware templates are available on ShaperHub.

Features and Benefits

  • Automatic cut correction
  • No programming required
  • Intuitive touch screen interface
  • On-tool design
  • Suitable with a range of router bits
  • Precise depth control
  • Easy adjustments for tight fitting joints
  • Cut perfect box joints and mortise and tenons
  • Work at any scale

Specifications

  • Input Power: 120VAC, 60Hz. 7A
  • Spindle Motor: 720W brushed AC motor. 10,000-26,000 RPM with load-compensating speed control soft-start, over-temperature and over-load safety cut-offs. Produce by Festool to Shaper specifications.
  • Collet: Includes a 1/4" collet that accepts any commonly available 1/4" shank router bits. 1/8" collet sold seperately, available from Shaper.
  • Depth Control: 43mm (1/7") of total Z-axis travel. Digitally adjustable depth-of-cut. Automated touch-off sensor.
  • Dust Extraction Port: Designed with the SM-1 spindle to provide optimal debris extraction. 34mm inner diameter by 39mm outer diameter port dimensions. Fits most standard 27mm (35mm OD) and 36mm suction hoses (e.g. Festool, Fein).
  • Connectivity: Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates. USB port allows easy offline transfer of design files.
  • Digital Cut Files: Works with standard vector files (SVG). Includes on-tool design capabilities.
  • Touch Screen: Capacitive multi-touch full-color LCD
  • Dimensions: Origin: 13-3/4” (handle-to-handle) x 7-3/4” x 11-3/4”. Systainer: 15-1/2” x 11-1/2” x 17” (SYS 5 T-LOC Systainer).
  • Weight: Origin: 14.5 lbs. Packaged (with accessories) in Systainer: 23.5 lbs
