Functions

Durability and precision under the toughest conditions. Adapted to the application and material. Made from high quality steel with saw teeth made from fine grain carbide. After all, you can only achieve a perfect cut when the saw blade is as good as the machine.

• The systematic solution for cuts in aluminum and plastic
• Saw teeth made of high-quality carbide – for optimum sawing speed resulting in perfect cuts
• Cutting angle and tooth shape are adapted to the application and machine
• Flat tooth with variable chamfer for consistent quality and a long service life

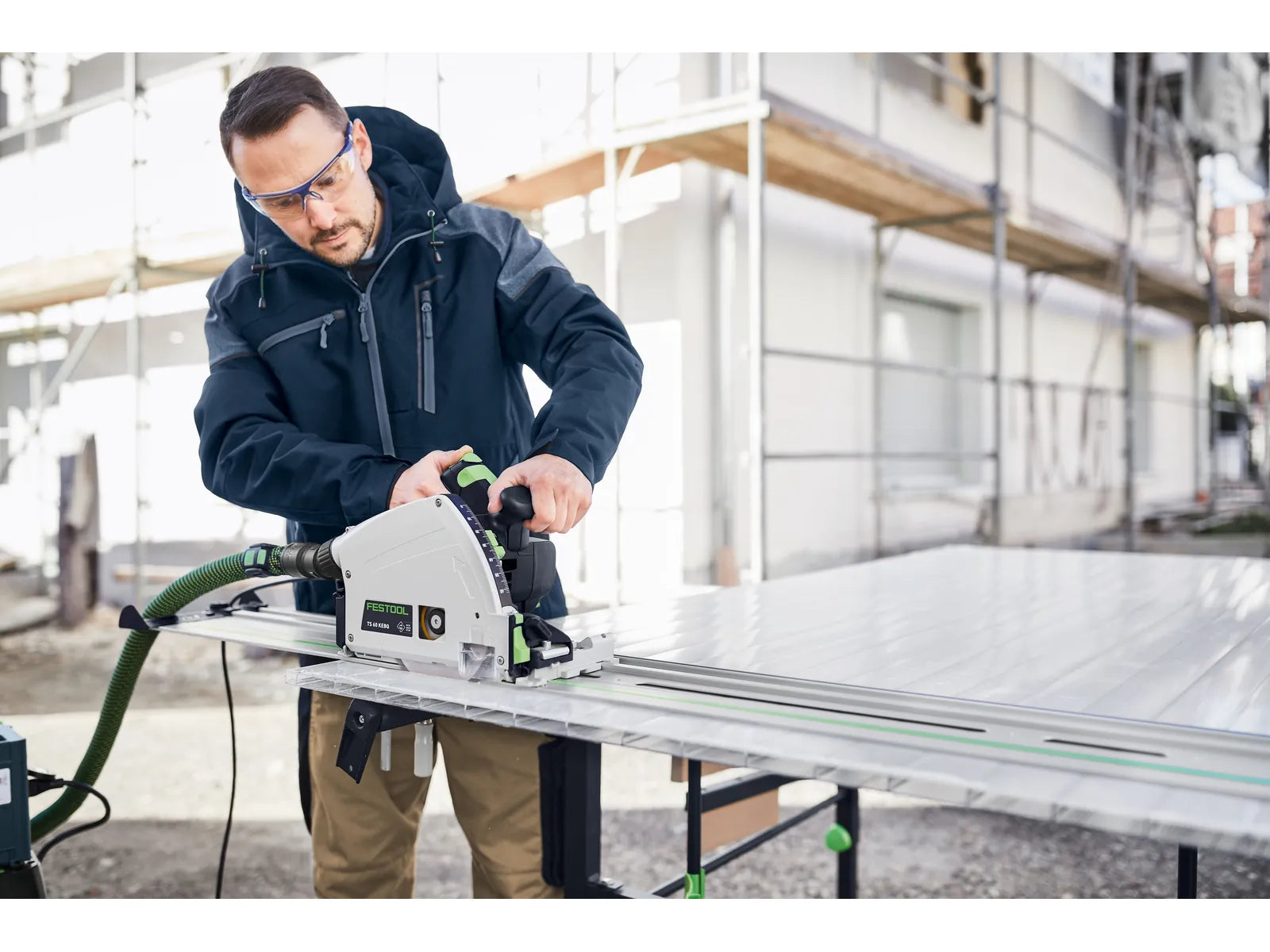

• Ideal in combination with the Festool TS 60 K plunge-cut saw – for exact, efficient working
• Color coding makes it easier to select the correct saw blade

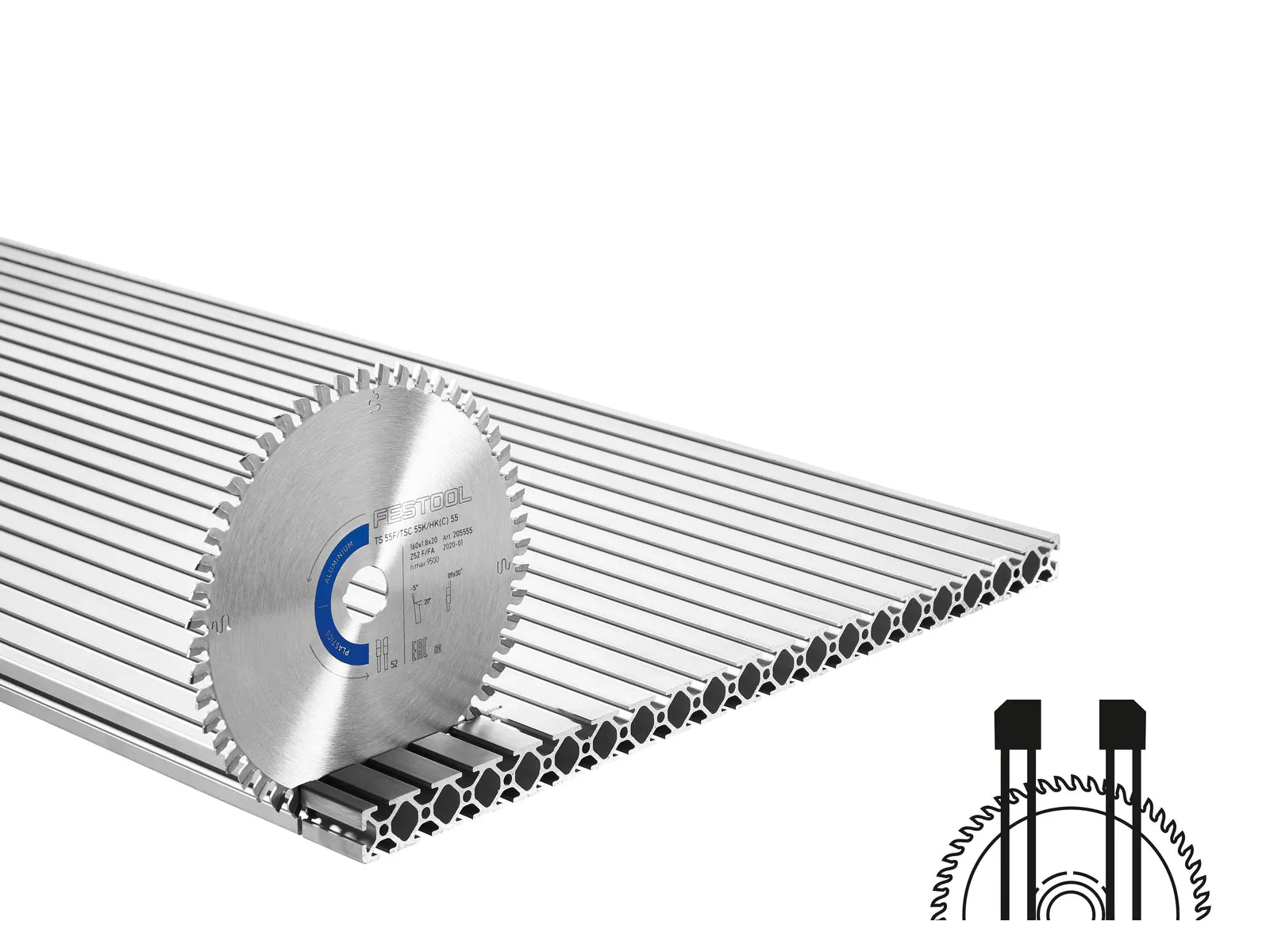

• For aluminum panels and profiles, perspex, hard and fiber-reinforced plastics, non-ferrous metals, aluminum composite panel

Utilization

• For machining aluminum composite panels
• Cutting non-ferrous metals such as copper and brass
• Cutting twin-wall sheeting
• Cutting plastic-based materials such as phenolic-resin-bonded fibres and fabrics, PVC and acrylic glass

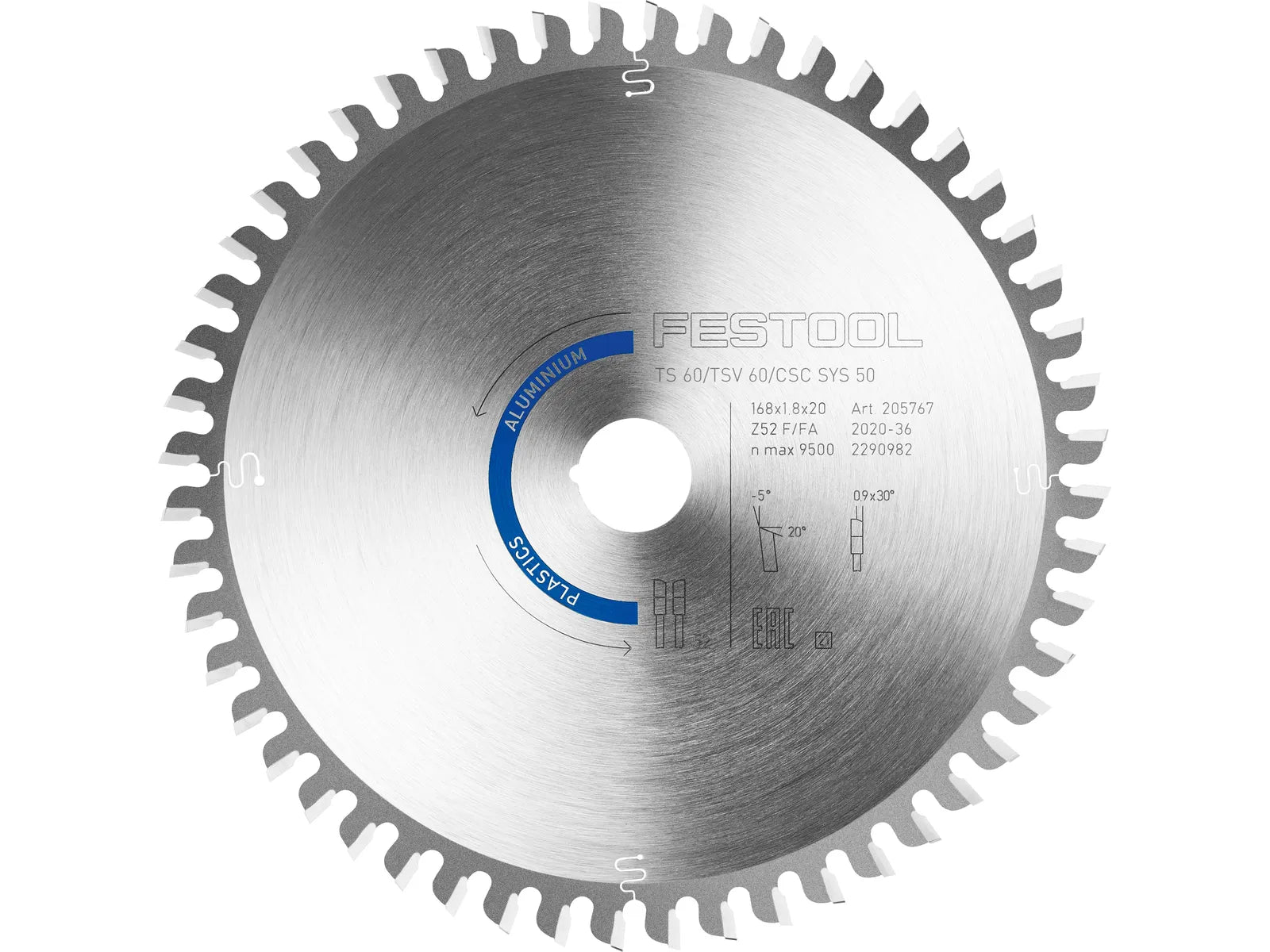

• No. of teeth: 52.00
• Chip angle: -5.00 °
• Tooth shape: F/FA
• Relief angle: 20.00 °
• Diameter: 6.61" (168 mm)
• Hole dia.: 0.79" (20 mm)
• Standard blade thickness: 0.05" (1.2 mm)
• Cutting width: 0.07" (1.8 mm)
