Specifications

  • Manufacturer: Accuride
  • Manufacturer Model: 3634EC
  • Installed Length: 14"
  • Extension Length: 15"
  • Maximum Drawer Width: 42"
  • Extension Type: Full Extension
  • Detent Type: Hold-in
  • Disconnect Type: Lever
  • Mount Type: Side Mount
  • Weight Capacity: 150 lbs./pair
  • Special Feature: Soft Close, 1" Overtravel

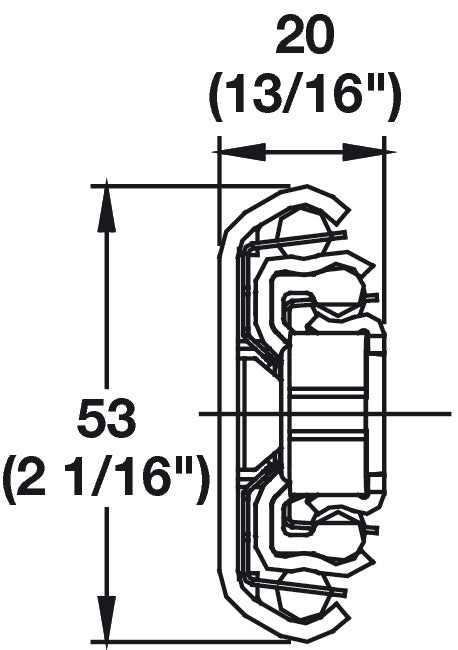

  • Side Spacing: 0.78'' (drawer should be 1-9/16'' less than cabinet opening)
Fulfill

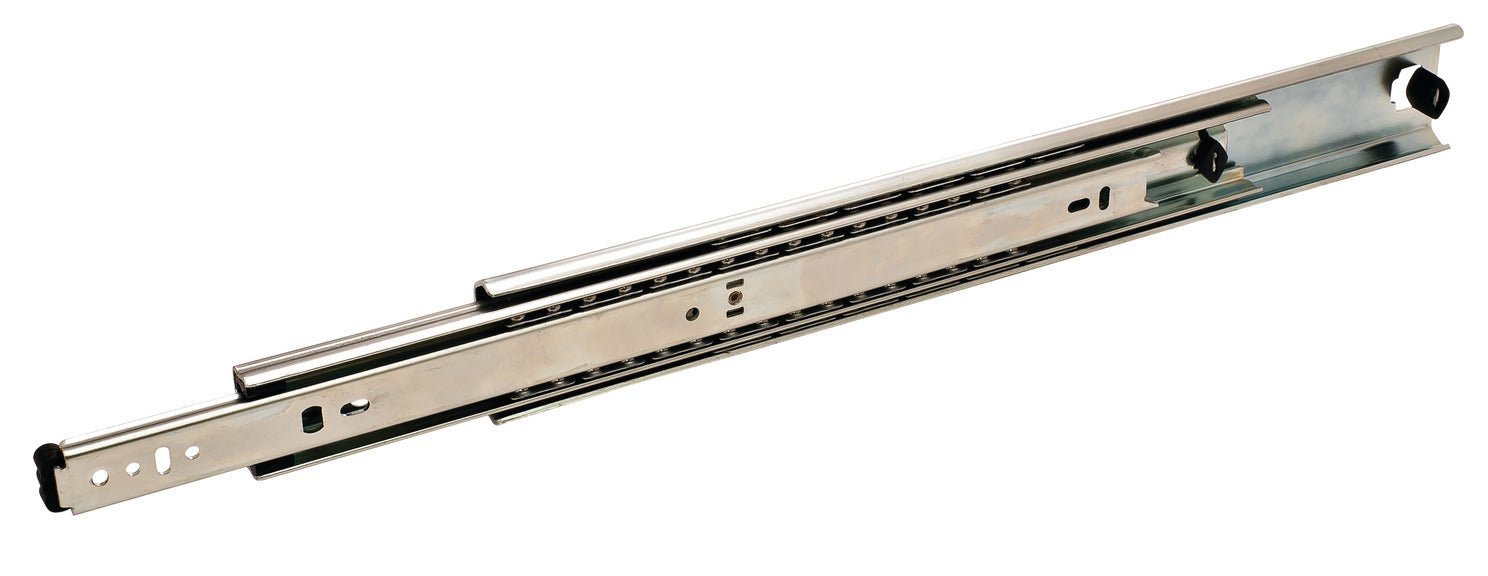

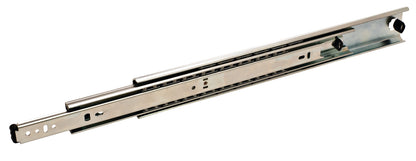

3634EC Soft Close Drawer Slide Heavy Duty Full Extension w/ Overtravel - Accuride

3634EC Soft Close Drawer Slide Heavy Duty Full Extension w/ Overtravel - Accuride

SKU: HA-422.05.102

$130.12
$162.65 $130.12
14"
14"16"18"20"22"24"26"28"
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 1-2 business days . (Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
Full policy →
Documents

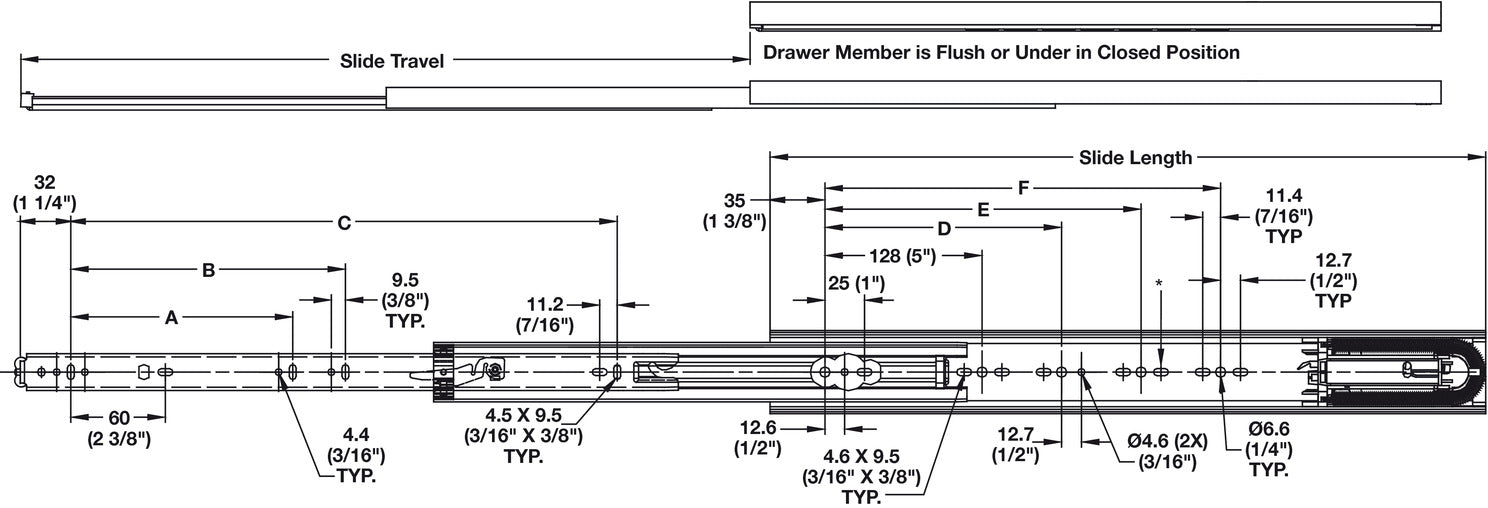

3634EC Catalog Page

Specifications

  • Manufacturer: Accuride
  • Manufacturer Model: 3634EC
  • Installed Length: 14"
  • Extension Length: 15"
  • Maximum Drawer Width: 42"
  • Extension Type: Full Extension
  • Detent Type: Hold-in
  • Disconnect Type: Lever
  • Mount Type: Side Mount
  • Weight Capacity: 150 lbs./pair
  • Special Feature: Soft Close, 1" Overtravel
  • Side Spacing: 0.78'' (drawer should be 1-9/16'' less than cabinet opening)
View full details
