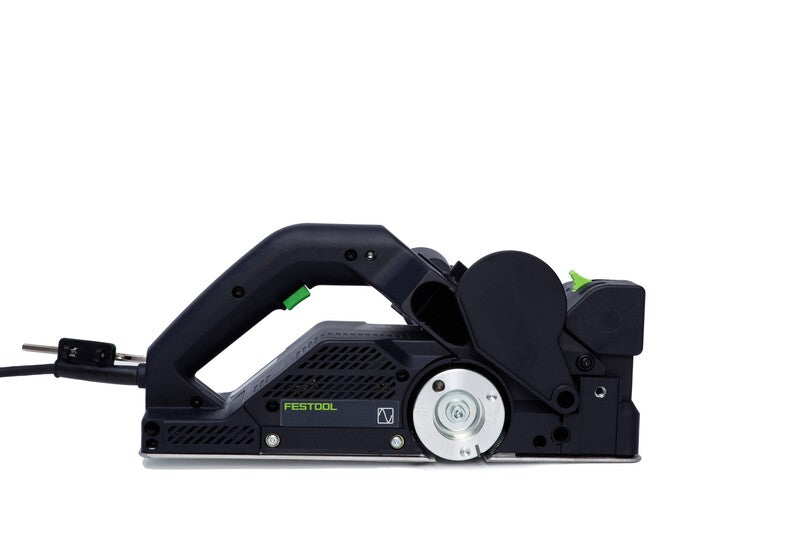

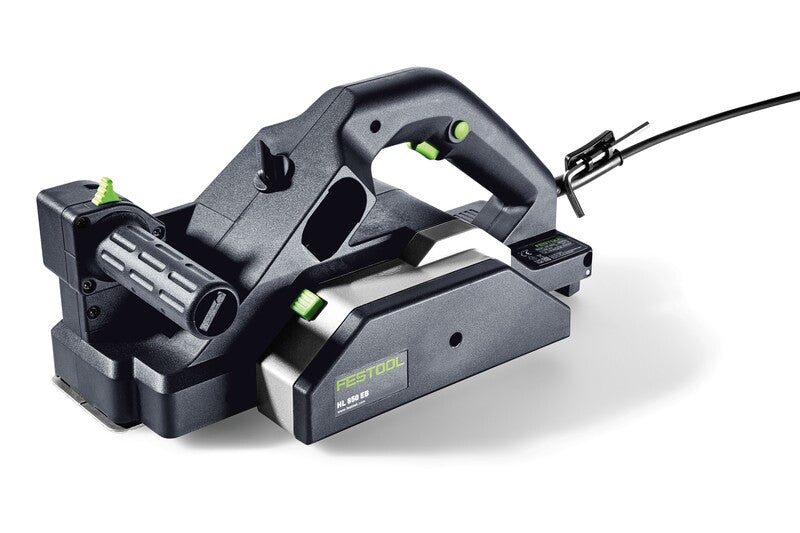

Festool 576258 HL 850 E-F-Plus Planer with Systainer3

Functions

Unlimited rabbeting

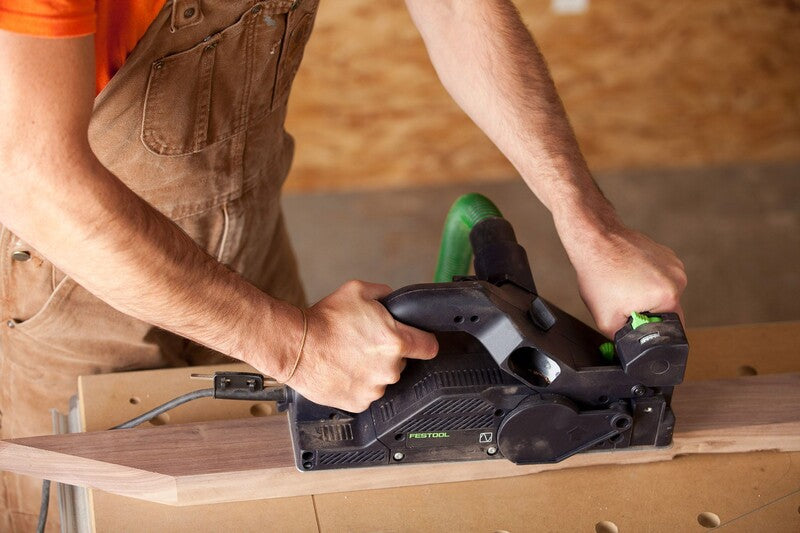

Using an electric planer right up to the edge or on rabbets often produces unsatisfactory results, as the machine leaves a lip that has to be removed by hand—unless you have the Festool HL 850 planer. The HL 850 lets you cut flush to an adjacent surface because it can plane across the entire width of the rabbet. Because the planer head is mounted to one side, it sits flush with the opposite side of the planer housing. The retractable side guard makes planing safer, and it swings up and to the side as the rabbet depth increases. Planing up to the edge in deep rabbets is no longer a problem.

This is the new imperial version of this tool. It is identical to the previous version with the exception of the units on the depth scale.*OF Routers produced after 2021 are NOT compatible with the Router Table CMS and all variations.

• Single knife cutter-head with spiral design with replaceable cutting knife for a smooth, quiet and “chatter-free” cut.
• Multiple head options to create rustic architectural effects in beams and flooring.
• Unlimited rabbeting depth with flush cutter side design and retractable spring-loaded guard.

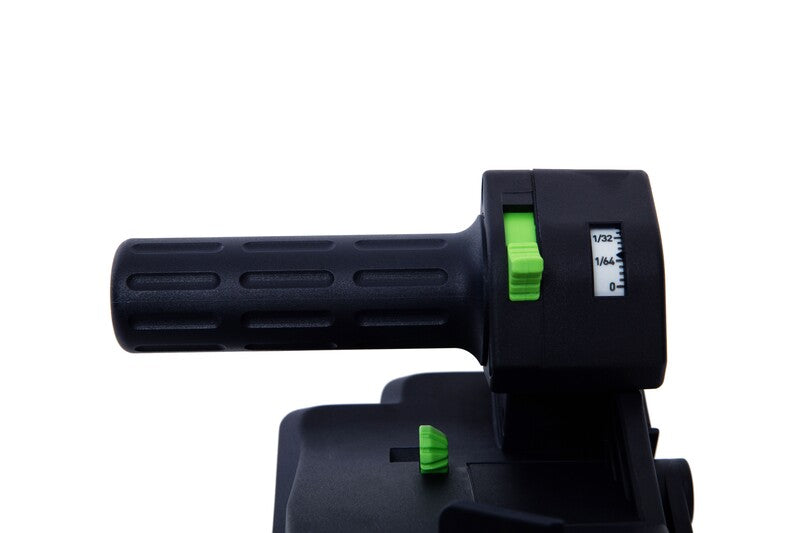

• Rotary handle depth adjustment allows precise depth setting to 1/256" (1/10 mm) up to 9/64" (3.5 mm).

Product highlights

• Achieve excellent results more quickly

  Single-bearing planing head for working right up to the edge and to unlimited rebating depths without rework.

• Convenient and safe

  With its quick-acting safety brake for fast tool stop, the HL 850 minimizes the risk of injury and damage to the work material.

• Systems get it done

  Incredibly versatile with system accessories such as rustic planing heads and angle stop.

• Planer shaft speed : 12,000.00 RPM
• Cable length : 3.80 m
• Max. rebate depth : ∞
• Planing width : 3-1/4" (82 mm)
• Dust extraction connection dia. : 1-1/2" (36 mm)
• Weight: 9.26 lb (4.2 kg)
• Drive type : 120 VAC
• Planing depth : 0" (0 mm) - 1/8" (3.5 mm)
• Cable length : 12.467 ft (3.8 m)
• Power consumption : 850 watt

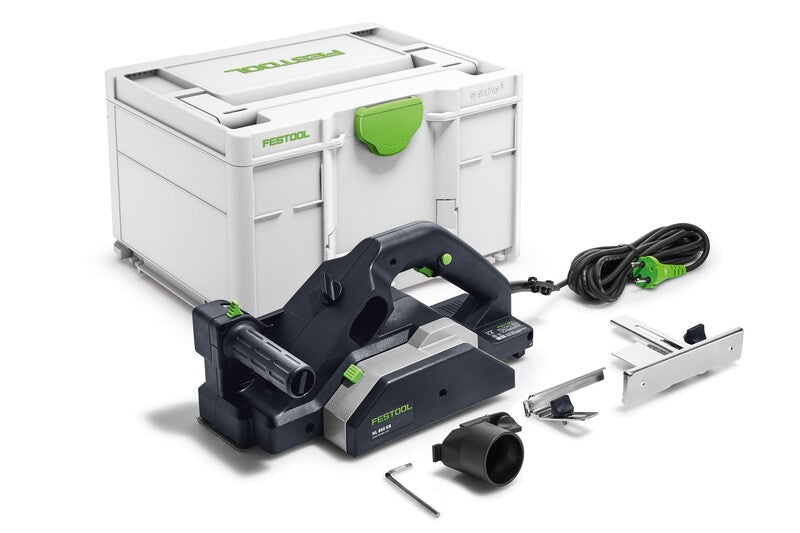

• Planer Head
• rip fence
• rabbet depth stop
• extraction adapter
• hex key 5 mm
• Systainer SYS3 M 237
