Description
Description
This 9mm Inset Face Frame Adapter Plate allows you to create an inset door application when you have a face frame cabinets. You MUST utilize a Blum half overlay hinge to achieve this result. This is due to the adapter plate having a 9mm offset which when added together with a half overlay hinge (also a 9mm offset) you will achieve the total of 18mm offset, allowing the door to clear the face frame and rest within.
Specifications
Specifications
- Mounting Plate System: CLIP
- Spacing: 9 mm
- Material: Steel
- Surface: Nickel-plated
- Application: Face Frame
- Distance between mounting locations: 32 mm
- Diameter of mounting holes: 3 mm
- Adjustment: Height with Cam
- Mouting Type: With wood screws
- Screws Needed: #7 x 3/4" wood screws (not included)

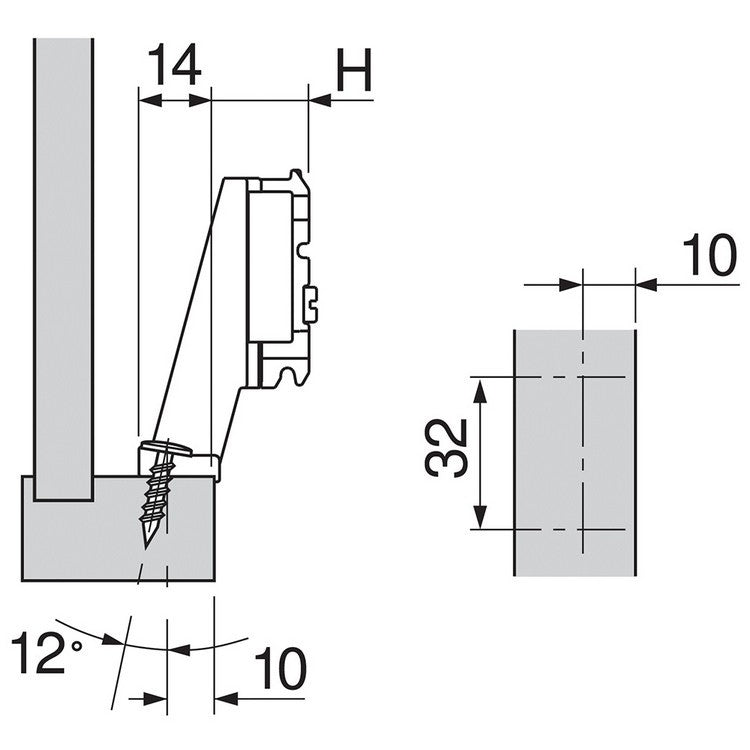

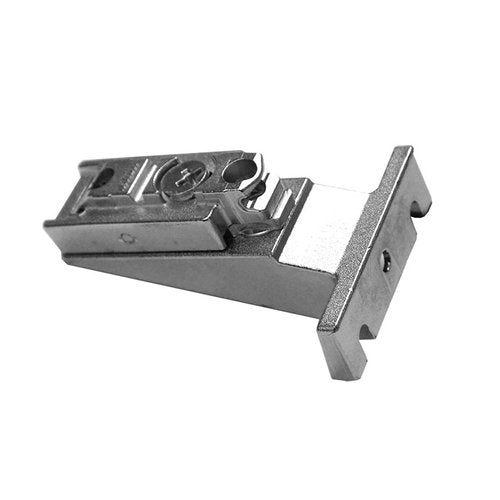

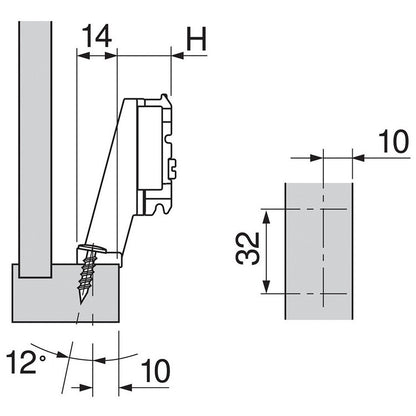

Blum 175H5030.21 9mm Inset Face Frame Adapter Plate
Blum 175H5030.21 9mm Inset Face Frame Adapter Plate
SKU: SKU: BL-175H5030.21
Description
Description
This 9mm Inset Face Frame Adapter Plate allows you to create an inset door application when you have a face frame cabinets. You MUST utilize a Blum half overlay hinge to achieve this result. This is due to the adapter plate having a 9mm offset which when added together with a half overlay hinge (also a 9mm offset) you will achieve the total of 18mm offset, allowing the door to clear the face frame and rest within.
Specifications
Specifications
- Mounting Plate System: CLIP
- Spacing: 9 mm
- Material: Steel
- Surface: Nickel-plated
- Application: Face Frame
- Distance between mounting locations: 32 mm
- Diameter of mounting holes: 3 mm
- Adjustment: Height with Cam
- Mouting Type: With wood screws
- Screws Needed: #7 x 3/4" wood screws (not included)
