Description

  • Specialized wire management system holds bins securely in place
  • Pre-assembled units install easily with only four screws
  • Easy-open handle is standard on all units and integrated on triple bin units. Its wide, open architecture makes it easy to grasp.

Specifications

  • Type of pullout: Heavy-duty ball bearing precision slides with overtravel
  • Load bearing capacity: 80 lbs (36 kg)
  • Material: Frame: Steel; Bins: Plastic
  • Color: White
  • Minimum cabinet opening: 9" W x 20-1/2" D x 17-13/16" H
  • Overall dimensions: 8-3/8" W x 20-1/8" D x 17-5/16" H
  • Bin Capacity: 20 qt
  • Width of sliding assembly: 8-3/8"
  • Depth at top of bin: 15"
Fulfill

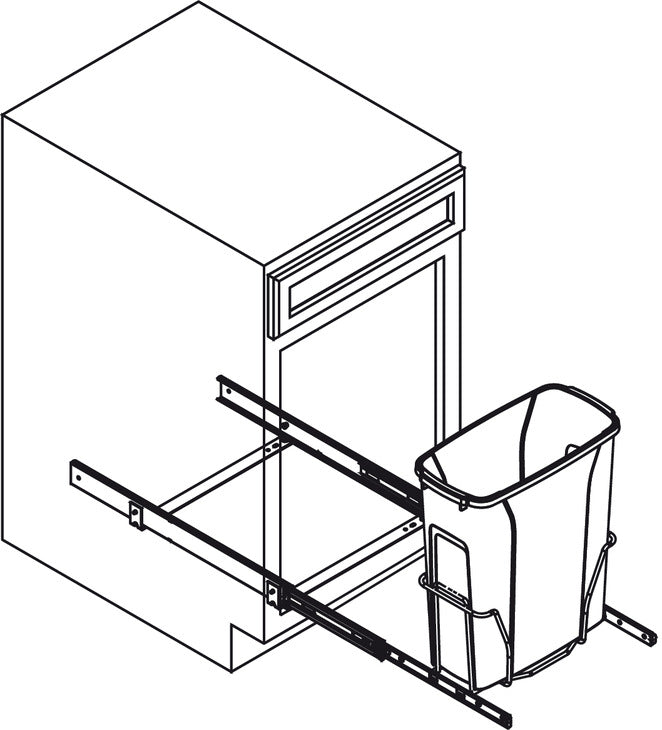

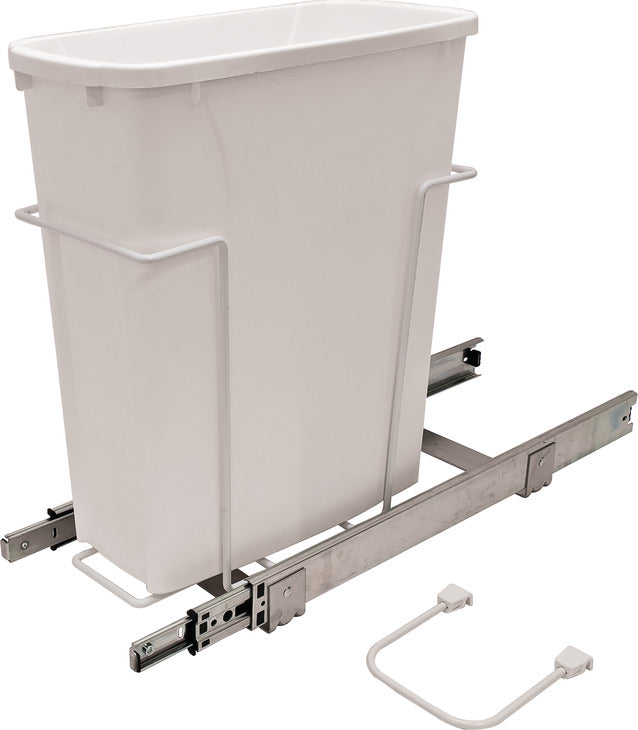

KV Bottom Mount Wire Single Waste Bin Pull Out

KV Bottom Mount Wire Single Waste Bin Pull Out

Add to wishlist Add to wishlist

SKU: HA-503.12.760

$148.80
$186.00 $148.80
20 qt (min. cab. 9" wide)
20 qt (min. cab. 9" wide)35 qt (min. cab. 10" wide)35 qt (min. cab. 15" wide)50 qt (min. cab. 12" wide)
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 1-2 business days . (Minimum order quantity: 1)
Documents
KV Single Mounting Instructions TCh Furniture Cabinetry Hardware Product Page 3.23

Description

  • Specialized wire management system holds bins securely in place
  • Pre-assembled units install easily with only four screws
  • Easy-open handle is standard on all units and integrated on triple bin units. Its wide, open architecture makes it easy to grasp.

Specifications

  • Type of pullout: Heavy-duty ball bearing precision slides with overtravel
  • Load bearing capacity: 80 lbs (36 kg)
  • Material: Frame: Steel; Bins: Plastic
  • Color: White
  • Minimum cabinet opening: 9" W x 20-1/2" D x 17-13/16" H
  • Overall dimensions: 8-3/8" W x 20-1/8" D x 17-5/16" H
  • Bin Capacity: 20 qt
  • Width of sliding assembly: 8-3/8"
  • Depth at top of bin: 15"
View full details
