Description

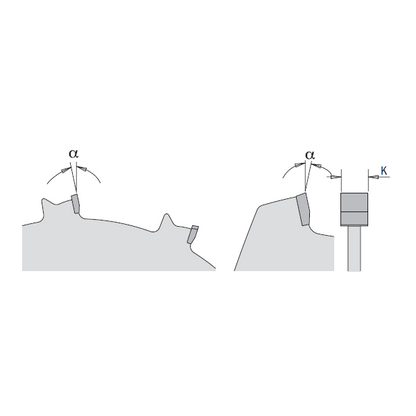

SKU	Pin Hole (FT)	Diameter (D)	Kerf Thickness (K)	Bore Diameter (B)	Type of Grind (β)	Number of Cutting Edges (Z)	Plate Thickness (P)	Hook Angle (α)
230.224.08	N/A	8"	0.250"	5/8"	FTG	24+24	0.125"	15°

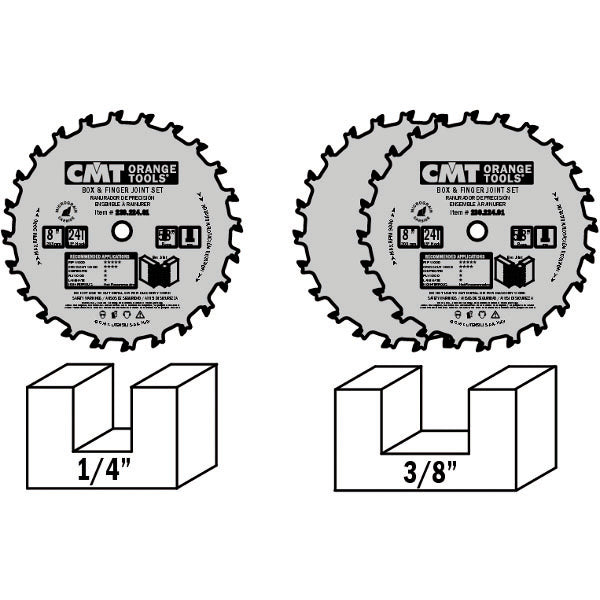

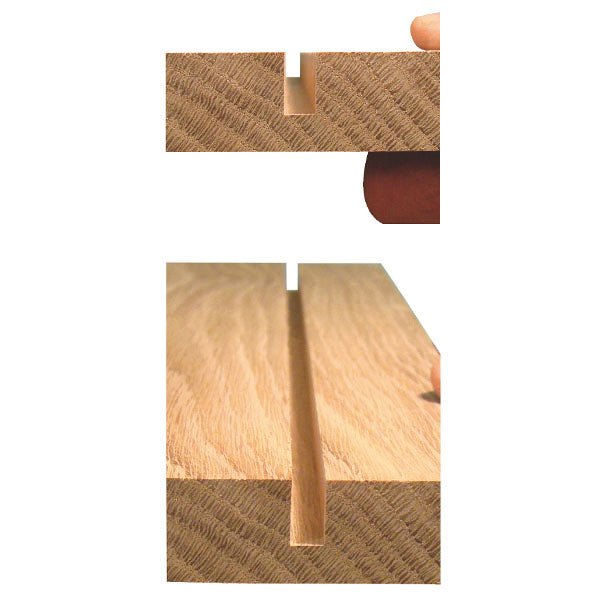

Yet another practical solution for making box and finger joints easily and quickly. This set contains two identical blades featuring 24 teeth and 5/8” bore. This not only offers the distinctive advantage of producing 1/4” grooves with the use of one single blade but also extends the groove to 3/8” thickness by laying the two blades upon each other, with no setting and shims needed.

THE SET HIGHLIGHT:

Excellent and precise cut on soft and hardwood for fine joinery
Only one cutter, instead of two, is required for producing 1/4” thick grooves, no longer two
3 shims for adjustment after re-sharpening
You will need to lay two cutters upon each other for making 3/8” grooves
Long-lasting performance.

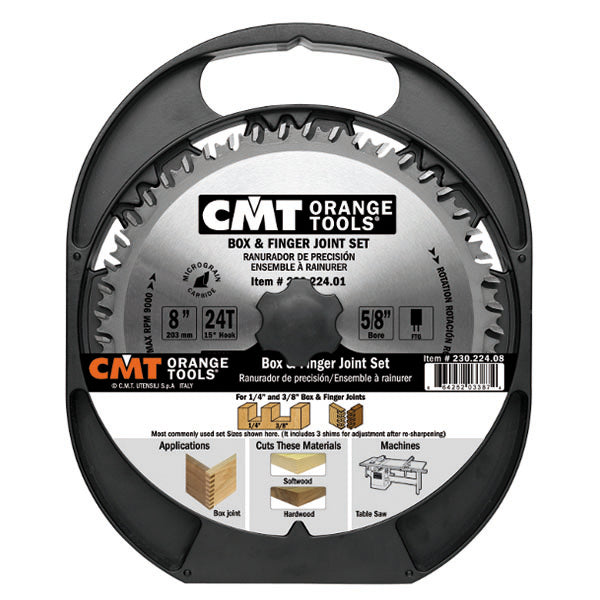

THE SET INCLUDE:

2 blades 1/4" kerf
2 shims 0.004"
1 shim 0.012"

Fulfill

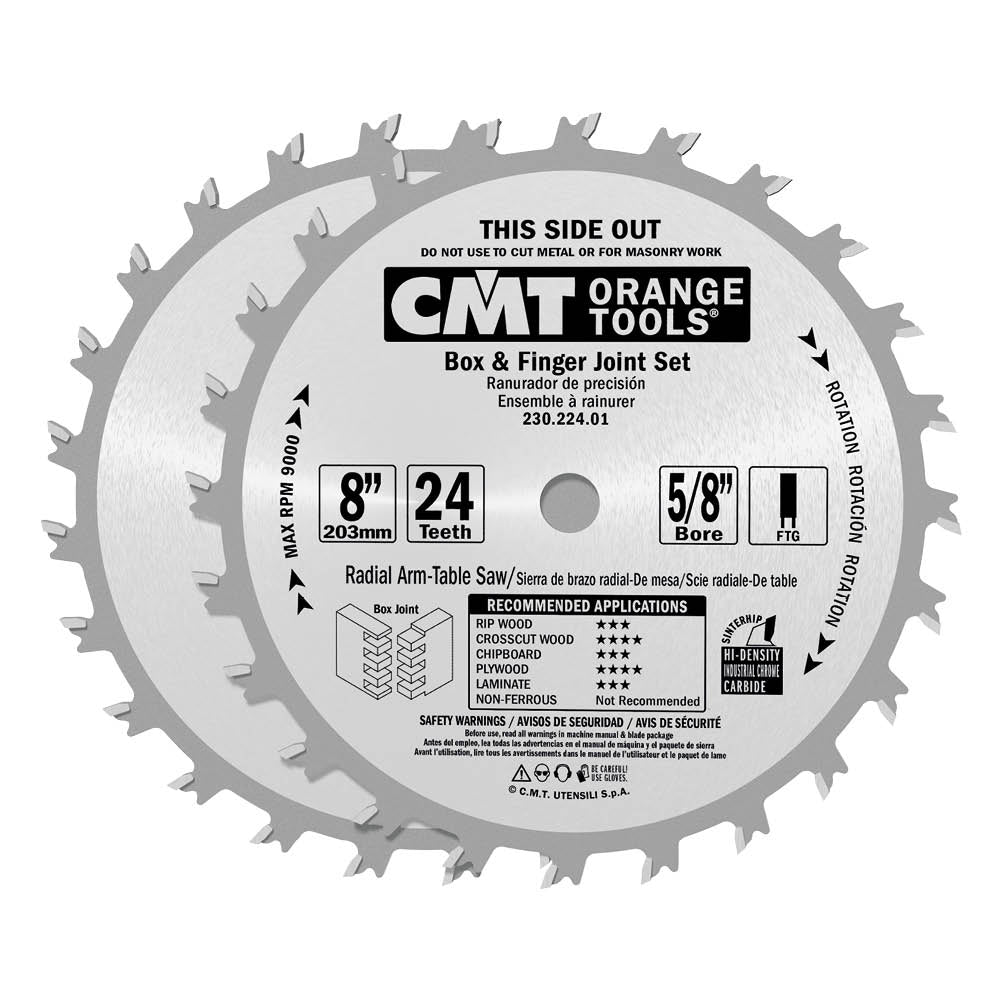

CMT Box Finger Joint Saw Blade Set

SKU: SKU: CMT-230.224.08

$69.97

~~$129.90~~ $69.97

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Returns: Items may be returned within 14 days. A 25% restocking fee applies.

Full policy →

Description

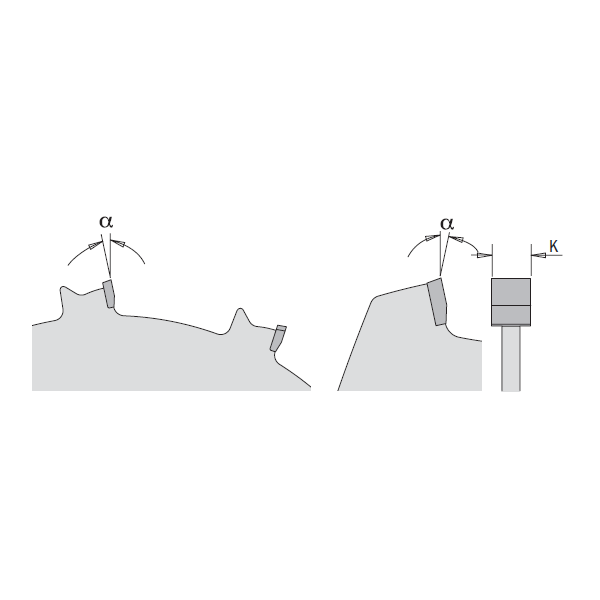

SKU	Pin Hole (FT)	Diameter (D)	Kerf Thickness (K)	Bore Diameter (B)	Type of Grind (β)	Number of Cutting Edges (Z)	Plate Thickness (P)	Hook Angle (α)
230.224.08	N/A	8"	0.250"	5/8"	FTG	24+24	0.125"	15°

THE SET HIGHLIGHT:

Excellent and precise cut on soft and hardwood for fine joinery
Only one cutter, instead of two, is required for producing 1/4” thick grooves, no longer two
3 shims for adjustment after re-sharpening
You will need to lay two cutters upon each other for making 3/8” grooves
Long-lasting performance.

THE SET INCLUDE:
