Description
Description

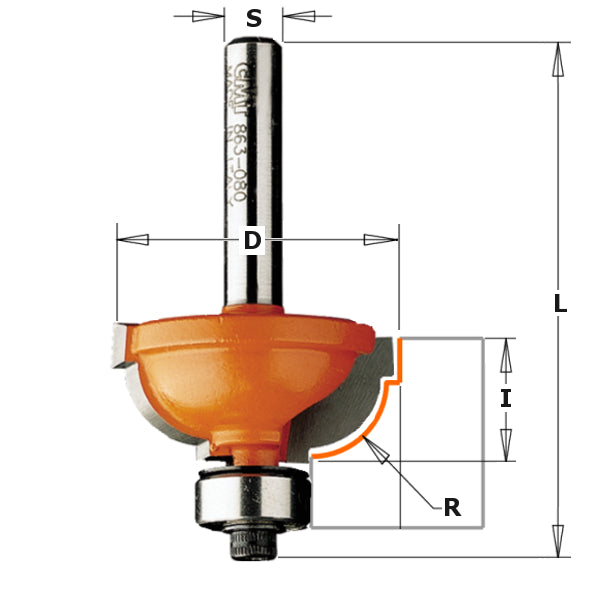

| SKU | Diameter (D) | Cutting Length (I) | Total Length (L) | Shank Diameter (S) | Number of Cutting Edges (Z) | Material (MAT) | Rotation (RH-LH) |
|---|---|---|---|---|---|---|---|
| 863.048.11 | 1" | 29/64" | 2-1/8" | 1/4" | 2 | HW | RH |
| 863.548.11 | 1" | 29/64" | 2-3/8" | 1/2" | 2 | HW | RH |
| 864.048.11 | 1" | 29/64" | 2-3/32" | 1/4" | 2 | HW | RH |
| 864.548.11 | 1" | 29/64" | 2-5/16" | 1/2" | 2 | HW | RH |
| 864.580.11 | 1-1/4" | 9/16" | 2-13/32" | 1/2" | 2 | HW | RH |
| 864.080.11 | 1-1/4" | 9/16" | 2-5/32" | 1/4" | 2 | HW | RH |
| 863.580.11 | 1-1/4" | 9/16" | 2-15/32" | 1/2" | 2 | HW | RH |
| 863.080.11 | 1-1/4" | 9/16" | 2-1/4" | 1/4" | 2 | HW | RH |

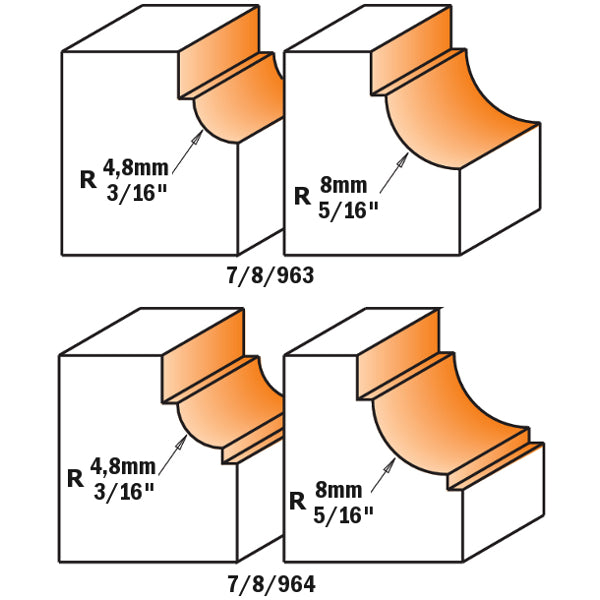

The cavetto bit cuts beautiful, traditional profiles, but you may also use just a portion of the bit to cut a more simple and cleaner cove edge. This bit add a special touch to furniture pieces by making traditional cove profiles with top and bottom fillet grooves in any kind of wood and wood composites.
IMPORTANT: always assemble the black bearing heat shield with the raised side up when changing the bearing. Improper assembly will cause the screw to come loose and the bearing to fall off when routing.
CMT Cavetto Edge Mold Router Bit
CMT Cavetto Edge Mold Router Bit
SKU: SKU: CMT-863.048.11
Description
Description
| SKU | Diameter (D) | Cutting Length (I) | Total Length (L) | Shank Diameter (S) | Number of Cutting Edges (Z) | Material (MAT) | Rotation (RH-LH) |
|---|---|---|---|---|---|---|---|
| 863.048.11 | 1" | 29/64" | 2-1/8" | 1/4" | 2 | HW | RH |
| 863.548.11 | 1" | 29/64" | 2-3/8" | 1/2" | 2 | HW | RH |
| 864.048.11 | 1" | 29/64" | 2-3/32" | 1/4" | 2 | HW | RH |
| 864.548.11 | 1" | 29/64" | 2-5/16" | 1/2" | 2 | HW | RH |
| 864.580.11 | 1-1/4" | 9/16" | 2-13/32" | 1/2" | 2 | HW | RH |
| 864.080.11 | 1-1/4" | 9/16" | 2-5/32" | 1/4" | 2 | HW | RH |
| 863.580.11 | 1-1/4" | 9/16" | 2-15/32" | 1/2" | 2 | HW | RH |
| 863.080.11 | 1-1/4" | 9/16" | 2-1/4" | 1/4" | 2 | HW | RH |
The cavetto bit cuts beautiful, traditional profiles, but you may also use just a portion of the bit to cut a more simple and cleaner cove edge. This bit add a special touch to furniture pieces by making traditional cove profiles with top and bottom fillet grooves in any kind of wood and wood composites.
IMPORTANT: always assemble the black bearing heat shield with the raised side up when changing the bearing. Improper assembly will cause the screw to come loose and the bearing to fall off when routing.

Add to cart
-
Quantity1
-
CMT SKU:863.048.11
