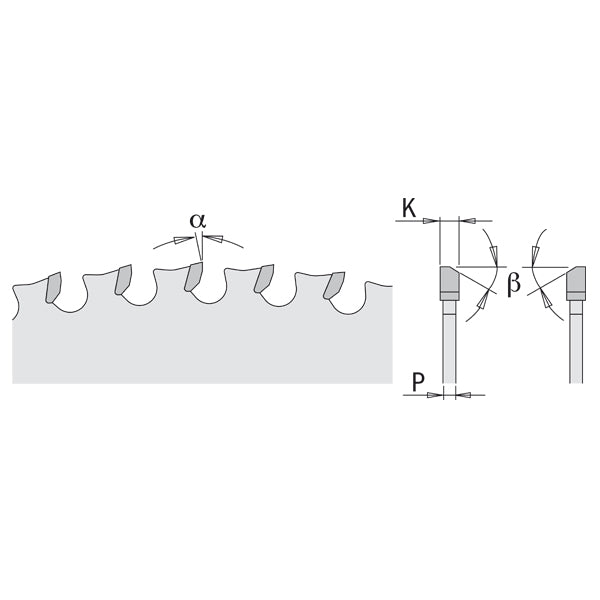

| SKU | Pin Hole (FT) | Diameter (D) | Kerf Thickness (K) | Bore Diameter (B) | Type of Grind (β) | Number of Cutting Edges (Z) | Plate Thickness (P) | Hook Angle (α) |
|---|---|---|---|---|---|---|---|---|
| 226.548.07 | N/A | 7-1/4" | 0.079 | 5/8"<> | TCG | 48 | 0.063 | 10° |

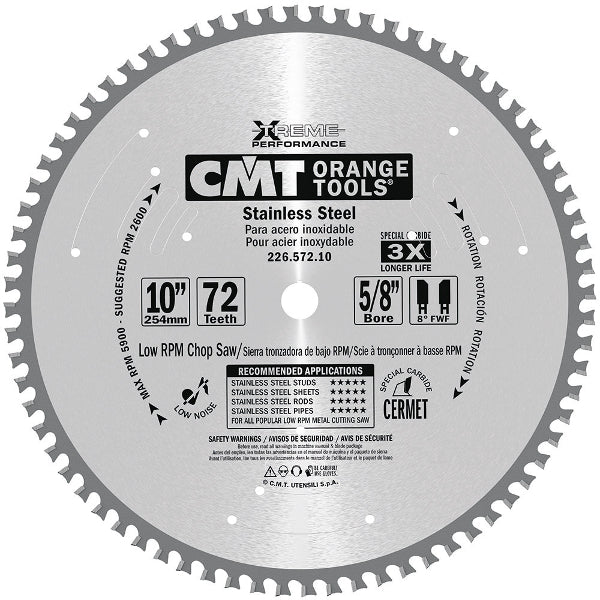

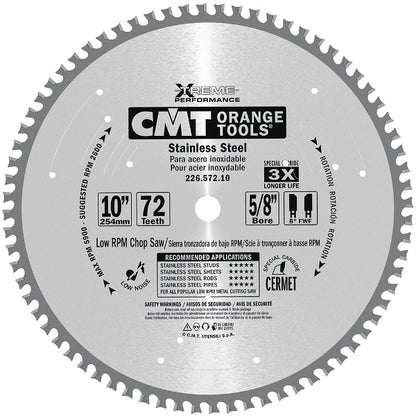

| 226.572.10 | N/A | 10" | 0.087 | 5/8" | 8° FWF | 72 | 0.071 | 10° |
| 226.580.12 | N/A | 12" | 0.087 | 1" | 8° FWF | 80 | 0.071 | 10° |
| 226.590.14 | N/A | 14" | 0.087 | 1" | 8° FWF | 90 | 0.071 | 10° |
TECHNICAL DETAILS OF CARBIDE TEETH:
- Teeth height mm: 5
- ISO Grade: K30
- Hardness (HV10): 1.520
- Transverse rupture strength (N/mm2): 2.300
SAW BLADES IN CARDBOARD BOX:
- 226.572.10M
- 226.580.10M
- 226.590.14M
APPLICATION
- Application: for crosscutting a variety of materials such as iron, steel, pvc, compound materials, melamine.
- Machines: for “dry” crosscutting a variety of materials and ferrous materials such as iron, steel, pvc, compound materials, melamine.
- Material: for stainless steel, studs and galvanized stuff. Max Suggested Hardness HB420/HRC45.
Warning: not recommended for non-ferrous metals, wood, glass, concrete, plastic.
