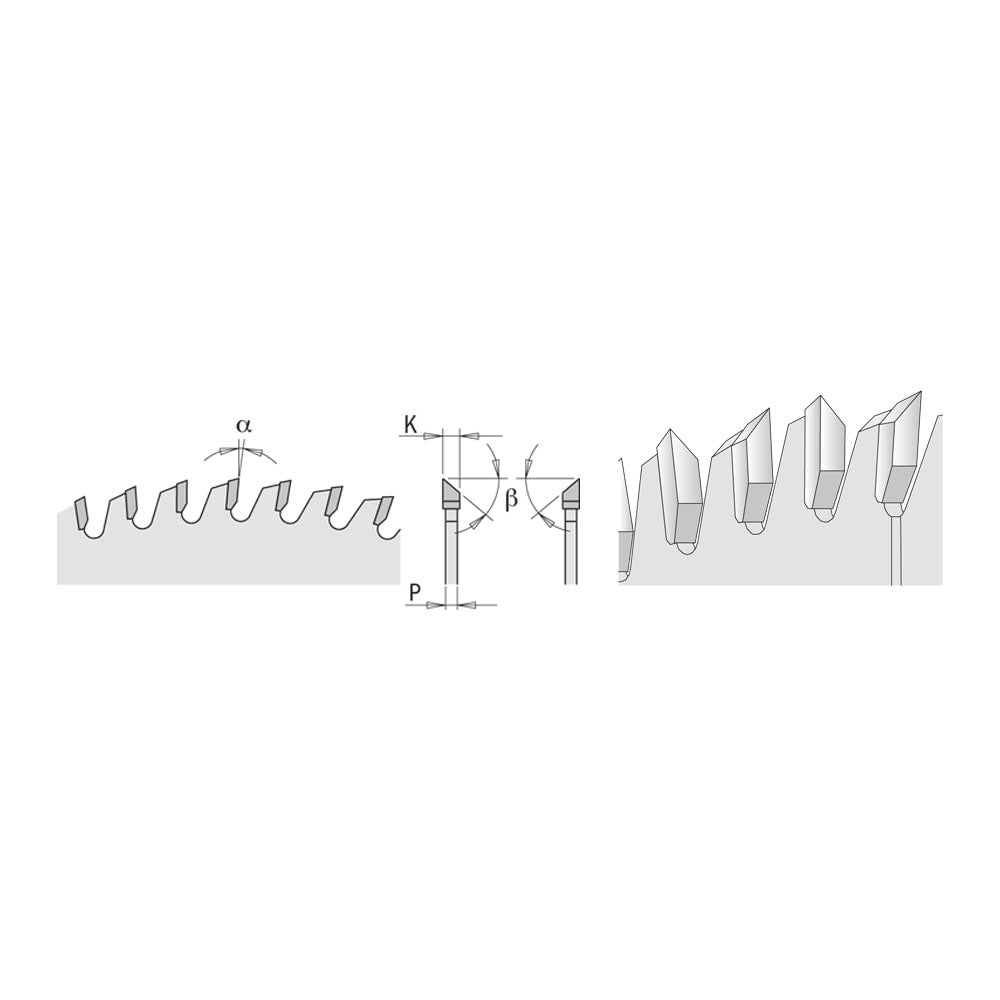

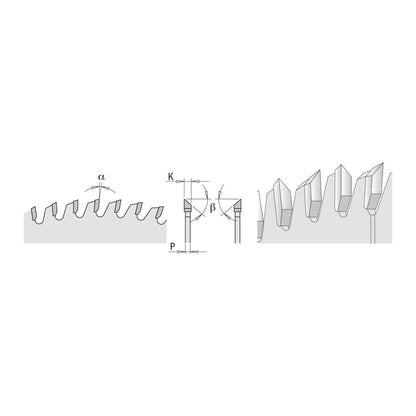

| SKU | Pin Hole (FT) | Diameter (D) | Kerf Thickness (K) | Bore Diameter (B) | Type of Grind (β) | Number of Cutting Edges (Z) | Plate Thickness (P) | Hook Angle (α) |
|---|---|---|---|---|---|---|---|---|
| 283.064.09M | 2/7/42 | 220mm | 0.126 | 30mm | 40° Hi ATB | 64 | 0.087 | -5° |

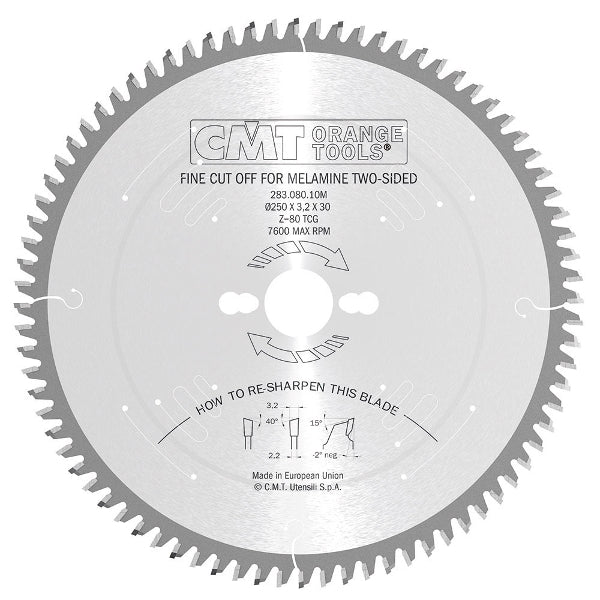

| 283.080.10M | COMBI3 | 250mm | 0.126 | 30mm | 40° Hi ATB | 80 | 0.087 | -2° |
| 283.096.12M | COMBI3 | 300mm | 0.126 | 30mm | 40° Hi ATB | 96 | 0.087 | 2° |
| 283.108.14M | COMBI3 | 350mm | 0.138 | 30mm | 40° Hi ATB | 108 | 0.098 | 5° |
TECHNICAL DETAILS OF CARBIDE TEETH:
- Teeth height mm: 8
- CHROMIUM ISO-Sorte: KCR06
- Hardness (HV10): 1.950
- Transverse rupture strength (N/mm2): 2.300
Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
Saw blade 283.064.09M is non-low noise.
- Application: for crosscuts. Perfect finish on both sides of double-sided laminated panels without using scoring blades.
- Machines: radial arm saws, miter saws, circular saws, table and special saws with 30mm arbor.
- Material: solid wood, moldings, melamine, laminates, veneered plywood, chipboard.
