Hafele Loox Adjustable Door Sensor Switch, Modular Design

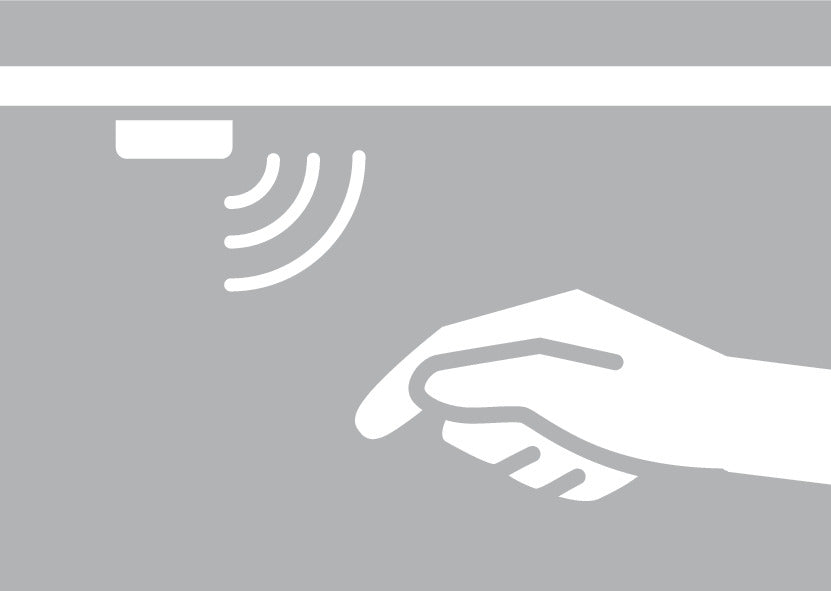

2 in 1 door sensor/touch-free dimmer
Use DIP switch to toggle from touch-free dimmer to door sensor

• Version: Adjustable as dimmer sensor switch (50-100%) or as door sensor switch (dimming value remains stored)
• Switching contact: Touchless
• Control output ports: 1 x socket, Loox switch
• Color/finish: White/Gray/Black

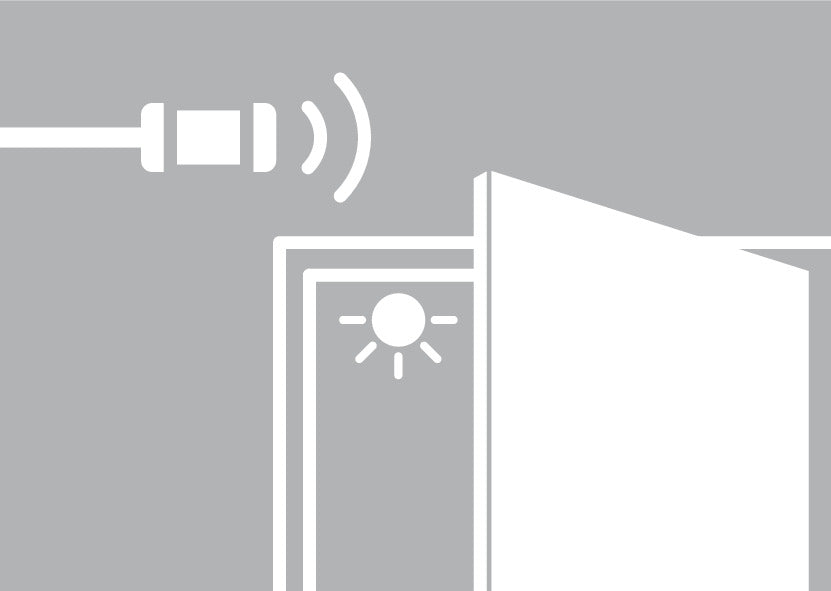

• Switching function: On/off soft, touchless, Door open = light on, door closed = light off, Dimming
• Memory function: Yes (also in currentless condition)
• Drill hole Ø: 12 mm
• Length: 44.5 mm
• Sensor range: 0-75 mm

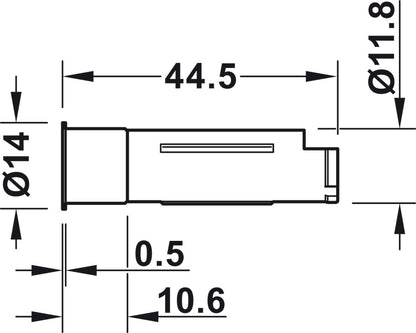

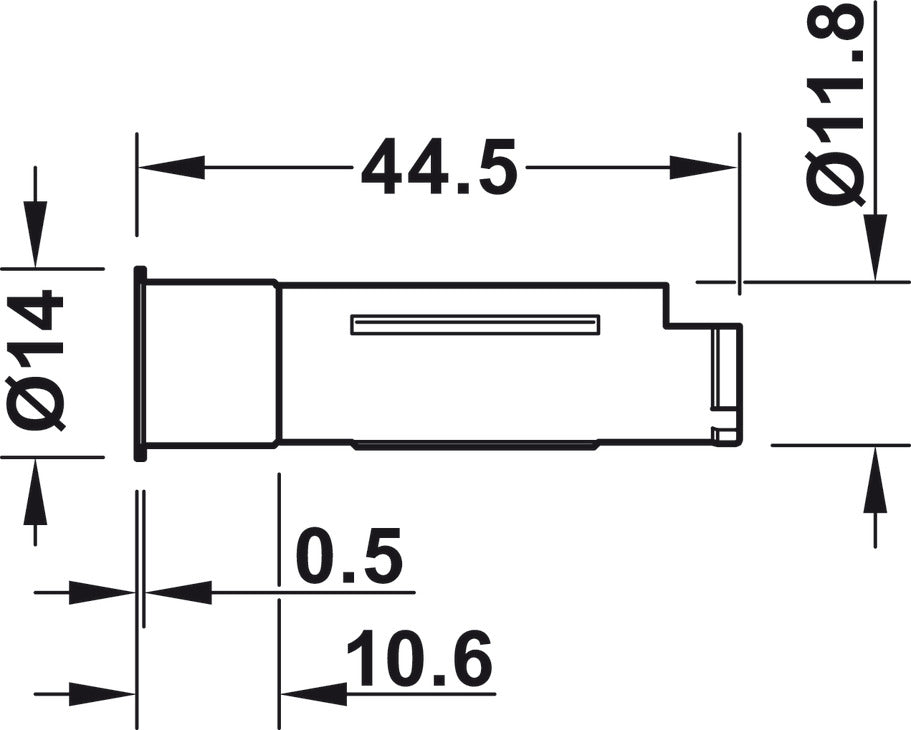

• Dim. (Ø x L): 11.8 x 44.5 mm
• Power consumption: 0.3 watts
• Degree of protection: IP20

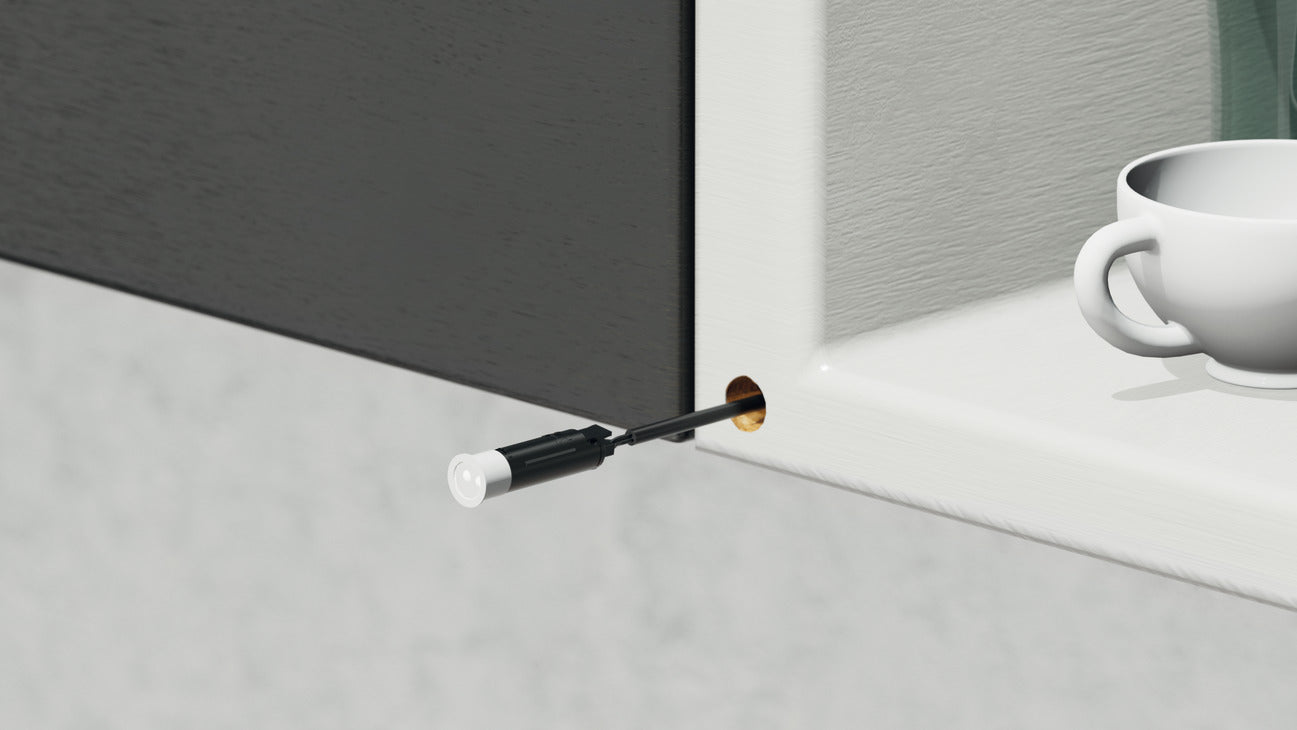

• Installation: For mounting in drilled hole, or for plug fitting into housing
• Installation reference: Colored cover sleeve suitable for drill hole in furniture and housing
• Order reference: Order 2 m (78 3/4") lead for modular switches separately. Order optional white, black, or gray surface mount housing separately.
• Additional Information: The specification of the sensor range applies to white surfaces. With black surfaces, the range of the infrared sensor is halved, matt black surfaces can reduce the value further. Trial mounting is recommended. A white reflection surface can be glued to the inside of sliding doors.
• Replaces these parts: HA-833.89.126, HA-833.89.127 and HA-833.89.128

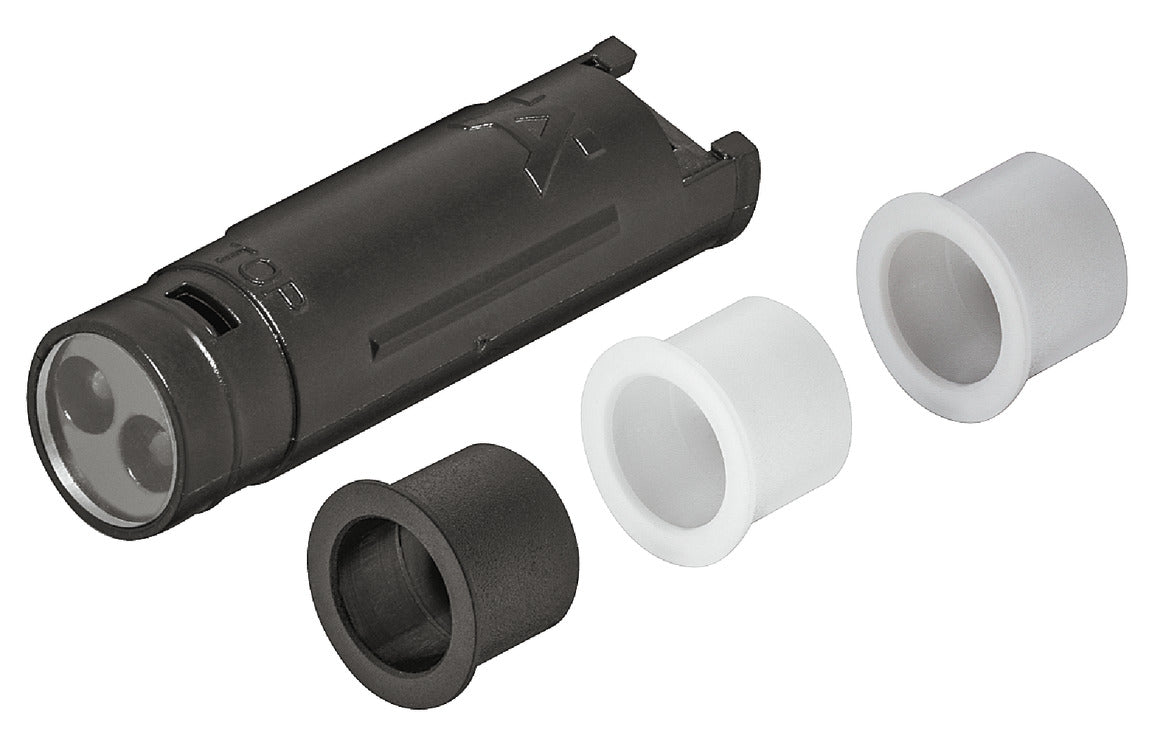

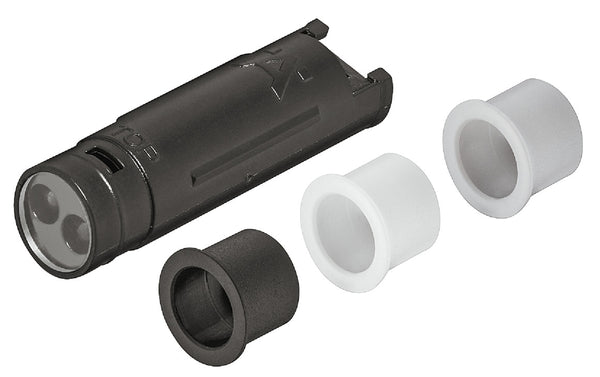

• 1 dual function sensor switch
• 3 cover sleeves (white, gray, black)
