Description
Description

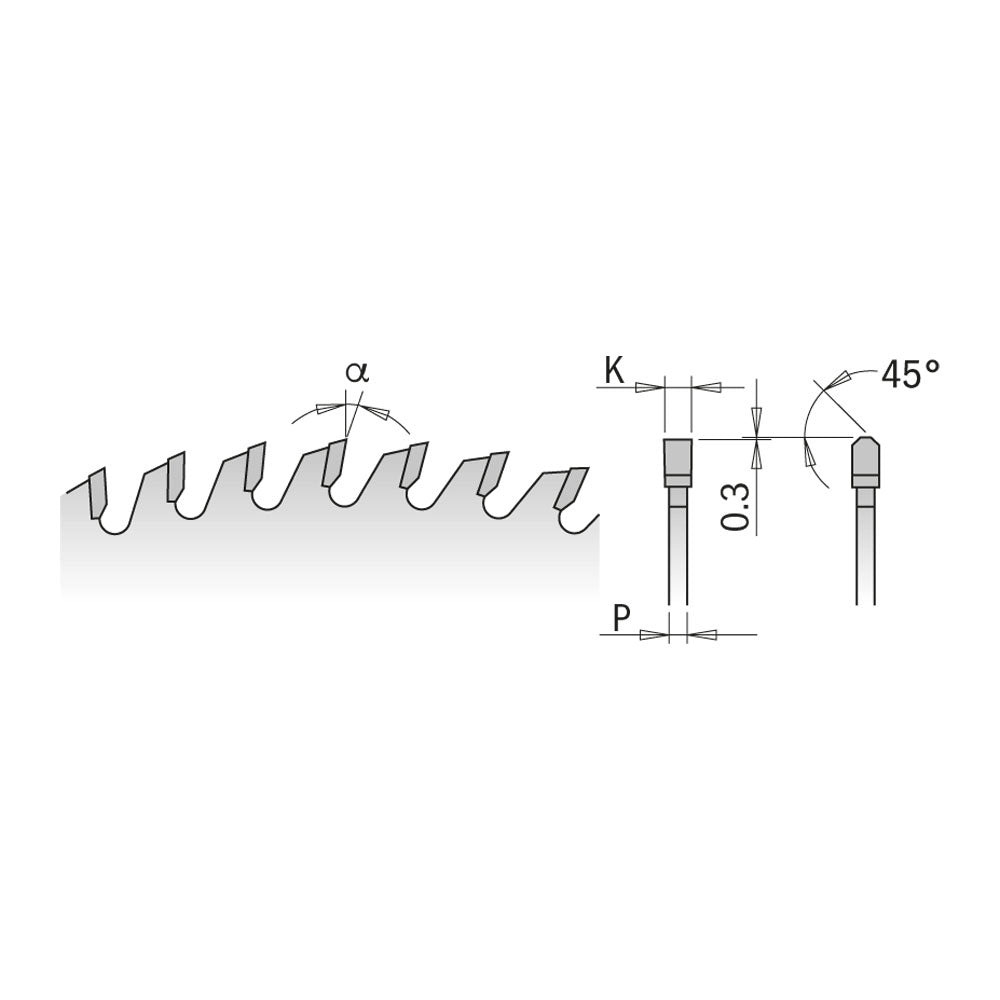

| SKU | Pin Hole (FT) | Diameter (D) | Kerf Thickness (K) | Bore Diameter (B) | Type of Grind (β) | Number of Cutting Edges (Z) | Plate Thickness (P) | Hook Angle (α) |
|---|---|---|---|---|---|---|---|---|
| 281.064.09M | 2/7/42 | 220mm | 3.2mm | 30mm | TCG | 64 | 2.2mm | 10° |

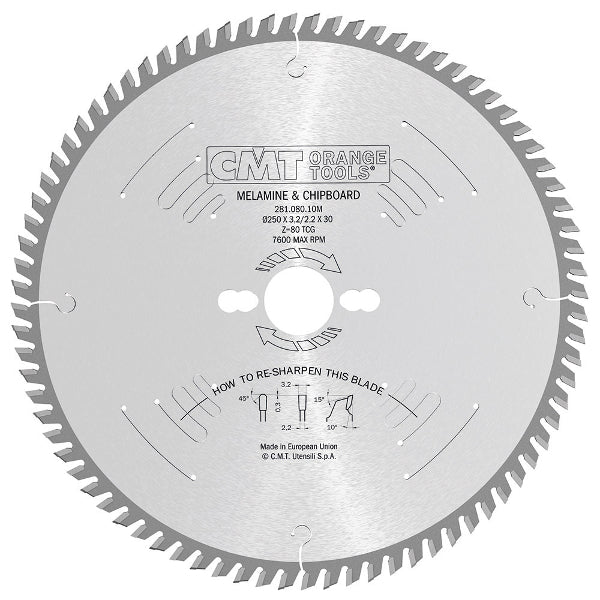

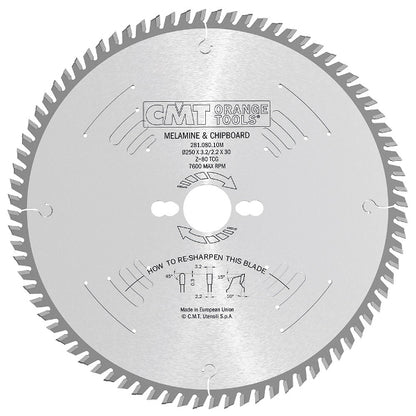

| 281.080.10M | COMBI3 | 250mm | 3.2mm | 30mm | TCG | 80 | 2.2mm | 10° |
| 281.060.10M | COMBI3 | 250mm | 3.2mm | 30mm | TCG | 60 | 2.2mm | 10° |
| 281.096.12M | COMBI3 | 300mm | 3.2mm | 30mm | TCG | 96 | 2.2mm | 10° |
| 281.072.12M | COMBI3 | 300mm | 3.2mm | 30mm | TCG | 72 | 2.2mm | 10° |
| 281.108.14M | COMBI3 | 350mm | 3.5mm | 30mm | TCG | 108 | 2.5mm | 10° |
TECHNICAL DETAILS OF CARBIDE TEETH:
- Teeth height mm: 8
- CHROMIUM ISO grade: KCR06
- Hardness (HV10): 1.950
- Transverse rupture strength (N/mm2): 2.300
Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
Saw blades 281.064.08M and 281.064.09M are non-low noise.
Saw blade 281.160.40H is suitable for Virutex machines.
APPLICATION
- Application: for sizing cuts. Perfect finish by using scoring blades.
- Machines: table saws, horizontal and vertical sizing machines.
- Material: single or double-sided laminated panels.
