Description
Description

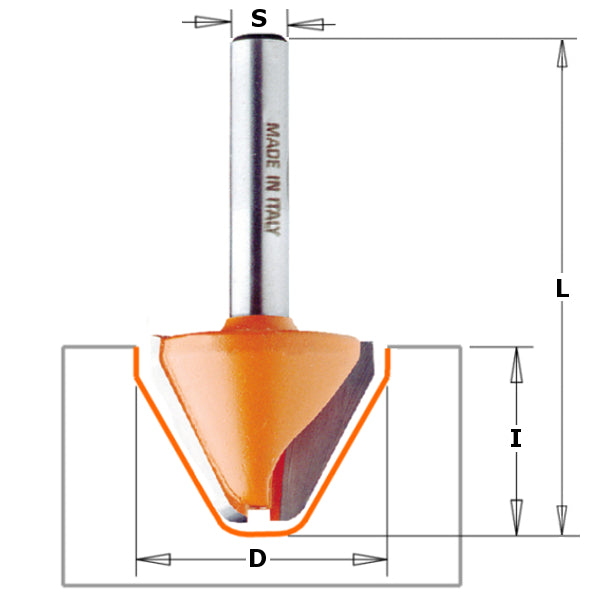

| SKU | Cutting Angle (A) | Diameter (D) | Cutting Length (I) | Total Length (L) | Shank Diameter (S) | Number of Cutting Edges (Z) | Material (MAT) | Rotation (RH-LH) |
|---|---|---|---|---|---|---|---|---|
| 849.001.11 | 60° | 1" | 3/4" | 2" | 1/4" | 2 | HW | RH |
| 849.501.11 | 60° | 1-1/8" | 3/4" | 2-1/2" | 1/2" | 2 | HW | RH |

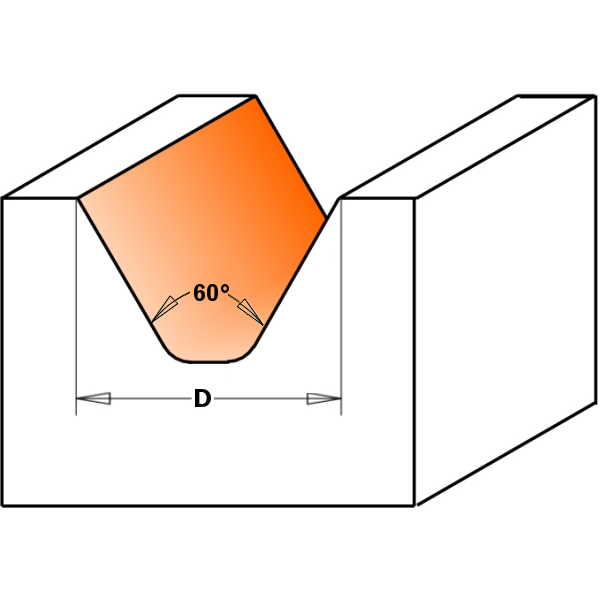

The ideal bit for routing signs. CMT has designed a bit with a 60° curved profile, a 3,2mm (1/8“) radius and a flattened bottom to make relief letter-making easy and accurate. This exclusive design allows you to efficiently level off the area around the base of the letter and bevel the letter edges to eliminate aggravating splintering.
Fulfill
SKU: SKU: CMT-849.001.11
849.001.11
849.001.11849.501.11
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within
3-5 business days
.
(Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
Full policy →
Description
Description
| SKU | Cutting Angle (A) | Diameter (D) | Cutting Length (I) | Total Length (L) | Shank Diameter (S) | Number of Cutting Edges (Z) | Material (MAT) | Rotation (RH-LH) |
|---|---|---|---|---|---|---|---|---|
| 849.001.11 | 60° | 1" | 3/4" | 2" | 1/4" | 2 | HW | RH |
| 849.501.11 | 60° | 1-1/8" | 3/4" | 2-1/2" | 1/2" | 2 | HW | RH |
The ideal bit for routing signs. CMT has designed a bit with a 60° curved profile, a 3,2mm (1/8“) radius and a flattened bottom to make relief letter-making easy and accurate. This exclusive design allows you to efficiently level off the area around the base of the letter and bevel the letter edges to eliminate aggravating splintering.
