1 5

Description

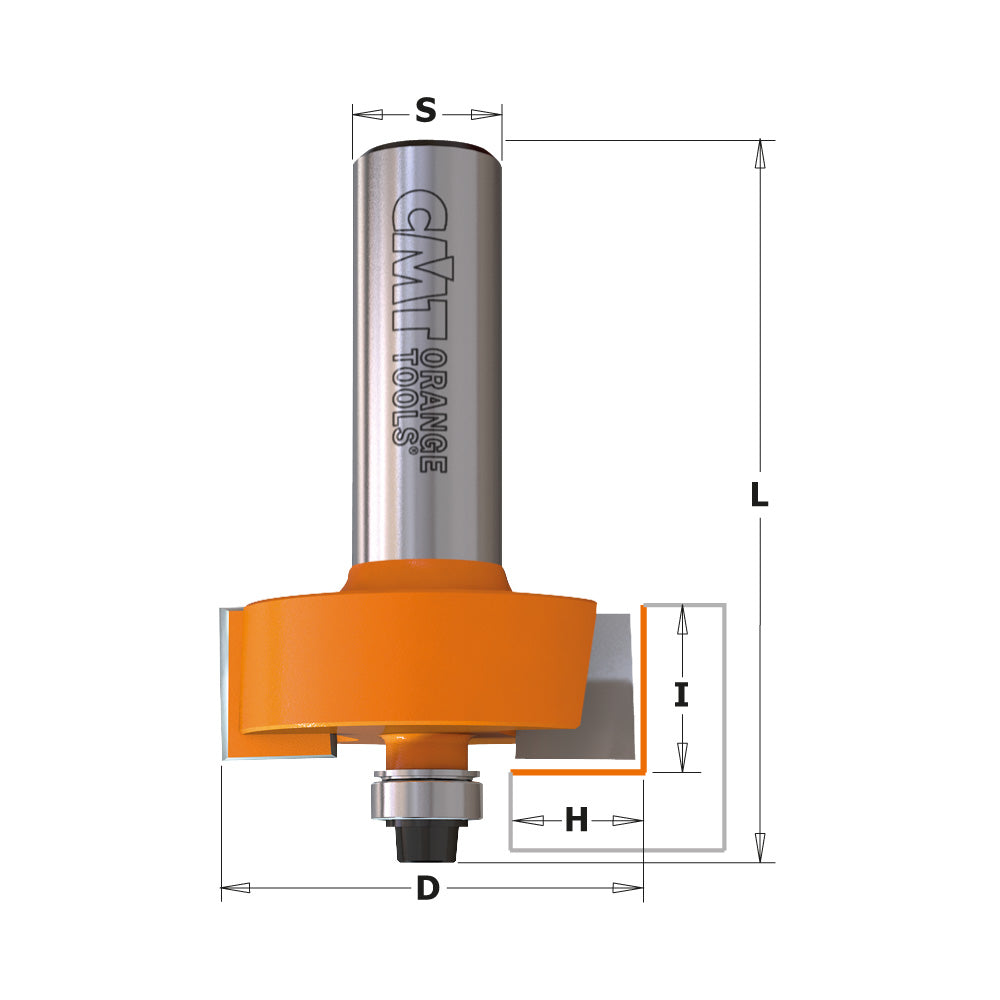

SKU Diameter (D) Cutting Length (I) Total Length (L) Shank Diameter (S) Number of Cutting Edges (Z) Material (MAT) Rotation (RH-LH)
835.817.11 1-1/4" 1/2" 2-13/32" 1/2" 2 HW RH
835.317.11 1-1/4" 1/2" 2-5/16" 1/4" 2 HW RH
835.350.11 1-3/8" 1/2" 2-11/32" 1/4" 2 HW RH
835.850.11 1-3/8" 1/2" 2-11/32" 1/2" 2 HW RH
835.851.11 1-3/8" 3/4" 2-19/32" 1/2" 2 HW RH
835.990.11 2" 7/8" 3-1/16" 1/2" 2 HW RH

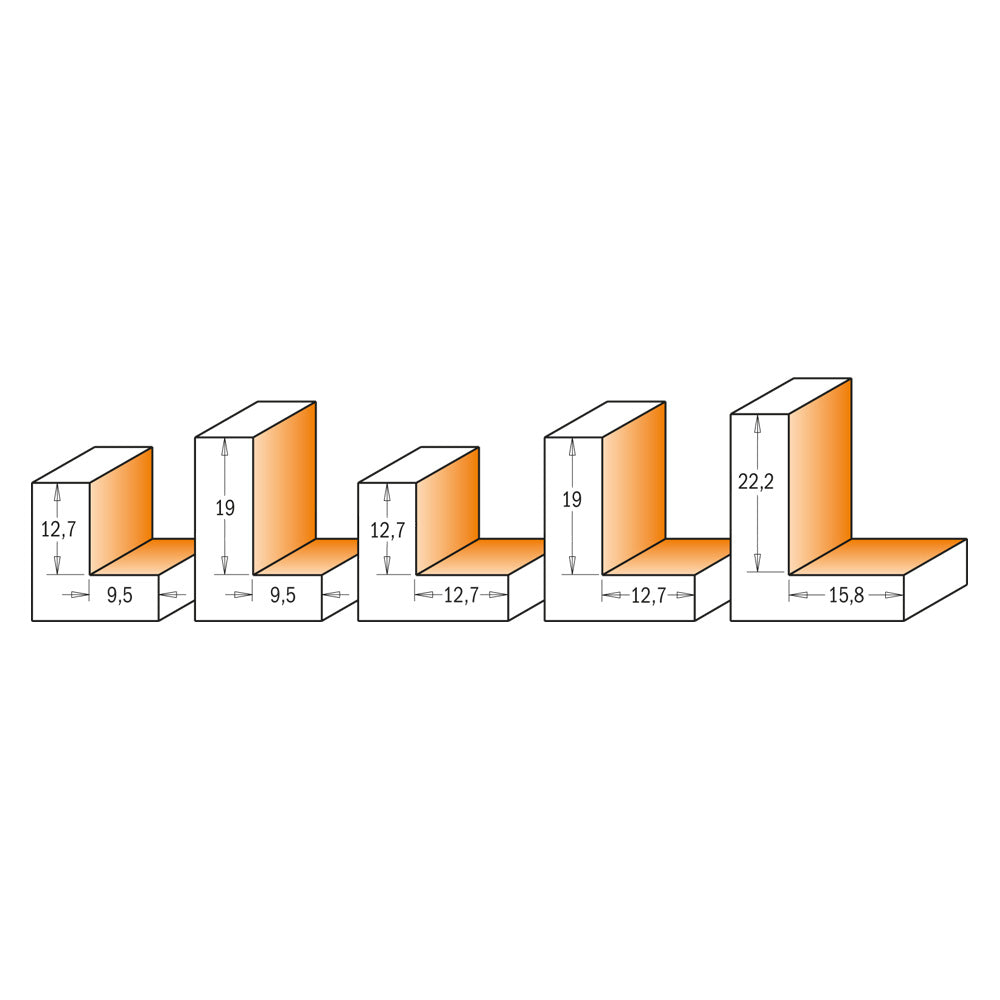

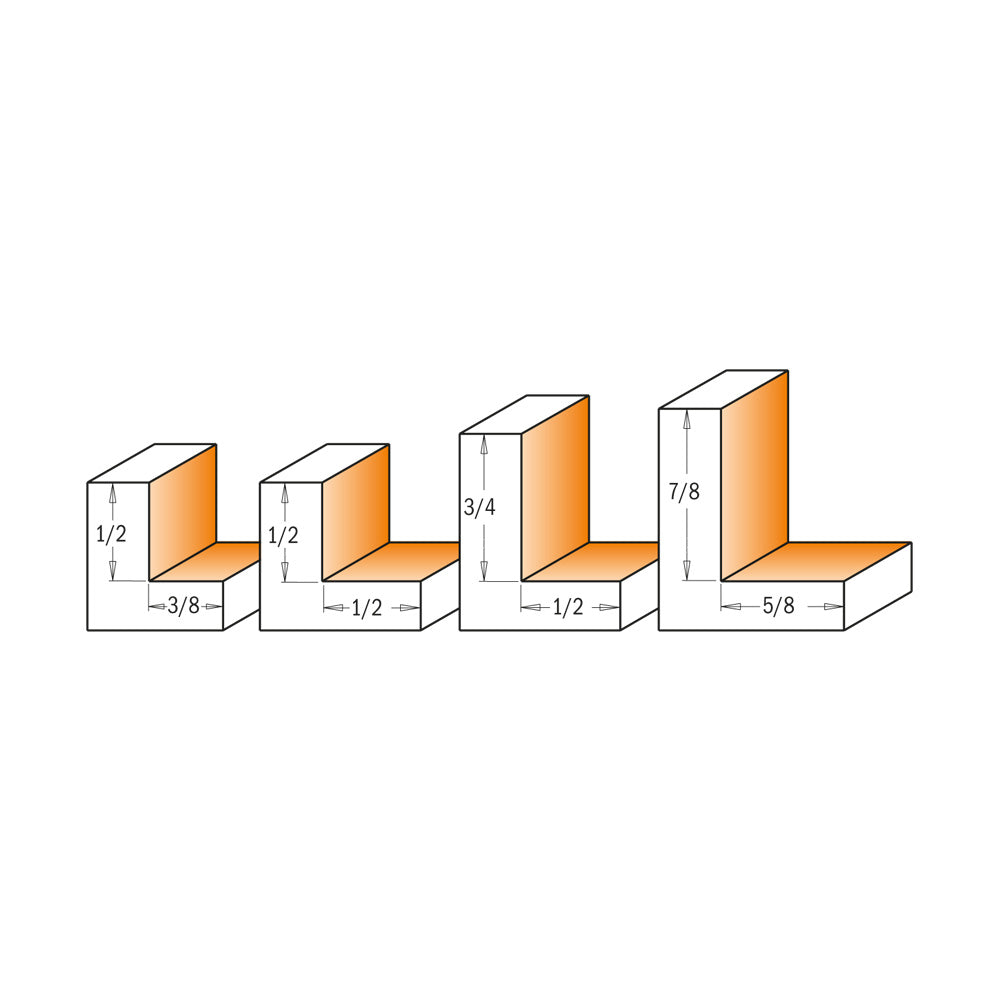

CMT carbide-faced rabbeting bits are fast and accurate - you can quickly produce inset doors and drawer fronts, make strong rabbet joints, mill perfect tongue and groove joints or any number of other jobs usually time consuming and difficult. Other possibilities for these tungsten carbide bits are illustrated below and on the following pages.

Fulfill

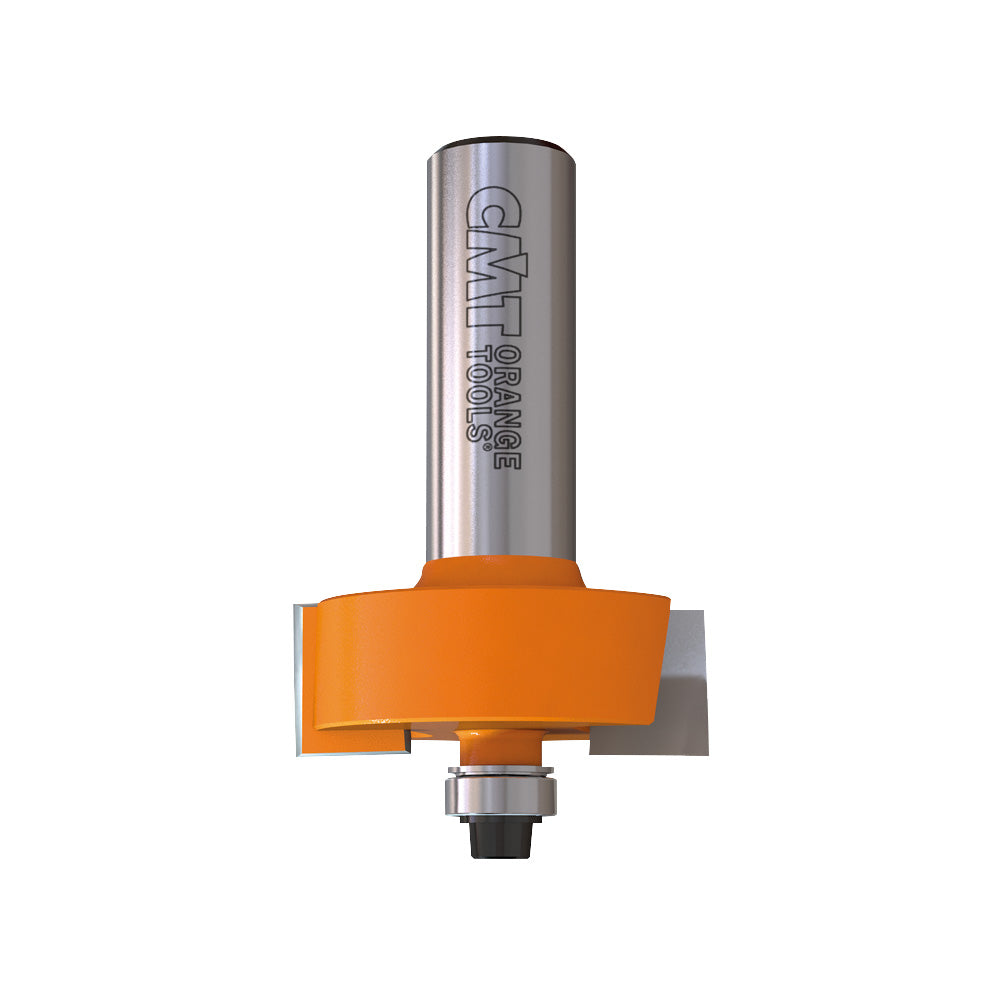

CMT Rabbeting Router Bit

CMT Rabbeting Router Bit

Add to wishlist Add to wishlist

SKU: CMT-835.817.11

$26.16
$38.75 $26.16
835.817.11
835.817.11835.317.11835.350.11835.850.11835.851.11835.990.11
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)
Documents
Rabbeting Router Bit Assembly Instructions

Description

SKU Diameter (D) Cutting Length (I) Total Length (L) Shank Diameter (S) Number of Cutting Edges (Z) Material (MAT) Rotation (RH-LH)
835.817.11 1-1/4" 1/2" 2-13/32" 1/2" 2 HW RH
835.317.11 1-1/4" 1/2" 2-5/16" 1/4" 2 HW RH
835.350.11 1-3/8" 1/2" 2-11/32" 1/4" 2 HW RH
835.850.11 1-3/8" 1/2" 2-11/32" 1/2" 2 HW RH
835.851.11 1-3/8" 3/4" 2-19/32" 1/2" 2 HW RH
835.990.11 2" 7/8" 3-1/16" 1/2" 2 HW RH

CMT carbide-faced rabbeting bits are fast and accurate - you can quickly produce inset doors and drawer fronts, make strong rabbet joints, mill perfect tongue and groove joints or any number of other jobs usually time consuming and difficult. Other possibilities for these tungsten carbide bits are illustrated below and on the following pages.
