1 3

Description

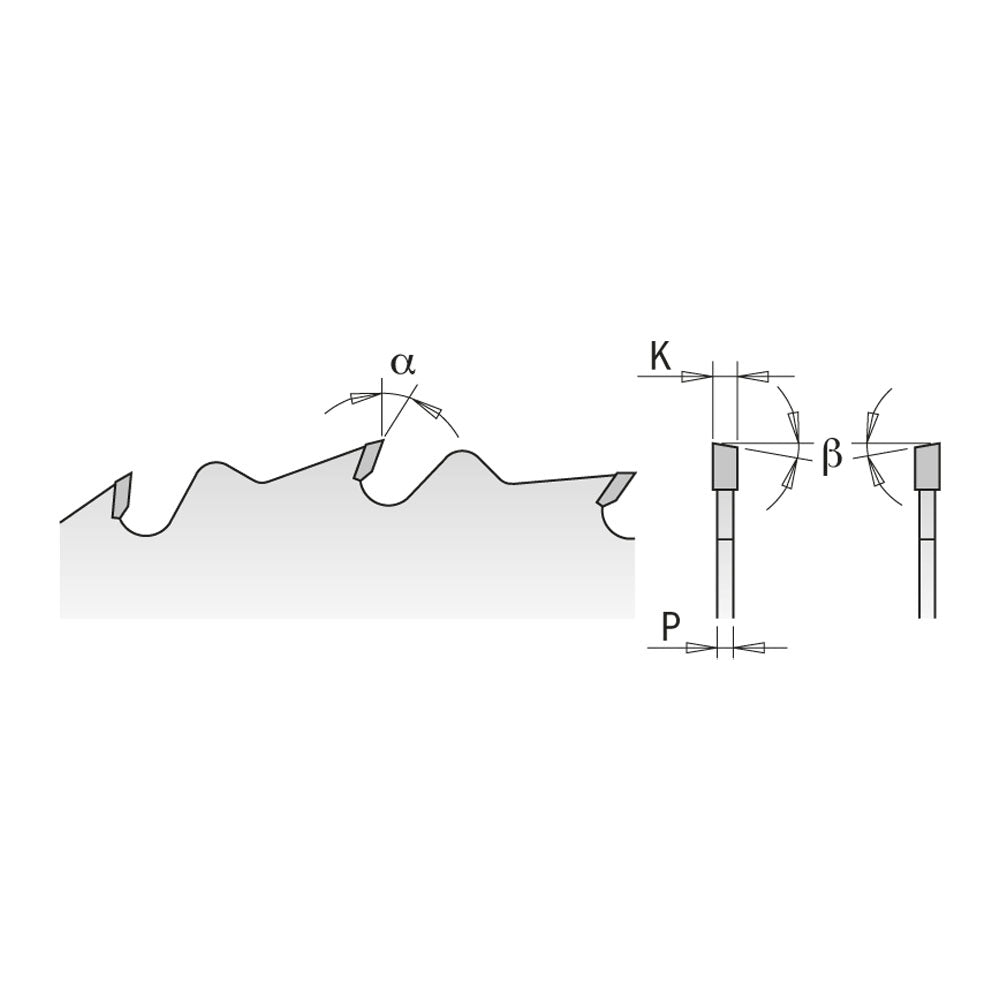

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
293.024.12M COMBI3 300mm 0.126 30mm 10° ATB 24 0.087 20°
293.028.14M COMBI3 350mm 0.138 30mm 10° ATB 28 0.098 20°
285.036.16M COMBI3 400mm 0.138 30mm 10° ATB 36 0.098 20°

TECHNICAL FEATURES OF CARBIDE TEETH:

  • Teeth height mm: 8~10
  • ISO grade: K10
  • Hardness (HV10): 1.765
  • Transverse rupture strength (N/mm2): 2.150

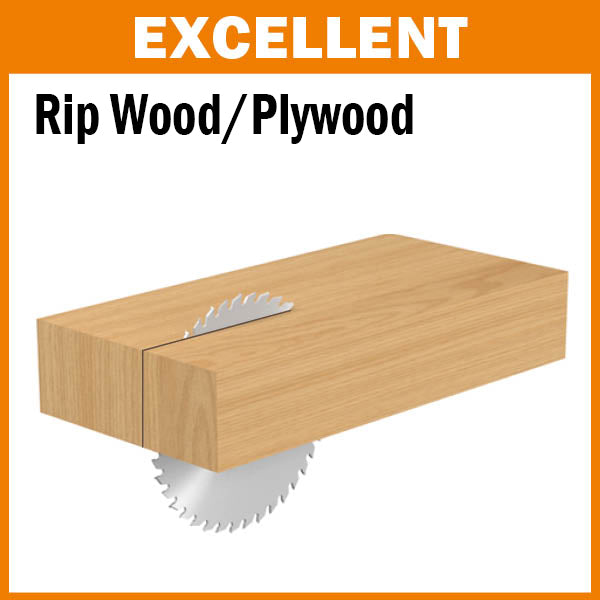

  • APPLICATION: for rip and glue line rip cuts.
  • MACHINES: table and special saws, portable and ripping machines for automatic or manual feeding.
  • MATERIAL: soft and hardwood.
Fulfill

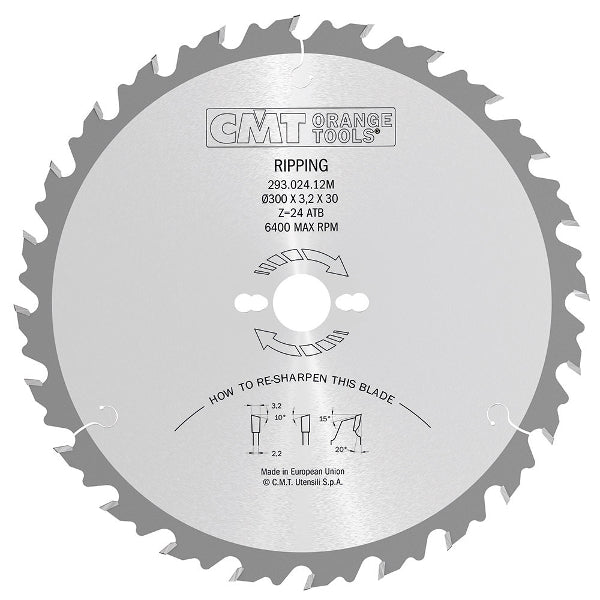

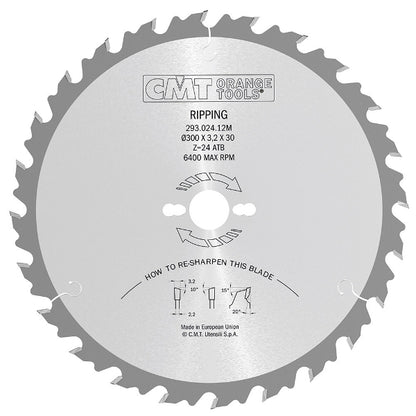

CMT Rip Circular Saw Blade

CMT Rip Circular Saw Blade

Add to wishlist Add to wishlist

SKU: CMT-293.024.12M

$53.93
$79.90 $53.93
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Description

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
293.024.12M COMBI3 300mm 0.126 30mm 10° ATB 24 0.087 20°
293.028.14M COMBI3 350mm 0.138 30mm 10° ATB 28 0.098 20°
285.036.16M COMBI3 400mm 0.138 30mm 10° ATB 36 0.098 20°

TECHNICAL FEATURES OF CARBIDE TEETH:

  • Teeth height mm: 8~10
  • ISO grade: K10
  • Hardness (HV10): 1.765
  • Transverse rupture strength (N/mm2): 2.150

  • APPLICATION: for rip and glue line rip cuts.
  • MACHINES: table and special saws, portable and ripping machines for automatic or manual feeding.
  • MATERIAL: soft and hardwood.
