Description

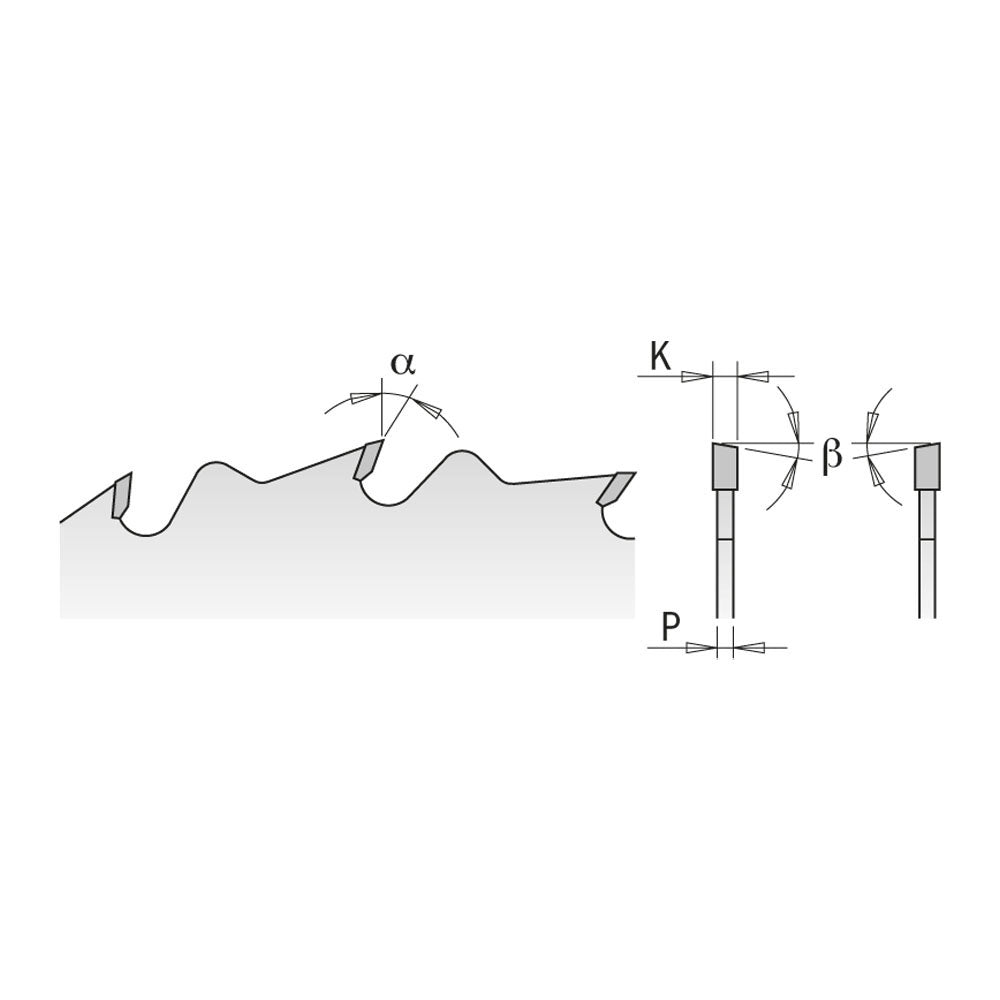

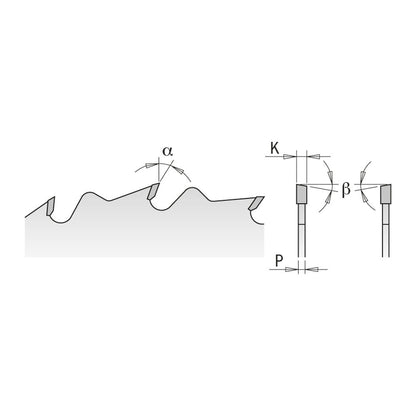

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
290.210.24M 2/7/42 8-1/4" 0.110" 30mm 10° ATB 24 0.070" 20°

TECHNICAL DETAILS OF CARBIDE TEETH:

  • Teeth height mm: 6~8
  • ISO grade: K10
  • Hardness (HV10): 1.765
  • Transverse rupture strength (N/mm2): 2.150

INDUSTRIAL QUALITY SAW BLADES:

  • 290.250.24M
  • 290.270.28M

  • Application: for rip cuts.
  • Machines: miter saws and portable machines.
  • Material: soft and hardwood.
Fulfill

CMT Rip Circular Saw Blade, For Portable Machines

CMT Rip Circular Saw Blade, For Portable Machines

Add to wishlist Add to wishlist

SKU: CMT-290.210.24M

$31.15
$46.15 $31.15
290.210.24M
290.210.24M
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Description

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
290.210.24M 2/7/42 8-1/4" 0.110" 30mm 10° ATB 24 0.070" 20°

TECHNICAL DETAILS OF CARBIDE TEETH:

  • Teeth height mm: 6~8
  • ISO grade: K10
  • Hardness (HV10): 1.765
  • Transverse rupture strength (N/mm2): 2.150

INDUSTRIAL QUALITY SAW BLADES:

  • 290.250.24M
  • 290.270.28M

  • Application: for rip cuts.
  • Machines: miter saws and portable machines.
  • Material: soft and hardwood.
View full details
