1 7

Description

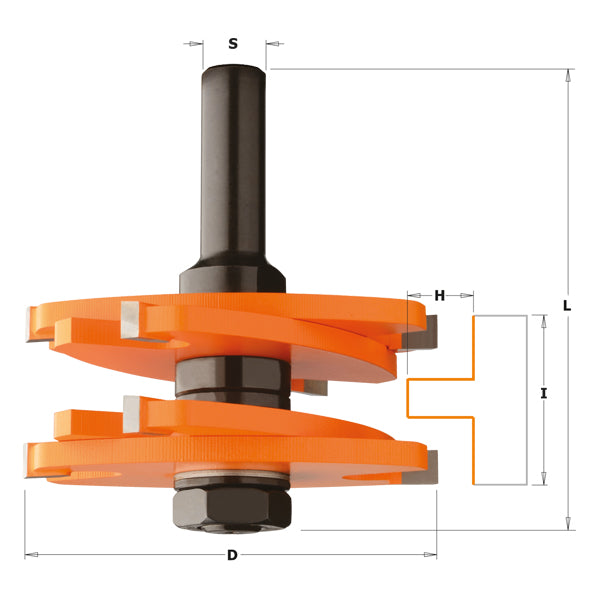

SKU Diameter (D) Cutting Length (I) Total Length (L) Shank Diameter (S) Number of Cutting Edges (Z) Material (MAT) Rotation (RH-LH)
800.627.11 3" 1-3/8" 3-11/32" 1/2" 2 HW RH

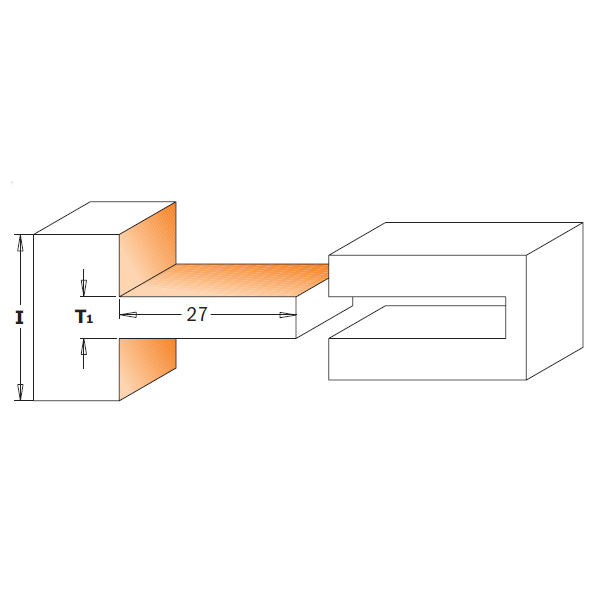

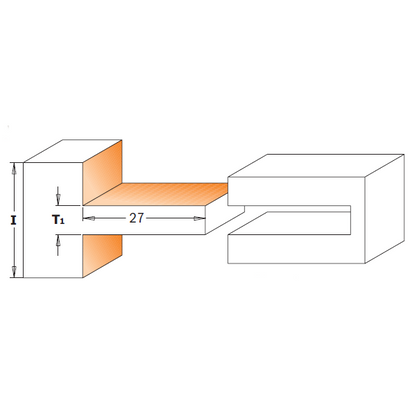

If you've struggled cutting fitting tenons, here's the perfect solution for you. CMT's tenon cutting router bit will produce perfectly fitting tenons in every board you cut, even if the boards vary slightly in thickness. Simply set the distance between the cutters using the included spacers, and you can easily cut tenons from 4,76mm (3/16”) to 9,5mm (3/8”) thick, up to 27mm (1-1/16”) long. This simple-to-use router bit takes the mystery out of achieving the excellent tenon-to-mortise fit required for high quality joinery.

SAFETY PRECAUTIONS: maximum speed 12,000 RPM.

Fulfill

CMT Tenon Cutting Router Bit, 8/900.627

CMT Tenon Cutting Router Bit, 8/900.627

Add to wishlist Add to wishlist

SKU: CMT-800.627.11

$119.00
$179.35 $119.00
800.627.11
800.627.11
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)
Documents
Instructions - Tenon Cutting Router Bit How To Create Perfect Tenons

Description

SKU Diameter (D) Cutting Length (I) Total Length (L) Shank Diameter (S) Number of Cutting Edges (Z) Material (MAT) Rotation (RH-LH)
800.627.11 3" 1-3/8" 3-11/32" 1/2" 2 HW RH

If you've struggled cutting fitting tenons, here's the perfect solution for you. CMT's tenon cutting router bit will produce perfectly fitting tenons in every board you cut, even if the boards vary slightly in thickness. Simply set the distance between the cutters using the included spacers, and you can easily cut tenons from 4,76mm (3/16”) to 9,5mm (3/8”) thick, up to 27mm (1-1/16”) long. This simple-to-use router bit takes the mystery out of achieving the excellent tenon-to-mortise fit required for high quality joinery.

SAFETY PRECAUTIONS: maximum speed 12,000 RPM.
