Description

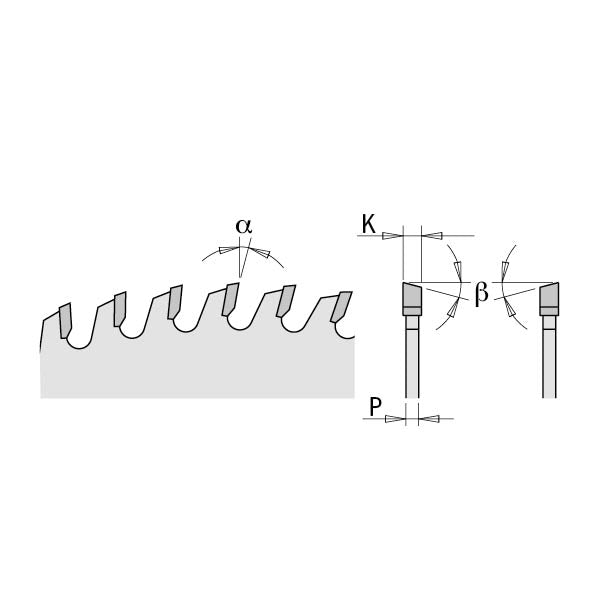

SKU	Pin Hole (FT)	Diameter (D)	Kerf Thickness (K)	Bore Diameter (B)	Type of Grind (β)	Number of Cutting Edges (Z)	Plate Thickness (P)	Hook Angle (α)
285.680.10	N/A	10"	0.118"	5/8"	20° ATB	80	0.098"	10°
285.696.12	N/A	12"	0.118"	1"	20° ATB	96	0.098"	10°
285.684.14	N/A	14"	0.138"	1"	15°ATB	84	0.098"	10°
285.696.16	N/A	16"	0.138"	1"	15°ATB	96	0.098"	10°
285.708.18	N/A	18"	0.150"	1"	15°ATB	108	0.110"	10°

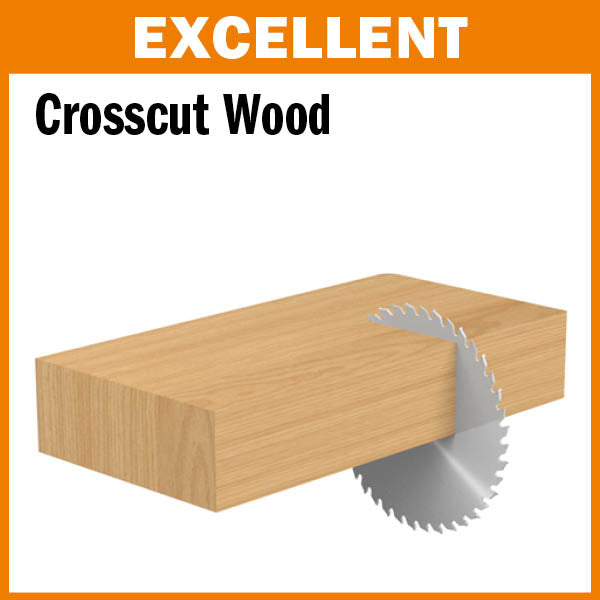

APPLICATION: for rip and crosscuts. The large gullets allow deep cuts and effective chip clearance.
MACHINES: radial arms saws, miter saws table and special saws

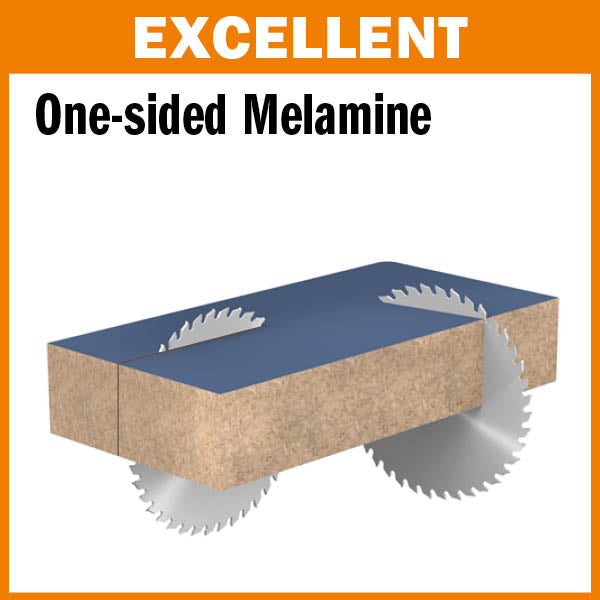

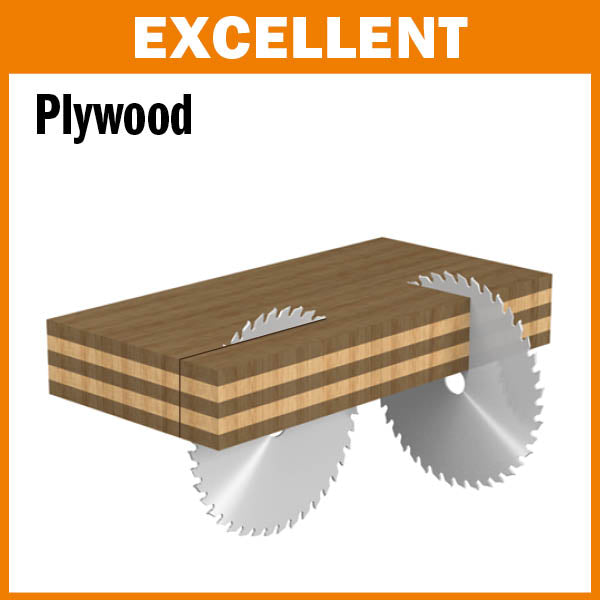

MATERIAL: soft/hardwood plywood and chipboard.

In stock, 2 units

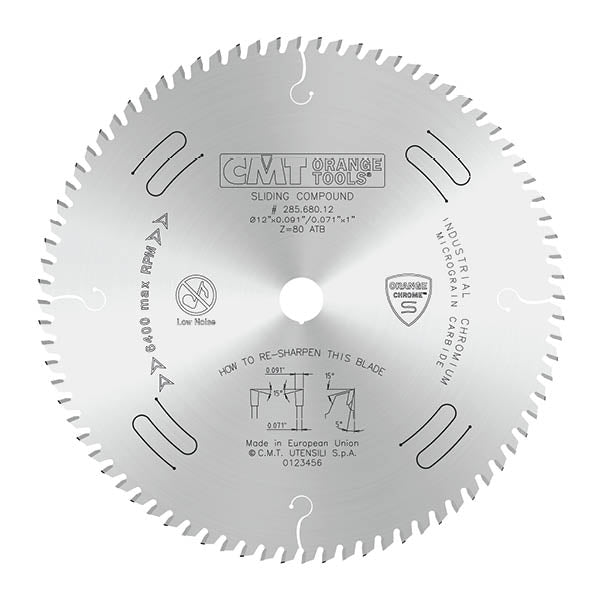

CMT Ultimate Cut-Off Saw Blade

Add to wishlist

SKU: SKU: CMT-285.680.10

$90.45

~~$134.00~~ $90.45

In Stock

Active stock item in main warehouse.

Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within 3-5 business days . (Minimum order quantity: 1)

Documents

Instructions - CMT Industrial Chrome Coated Saw Blade

Description

SKU	Pin Hole (FT)	Diameter (D)	Kerf Thickness (K)	Bore Diameter (B)	Type of Grind (β)	Number of Cutting Edges (Z)	Plate Thickness (P)	Hook Angle (α)
285.680.10	N/A	10"	0.118"	5/8"	20° ATB	80	0.098"	10°
285.696.12	N/A	12"	0.118"	1"	20° ATB	96	0.098"	10°
285.684.14	N/A	14"	0.138"	1"	15°ATB	84	0.098"	10°
285.696.16	N/A	16"	0.138"	1"	15°ATB	96	0.098"	10°
285.708.18	N/A	18"	0.150"	1"	15°ATB	108	0.110"	10°

APPLICATION: for rip and crosscuts. The large gullets allow deep cuts and effective chip clearance.
MACHINES: radial arms saws, miter saws table and special saws
MATERIAL: soft/hardwood plywood and chipboard.
