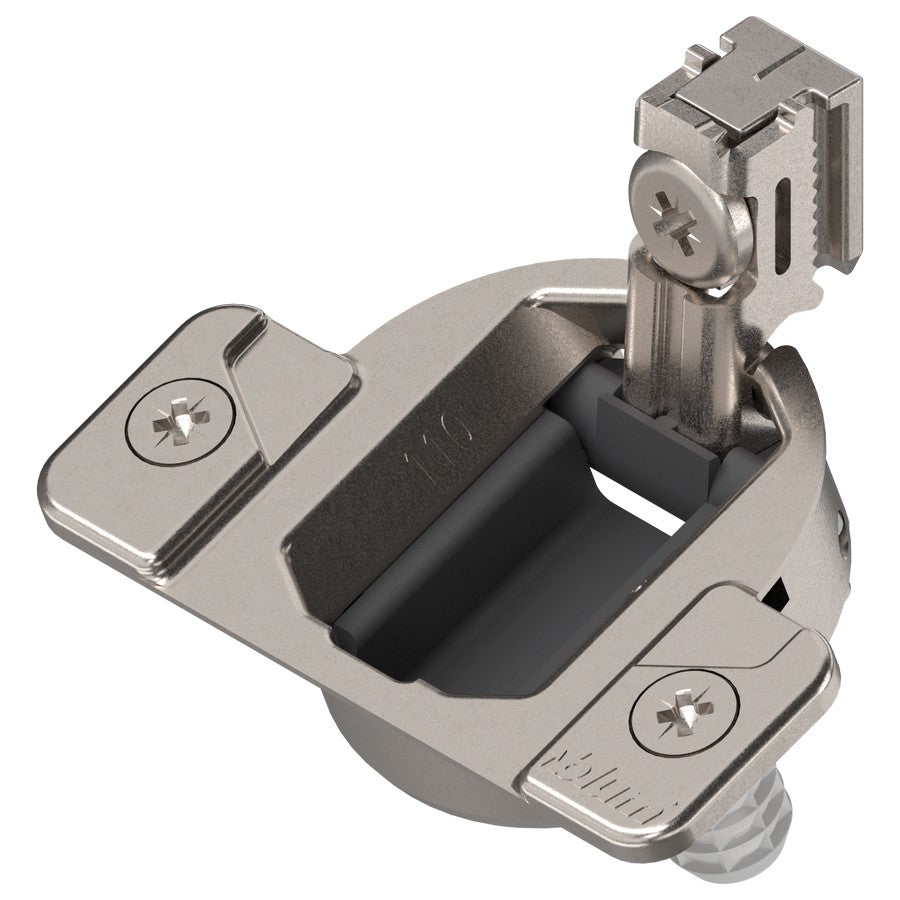

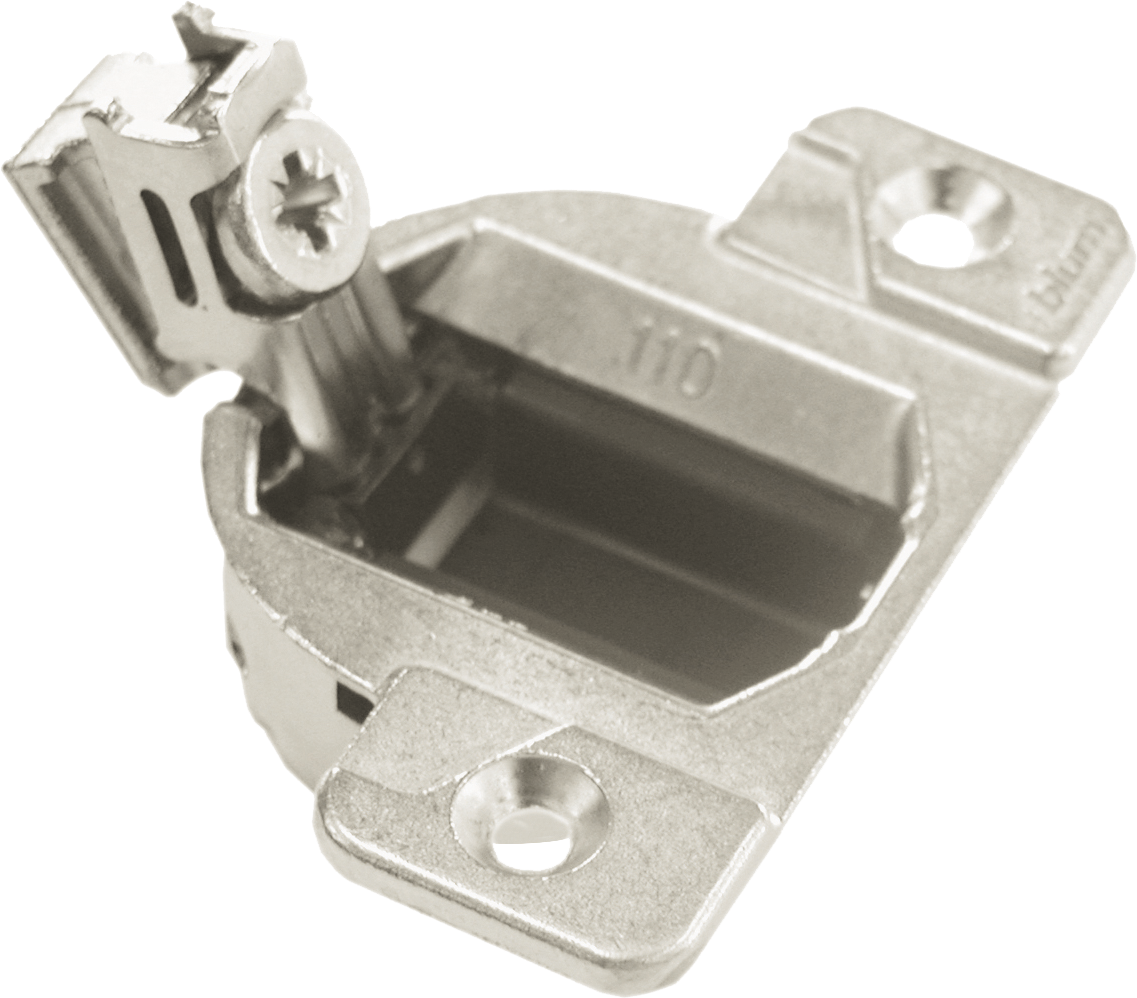

Blum 110 Degree Compact 33 Self-Close Face Frame Hinge
Add to wishlist (0)

Blum 110 Degree Compact 33 Self-Close Face Frame Hinge

SKU: BL-333600
Fulfill
$4.72
10 items are available for order
Sold out
I agree that delivery of my product will take some time:
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within To be determined (if inventory available, will leave immediately) . (Minimum order quantity: 1)

Payment & Security. Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Specification

  • Opening Angle: 110°
  • Closing Mechanism: with spring
  • Hinge cup material: Zinc
  • Finish: Nickel-plated
  • Hinge cup assembly: Screw-on
  • Reveal: 4.7 mm
  • Manufacturer: BLUM, INC.
  • Manufacturer's part: 33.3600
  • Weight: 0.100 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Hinge Type: 2-piece
  • Overlay: 1/4" - 1-5/8"
  • Closing Type: Self-Closing
  • Boring Pattern: 45 mm
  • Plate Required: Yes
  • Plate Included: No
  • Cup Depth: 13 mm
  • Cup Diameter: 35 mm
  • Adjustment: +3 mm, -2 mm
Show more Show less
