Specifications

  • Opening Angle: 110°
  • Cranking: Inset Door Application
  • Hinge Cup Assemby: Press-in
  • Hinge Cup Material: Steel Hinge cup
  • Closing Mechanism: With Spring
  • Side Adjustment: +/-2 mm
  • Depth Adjustment: +3/-2 mm, convenient with spiral screw
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 71B3780
  • Weight: 0.180 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Cabinet Type: Face Frame, Frameless
  • Overlay: Inset
  • Closing type: Soft-Closing
  • Boring Pattern: 45 mm
  • Cup Diameter: 35 mm
  • Cup Depth: 13 mm
  • Max Overlay: 4.5 mm (Reveal)
  • Max Door Thickness: 26 mm
In stock, 1 units

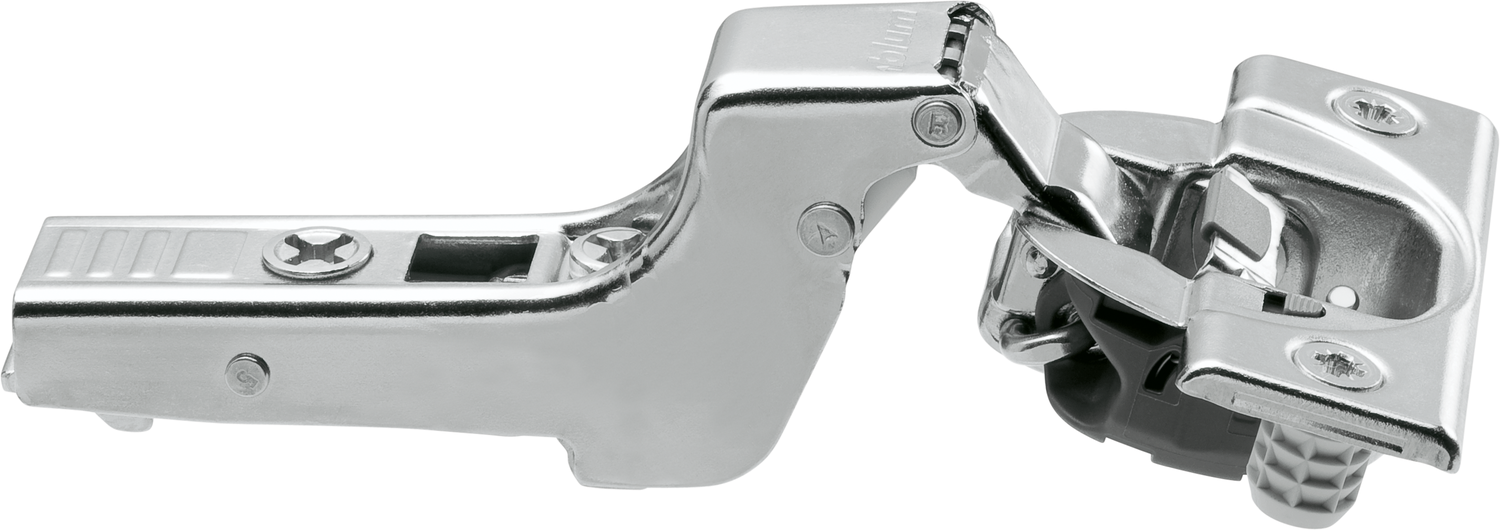

Blum 110 Degree Inset Soft-Close Blumotion Clip Top Dowel European Hinge

Blum 110 Degree Inset Soft-Close Blumotion Clip Top Dowel European Hinge

Add to wishlist Add to wishlist

SKU: BL-71B3780

$6.46
$6.46 $6.46
In Stock
Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within To be determined (if inventory available, will leave immediately) . (Minimum order quantity: 1)

Specifications

  • Opening Angle: 110°
  • Cranking: Inset Door Application
  • Hinge Cup Assemby: Press-in
  • Hinge Cup Material: Steel Hinge cup
  • Closing Mechanism: With Spring
  • Side Adjustment: +/-2 mm
  • Depth Adjustment: +3/-2 mm, convenient with spiral screw
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 71B3780
  • Weight: 0.180 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Cabinet Type: Face Frame, Frameless
  • Overlay: Inset
  • Closing type: Soft-Closing
  • Boring Pattern: 45 mm
  • Cup Diameter: 35 mm
  • Cup Depth: 13 mm
  • Max Overlay: 4.5 mm (Reveal)
  • Max Door Thickness: 26 mm
View full details
