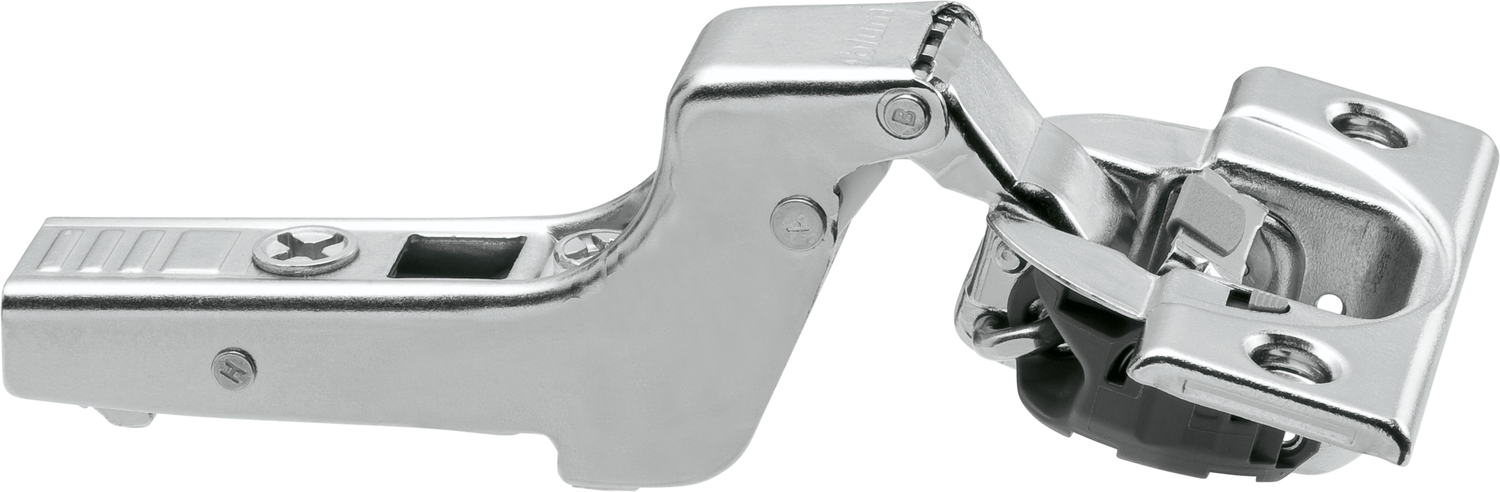

Concealed hinge with soft close BLUMOTION
With CLIP top BLUMOTION hinges, doors close silently because the BLUMOTION soft-close feature is built into the hinge cup. Soft-close BLUMOTION adapts to the dynamics of every door, so all doors close smoothly, regardless of size, weight, or the force used when closing them. The BLUMOTION feature can be deactivated on one or both hinges to ensure doors close at the right speed. Snap these doors on and off with CLIP technology and make easy three-dimensional and cam adjustments.
Specifications
Specifications
- Opening Angle: 110°
- Cranking: Inset Door Application
- Hinge Cup Assemby: Screw-on
- Hinge Cup Material: Steel Hinge cup
- Closing Mechanism: With Spring
- Side Adjustment: +/-2 mm
- Depth Adjustment: +3/-2 mm, convenient with spiral screw
- Manufacturer: BLUM, INC.
- Manufacturer's Part: 71B3750
- Weight: 0.180 lbs
- Sold in Multiples of: 1
- Priced by: Each
- Cabinet Type: Face Frame, Frameless
- Overlay: Inset
- Closing type: Soft-Closing
- Boring Pattern: 45 mm
- Cup Diameter: 35 mm
- Cup Depth: 13 mm
- Max Overlay: 4.5 mm (Reveal)
- Max Door Thickness: 26 mm
