Specifications

  • Opening Angle: 110°
  • Cranking: Corner Merge Application
  • Hinge Cup Assemby: INSERTA
  • Hinge Cup Material: Steel Hinge cup
  • Closing Mechanism: With Spring
  • Side Adjustment: +/-2 mm
  • Depth Adjustment: +3/-2 mm, convenient with spiral screw
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 73T3590
  • Weight: 0.180 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Cabinet Type: Face Frame, Frameless
  • Overlay: Full Overlay
  • Closing type: Self-Closing
  • Boring Pattern: 45 mm
  • Cup Diameter: 35 mm
  • Cup Depth: 13 mm
  • Max Overlay: 20 mm
  • Max Door Thickness: 26 mm
Fulfill

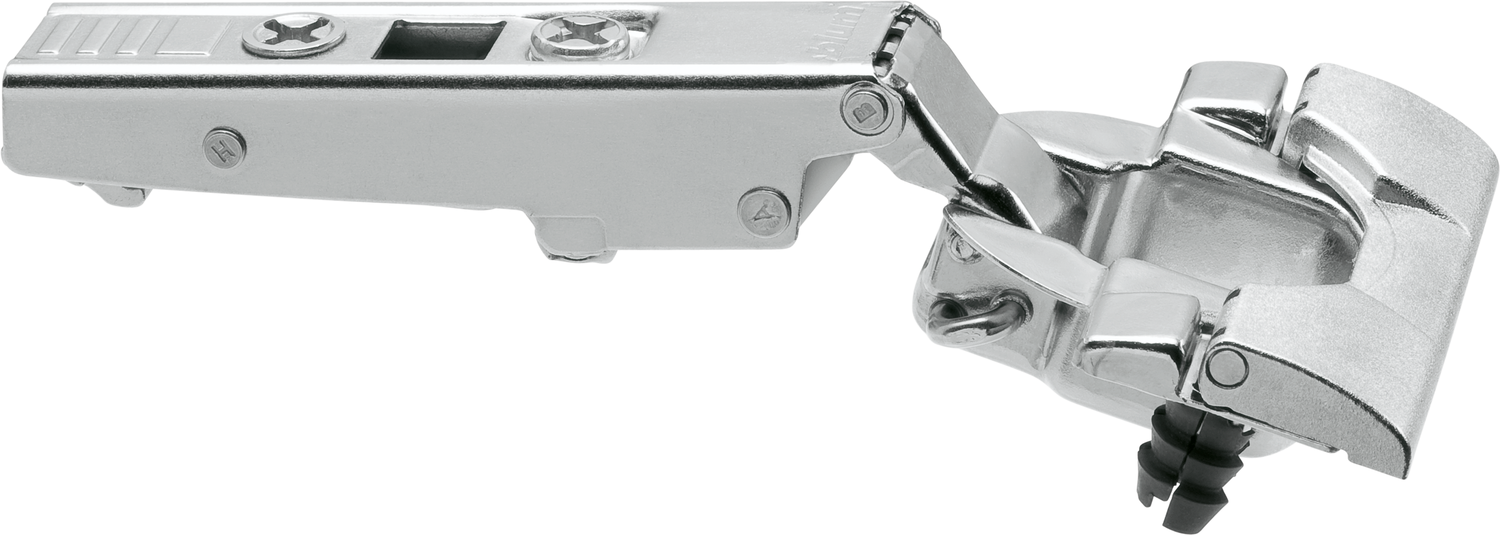

Blum 110 Degree Plus Full Overlay Self-Close Clip Top Inserta European Hinge

Blum 110 Degree Plus Full Overlay Self-Close Clip Top Inserta European Hinge

SKU: BL-73T3590

$3.08
$3.08 $3.08
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within To be determined (if inventory available, will leave immediately) . (Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
