Specifications

  • Opening Angle: 170°
  • Cranking: Corner Merge Application
  • Hinge Cup Assemby: Press-in
  • Hinge Cup Material: Steel Hinge cup
  • Closing Mechanism: With Spring
  • Side Adjustment: +/-2 mm
  • Depth Adjustment: +3/-2 mm, convenient with spiral screw
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 71T6580
  • Weight: 0.380 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Cabinet Type: Face Frame, Frameless
  • Overlay: Full Overlay
  • Closing type: Self-Closing
  • Boring Pattern: 45 mm
  • Cup Diameter: 35 mm
  • Cup Depth: 11 mm
  • Max Overlay: 19 mm
  • Max Door Thickness: 24 mm
In stock, 126 units

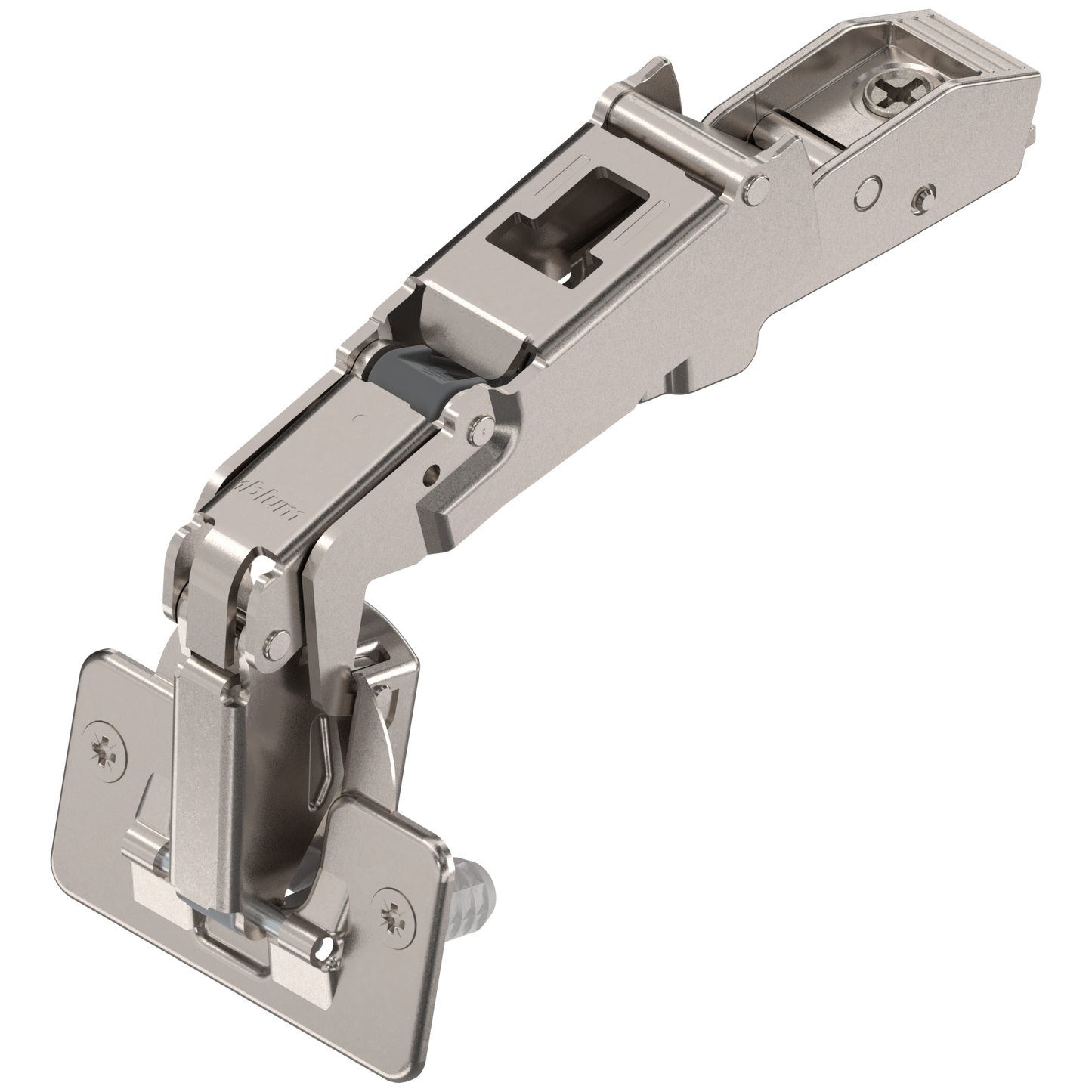

Blum 170 Degree Full Overlay Self-Close Clip Top Dowel European Hinge

Blum 170 Degree Full Overlay Self-Close Clip Top Dowel European Hinge

Add to wishlist Add to wishlist

SKU: SKU: BL-71T6580

Regular price $5.10
Regular price $5.10 Sale price $5.10
Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within To be determined (if inventory available, will leave immediately) . (Minimum order quantity: 1)

Specifications

  • Opening Angle: 170°
  • Cranking: Corner Merge Application
  • Hinge Cup Assemby: Press-in
  • Hinge Cup Material: Steel Hinge cup
  • Closing Mechanism: With Spring
  • Side Adjustment: +/-2 mm
  • Depth Adjustment: +3/-2 mm, convenient with spiral screw
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 71T6580
  • Weight: 0.380 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Cabinet Type: Face Frame, Frameless
  • Overlay: Full Overlay
  • Closing type: Self-Closing
  • Boring Pattern: 45 mm
  • Cup Diameter: 35 mm
  • Cup Depth: 11 mm
  • Max Overlay: 19 mm
  • Max Door Thickness: 24 mm
