Description

Functions

Designed to fit your hand with a low profile



Most jigsaws have a hard time staying on course. Hard material and curves can easily cause the blade to deflect, resulting in time consuming re-cutting or sanding. Trion jigsaws are designed with adjustable carbide-tipped jaws that work with the blade clamping system and back-up bearing for triple blade guidance that keeps the blade perpendicular to the shoe at all times, even on curves. The barrel grip PS 300 is designed to fit your hand with a low center of gravity.

  • Carbide guidance system keeps the blade perpendicular to the shoe for improved cut results, even in thick stock.
  • Zero clearance splinterguard are solid one-piece inserts that are cut with the blade mounted in the machine for a clean, splinter-free cut.
  • Dust extraction channels integrated in the base plate coupled with a clear chip deflector a rear dust extraction port provide for cleaner work area.
  • MMC electronics provide soft start to reduce start up jolts, variable speed to match the speed to the material, and constant speed under load.

Specifications

  • Stroke rate: 1 000 - 2 900 RPM
  • 1 000 - 2 900 RPM: 4.00
  • Inclination: 0 - 45 °
  • Cutting depth in wood: Cutting depth in NF metals
  • 3/4" (20 mm): Cutting depth in steel (soft)
  • 3/8" (10 mm): Weight
  • 5.95 lbs (2.7 kg): Drive type
  • 120 VAC: Cable length
  • 13.123 ft (4 m): Power consumption

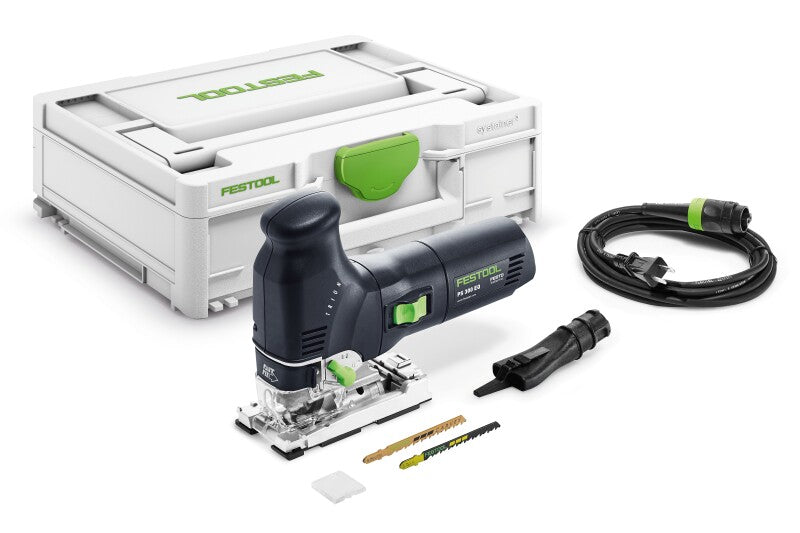

What's Included

  • Saw blade
  • Splinterguard
  • Plug it-power cable (4 m)
  • Systainer SYS3 M 137
DISCONTINUED

Festool 561443 Trion Jigsaw PS 300 EQ-PLUS

Festool 561443 Trion Jigsaw PS 300 EQ-PLUS

SKU: FT-561443

$275.00
$275.00 $275.00
This Festool part number has been replaced by FT-576039. Would you like to navigate to that product page? CLICK HERE.
Sold out
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-10 business days . (Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
Full policy →
Documents
Op. Instructions

Description

Functions

Designed to fit your hand with a low profile



Most jigsaws have a hard time staying on course. Hard material and curves can easily cause the blade to deflect, resulting in time consuming re-cutting or sanding. Trion jigsaws are designed with adjustable carbide-tipped jaws that work with the blade clamping system and back-up bearing for triple blade guidance that keeps the blade perpendicular to the shoe at all times, even on curves. The barrel grip PS 300 is designed to fit your hand with a low center of gravity.

  • Carbide guidance system keeps the blade perpendicular to the shoe for improved cut results, even in thick stock.
  • Zero clearance splinterguard are solid one-piece inserts that are cut with the blade mounted in the machine for a clean, splinter-free cut.
  • Dust extraction channels integrated in the base plate coupled with a clear chip deflector a rear dust extraction port provide for cleaner work area.
  • MMC electronics provide soft start to reduce start up jolts, variable speed to match the speed to the material, and constant speed under load.

Specifications

  • Stroke rate: 1 000 - 2 900 RPM
  • 1 000 - 2 900 RPM: 4.00
  • Inclination: 0 - 45 °
  • Cutting depth in wood: Cutting depth in NF metals
  • 3/4" (20 mm): Cutting depth in steel (soft)
  • 3/8" (10 mm): Weight
  • 5.95 lbs (2.7 kg): Drive type
  • 120 VAC: Cable length
  • 13.123 ft (4 m): Power consumption

What's Included

  • Saw blade
  • Splinterguard
  • Plug it-power cable (4 m)
  • Systainer SYS3 M 137
