Description
Description
Functions
Quality down to the finest detail.
Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.
- Twin-column guide with two bearings for unique precision
- Dual-line laser for an accurate indication of the cutting line
- Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
- Special cutting position for cutting depths up to 120 mm
- FastFix saw blade changing for adaptation to the working material
- Twin-column guide for accurate cuts
- Precision angle transfer via bevel and dual-line laser
- Compact, lightweight design for convenient transportation
- Safety brake
Specifications
Specifications
- Power consumption: 1 600 W
- Idle engine speed : 1 400 - 3 600 min⁻¹
- Saw blade diameter : 260.00 mm
- Cutting depth 90°/90° : 305 x 88 mm
- Cutting depth at 45°/90° : 215 x 88 mm
- Special cutting depth 90°/90° : 60 x 120 mm
- Crown moulding diagonal cut 45°/90° : 168.00 mm
- Inclination angle : 47/47 °
- Mitre angle : 50/60 °
- Dimensions (W x D x H) : 713 x 500 x 470 mm
- Cable length: 3.50 m
- Dust extraction connection diameter: 27/36 mm
- Special cut. depth 45°/90° (left): 40 x 120 mm
- Special cutting depth 45°/90° (right): 20 x 120 mm
- Cutting depth 50°/90° (left): 196 x 88 mm
- Cutting depth 60°/90° (right): 152 x 88 mm
- Cutting depth 45°/45° (left): 215 x 55 mm
- Cutting depth 45°/45° (right): 215 x 35 mm
- Crown moulding diagonal cut at 90°/90°: 168.00 mm
- Work height: 900.00 mm

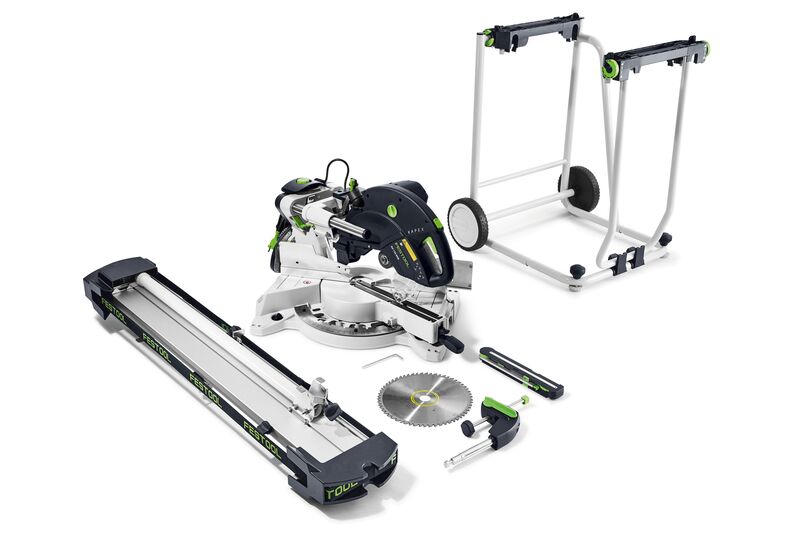

What's Included
What's Included
- Bevel
- Circular saw blade WOOD UNIVERSAL HW 260 x 2,5 x 30 W60
- Hex key, WAF 6
- Trimming attachment KA-UG-R/L

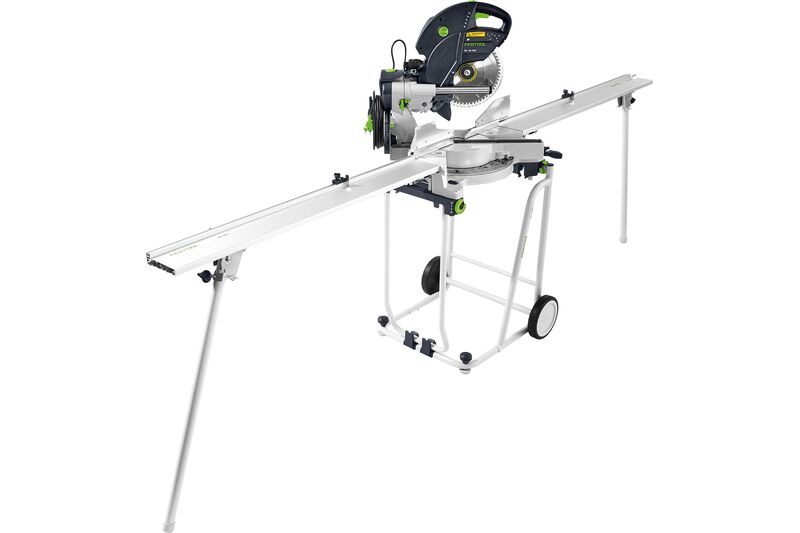

- Underframe
- Workpiece clamp
