Your specialist tool. Perfect splinter free cuts in coated chipboard.

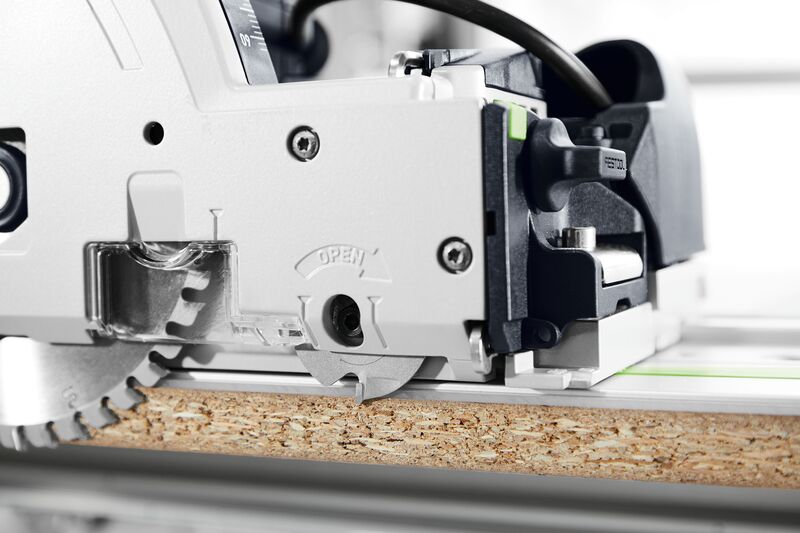

The diamond-scoring saw blade scores the top layer of the material, ensuring a splinter free cut on both sides. Perfectly designed for coated or veneered chipboard. Two diamond teeth enable splinter free cuts, even in hard to machine materials.
- Extremely long service life thanks to the use of diamond cutting teeth.

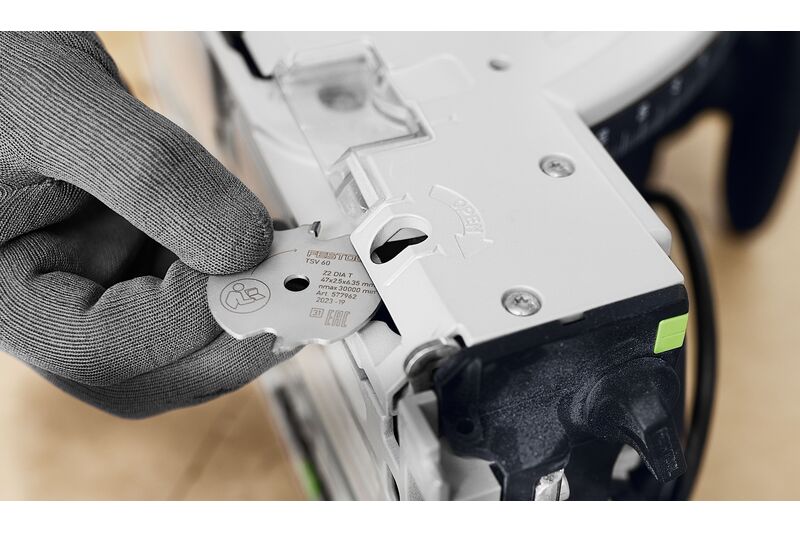

- The conical tooth shape makes it easy to adjust the scoring width to the saw cut.
- splinter free cut on both sides
- for veneered and coated panels
Usage
Main applications
- Splinter free cutting of board material, specially veneered and plastic coated chipboard
Specifications
Specifications

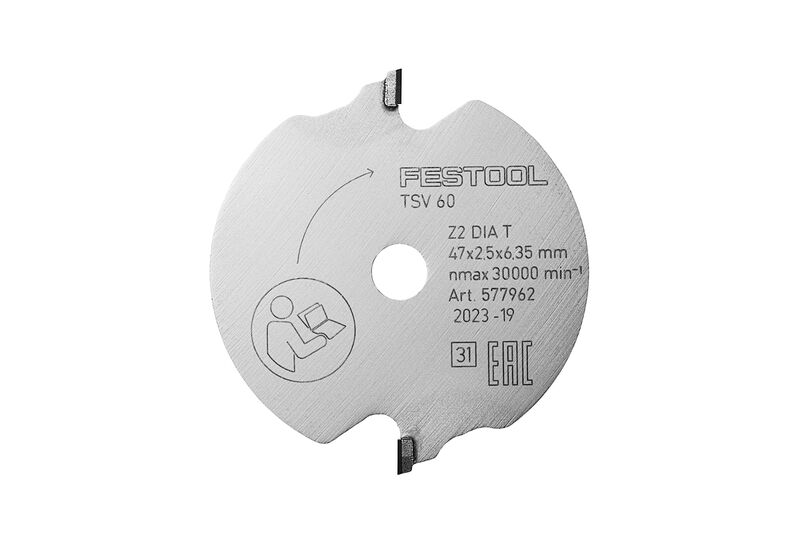

- Saw blade diameter: 47.00 mm
- Cutting width: 1,95 - 2,5 mm
- Hole dia.: 6.35 mm
- No. of teeth: 2.00

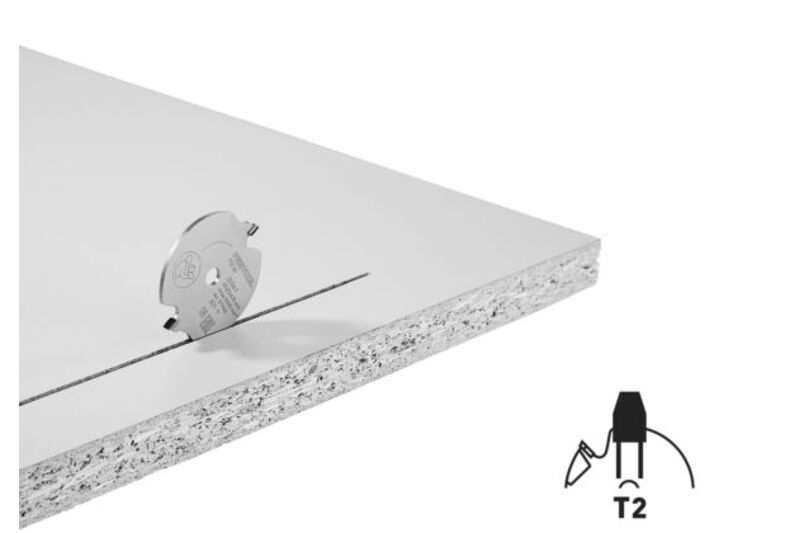

- Tooth shape: Trapezodial
