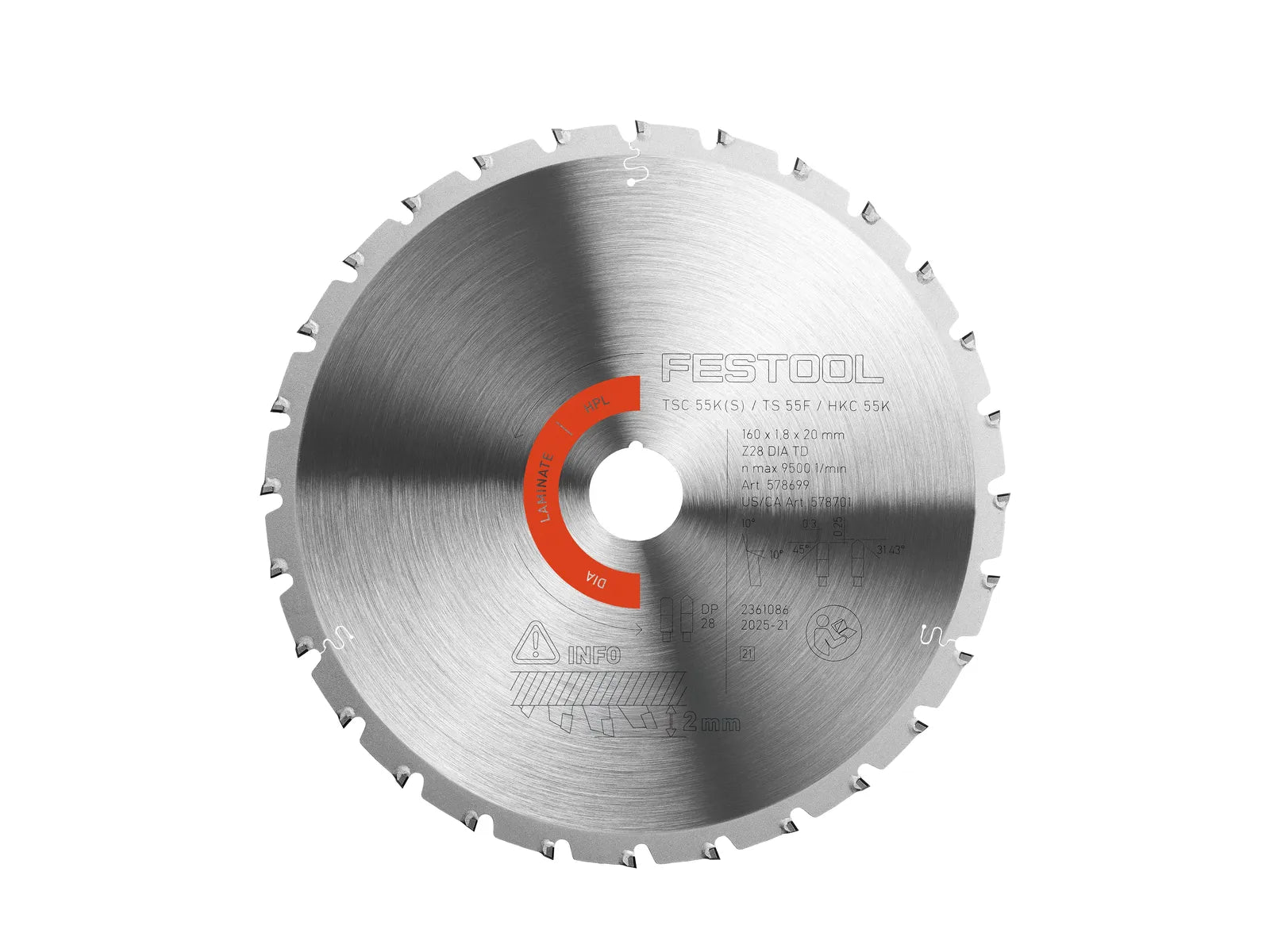

Festool 578701 Diamond Laminate/HPL Saw Blade DIA 160x1.8x20 TD28

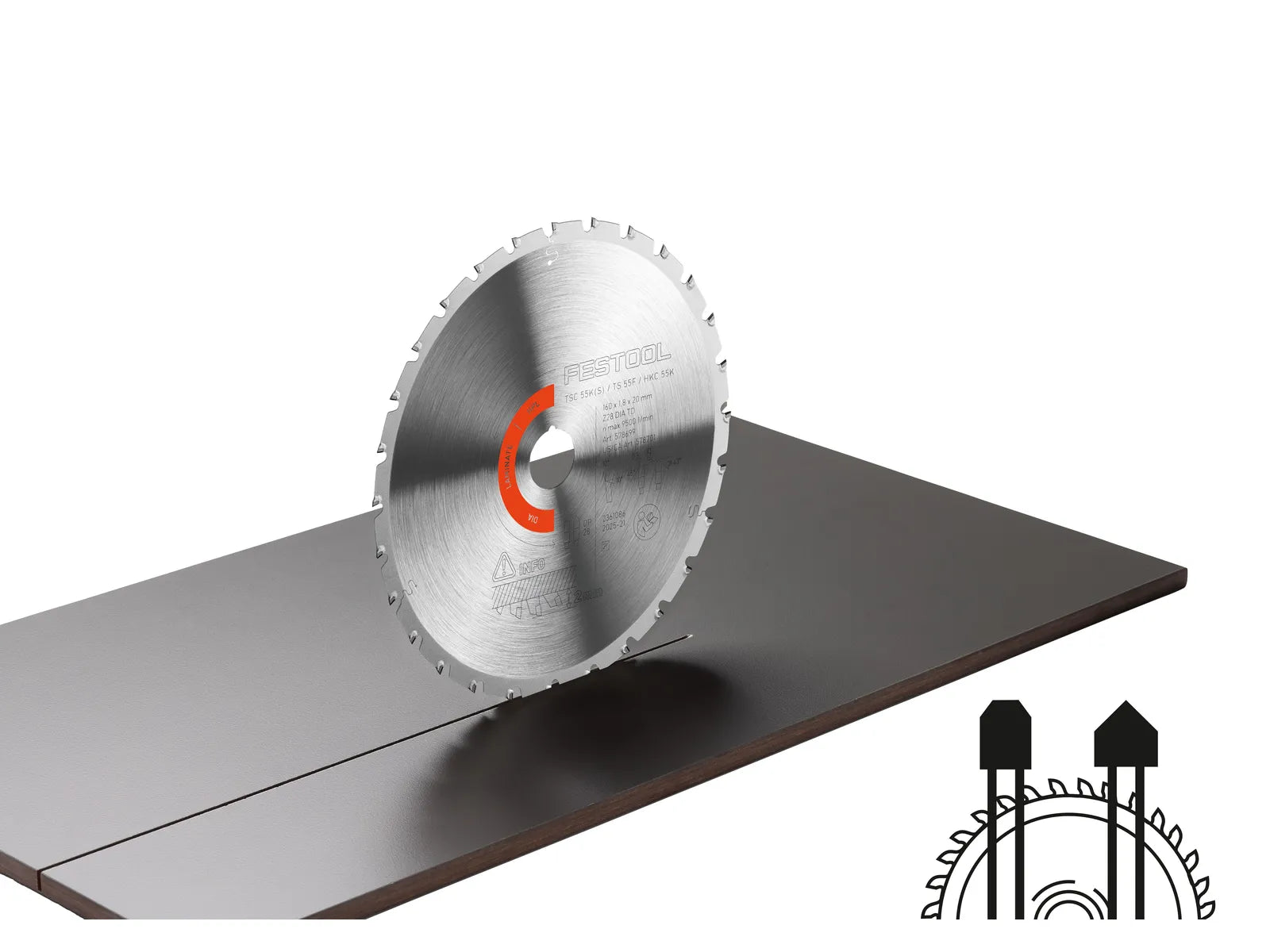

The Festool 578701 Diamond saw blade is engineered for the brutal abrasiveness of laminate, HPL and mineral-based panel materials that destroy ordinary carbide. Its 28 polycrystalline diamond (PCD) teeth in a trapezoidal-flat (TD) geometry shear through high-pressure laminates and composite sheet goods with a chip-free, splinter-free edge, while a 160 mm body and 20 mm arbor drop straight into your TS 55 plunge-cut saw on the Festool guide rail system. Because PCD edges outlast carbide many times over, this blade keeps cutting clean long after standard blades have dulled, making it the cost-per-cut champion for shops running laminate day in, day out.

• Polycrystalline diamond (PCD) teeth deliver extreme edge life in abrasive laminate, HPL and mineral materials, far outlasting carbide
• 28-tooth trapezoidal-flat (TD28) geometry produces clean, splinter-free edges on both faces of the panel

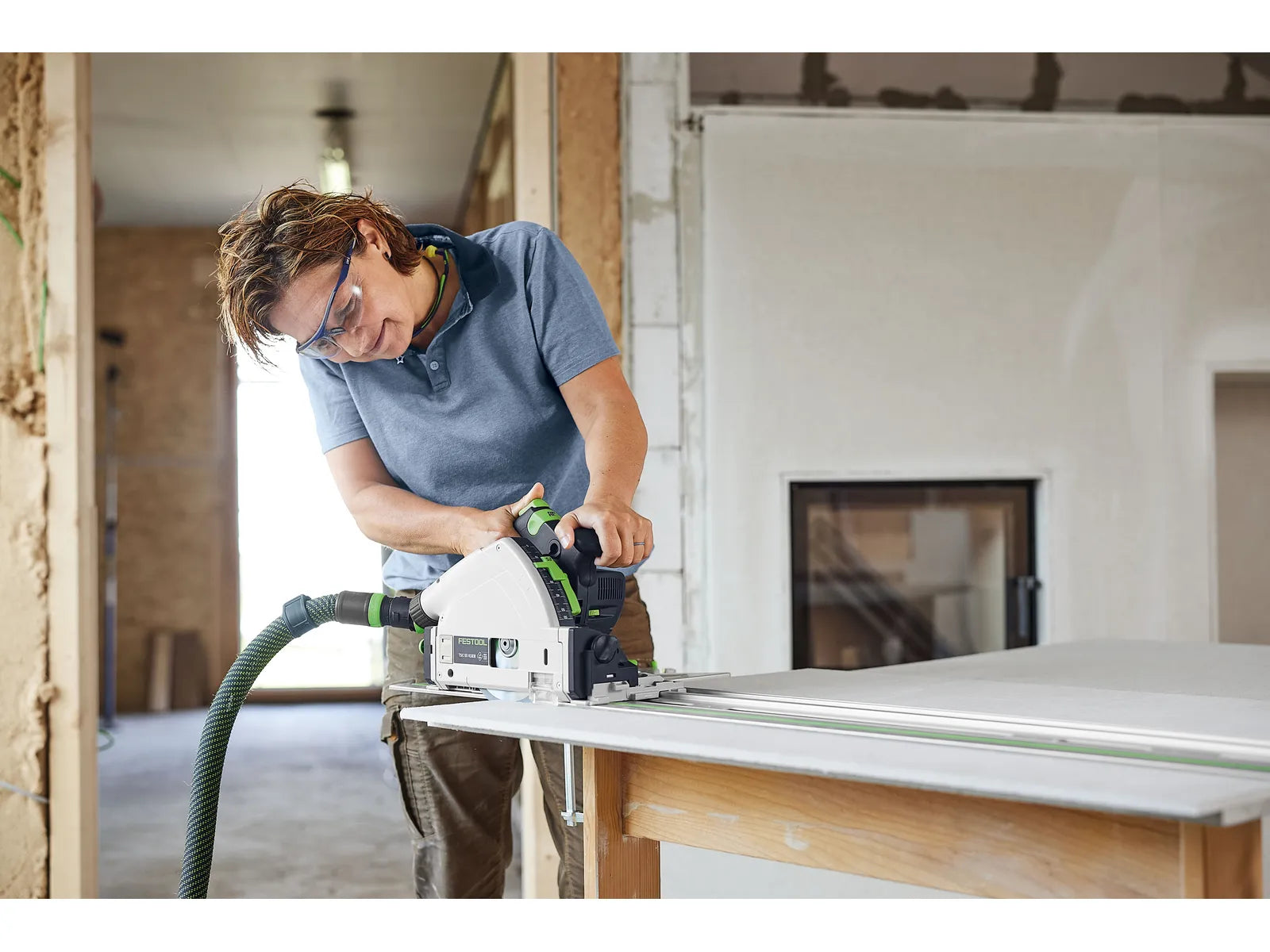

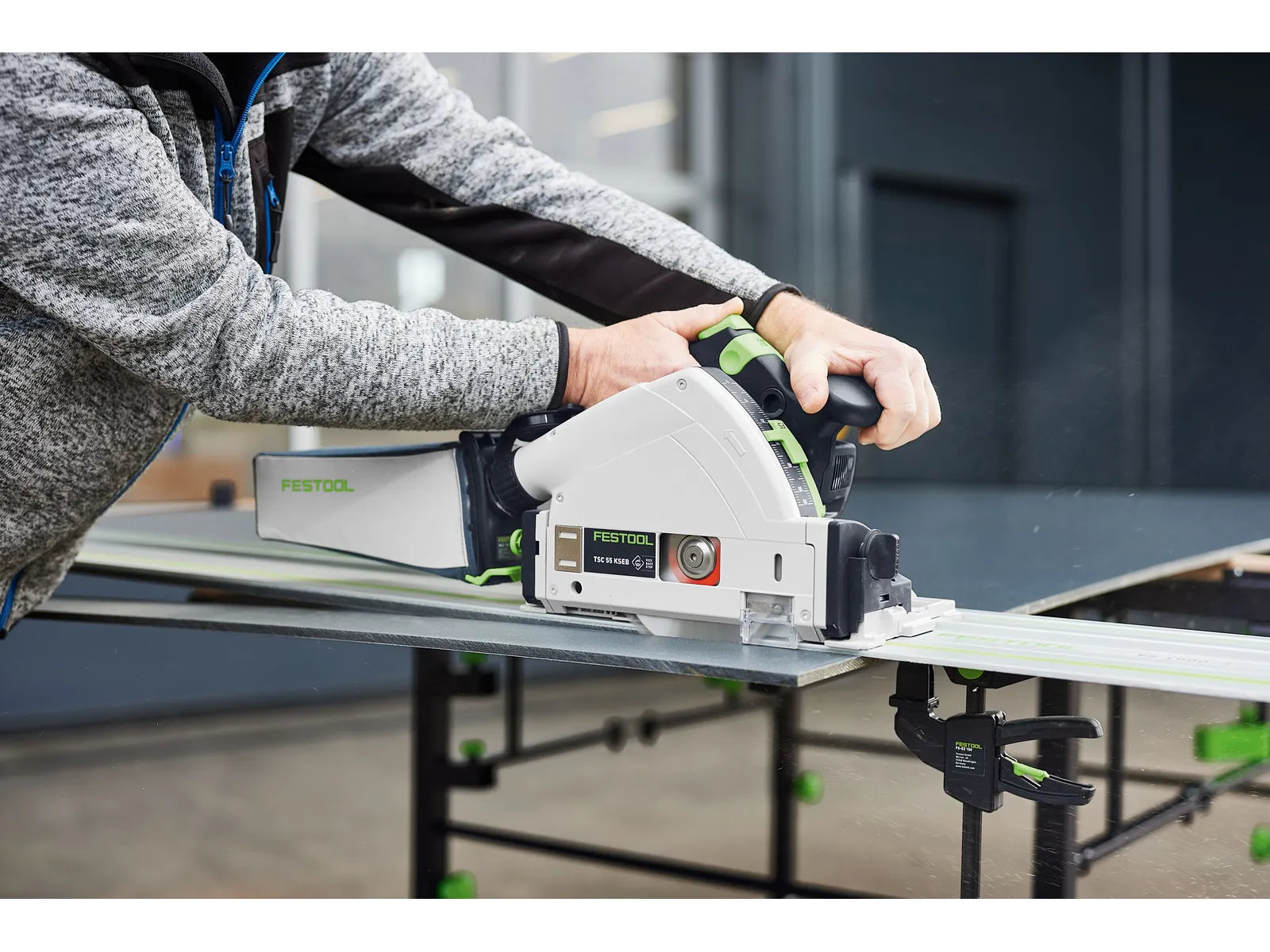

• 160 mm diameter with a 20 mm arbor for a precise fit on TS 55 plunge-cut saws and the Festool guide rail system
• Thin 1.8 mm kerf removes less material and reduces motor load for smoother, more efficient cuts
• Precision-tensioned and laser-cut steel plate runs true and quiet for accurate, vibration-controlled plunge cuts
• Made in Germany to Festool's exacting quality standards

• No. of teeth: 28.00
• Chip angle: 10.00 °
• Tooth shape: TD
• Relief angle: 10.00 °
• Hole dia.: 0.79" (20 mm)
• Standard blade thickness: 0.05" (1.2 mm)
• Cutting width: 0.07" (1.8 mm)
• Diameter: 6.29" (160 mm)
