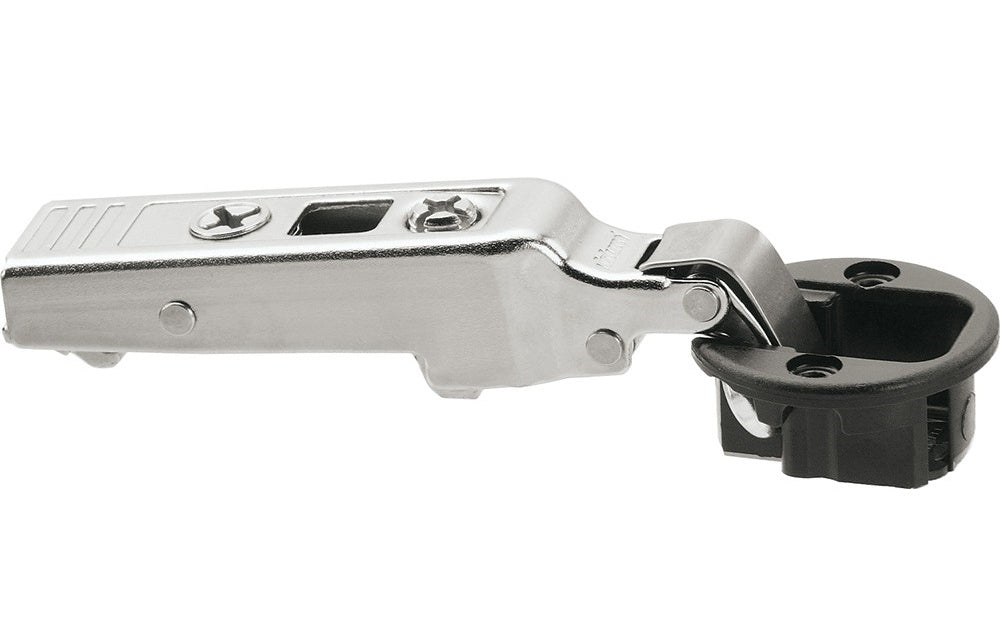

Description
- For glass thickness of 4.5 mm to 7 mm.
- Side adjust of of +0.5 mm to -3/5 mm.
- Three-dimensional adjustment.
- 26 mm drill bit requred (1" cannot be used).
Specification
- Opening Angle: 94°
- Cranking: Corner Merge Application
- Hinge Cup Assemby: Screw-on
- Hinge Cup Material: Nylon Hinge Cup
- Closing Mechanism: With Spring
- Side Adjustment: +0.5/-3.5 mm
- Depth Adjustment: +/-2 mm, convenient with spiral screw
- Manufacturer: BLUM, INC.
- Manufacturer's Part: 75T4100
- Weight: 0.130 lbs
- Sold in Multiples of: 1
- Priced by: Each
- Cabinet Type: Face Frame, Frameless
- Overlay: Full Overlay
- Closing type: Self-Closing (Snap-Closing)
- Boring Pattern: 45 mm
- Cup Diameter: 26 mm
- Cup Depth: 13 mm
- Max Overlay: 17 mm
- Max Door Thickness: 4.5 mm - 7 mm Glass
