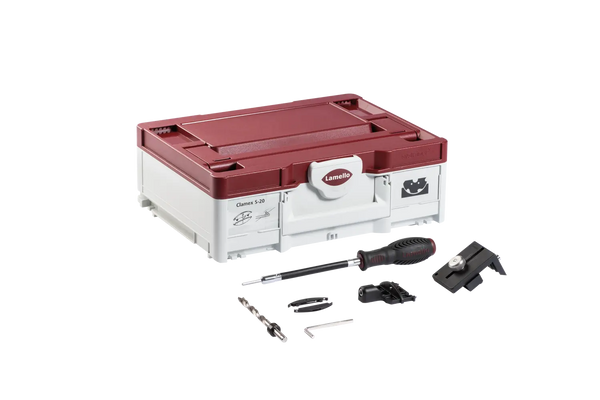

Lamello Clamex S-20 Detachable Furniture Connector Starter Set with Systainer3

Product description

The Clamex S-20 is a detachable connector for the Lamello system, compatible with 16 mm material and installed in grooves with screws. Its minimalist 6 mm opening ensures nearly invisible joints, while the lever mechanism allows fast, glue-free assembly at any angle. The connector matches the size of a standard size-20 biscuit and fits grooves milled with any biscuit joiner. Each package includes a drill jig for angled access holes from 22.5°–180°, enabling quick assembly with two screws and a hex key. Workpieces can be processed immediately after assembly or shipped, and the system adapts seamlessly to both workshop and on-site adjustments, maintaining a flawless aesthetic.

Applications:

• Detachable connecting fitting for panels
• Gluing aid for mitres or difficult-to-clamp angles
• Thin materials where very few detachable connectors are available
• In kitchen manufacturing in open shelves or HPL kitchen worktops
• For interior fitting in built-in cupboards, wardrobes under stairs or sloping roofs
• In furniture construction for high-quality furniture with mitre connections or unusual angles, wine racks or bookshelves
• Butt joints from a material thickness of 16 mm
• Mitre connections from a material thickness of 14 mm

• Installation tolerance longitudinal: ± 1 mm
• Installation tolerance radial: ± 0 mm
• Adjustment Lamello-System: 20
• Adjustment P-System: off
• Size (L x H x W): 59 x 24 x 3.9 mm
