Specifications

  • Material: Steel / Plastic, Galvanized
  • Supplied with: 4 Wall plugs, plastic, 4 screws

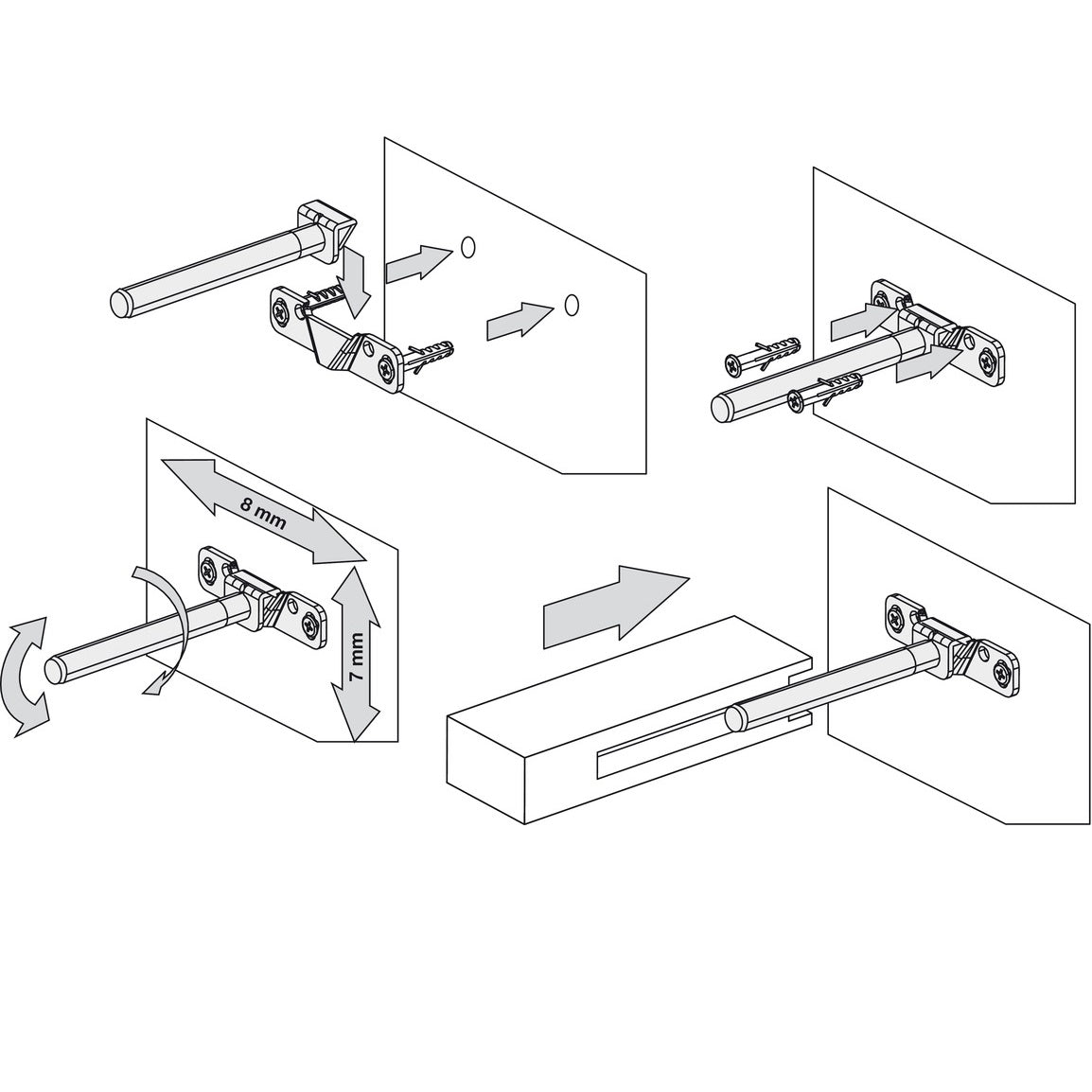

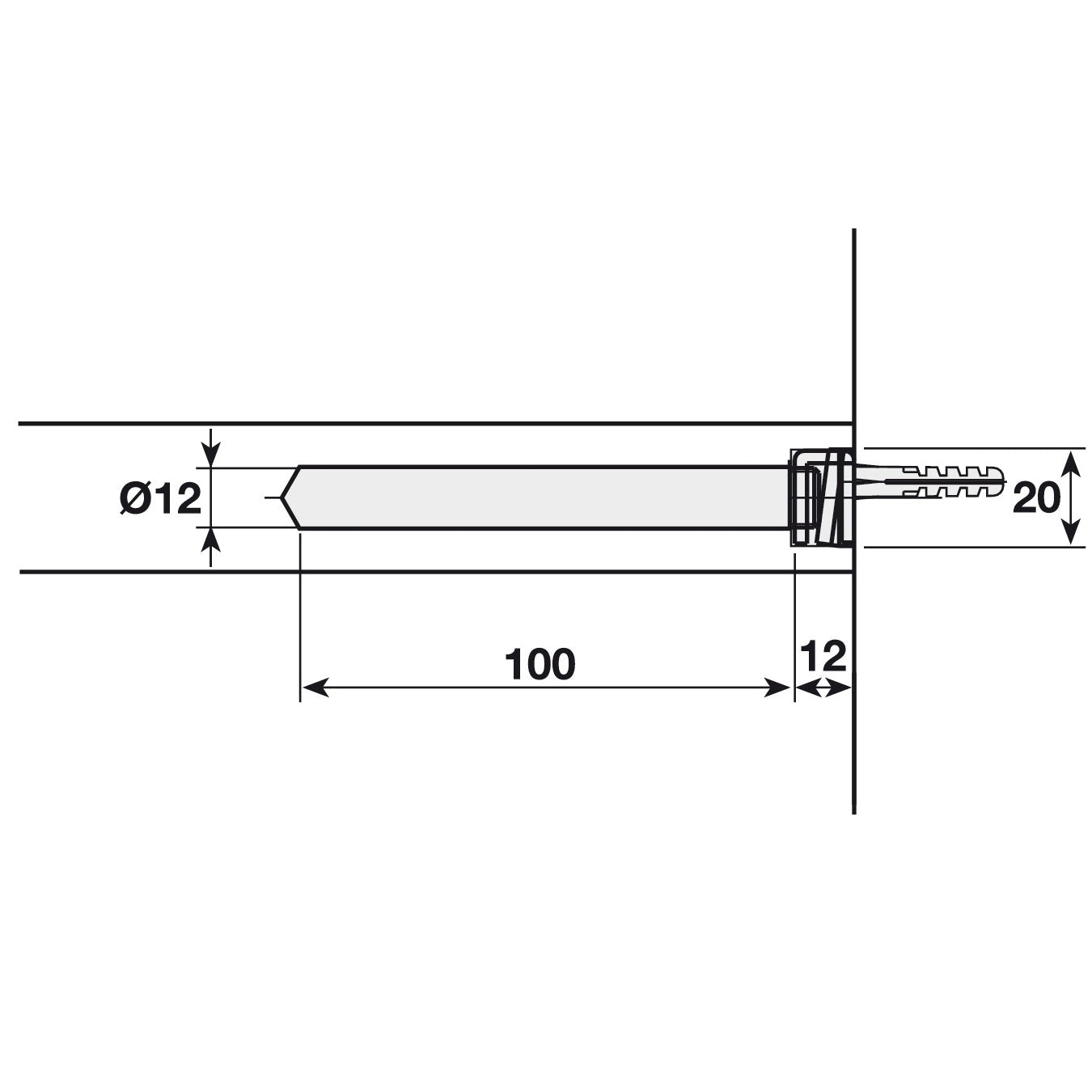

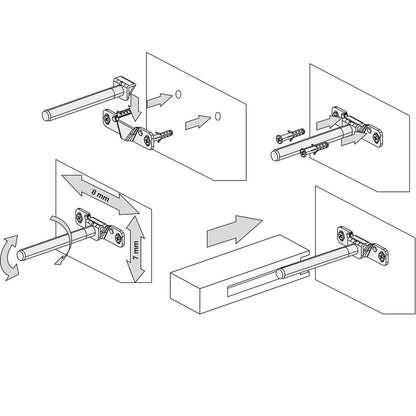

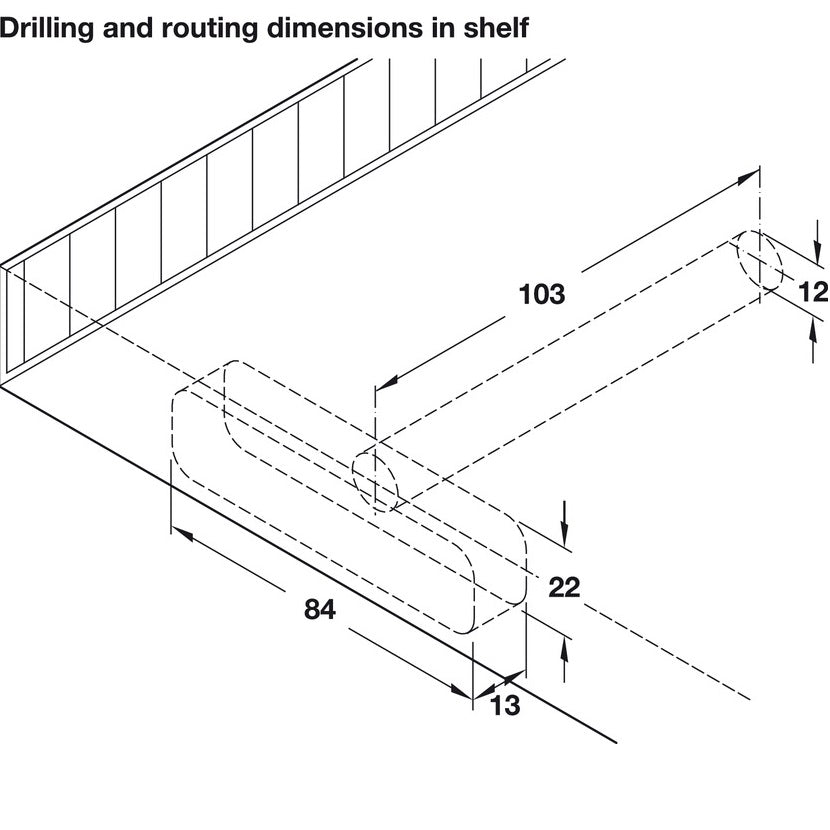

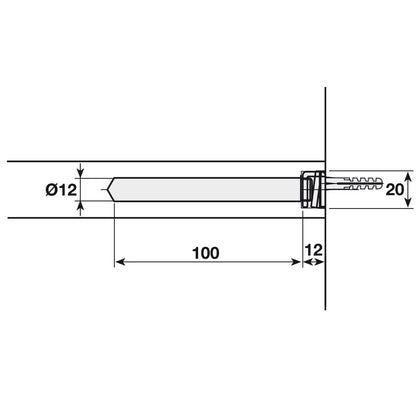

  • Notes: • For concealed installation with screw-on plate and adjustment • For shelf thickness: ≥24 mm • Inclination adjustment: Via support bolt Height adjustment: Via slots in screw-on plate Side adjustment: Via support bolt • For screw mounting to support element; for mounting in drilled hole in shelf
In stock, 175 units

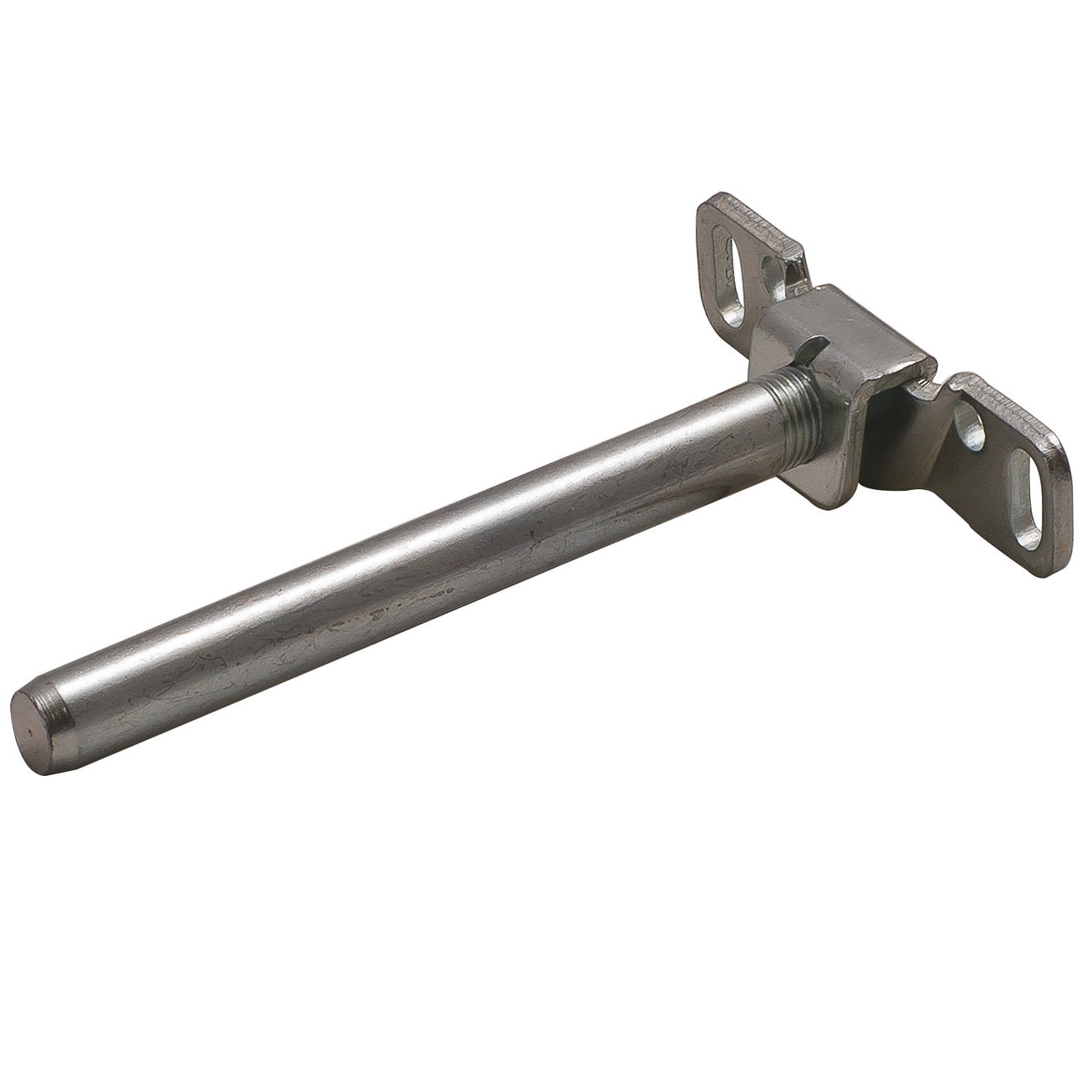

Hafele Concealed Shelf Support with Inclination Adjustment

Hafele Concealed Shelf Support with Inclination Adjustment

Add to wishlist Add to wishlist

SKU: HA-283.33.941

$8.43
$10.54 $8.43
In Stock
Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within 3-5 business days . (Minimum order quantity: 1)
Documents
TCH Furniture Cabinetry Hardware 2017 Product Page 11.64

Specifications

  • Material: Steel / Plastic, Galvanized
  • Supplied with: 4 Wall plugs, plastic, 4 screws
  • Notes: • For concealed installation with screw-on plate and adjustment • For shelf thickness: ≥24 mm • Inclination adjustment: Via support bolt Height adjustment: Via slots in screw-on plate Side adjustment: Via support bolt • For screw mounting to support element; for mounting in drilled hole in shelf
