Specifications
Specifications
- Number of doors: 2.00
- Soft closing mechanism: Stopper system with soft closing mechanism integrated in running system
- For door thickness: 19 – 25 mm
- For door width: ≤1,200 mm
- For door weight: ≤20 kg

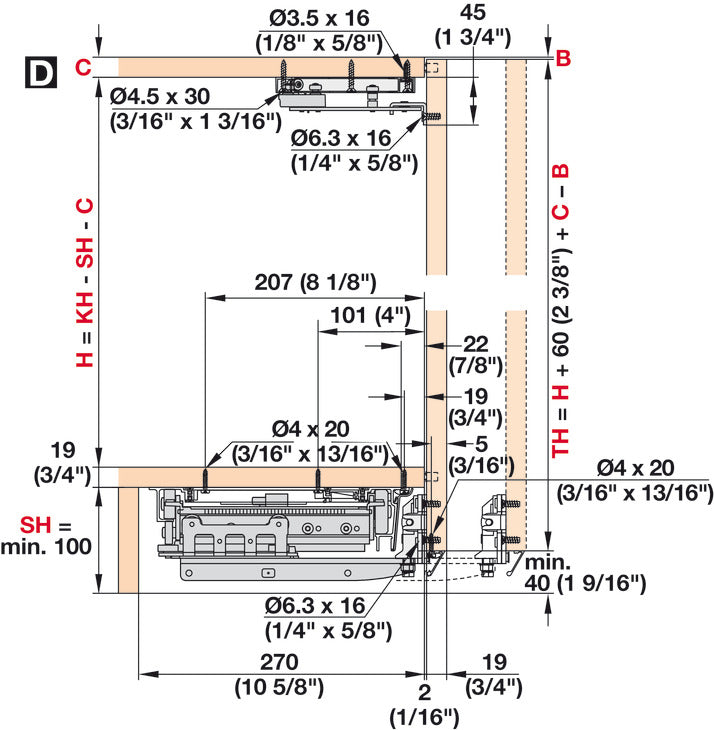

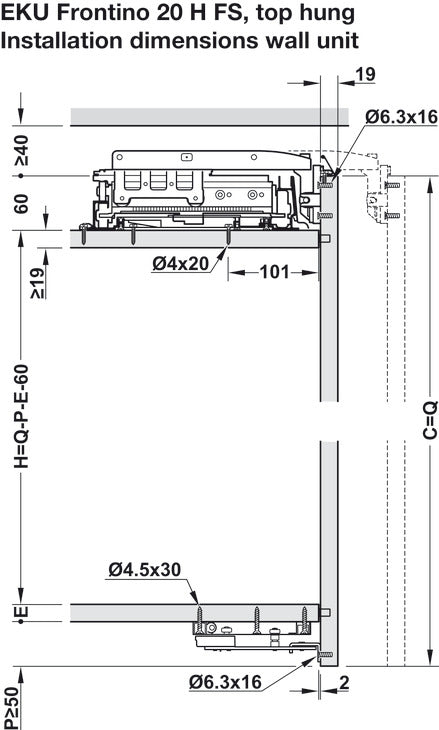

- Installation depth, top: 270.00 mm
- Running gear guided by: Ball bearing
- For door thickness max.: 1"
- For cabinet width: Max: (3' 3 3/8") 1000 mm
- For door thickness min.: 3/4"
- Door weight max.: 44 lbs

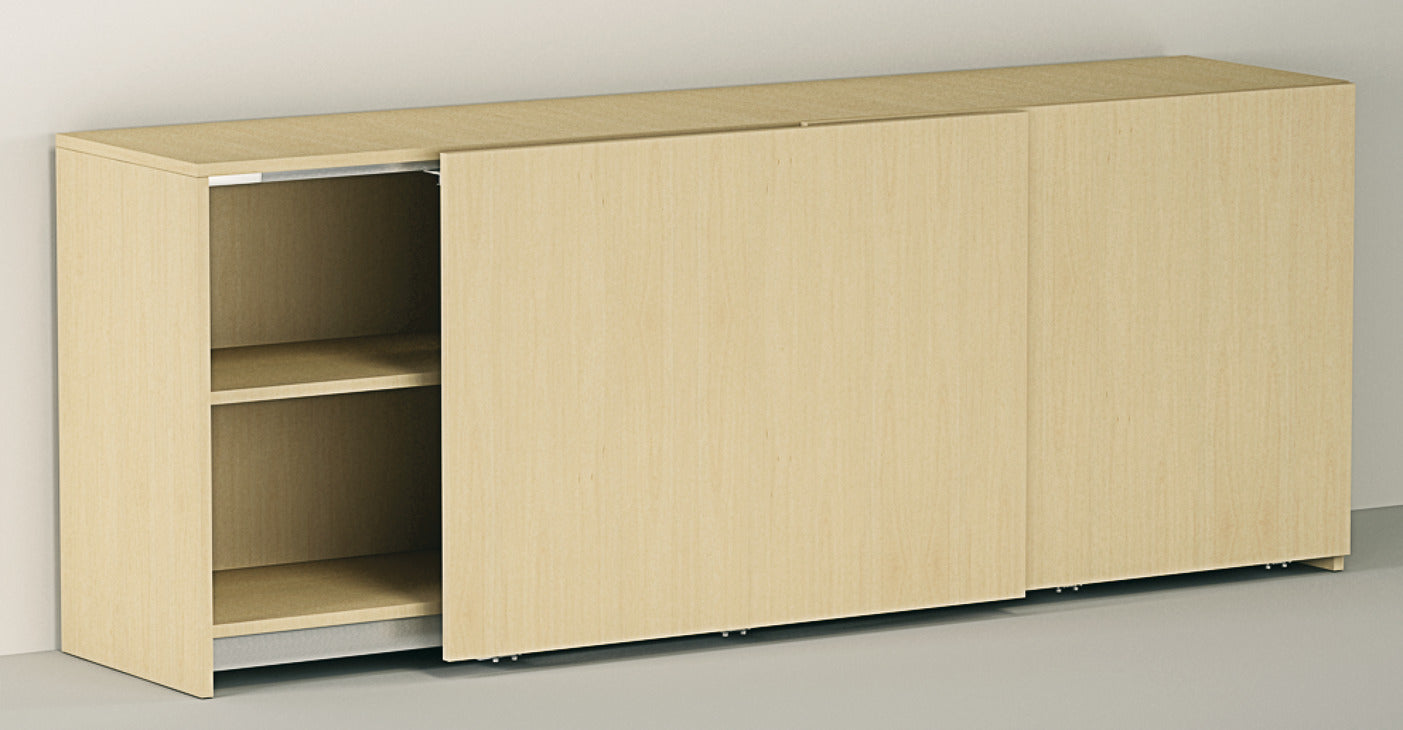

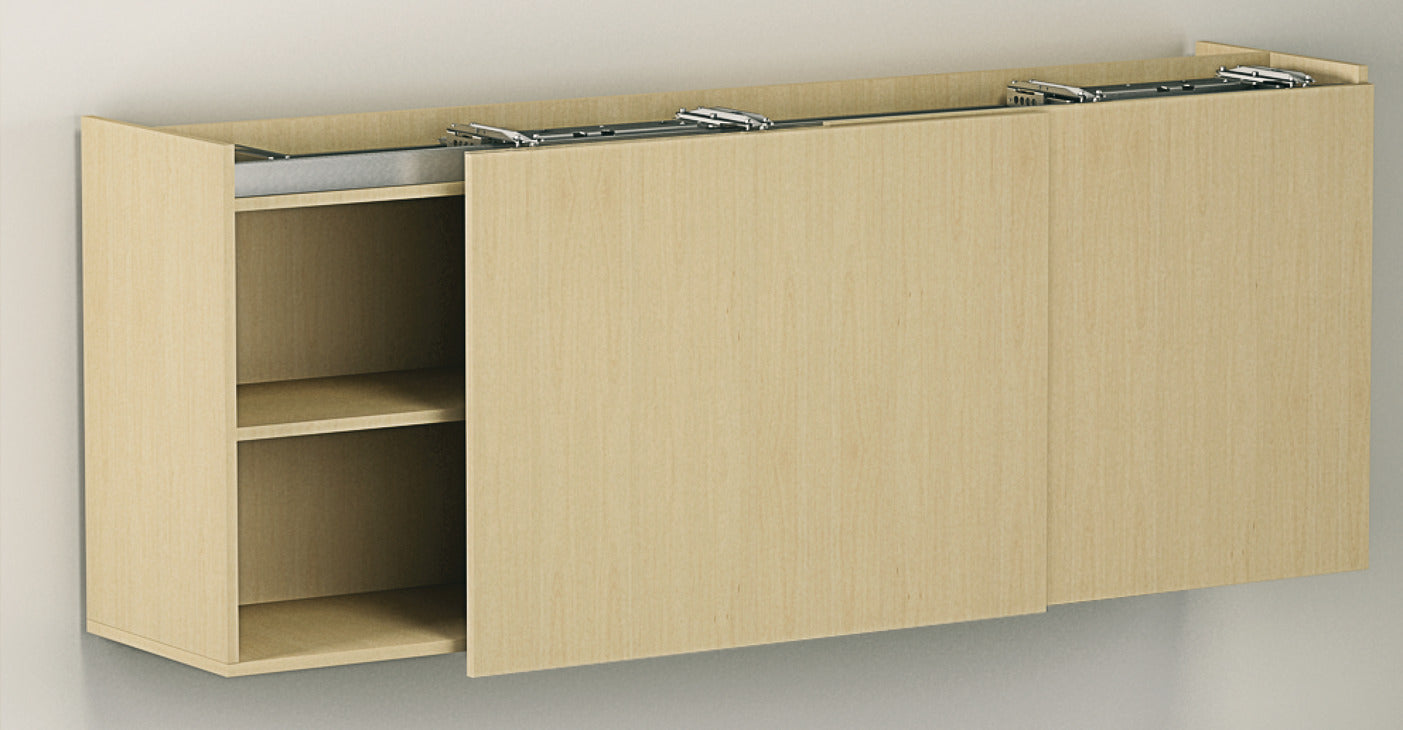

- Cabinet version: wall units, sideboards, base units, with 2 symmetrical door leaves or for one single doors and drawers, for example
- Area of application: For wall units/base units, sideboards
- For door height: ≤1,000 mm
- Door stopper: Stopper system with soft closing mechanism integrated in running equipment
- Material/finish: AluminiumRollers: Plastic

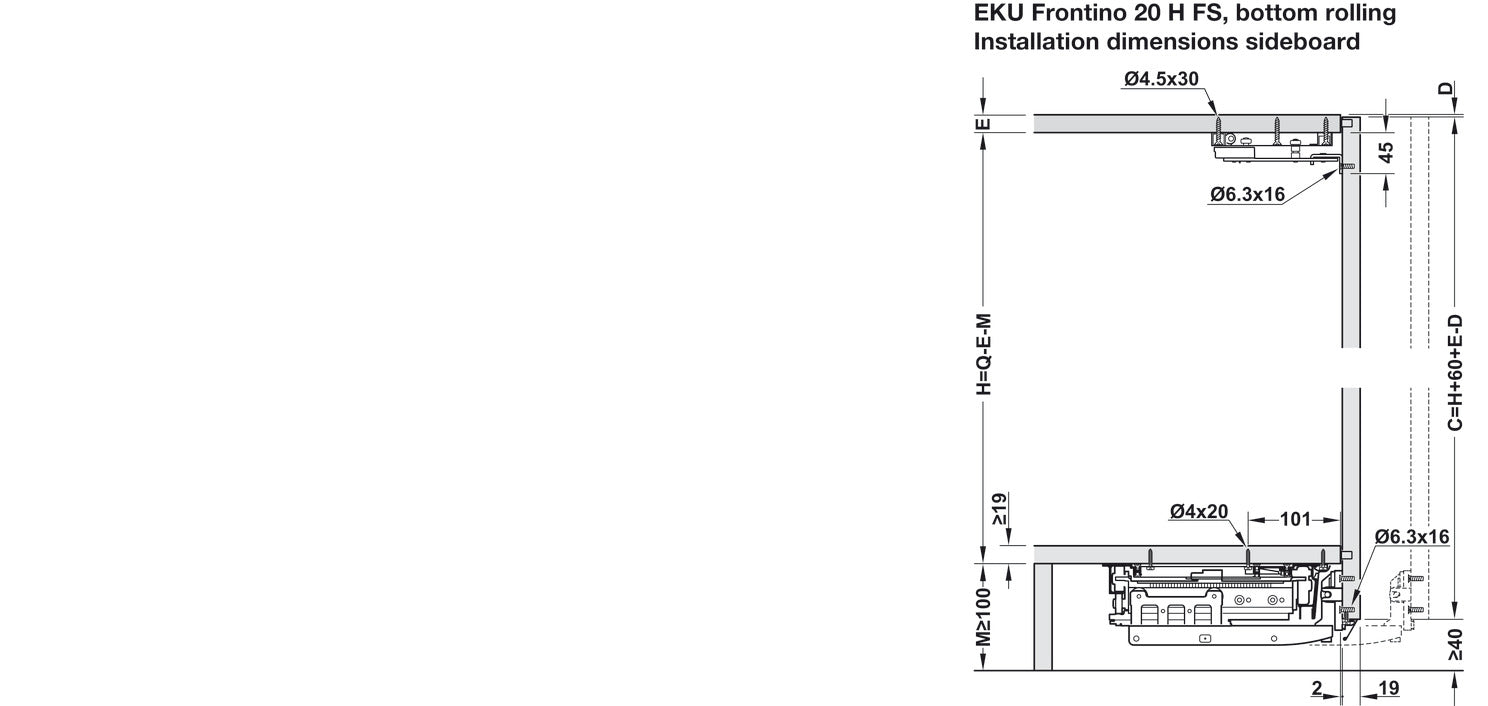

- Installation depth, bottom: 270.00 mm

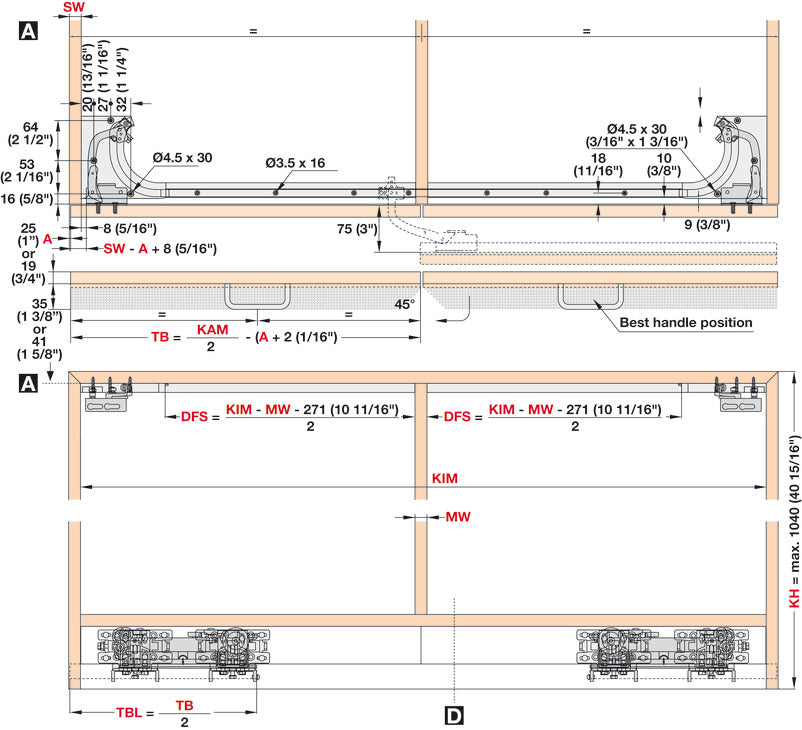

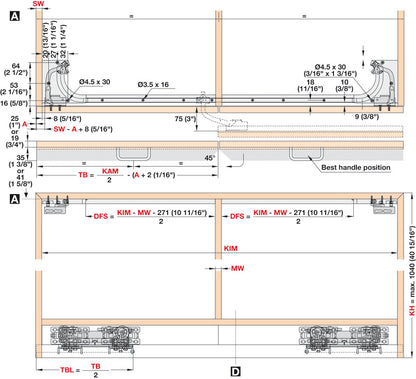

- Distance from handle to door edge min.: 35.00 mm
- Max. distance from handle to door edge: 41.00 mm

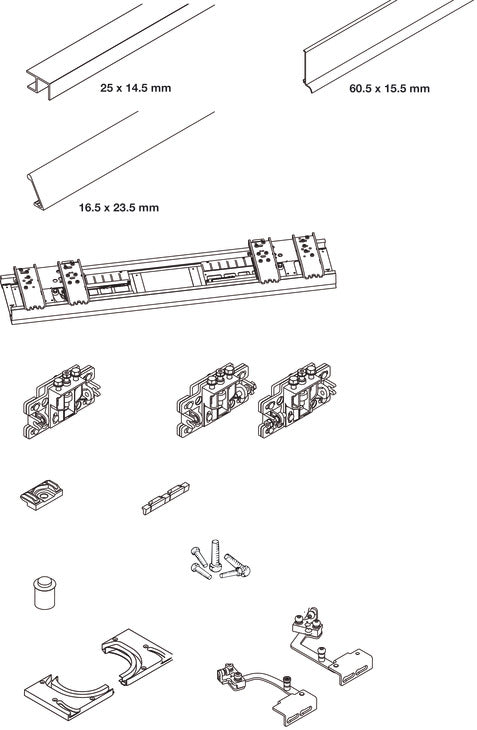

- Installation: Running gear and tracks for screw fixing
