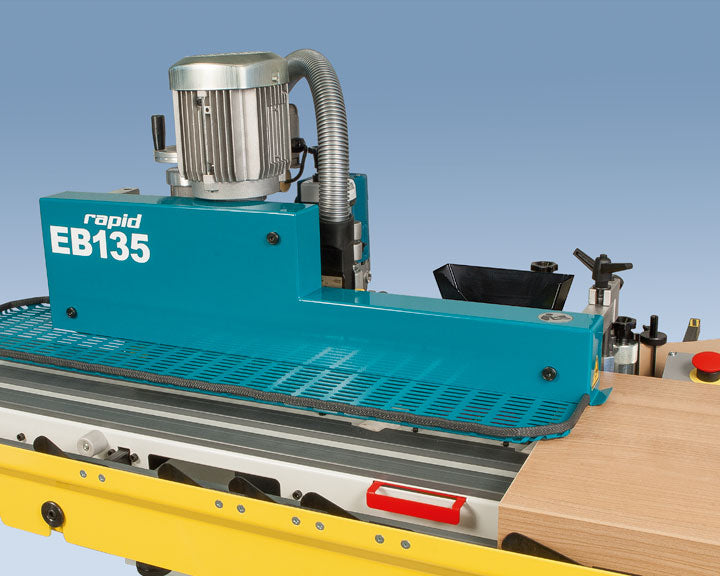

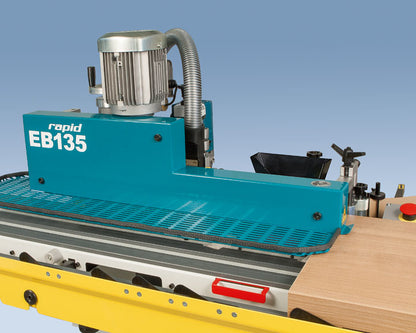

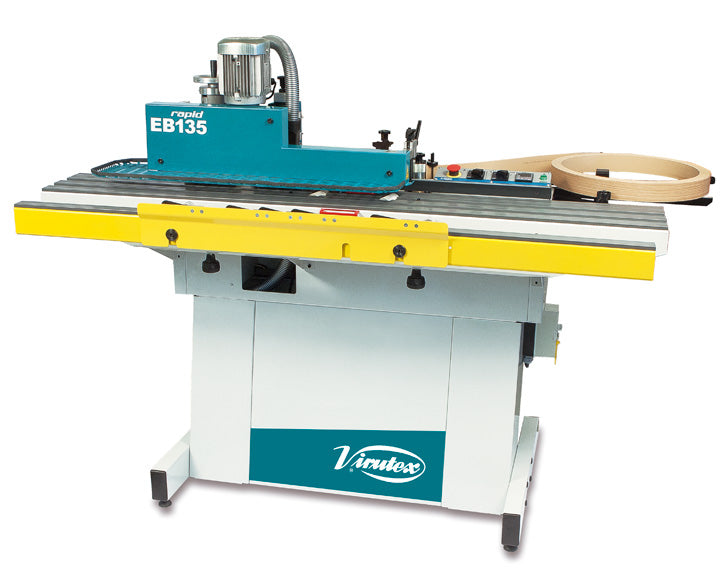

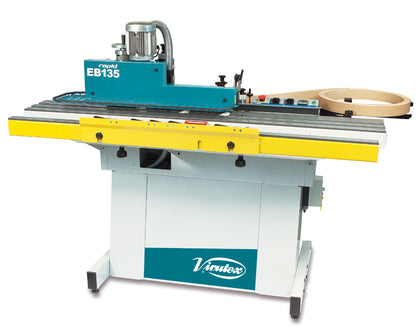

Virutex EB135 Automatic Hot Melt Edgebander Rapid

Features

• Quick start and adjustment. 5 minutes heat up time.
• Single phase 220-240V. No compressed air required.

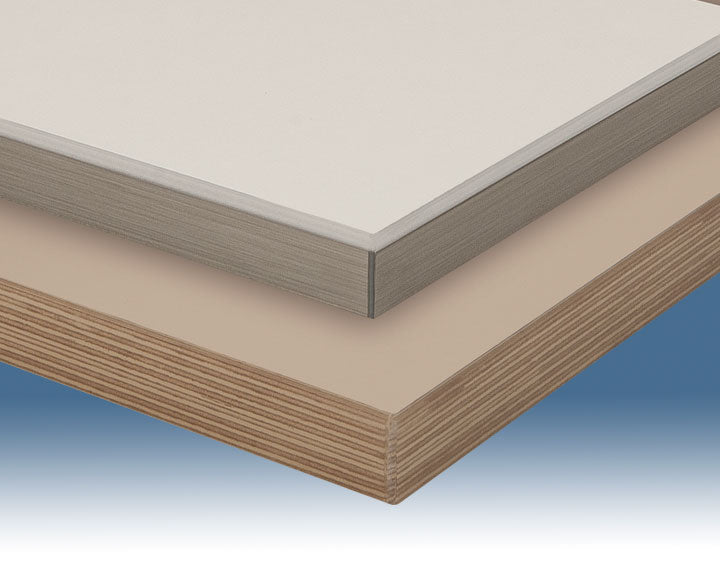

• For PVC, melamine, veneer and ABS tapes (included 3D and glass effect).
• Possibility to use tapes up to 3 mm thick.

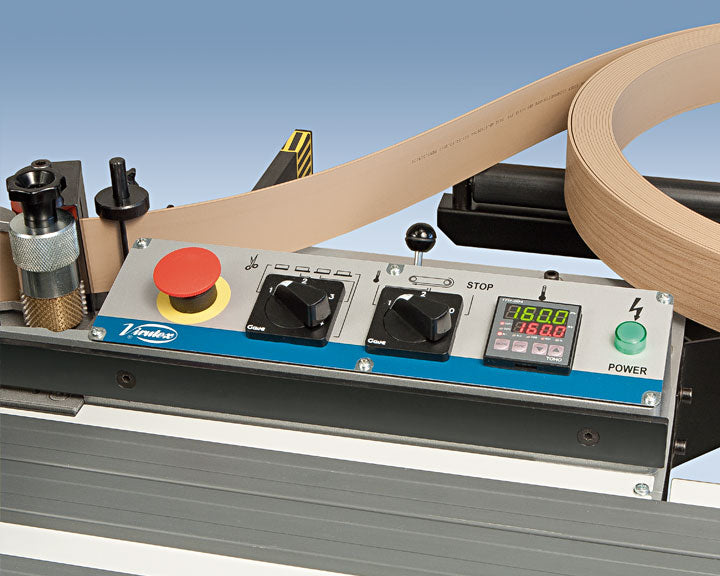

• Glue temperature adjustment controlled by microprocessor, which avoids the temperature oscillation.
• Motorised pressure gluing roller to ensure the perfect edgebanding from the beginning of the panel.
• Gluing roller with polymerization processing which helps to reduce the glue consumption.

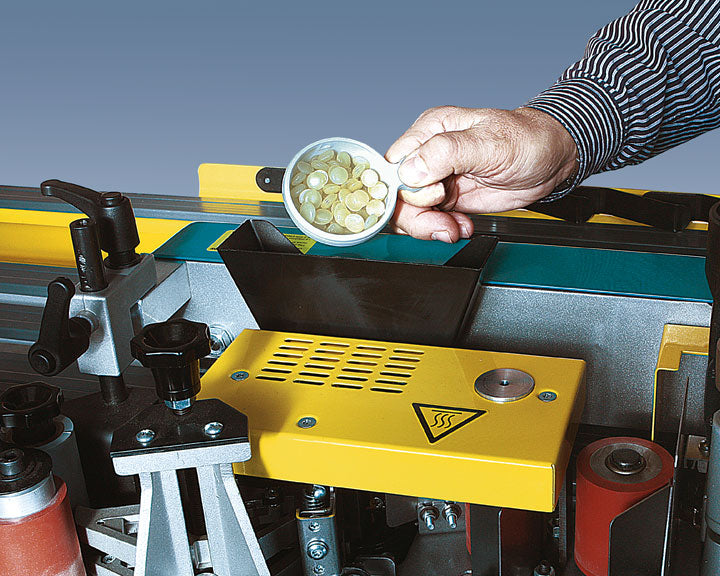

• Glue pot covered by Teflon® for an easy cleaning and maintenance.
• Excellent finishings without adhesive residue due to the double flat scraper.
• High performance. Up to 120 m of continue edgebanding with the glue pot content.

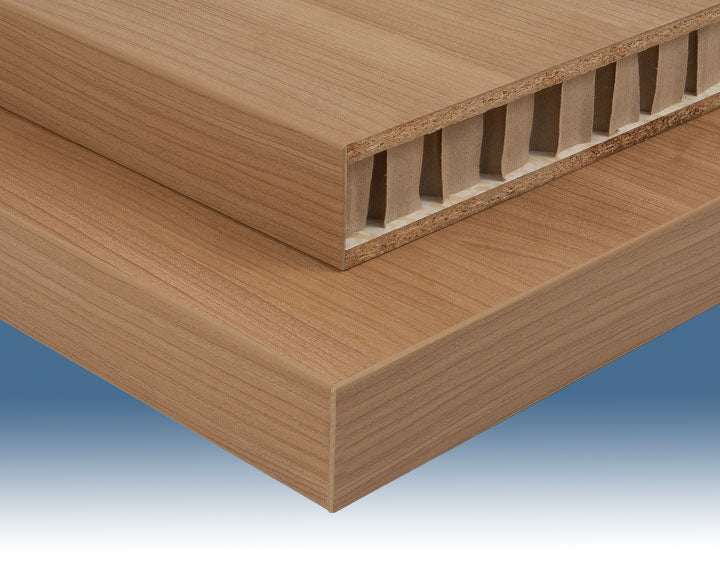

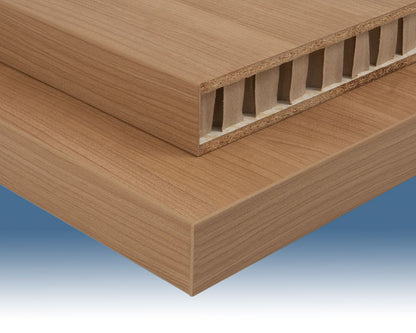

• Panel thickness from 13 up to 50 mm. Suitable for lightweight panels as well.

• Input Power: 3450 Watts
• Min. Panel Thickness: 13 mm
• Max. Panel Thickness (for tapes from 0.4 to 2 mm): 50 mm
• Max. Panel Thickness (for 3 mm tapes): 25 mm
• Min. Panel Width: 102 mm
• Min. Panel Length: 180 mm
• Adjustable Working Temperature: 110°-200°C
• Working Speed: 4 m/min
• Trimming Unit No-Load Speed: 10,000/min
• Trimming Bits: Ø 59, Z4, R2, +10°
• Voltage (Single Phase): 220-240V
• Dimensions: 1720 x 950 x 1350 mm
• Weight: 150 kg

• Virutex Automatic Hot Melt Edgebander Rapid EB135
• Belt Feeder Unit
• Motorised top and bottom trimming unit with TCT bits r=3 + 10º chamfer
• Flat scrapers at both sides of the panel

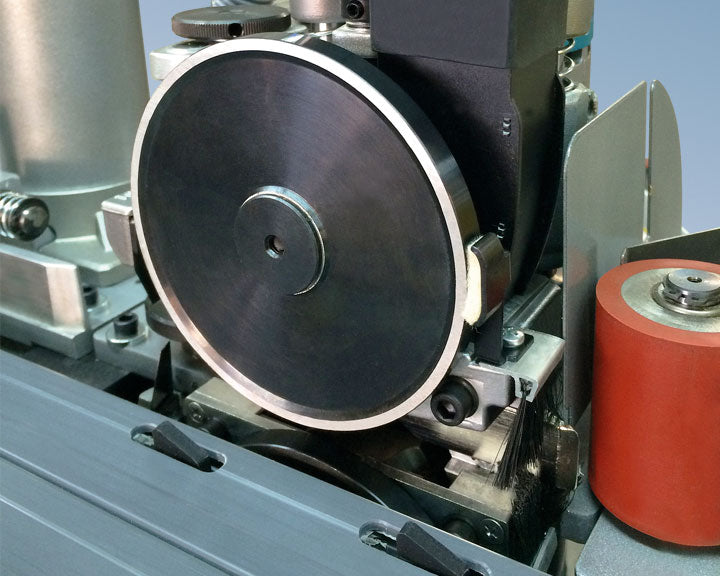

• Front and rear flush cutting
• Table extension
• 8540183 Upper bit Ø60 Z4, r:2, 10° bevel
• 8540184 Lower bit Ø60 Z4, r:2, 10° bevel
