Description

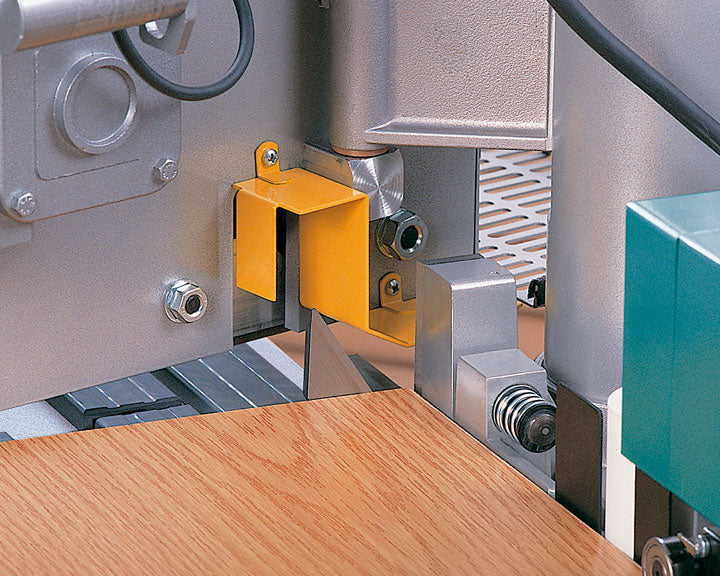

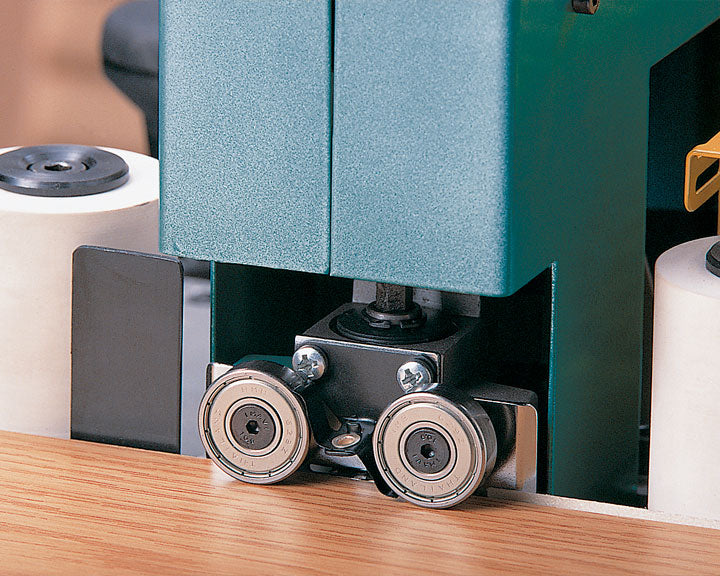

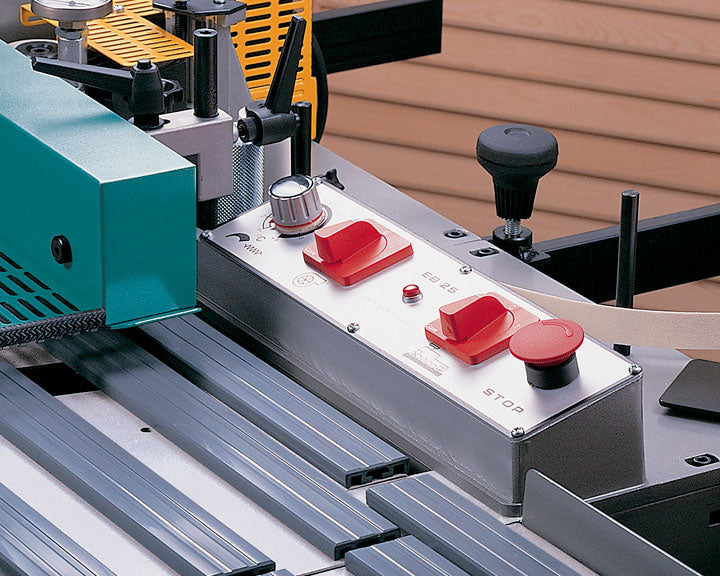

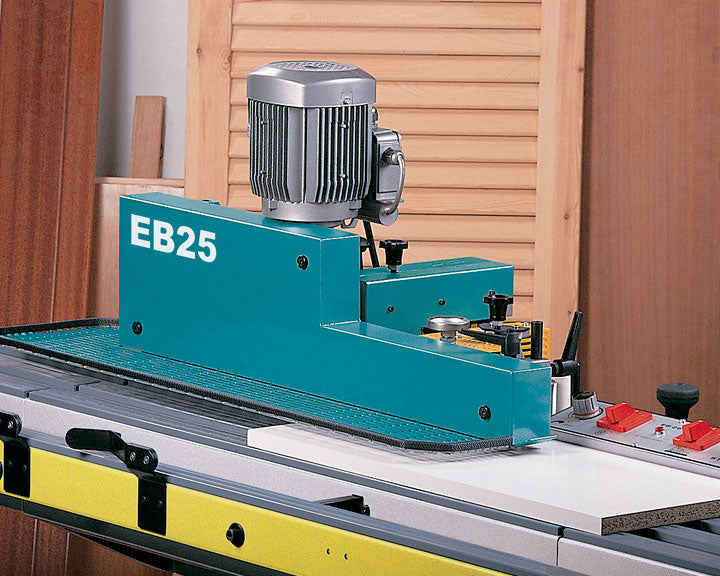

For panel edgebanding with preglued PVC, melamine and veneer. Automatic edge feeding system. Trimming on both sides. Motorized top and bottom trimming unit. Front edge trimming, rear flush cutting of the tape. No compressed air or dust collector required. Powerful hot air system with electronic temperature control. Minimum heat up time (2min.). Belt feeder for automatic workpiece.

Specifications

  • Input Power: 3,000 Watts
  • Min. Edging Width: 11 mm
  • Max. Edging Width: 50 mm
  • Electronic Temp. Control: 0-500°C
  • Work Speed: 4.2 m/min
  • Voltage (1-ph): 220V
  • Dimensions: 1,720 x 950 x 1,350 mm
  • Weight: 117 kg

What's Included

  • Edgebander EB25
  • AK97N Motorized trimming unit Panel holder extension
Call to Order

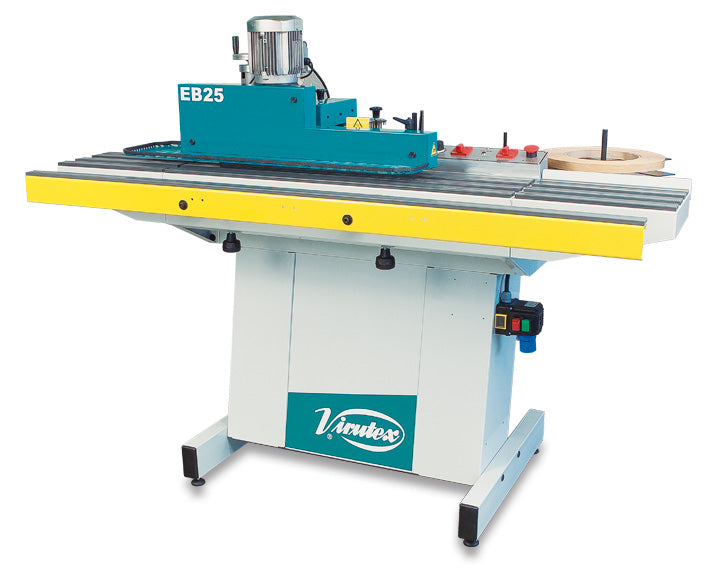

Virutex EB25 Edgebander (220V)

Virutex EB25 Edgebander (220V)

SKU: VT-6300099

$8,173.05
$8,173.05 $8,173.05

Call to order
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
Full policy →
Documents
Virutex EB25 Edgebander Operating Instructions Safety Instructions

Description

For panel edgebanding with preglued PVC, melamine and veneer. Automatic edge feeding system. Trimming on both sides. Motorized top and bottom trimming unit. Front edge trimming, rear flush cutting of the tape. No compressed air or dust collector required. Powerful hot air system with electronic temperature control. Minimum heat up time (2min.). Belt feeder for automatic workpiece.

Specifications

  • Input Power: 3,000 Watts
  • Min. Edging Width: 11 mm
  • Max. Edging Width: 50 mm
  • Electronic Temp. Control: 0-500°C
  • Work Speed: 4.2 m/min
  • Voltage (1-ph): 220V
  • Dimensions: 1,720 x 950 x 1,350 mm
  • Weight: 117 kg

What's Included

  • Edgebander EB25
  • AK97N Motorized trimming unit Panel holder extension
