Description

Functions

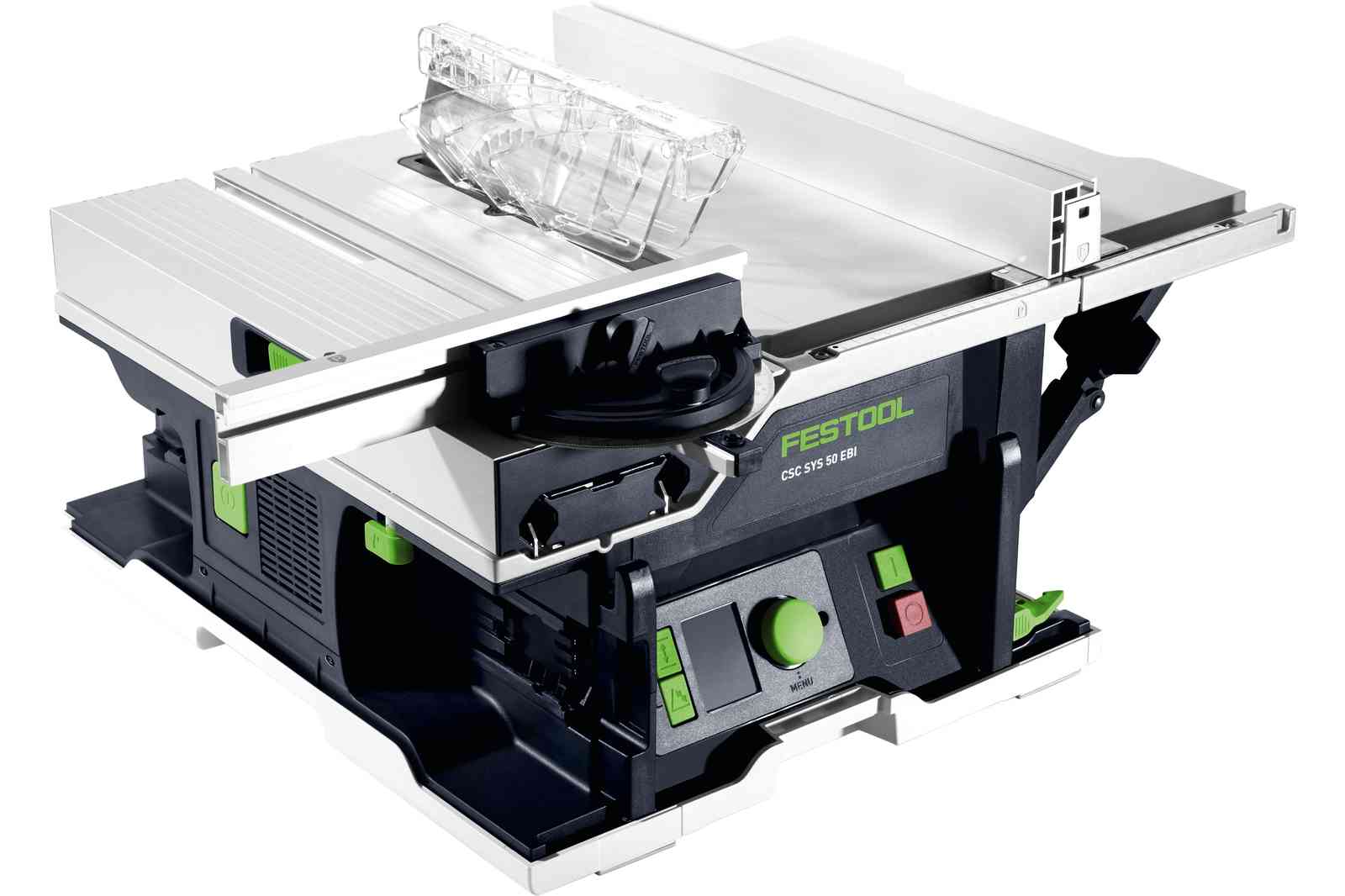

The ultimate in portable precision. The cordless table saw that fits in a Systainer.

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make rip cuts of up to 11" (280 mm), cross-cut widths of up to 17-3/4" (450 mm) and bevel cuts of -2° to 47°. The unique digital operation produces results with maximum precision, with accuracy within a tenth of a millimeter (1/256"). The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with a corded tablesaw. Together with the UG-CSC-SYS underframe, you have the perfect worktable with built-in support for ripping and cross-cutting, and it collapses for easy transport from the vehicle to the site. The CSC SYS 50: The ultimate in portable precision.

  • Versatile: Parallel cuts up to 11" (280 mm); cross cut width of up to 17-3/4" (450 mm). Bevel cuts from -2° to 47°
  • Practical: At a cutting height of up to 1-3/8" (35 mm), through to bevel cuts down to -10°; ideal for back-beveling filler strips
  • Compact and mobile: Can be easily carried with one hand neatly stored in a Systainer format. Even easier to transport with the wheeled UG-CSC-SYS underframe
  • Extreme precision: The height and bevel angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimeter (1/256")
  • Repeatable cuts are easy: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Repeatable cuts are a sure thing
  • Convenient: Four saw blade positions can be saved and selected via the digital display
  • Highly precise rip fence: Robust rip fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results
  • Highly precise angles: The miter gauge is optimally aligned and centrally clamped via a groove on the sliding table. For miter angles between -70° and +70°
  • Absolutely smooth-sliding action: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
  • Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing and perfect cutting results
  • Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long runtime
  • Long-lasting: The brushless EC-TEC motor is long-lasting, durable and maintenance-free
  • Work appropriately for the material: With saw blades for nearly every material; speeds appropriate for the material can be preselected via the digital display
  • Dust-free: Chip collection bag for practically dust-free work, even without a mobile dust extractor
  • Cleaner working with a system: Ideal also in combination with the Festool cordless extractors
  • Compatible: Fits together with the entire Festool Systainer system and Systainer Systems van racking equipment
  • Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
  • Unique: Three-year warranty for battery packs and chargers too

Product highlights

  • Incredibly compact. Extremely versatile.

    So compact, it fits into a Systainer - portable and precise - the CSC SYS 50 cordless table saw. Produce shop-quality cuts on the jobsite. Impressively versatile, with parallel cuts of up to 11" (280 mm), a cross-cut width of up to 17-3/4" (450 mm) and bevel cuts of -2° to 47°.

  • Precise cuts at the press of a button.

    You can set the height and angle accurately to a tenth of a millimeter (1/256") with unique digital operation – more exact than with any tape measure, with 100% repeat accuracy. Even the most demanding cuts are a breeze with unprecedented precision, with the robust guidance system made up of a rip fence, a miter gauge and sliding table.

  • As powerful as a corded saw.

    Even for rip cuts in solid wood, you won't notice any difference in power compared with corded machines – the 2x18 V dual battery system, in combination with the brushless EC-TEC motor will impress you with maximum power and torque.

Product details

CSC SYS 50 EBI-Basic

  • Parallel cuts up to 11" (280 mm)

    The folding table ensures compact dimensions during transport and a precise, stable support for materials of up to 11" (280 mm) when sawing.

  • Cross-cuts up to 17-3/4" (450 mm)

    An impressive cross-cut width of up to 17-3/4" (450 mm) is possible.

  • Bevel cuts from -2° to 47°

    Bevel cuts from -2° to 47°; at a cutting height of up to 1-3/8" (35 mm), even down to -10°.

  • Miter angles from -70° to +70°

    The angle can be optimally adjusted via the exact scale; predefined catches also make selecting the most important angles easier.



    Usage

    Main applications

    • Cross-cuts up to 17-3/4" (450 mm) wide, quick and precise with the integrated slide
    • Rip cutting up to a cutting height of 1-7/8" (48 mm) and a width of 11" (280 mm) with a secure support on the integrated fold-out table
    • Bevel cuts from -2° to 47° (-10° possible in the event of a restricted cutting depth of 13/16" - 1-1/4" (21–32 mm) thanks to the tilting saw blade
    • Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm (1/256") and controllable via a display
    • Transport easily in the integrated Systainer format



Specifications

  • Battery voltage: 2 x 18 V
  • Idle engine speed: 4 500 – 6 800 RPM
  • Inclination angle: -10 - +47 °
  • Mitre angle: 0 - 70 °
  • Drive type: Battery
  • Transport weight incl. accessories: 23.50 kg
  • Weight: 33.08 lbs (15 kg)
  • Dust extraction connection dia.: 1-1/16" (27 mm)
  • Dimensions (L x W x H): 20-5/32" x 15-19/32" x 11-21/32" (512 x 396 x 296 mm)
  • Cutting depth 45°: 0 - 1-11/32" (0 - 34 mm)
  • Cutting height 0°: 0 - 1-7/8" (0 - 48 mm)
  • Saw blade location hole: 3/4" (20 mm)
  • Parallel cut width: 11" (280 mm)
  • Tabletop height: 11" (228 mm)
  • Cutting height -10° : 13-16" - 1-1/4" (21 - 32 mm)
In stock, 1 units

Festool Cordless Table Saw CSC SYS 50 EBI-Basic

Festool Cordless Table Saw CSC SYS 50 EBI-Basic

Add to wishlist Add to wishlist

SKU: FT-576821

$1,499.00
$1,499.00 $1,499.00
In Stock
Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within 3-10 business days . (Minimum order quantity: 1)
Documents
Original Instructions: Cordless Sliding Table Saw Declaration of conformity Transport Document Battery Pack
