Hafele Loox5 LED Driver 24V 20W LinDrive with Lead Cable

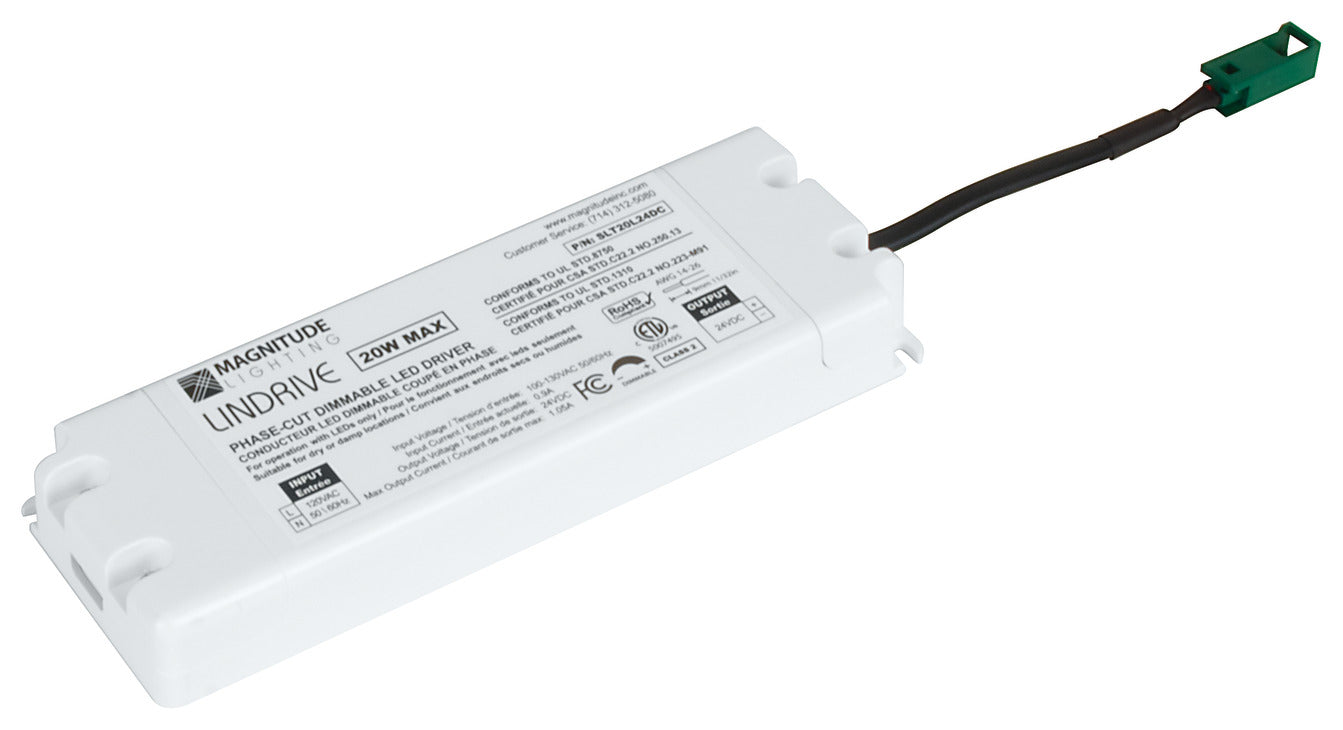

The LinDrive is an electronic Class 2, phase dimmable LED driver with a low profile hard plastic case making it ideal for small to medium sized LED lighting applications. The ETL Listed enclosure utilizes covered, side feed terminal blocks for easy wiring and installation, eliminating the need for a separate junction box. The LinDrive is available in 20 W, 40 W, and 60 W, in both 12 VDC and 24 VDC, and can be ordered with a pre-attached low voltage cable with a Häfele Loox5 female socket. Auto-reset protection for short circuits and over-voltage.

• Compatible with most phase-cut leading edge dimming systems
  Compatible with Häfele Pulse-width-modulation (PWM) and Connect Mesh dimming systems
  Hardwired (phase-cut) dimmers and Häfele PWM or Connect Mesh dimming systems cannot be used together
  Input voltage: 100-130 VAC, 50/60 Hz
  Driver type: Class 2 single channel
  Dimming: Phase dimmable with leading edge dimmer
  Minimum load: 3 W
  IP Rating: IP21
  UL8750 and 1310

• Mains voltage: 24 V
• Version: With Hafele Loox5 female socket
• Output voltage: 24 V
• Material: Plastic
• Output current: 2.10 A
