Description
Description

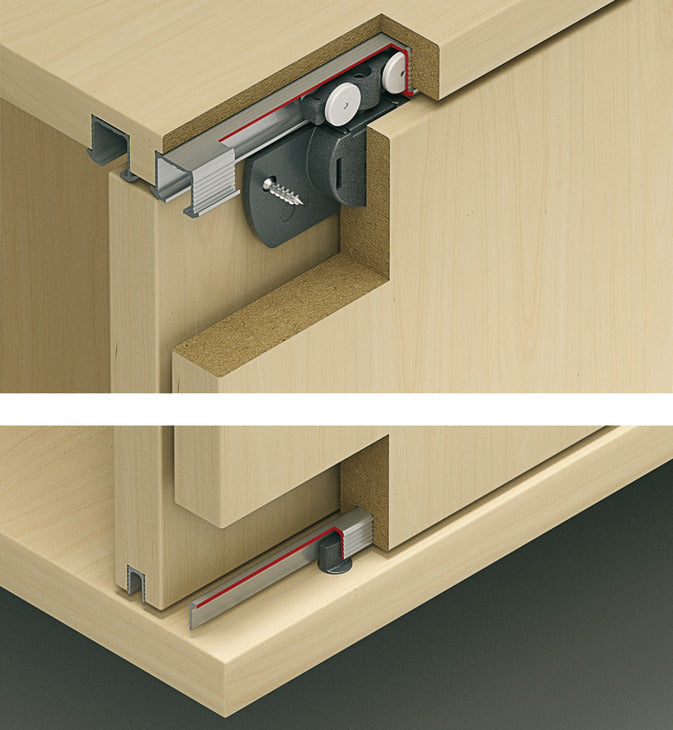

Running gears with clip-mounting, plastic rollers with metal axles

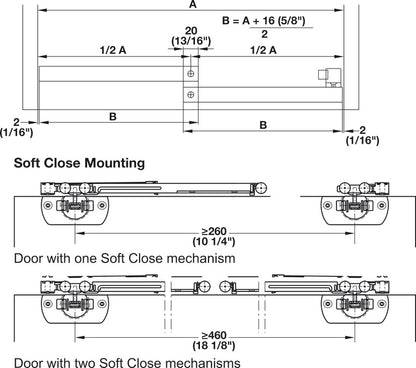

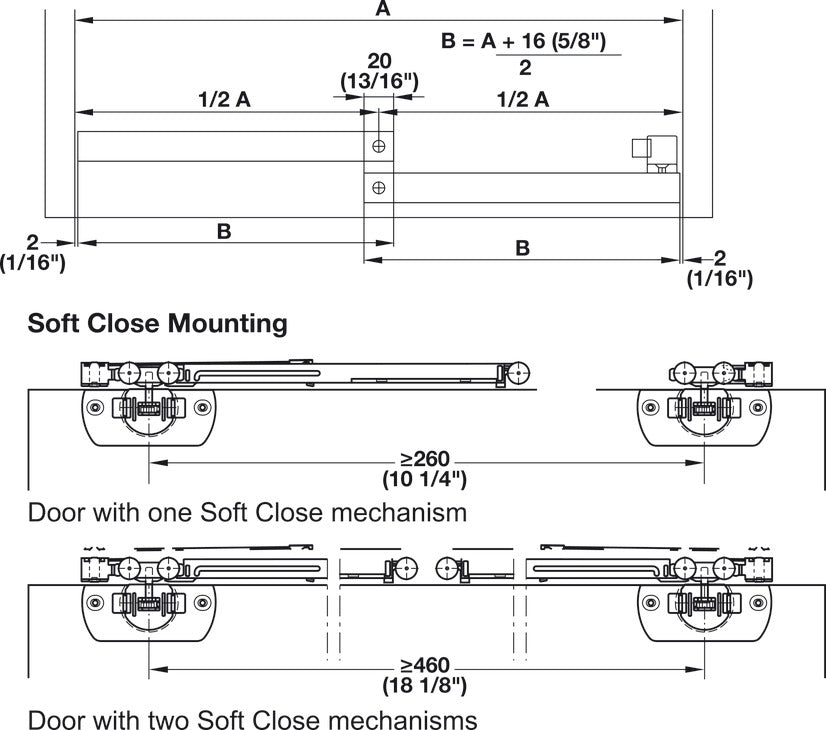

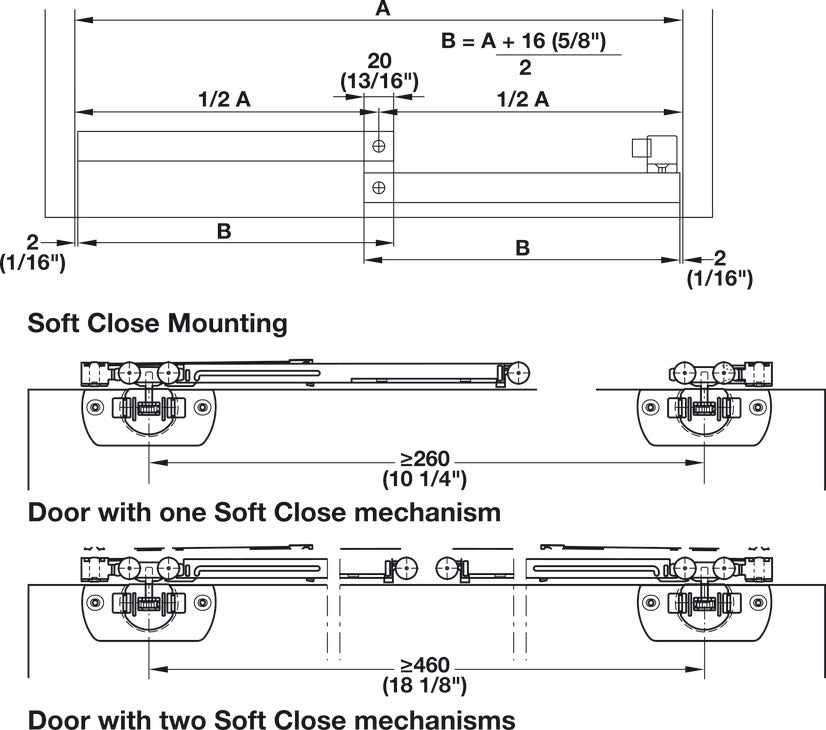

Optional soft close
Quick door mounting
No guide rails in the floor
A wood cover panel is not needed
-
Set inlcudes hardware for two sliding doors.
Specifications
Specifications
- Number of doors: 2.00
- Soft closing mechanism: with clip-in door stopper
- For door thickness: 16 – 19 mm
- For door width: ≤1,000 mm
- For door weight: ≤16 kg

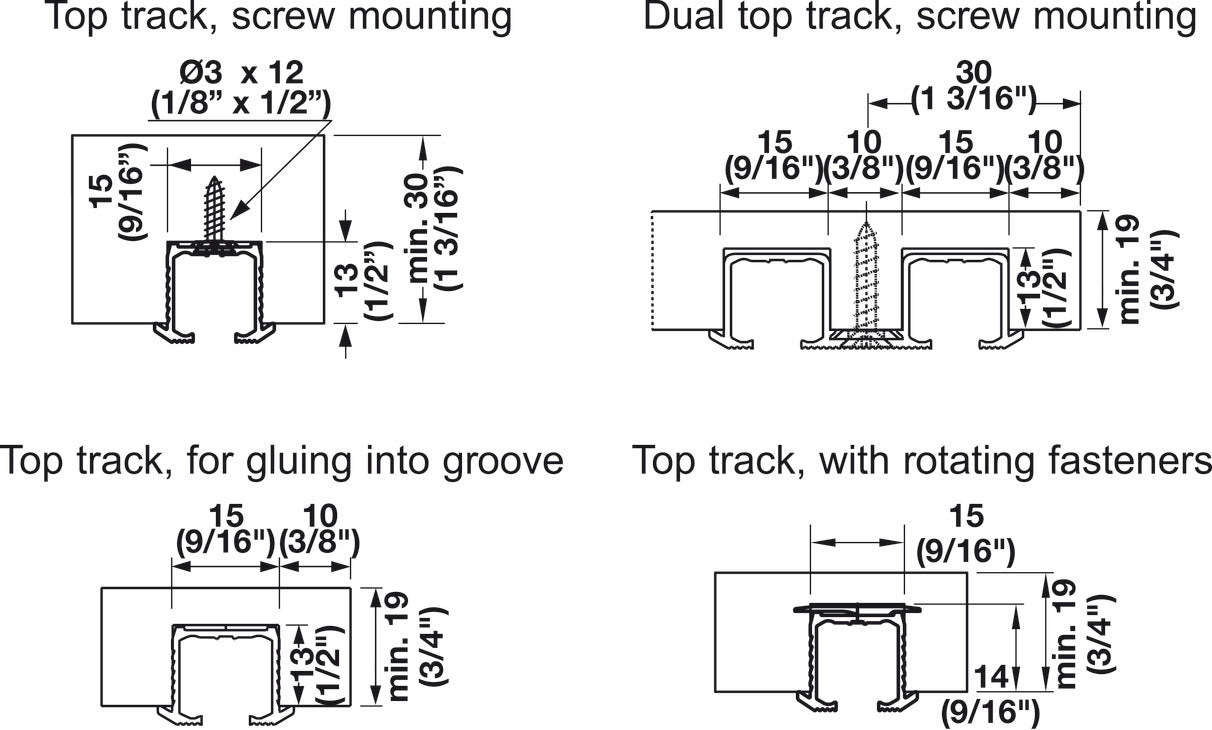

- Running position: Top
- Number of rollers: 4.00
- Height adjustment: -1 – 2 mm
- Running gear guided by: Friction bearing
- For door material: aluminum frame
- For door thickness max.: 3/4"
- Door width max.: 39 3/8"
- For door thickness min.: 5/8" - 3/4"
- Door weight max.: 35 lbs.
- Height adjustment: +1/16-1/32"
- Door height min.: 55 1/8"
- Max. door weight: 35.00 lb
- Cabinet version: with thin cabinet top panels, with narrow doors
- Area of application: For narrow wooden frame doors
- For door height: ≤1,400 mm
