Description
Description
Tool-less door mounting via spring guide bolt
Elegant clip-on aluminum fascia
-
Tool-less door mounting via spring guide bolt
Elegant clip-on aluminum fascia

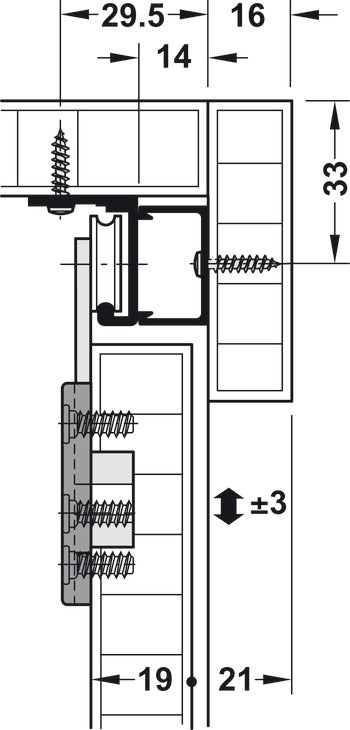

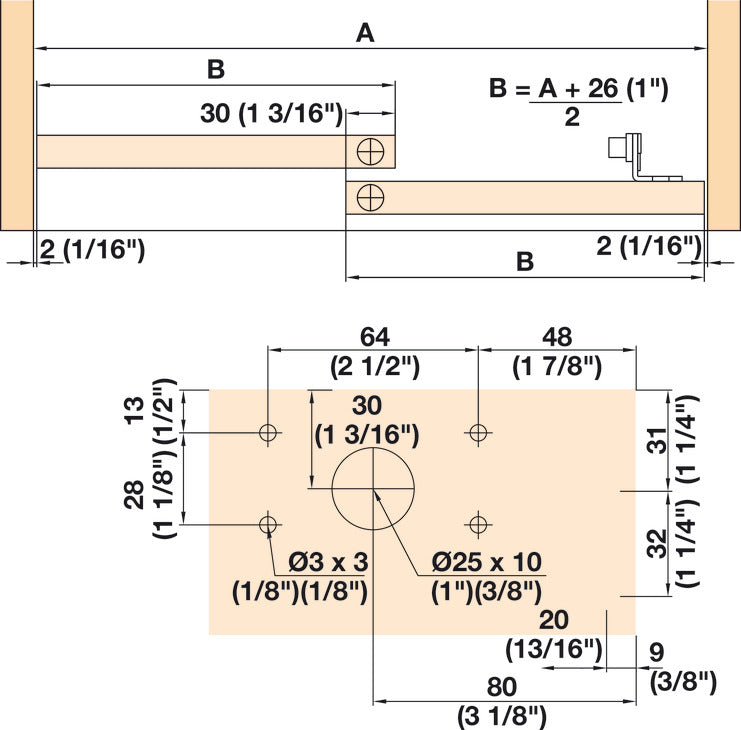

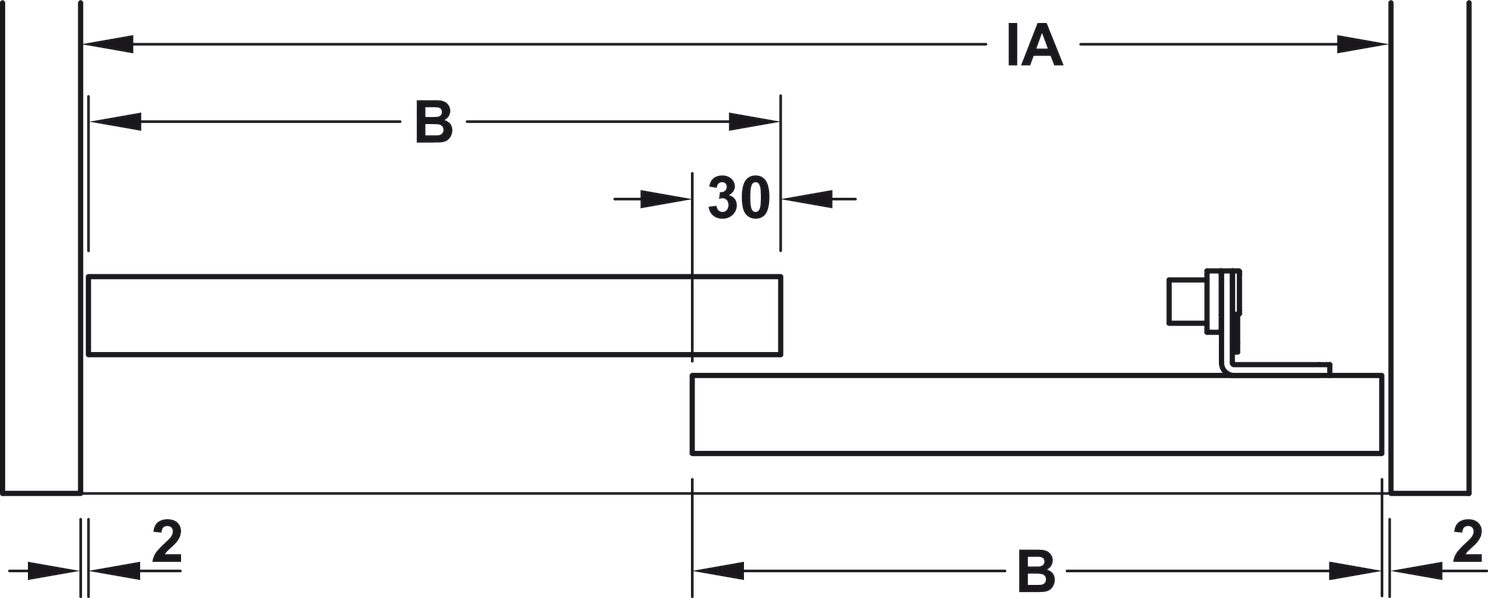

Recommended door overlay: 30 mm (1 3/16”)
Specifications
Specifications
- Soft closing mechanism: with clip-in door stopper

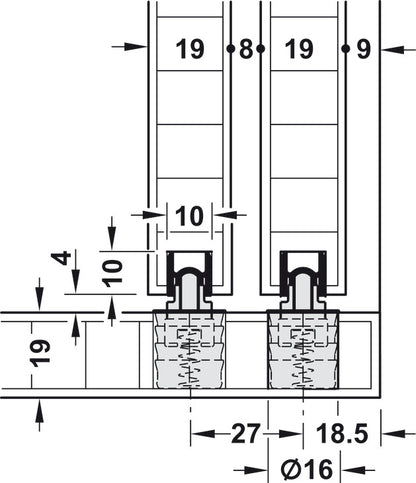

- For door thickness: 19 mm
- For door width: ≤1,200 mm
- Area of application: For top running doors
- For door height: ≤2,200 mm
- Door stopper: Top clip-in door stopper, for sliding into double or single running track
- Material/finish: Running gear: SteelGuide: PlasticRollers: PlasticAxis: Steel
- Running position: Top
- Running gear guided by: Ball bearing

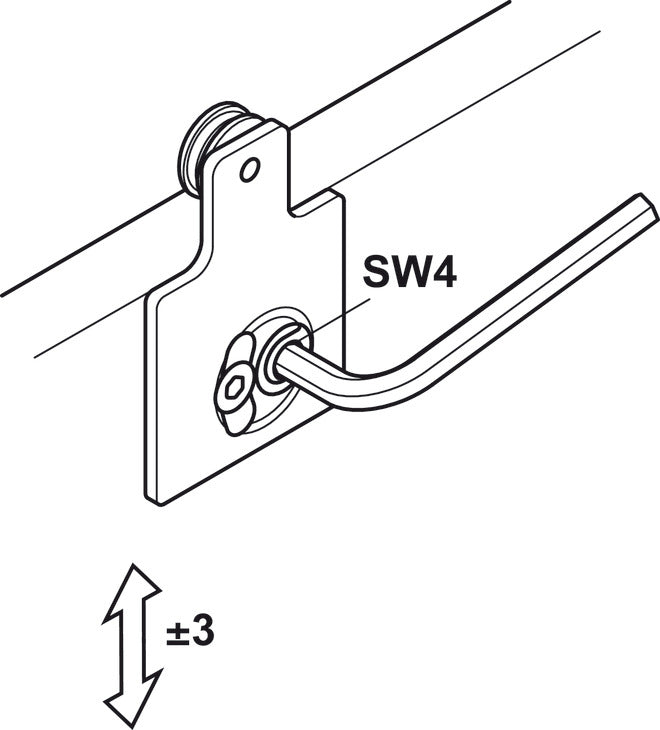

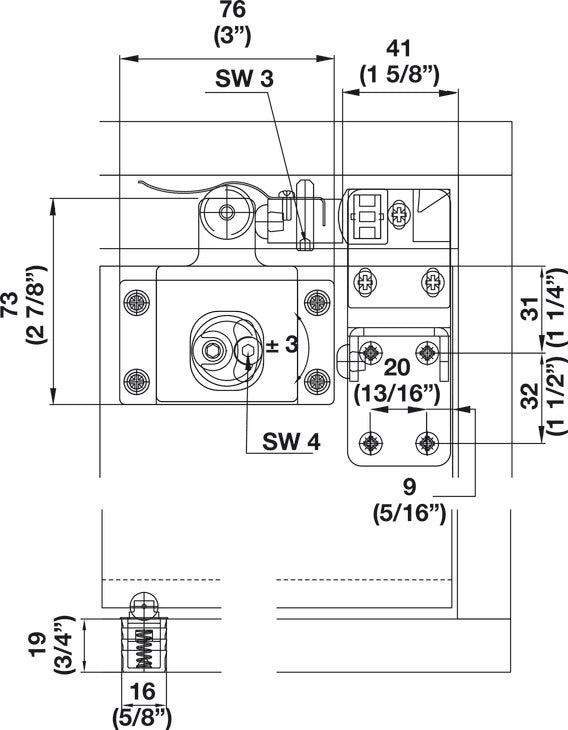

- Adjustment facility: Height adjustment: -3 – 3 mm, ±3 mm on running gear using eccentric screw
- Door adjustment via: eccentric screw

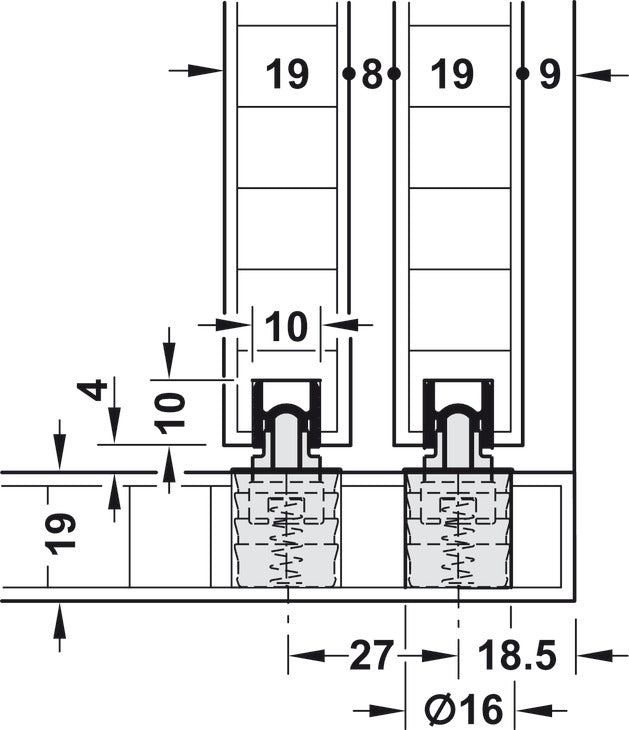

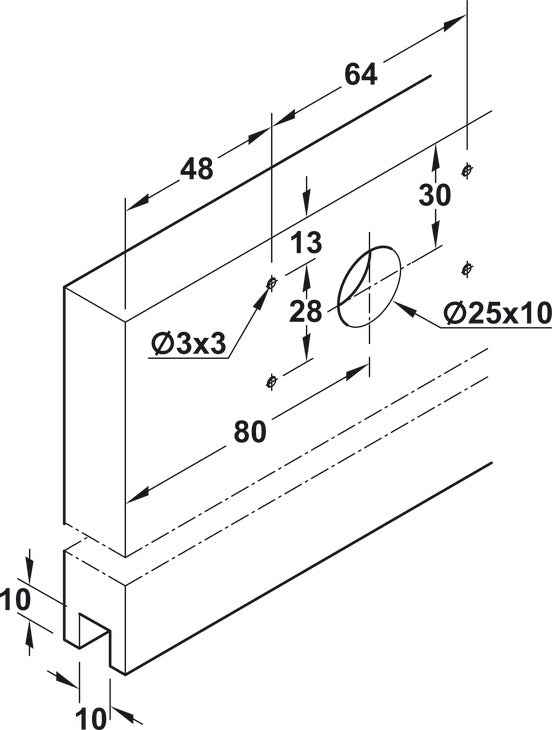

- Installation: Guide for press fitting into a drill hole, Running gear for screw fixing, Backlash-free spring-loaded floor guide for press fixing
- Set: Set without tracks
- Type of opening: linear
- Number of doors per system max.: 2 to 3
What's Included
What's Included
- Set Components Include:
- Running gear
- Mounting bracket
- Track stopper with retainer
- Track stopper
- Guide
- Buffer (2 different types)
- Mounting screws
