Specifications

  • Soft closing mechanism: with clip-in door stopper
  • For door thickness: 19 mm
  • For door width: ≤1,200 mm
  • Cabinet version: with bottom running door wings
  • Area of application: For bottom running doors
  • For door height: ≤2,200 mm
  • Door stopper: Top and bottom clip-in door stopper or soft and self closing mechanism
  • Material/finish: Running gear: SteelGuide: SteelRollers: Plastic
  • Running position: Bottom
  • Running gear guided by: Ball bearing
  • Adjustment facility: Height adjustment: -2 – 4 mm, Height +4/-2 mm on running gear using eccentric screw
  • Door adjustment via: eccentric screw
  • Installation: Running gear and guide for screw fixing, Tool-free installation and de-installation of door wings
  • Running position: Bottom
  • Set: Set without tracks
  • Type of opening: linear
  • Number of doors per system max.: 2 to 3

What's Included

  • 4 Running gears for inner door
  • 4 Running gears for outer door
  • 6 Mounting brackets
  • 3 Track stoppers with retainers
  • 1 Track stopper
  • 4 Clip retainers
  • 5 Buffers
  • 1 Set ounting screws



Fulfill

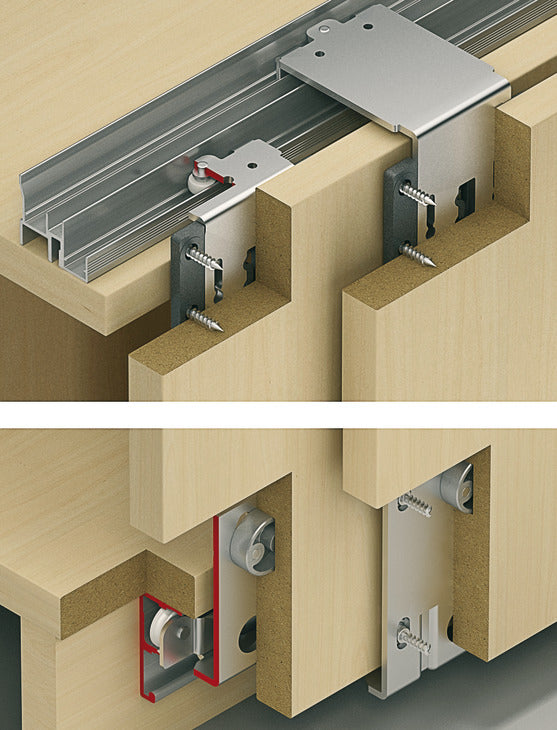

Hafele HAWA Combino 20 H VF Sliding Door Hardware, Two Door Set

Hafele HAWA Combino 20 H VF Sliding Door Hardware, Two Door Set

SKU: HA-405.91.125

$665.25
$831.56 $665.25
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 7-10 business days . (Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
Full policy →

Specifications

  • Soft closing mechanism: with clip-in door stopper
  • For door thickness: 19 mm
  • For door width: ≤1,200 mm
  • Cabinet version: with bottom running door wings
  • Area of application: For bottom running doors
  • For door height: ≤2,200 mm
  • Door stopper: Top and bottom clip-in door stopper or soft and self closing mechanism
  • Material/finish: Running gear: SteelGuide: SteelRollers: Plastic
  • Running position: Bottom
  • Running gear guided by: Ball bearing
  • Adjustment facility: Height adjustment: -2 – 4 mm, Height +4/-2 mm on running gear using eccentric screw
  • Door adjustment via: eccentric screw
  • Installation: Running gear and guide for screw fixing, Tool-free installation and de-installation of door wings
  • Running position: Bottom
  • Set: Set without tracks
  • Type of opening: linear
  • Number of doors per system max.: 2 to 3

What's Included

  • 4 Running gears for inner door
  • 4 Running gears for outer door
  • 6 Mounting brackets
  • 3 Track stoppers with retainers
  • 1 Track stopper
  • 4 Clip retainers
  • 5 Buffers
  • 1 Set ounting screws
