Description

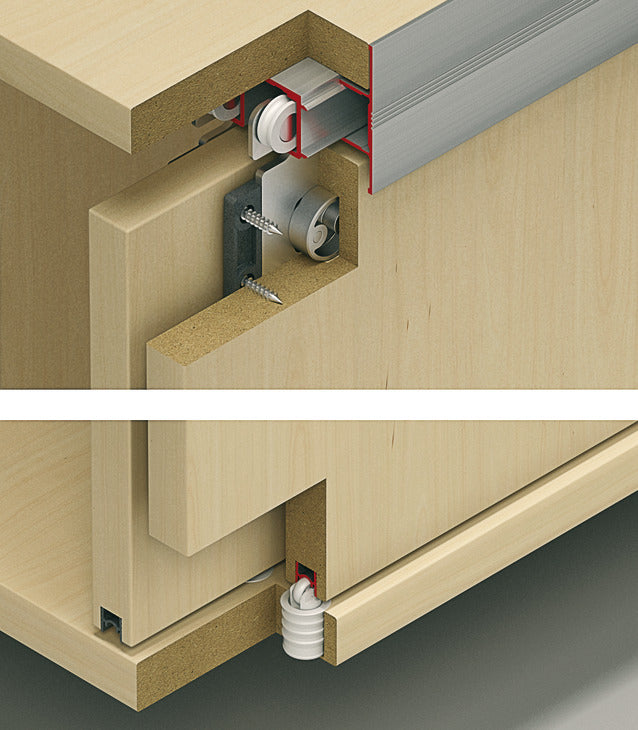

Tool-less door mounting via spring guide bolt
Elegant clip-on aluminum fascia

Tool-less door mounting via spring guide bolt
Elegant clip-on aluminum fascia

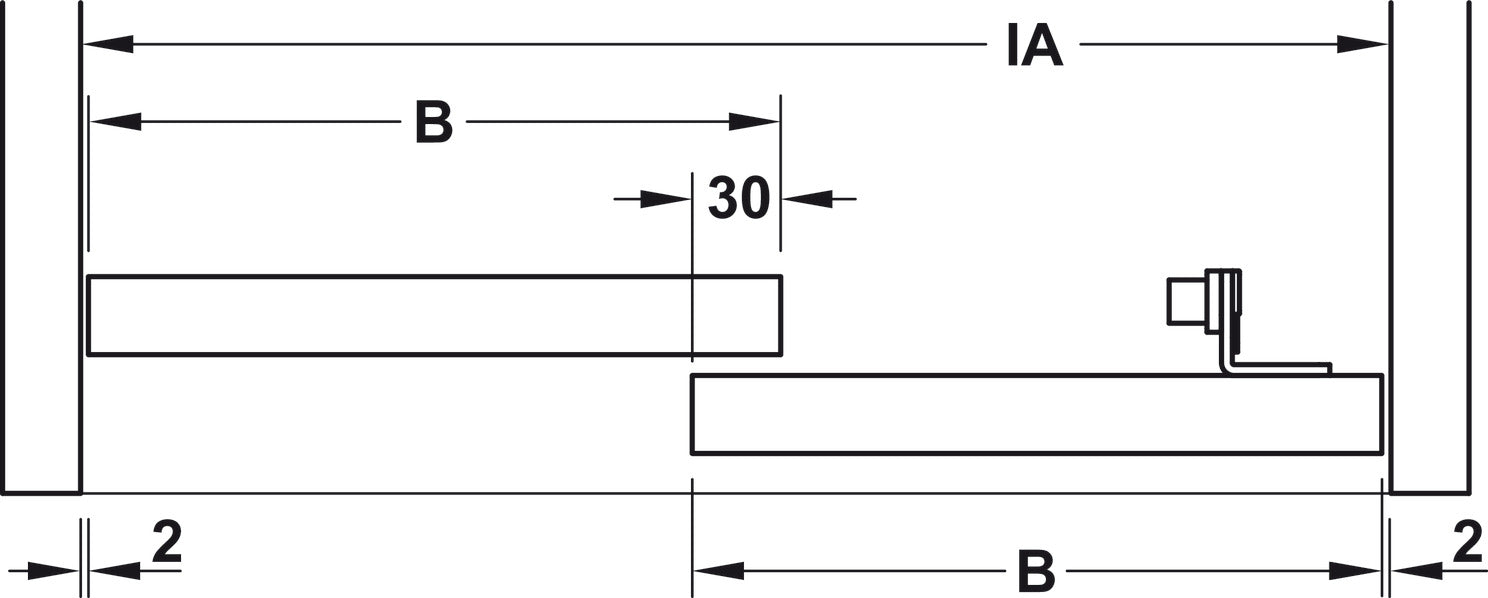

Recommended door overlay: 30 mm (1 3/16”)

Specifications

Soft closing mechanism: with clip-in door stopper
For door thickness: 19 mm
For door width: ≤1,200 mm
Area of application: For top running doors
For door height: ≤2,200 mm
Door stopper: Top clip-in door stopper, for sliding into double or single running track
Material/finish: Running gear: SteelGuide: PlasticRollers: PlasticAxis: Steel
Running position: Top
Running gear guided by: Ball bearing

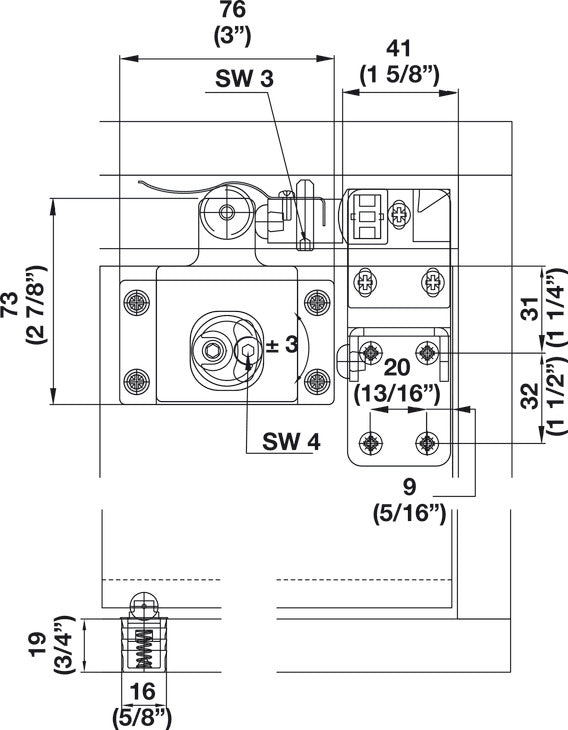

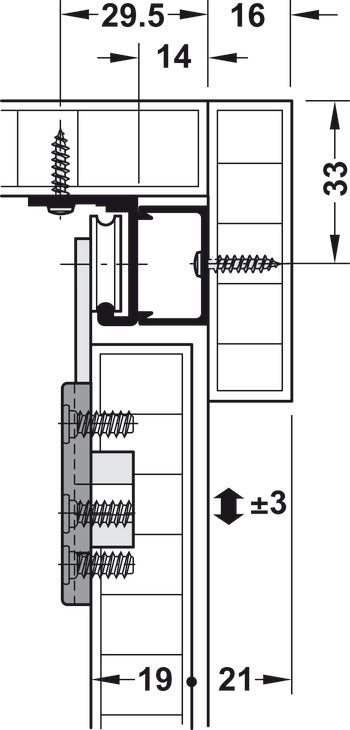

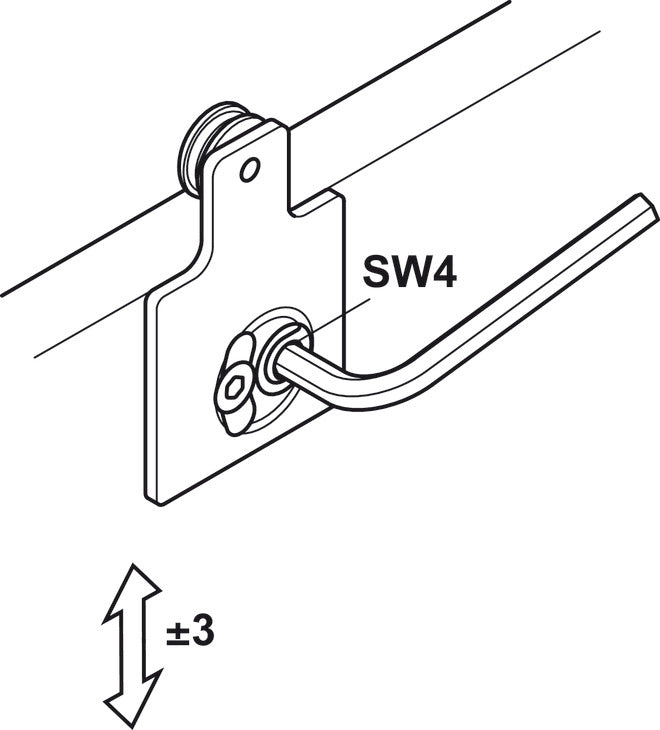

Adjustment facility: Height adjustment: -3 – 3 mm, ±3 mm on running gear using eccentric screw
Door adjustment via: eccentric screw

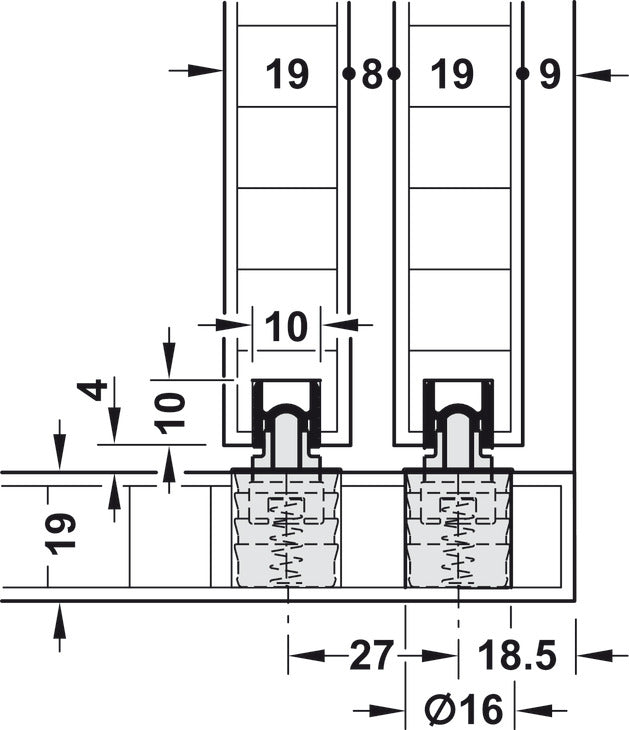

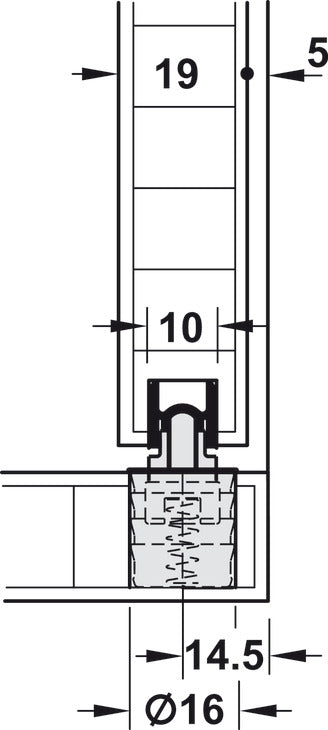

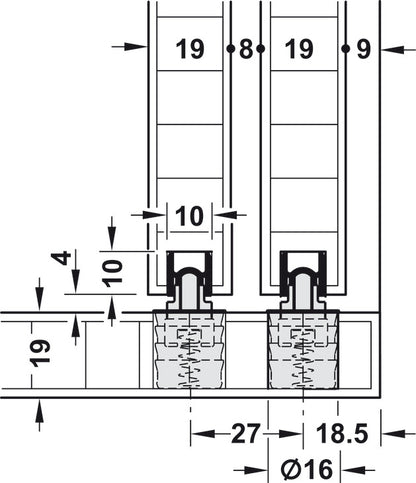

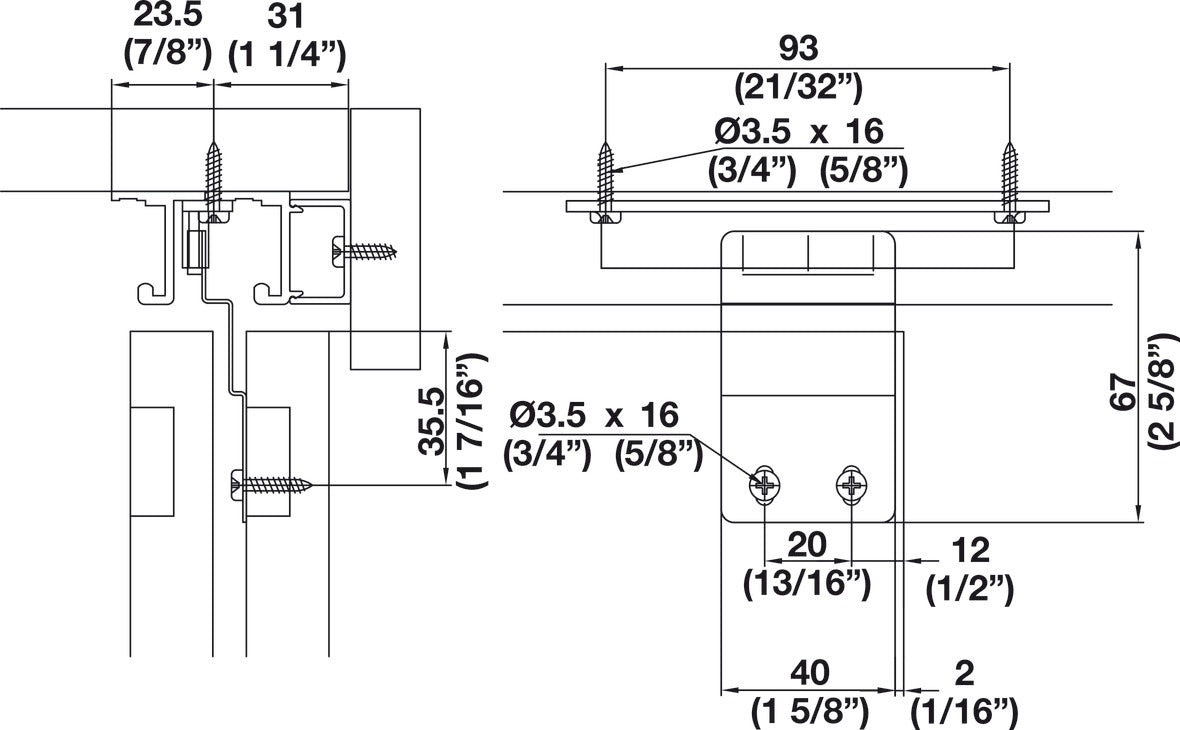

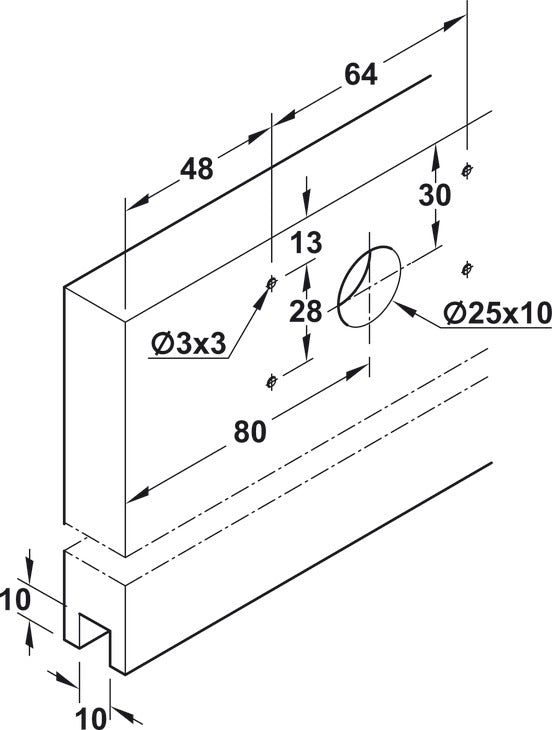

Installation: Guide for press fitting into a drill hole, Running gear for screw fixing, Backlash-free spring-loaded floor guide for press fixing
Running position: Top
Set: Set without tracks
Type of opening: linear
Number of doors per system max.: 2 to 3

What's Included

Set Components Include:
Running gear
Mounting bracket
Track stopper with retainer
Track stopper
Guide
Buffer (2 different types)
Mounting screws

Fulfill

Hafele HAWA Combino 35 H IF Sliding Door Hardware, Three Door set

Hafele HAWA Combino 35 H IF Sliding Door Hardware, Three Door set

SKU: SKU: HA-405.91.724

$575.03

~~$718.79~~ $575.03

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 7-10 business days . (Minimum order quantity: 1)

Returns: Items may be returned within 14 days. A 25% restocking fee applies.

Full policy →

Description

Tool-less door mounting via spring guide bolt
Elegant clip-on aluminum fascia

Tool-less door mounting via spring guide bolt
Elegant clip-on aluminum fascia
Recommended door overlay: 30 mm (1 3/16”)

Specifications

Soft closing mechanism: with clip-in door stopper
For door thickness: 19 mm
For door width: ≤1,200 mm
Area of application: For top running doors
For door height: ≤2,200 mm
Door stopper: Top clip-in door stopper, for sliding into double or single running track
Material/finish: Running gear: SteelGuide: PlasticRollers: PlasticAxis: Steel
Running position: Top
Running gear guided by: Ball bearing
Adjustment facility: Height adjustment: -3 – 3 mm, ±3 mm on running gear using eccentric screw
Door adjustment via: eccentric screw
Installation: Guide for press fitting into a drill hole, Running gear for screw fixing, Backlash-free spring-loaded floor guide for press fixing
Running position: Top
Set: Set without tracks
Type of opening: linear
Number of doors per system max.: 2 to 3

What's Included

Set Components Include:
Running gear
Mounting bracket
Track stopper with retainer
Track stopper
Guide
Buffer (2 different types)
Mounting screws
