Specifications
Specifications
- Soft closing mechanism: with clip-in door stopper
- For door thickness: 19 mm
- For door width: ≤1,200 mm

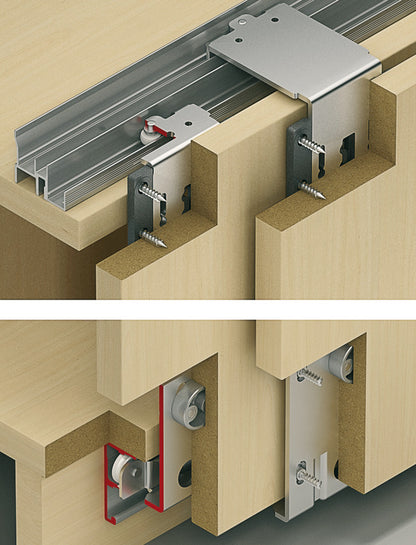

- Cabinet version: with bottom running door wings
- Area of application: For bottom running doors
- For door height: ≤2,200 mm
- Door stopper: Top and bottom clip-in door stopper or soft and self closing mechanism
- Material/finish: Running gear: SteelGuide: SteelRollers: Plastic
- Running position: Bottom
- Running gear guided by: Ball bearing

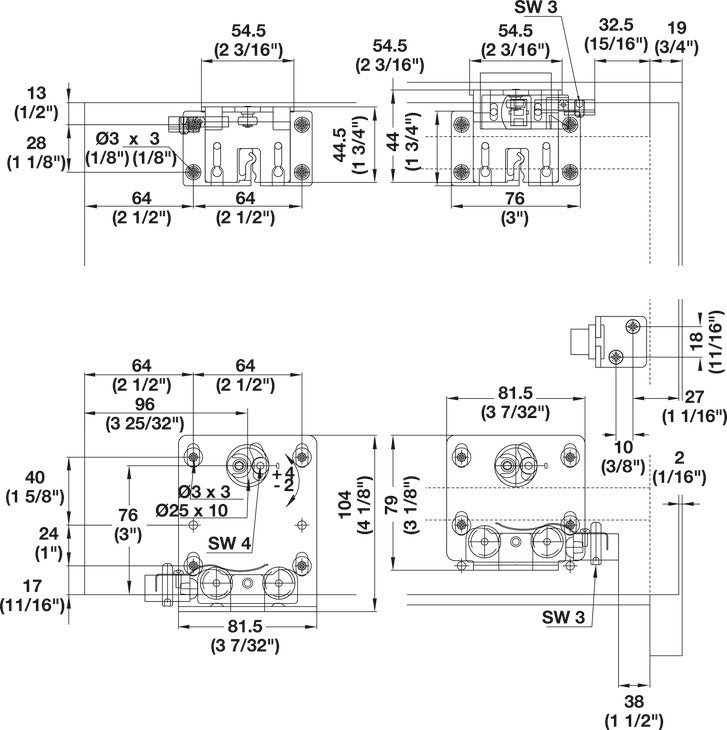

- Adjustment facility: Height adjustment: -2 – 4 mm, Height +4/-2 mm on running gear using eccentric screw
- Door adjustment via: eccentric screw

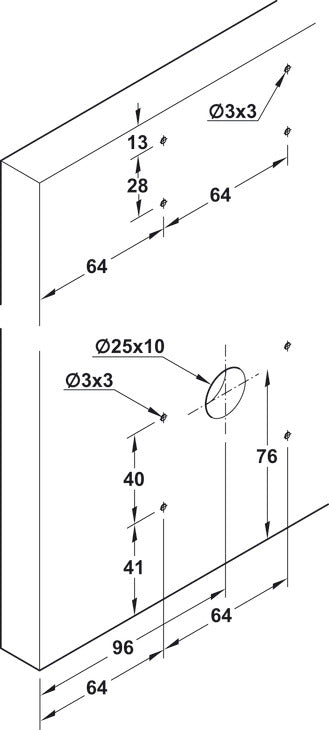

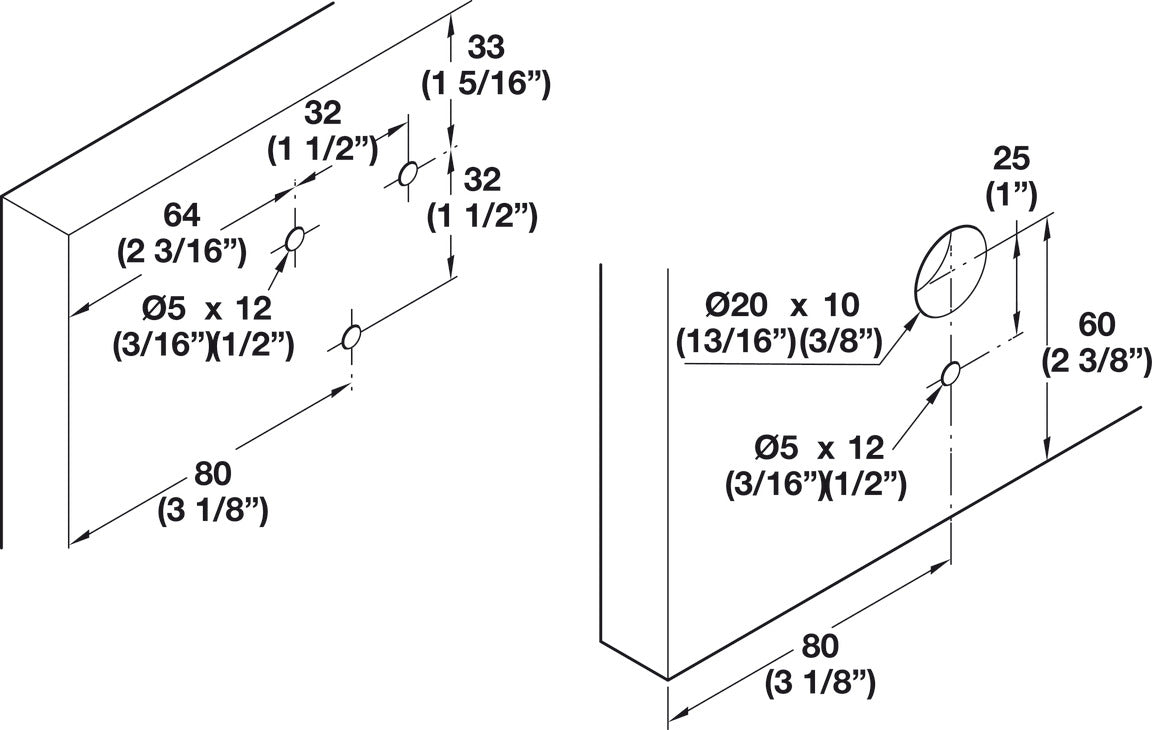

- Installation: Running gear and guide for screw fixing, Tool-free installation and de-installation of door wings
- Set: Set without tracks
- Type of opening: linear
- Number of doors per system max.: 2 to 3
What's Included
What's Included

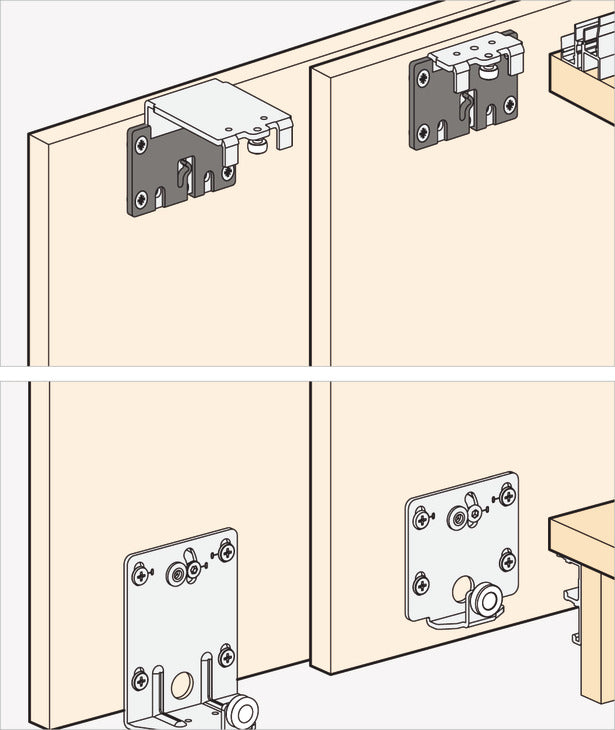

- 4 running gears
- 4 guides
- 8 door stoppers (6 with clip-in door stopper/2 stoppers)
- 1 door follower
- 1 mounting material
