Description
Description
Great for home entertainment applications

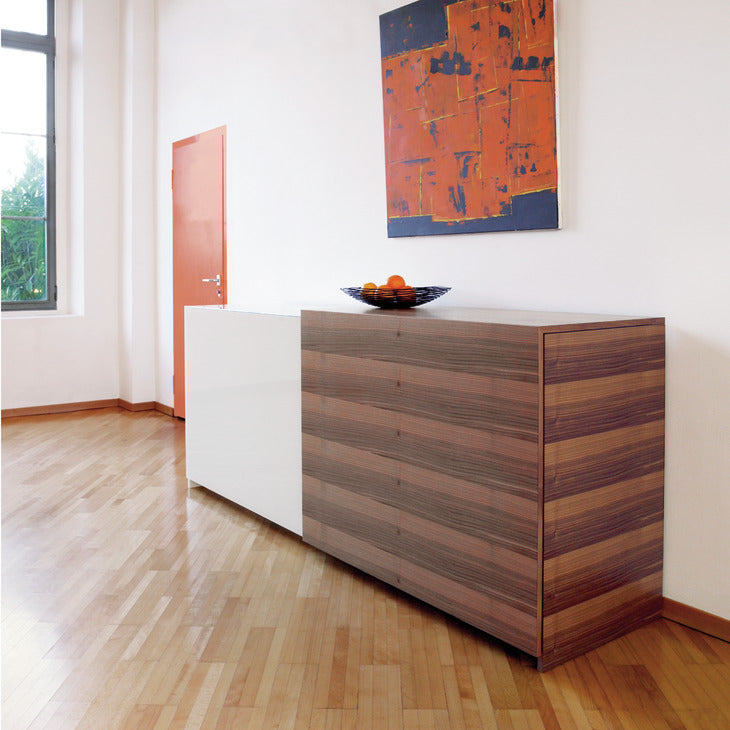

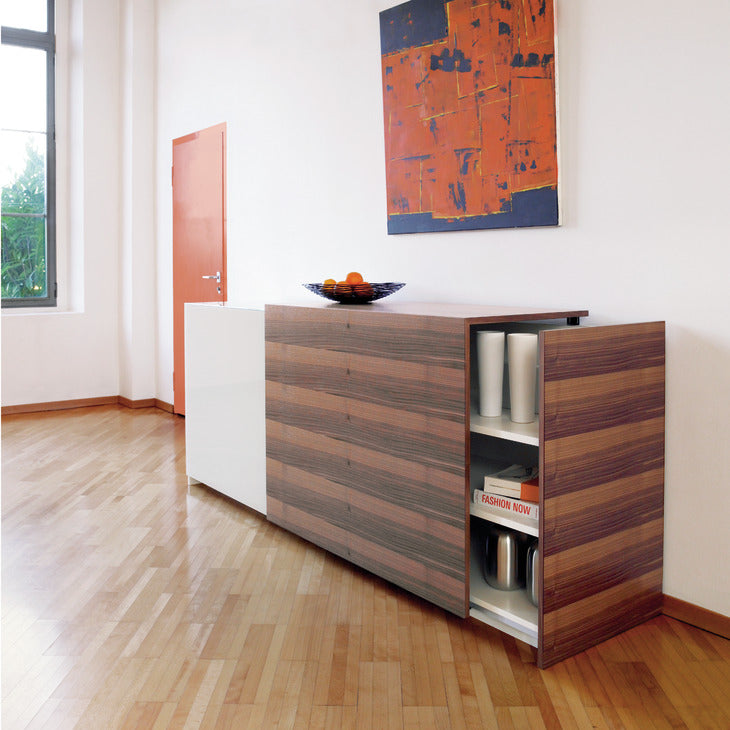

Can be used to hide large flat screen TVs
Optional Soft Close mechanism available
Top and bottom door stopper, bottom stopper with spring
Guided by running gear, ball bearing mounted, plastic-coated rollers
-
Set Components Include:
Running gear, for outer door, for screw mounting
Guide roller, for outer door, for screw mounting
Bottom door stopper, with spring
Top door stop
Specifications
Specifications
- Number of doors: 1.00
- Soft closing mechanism: with clip-in door stopper
- For door width: ≤1,500 mm
- For door weight: ≤40 kg
- Running position: Bottom
- Number of rollers: 1.00
- Height adjustment: -2 – 4 mm
- Running gear guided by: Ball bearing
- For door material: wood
- Door width max.: max. 59 1/16”
- Door weight max.: 88 lbs.
- Cabinet version: with angled wooden sliding doors
- Area of application: For angled sliding door
- For door height: ≤1,500 mm
- For material thickness: 19 mm
- Door stopper: Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
- Material/finish: Rollers: Plastic
- Adjustment facility: Height adjustment: -2 – 4 mm, Depth adjustment facility: ±3 mm, Height +4/-2 mm on running gear using eccentric screwdepth ±3 mm on running gear using eccentric screw
- Door adjustment via: eccentric screw
- Installation: Running gear and guide for screw fixing
