Description
Description
Rails not visible

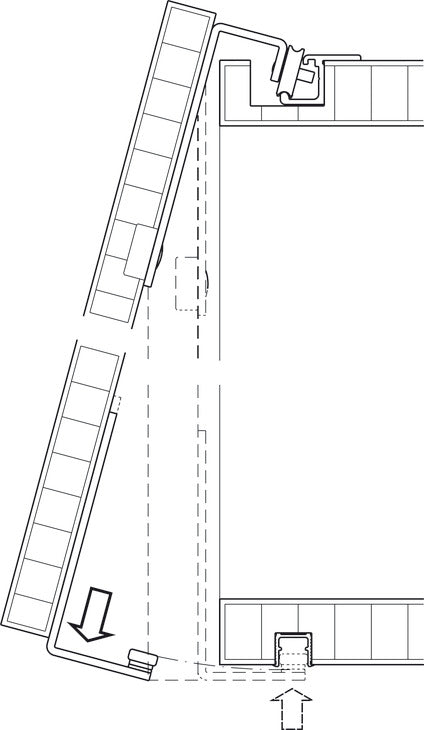

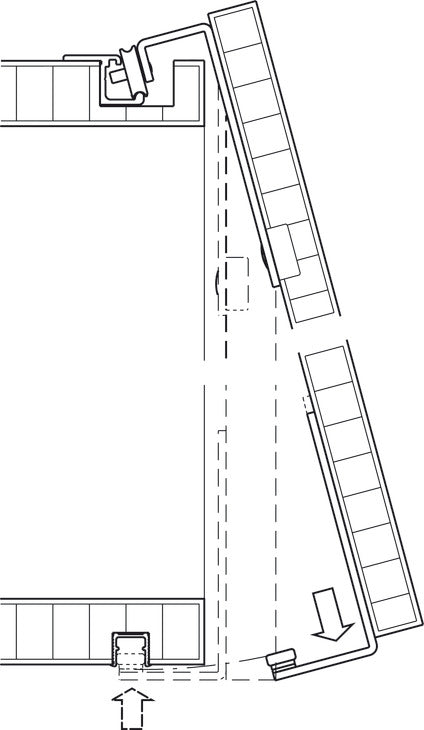

Easy door mounting
Set Components Include:
Running gear, single roller
Stopper, left
Stopper, right
Guide
Guide buffer
Specifications
Specifications
- Number of doors: 1.00
- Soft closing mechanism: with clip-in door stopper
- For door thickness: 19 – 25 mm
- For door width: ≤1,200 mm
- For door weight: ≤25 kg
- Running position: Top
- Number of rollers: 1.00
- Height adjustment: -2 – 2 mm
- Running gear guided by: Ball bearing
- For door material: wood
- For door thickness max.: 1"
- Door width max.: Max. 47 1/4"
- For door thickness min.: 3/4"
- Door weight max.: 55 lbs.
- Height adjustment: +/- 1/16" on running gear
- Cabinet version: shelves
- Area of application: For shelves with 1 door
- For door height: ≤2,400 mm
- Door stopper: Top and bottom clip-in door stopper, for sliding into running track
- Material/finish: Running gear: SteelGuide: SteelRollers: Plastic
What's Included
What's Included
- 2 Running gears
- 2 door stoppers
- 4 guides
