Lead length from Loox5 driver to device max. 10 m (393 11/16").Long cable lengths in combination with large loads (strip light lengths) can result in voltage drop in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the nominal output voltage of the driver (12V or 24V).

Construction: 2-conductor, stranded copper
Rating: Class 2, double insulated

• For CL3R cables:

  Meets the following codes for wire and cables locations:

  • NEC article 411 Lighting systems operating at 30 V or less attached to Class 2 power
  • NEC article 725.135 Installation of Class 2 cable
  • NEC article 411.5 Specific Location Requirements

  Lead length from Loox5 driver to device max. 10 m (393 11/16").
  Long cable lengths in combination with large loads (strip light lengths) can result in voltage drop in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the nominal output voltage of the driver (12V or 24V).

• Color system: monochrome or MW 2-wire-Technology
• Input ports: 1 x plug, Loox5 2-pin 24 V
• Connections: 1 x socket, Loox5 2-pin 24 V
• Nominal voltage: 24.00 V
• Current carrying capacity: 5.00 A
• Wire cross section AWG: 18.00
• Drill hole Ø: Plug 5/16"; socket 1/2"
• Area of application: For monochrome lights and other 2-wire powered devices and distributors.

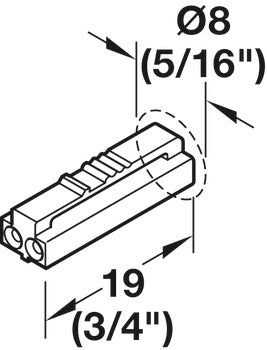

• Plug drill hole Ø: 8.00 mm

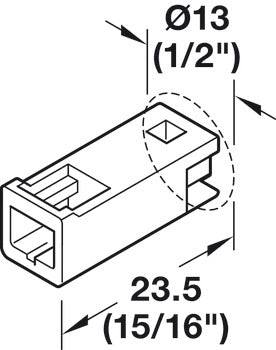

• Socket drill hole Ø: 13.00 mm
• Installation reference: Cable assemblies designed to be routed behind the drywall

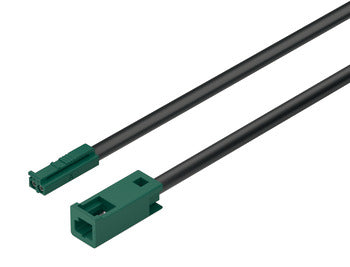

• 1 extension lead
• 1 plug/1 socket
