Specifications

Feature: Soft Close

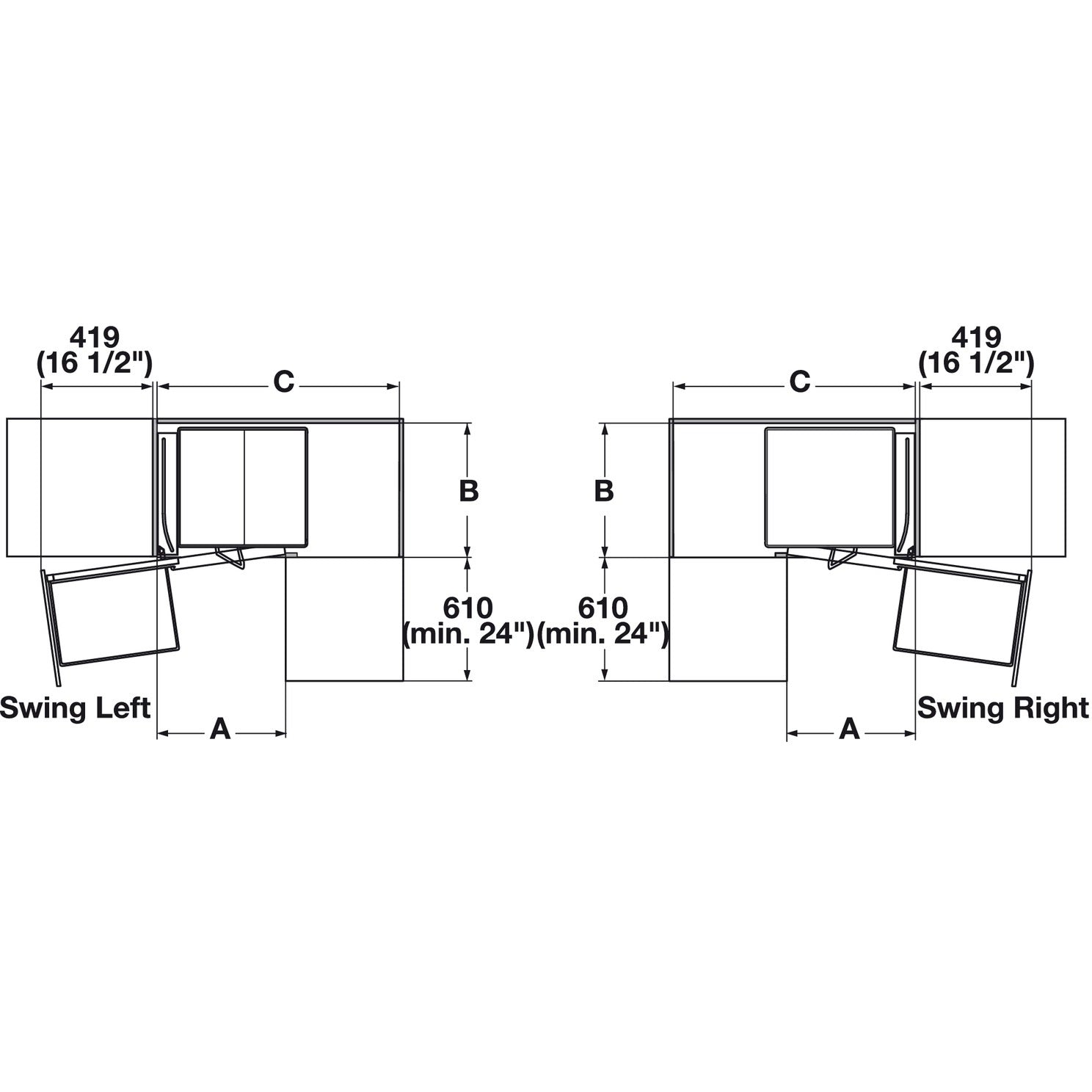

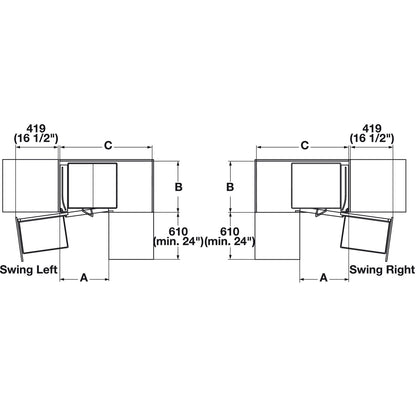

Min. Cabinet Opening: 396 mm (15 5/8") by using tray 295 mm (11 5/8") in front door position, 492 mm (19 3/8") with 390 mm (15 3/8") baskets in front
Storage Capacity: 1,001 in2 using 295 mm x 470 mm (11 5/8" x 18 1/2") front and 390 mm x 470 mm (15 3/8" x 18 1/2") back 1,138 in2 using 390 mm x 470 mm (15 3/8" x 18 1/2") front and back

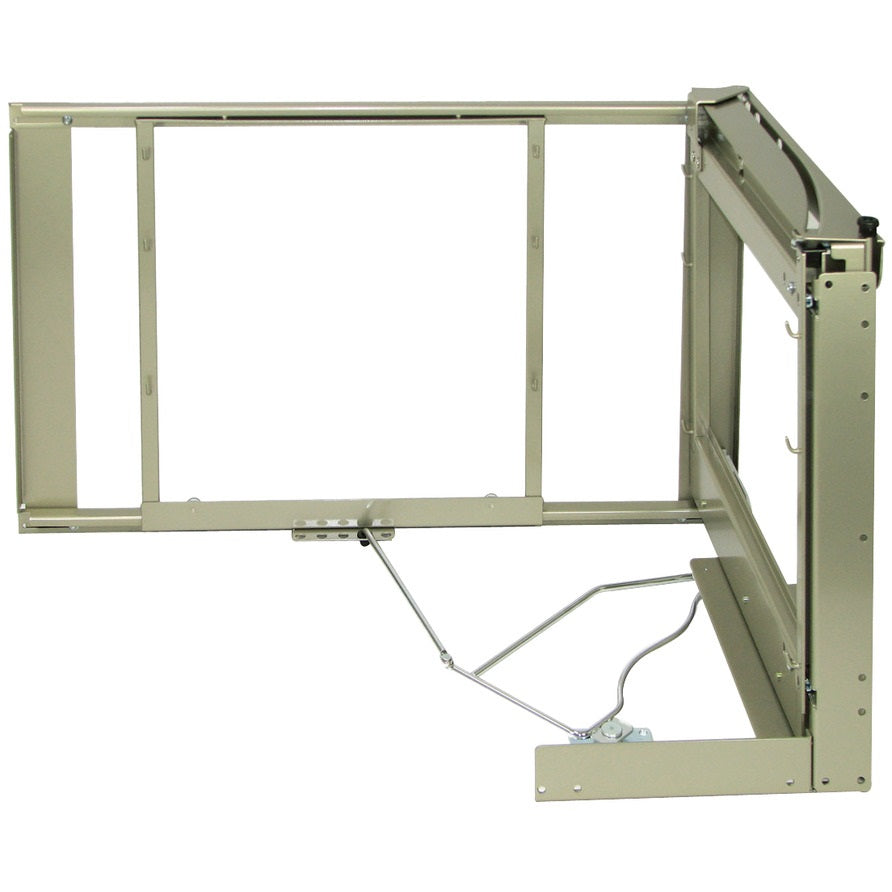

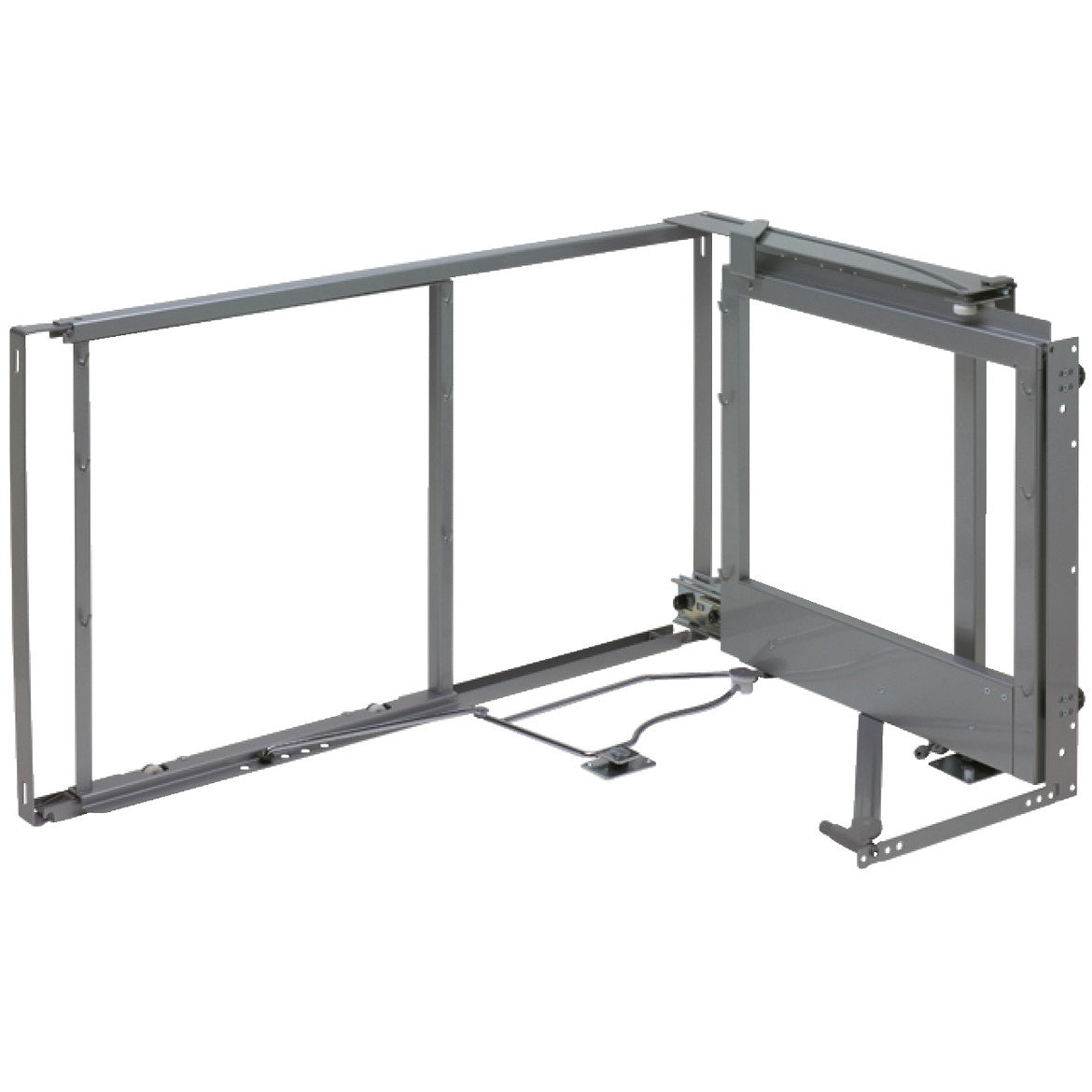

Mounting: The cabinet door mounts to the pull-out frame
Load bearing capacity: Back/per basket: (20 lbs) 9 kg Front/per basket: (15 lbs) 6.8 kg
Opening Angle: 75 °
Material: Frame: Steel, powder-coated Slide: Steel

Fulfill

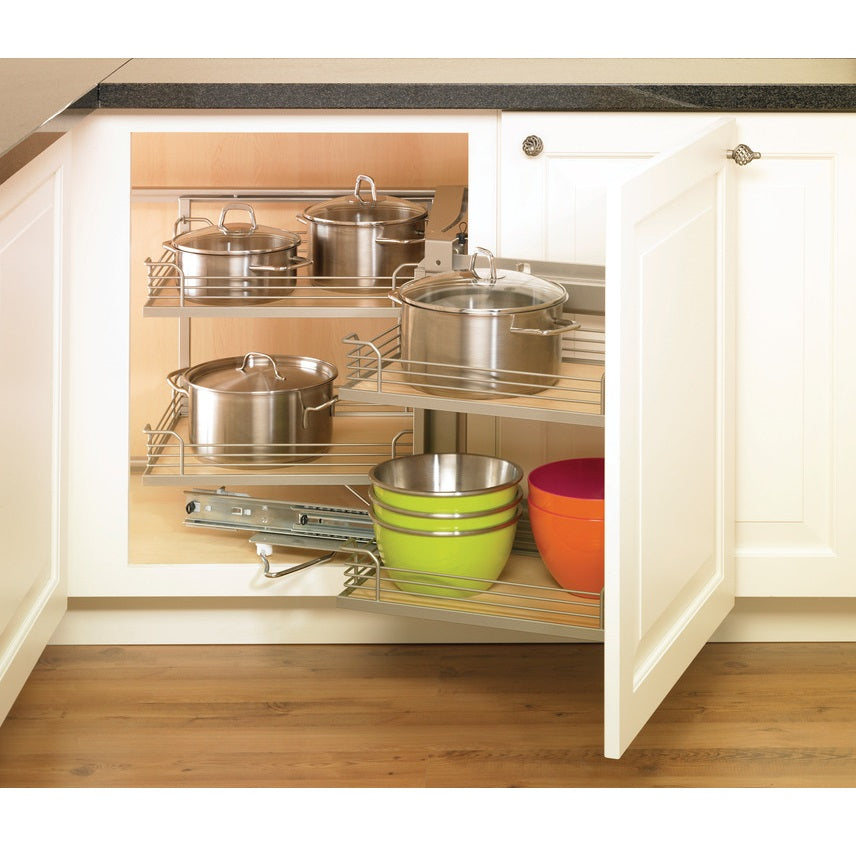

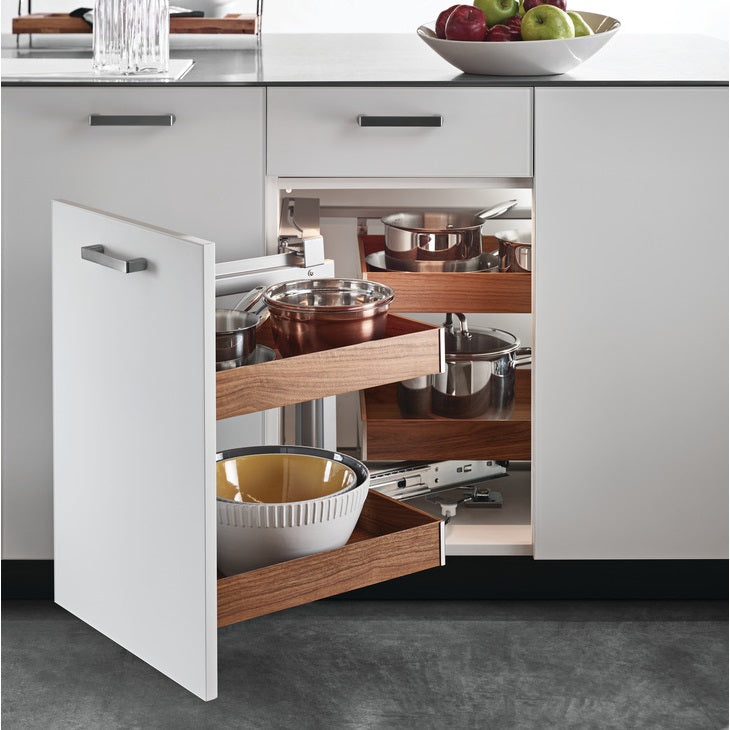

Hafele Magic Corner I Lazy Susan for Blind Corner Cabinets

Add to wishlist

SKU: SKU: HA-546.17.417

$960.00

~~$1,200.00~~ $960.00

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Documents

Magic Corner I Frame Instructions Magic Corner I Frame Drilling Template TCH Furniture Cabinetry Hardware 2017 Product Page 3.6

Feature: Soft Close
Min. Cabinet Opening: 396 mm (15 5/8") by using tray 295 mm (11 5/8") in front door position, 492 mm (19 3/8") with 390 mm (15 3/8") baskets in front
Storage Capacity: 1,001 in2 using 295 mm x 470 mm (11 5/8" x 18 1/2") front and 390 mm x 470 mm (15 3/8" x 18 1/2") back 1,138 in2 using 390 mm x 470 mm (15 3/8" x 18 1/2") front and back
Mounting: The cabinet door mounts to the pull-out frame
Load bearing capacity: Back/per basket: (20 lbs) 9 kg Front/per basket: (15 lbs) 6.8 kg
Opening Angle: 75 °
Material: Frame: Steel, powder-coated Slide: Steel
