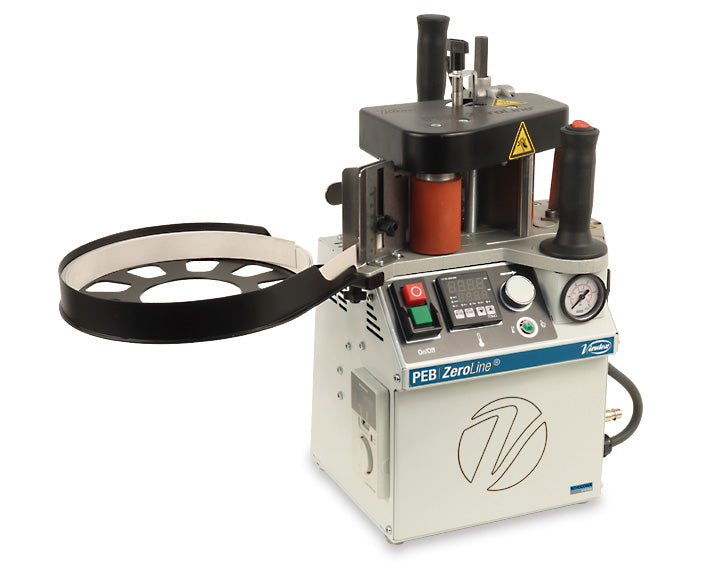

Virutex PEB ZeroLine Portable Edgebander

Compact Design. Stable Temperature. With a 40% higher adhesion than conventional hot-melt coating.

Compact design Portable Edgebanding machine with ZeroLine® technology by hot air. Thanks to this technology the banding between the panel and the tape is practically perfect, with a seamless joint. The result is an edgebanding of high quality. Perfect finishing on straight, round, shaped and inclined panels. Very practical for small or medium manufacturing series due to its easy operation and fast adjustment.

For PVC & ABS tapes with co-extruded or post-processed active layer, so it is not necessary to clean a glue tank.

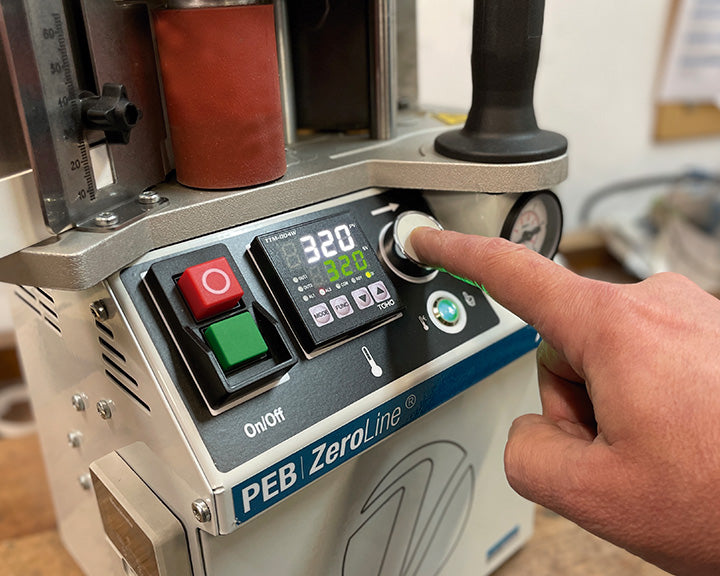

For tapes up to 2 mm thickness. It is possible to band acrilic and lacquered boards. Perfect finishing on straight, round, shaped and inclined panels (0°- 50°). The PEB works with low pressure air. It does not need a high performance compressed air system. With light indicator of optimal working temperature reached. Equipped with roller holder.

ZeroLine® Technology

The edge banding machines with hot air technology fuse the edge to the panel, providing a perfect finish and seamless joint. ZeroLine® is a registered trademark of Virutex.

• Rated Input Power: 3400 W
• Tape Height: 10 - 65 mm
• Turntable: 0° - 50°
• Tape Thickness: 0.8 - 2.0 mm
• Inner Radi: 18 mm
• Heating Time: 240 sec. (4 min)
• Temperature Max.: 370° C

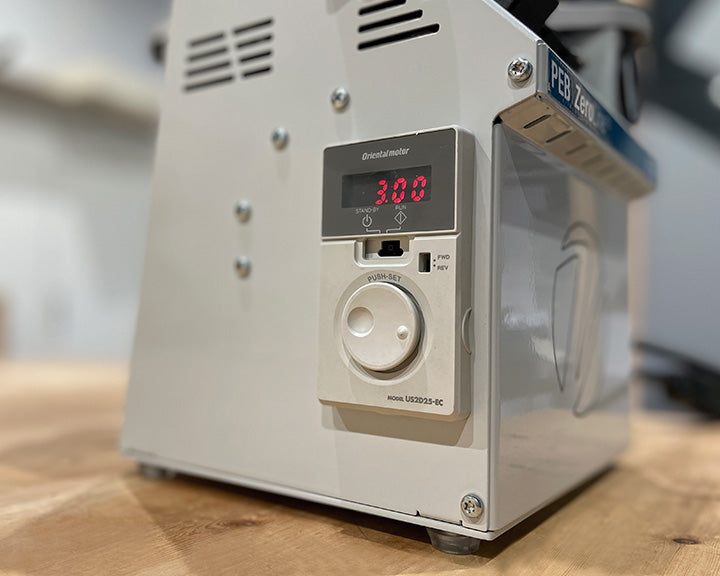

• Speed: 1.0 - 3.3 m/min
• Weight: 11.5 kg
• Size (L x W x H): 230 x 212 x 360 mm
• Air Connection: 6 Bar
