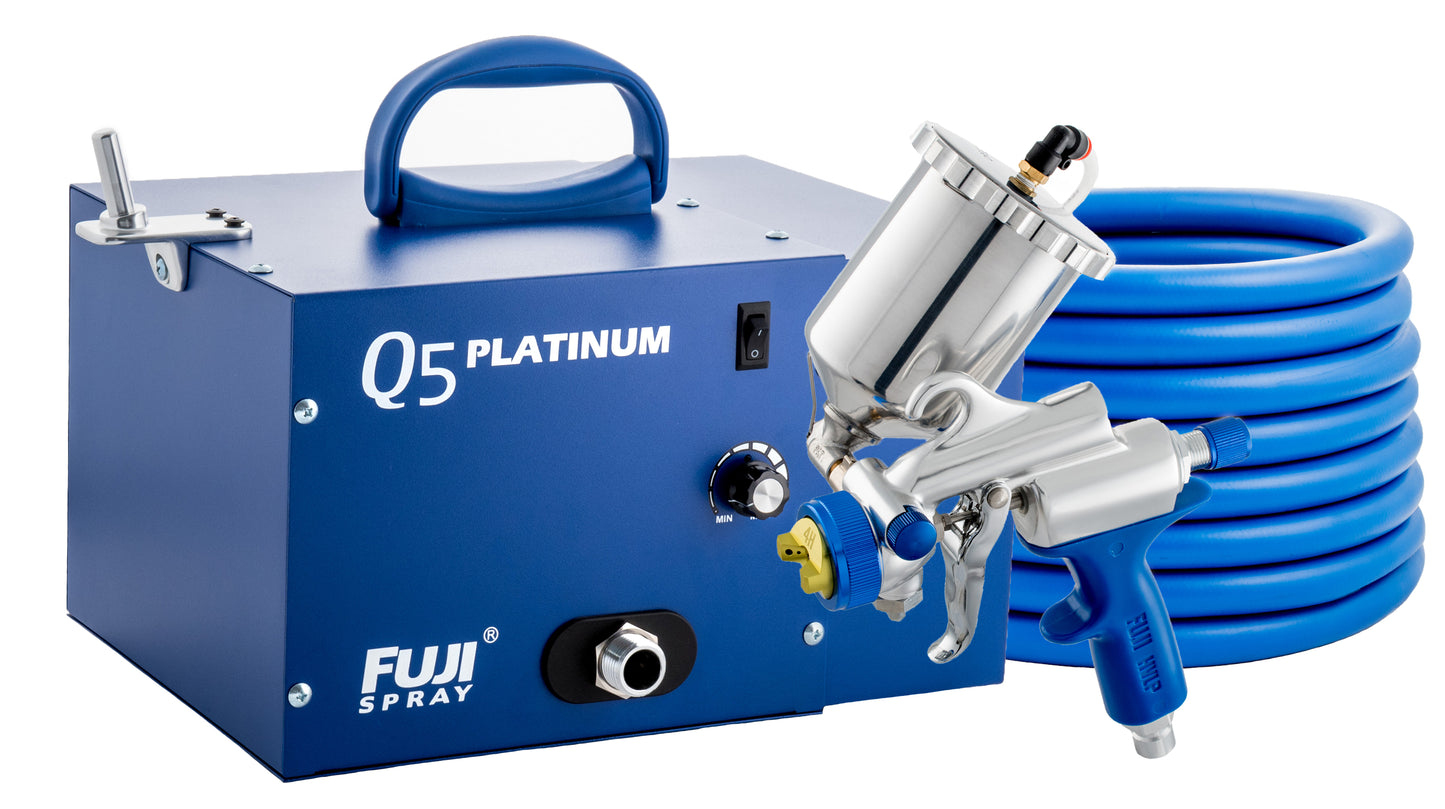

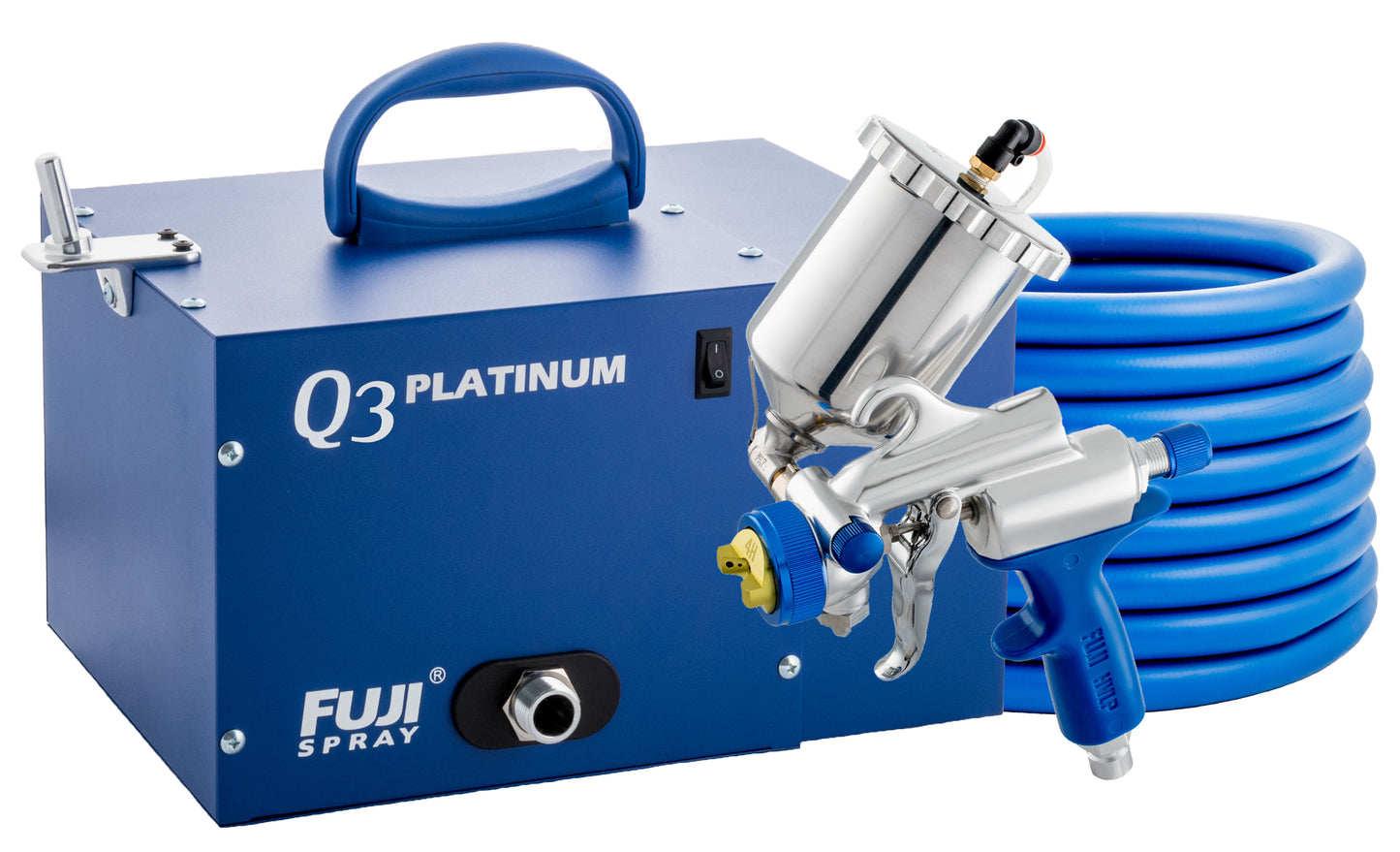

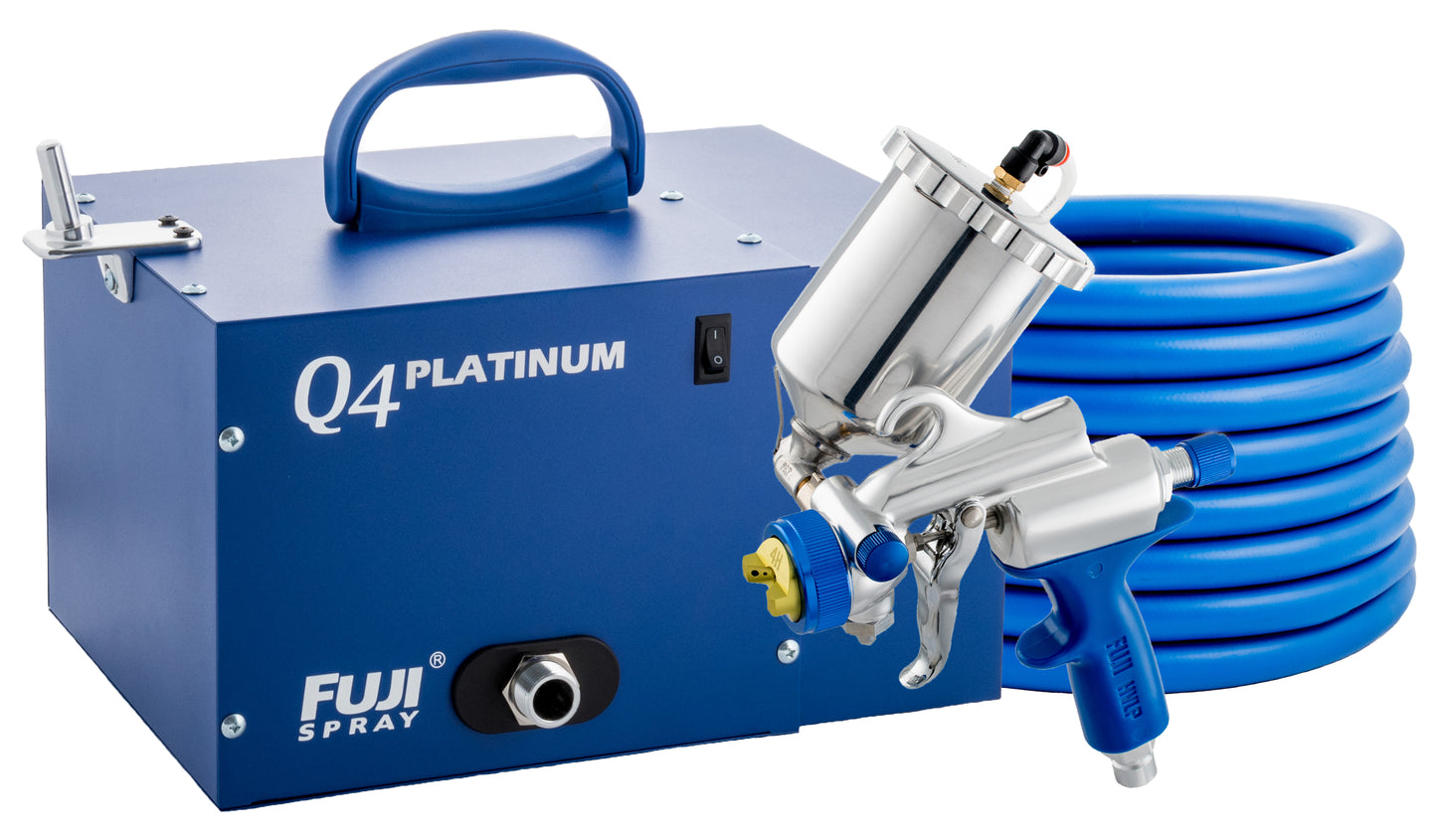

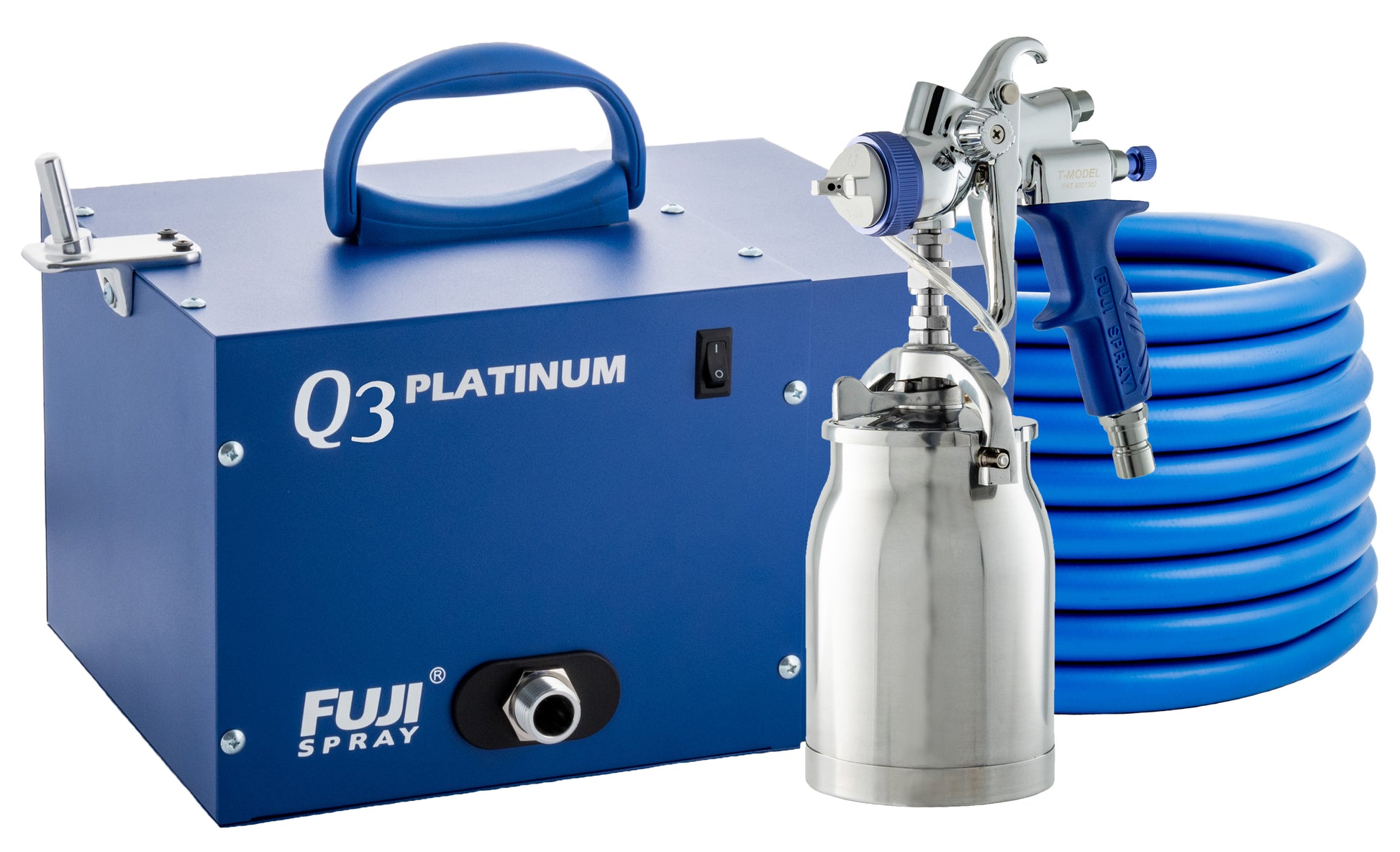

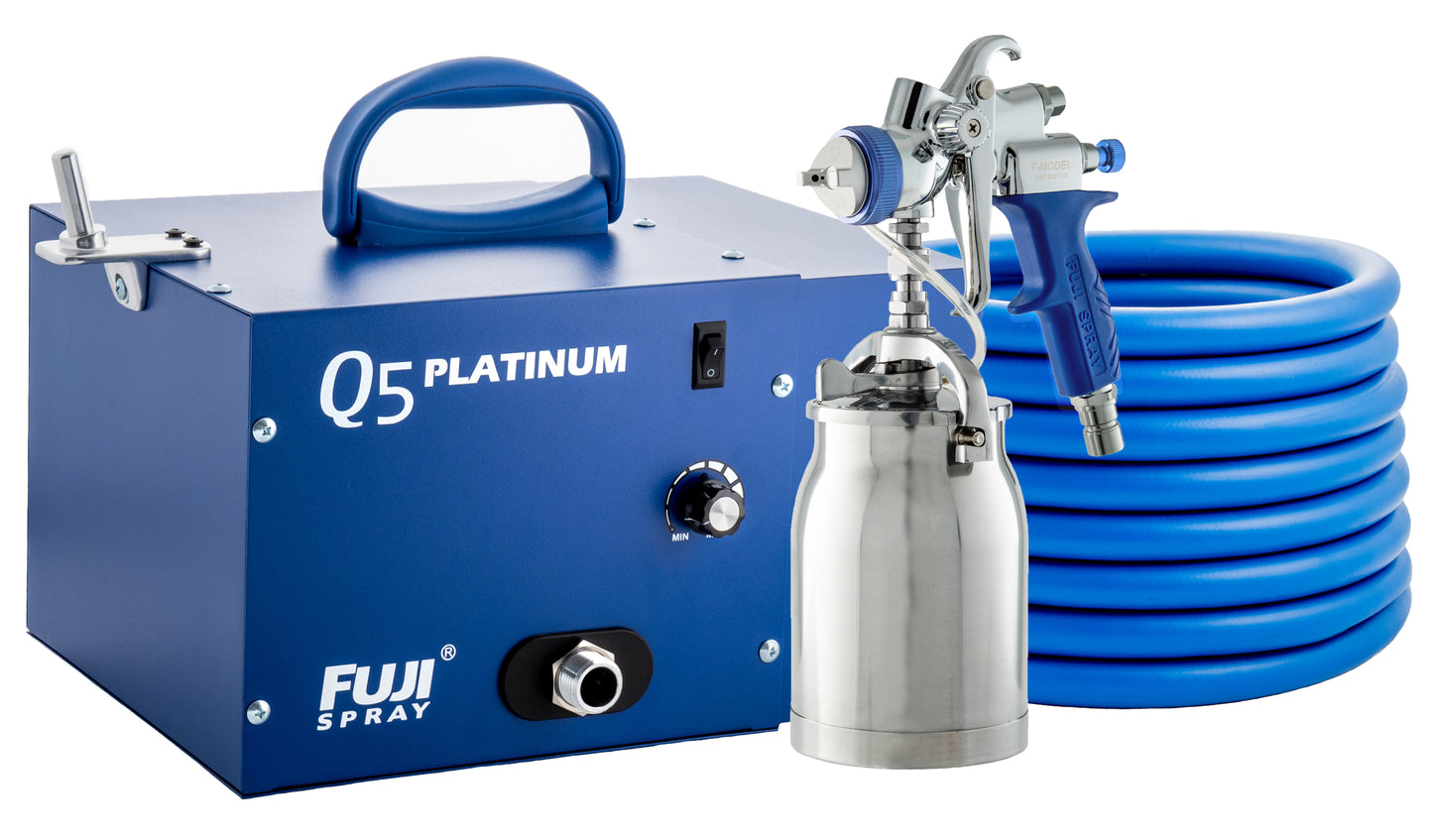

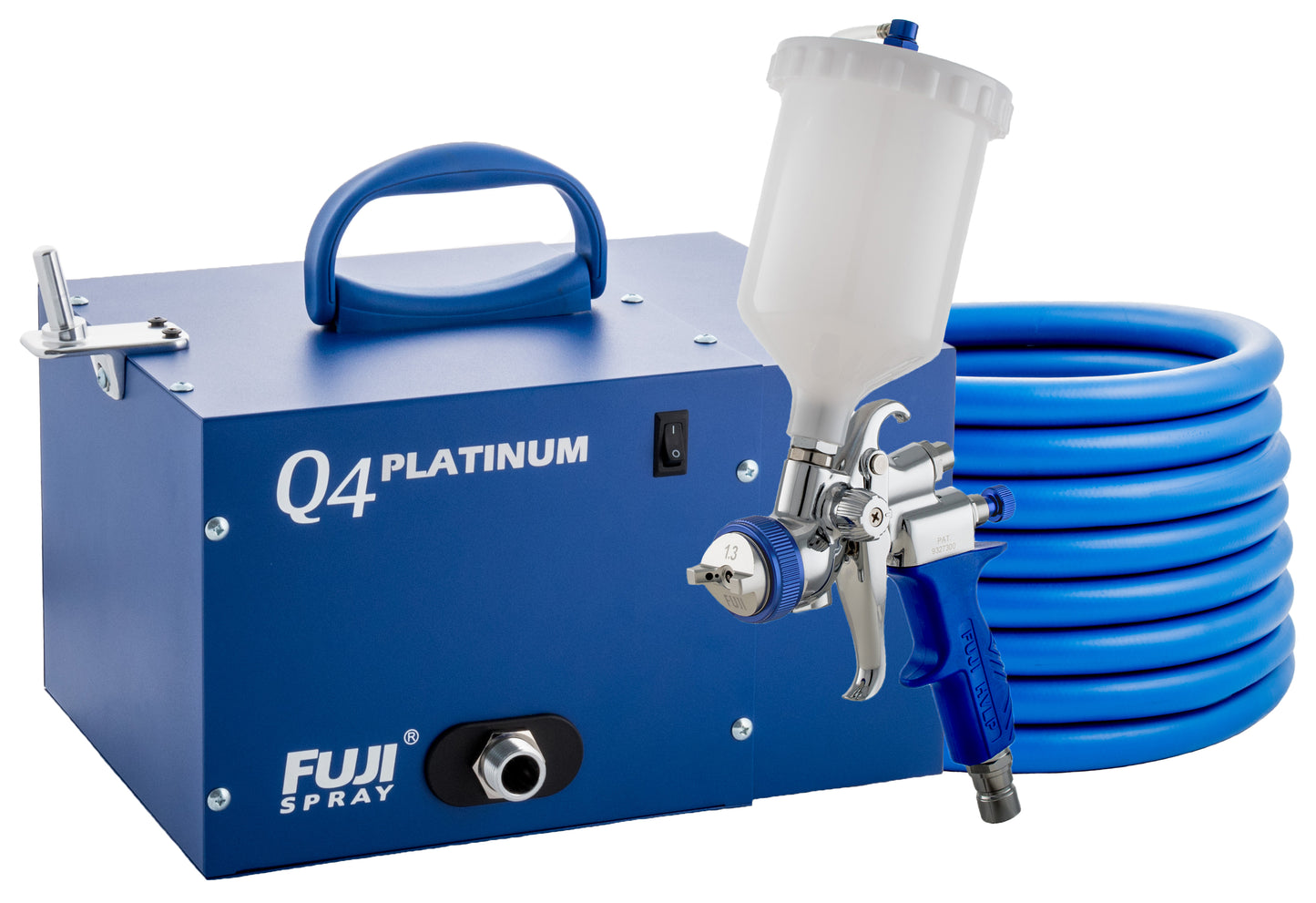

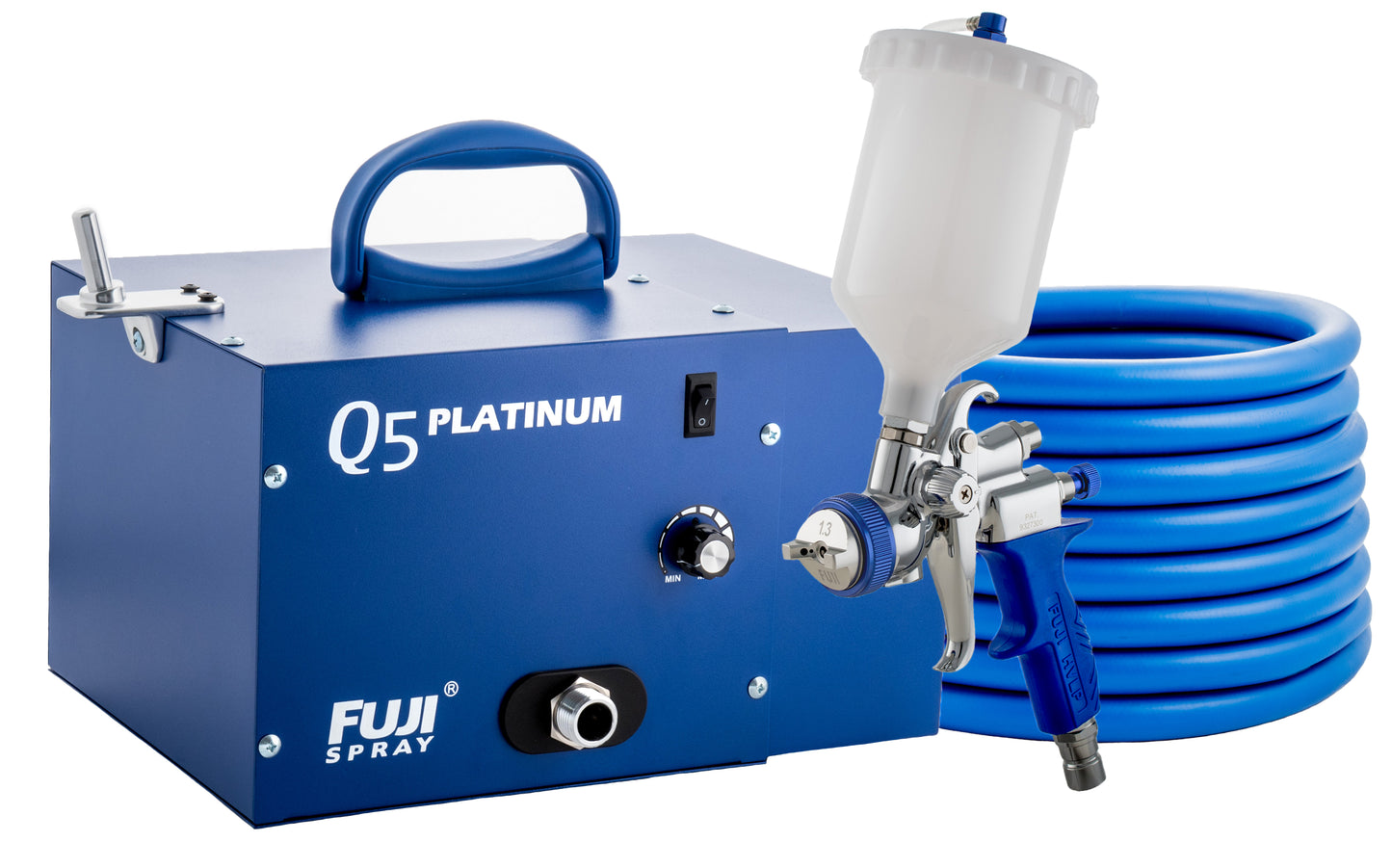

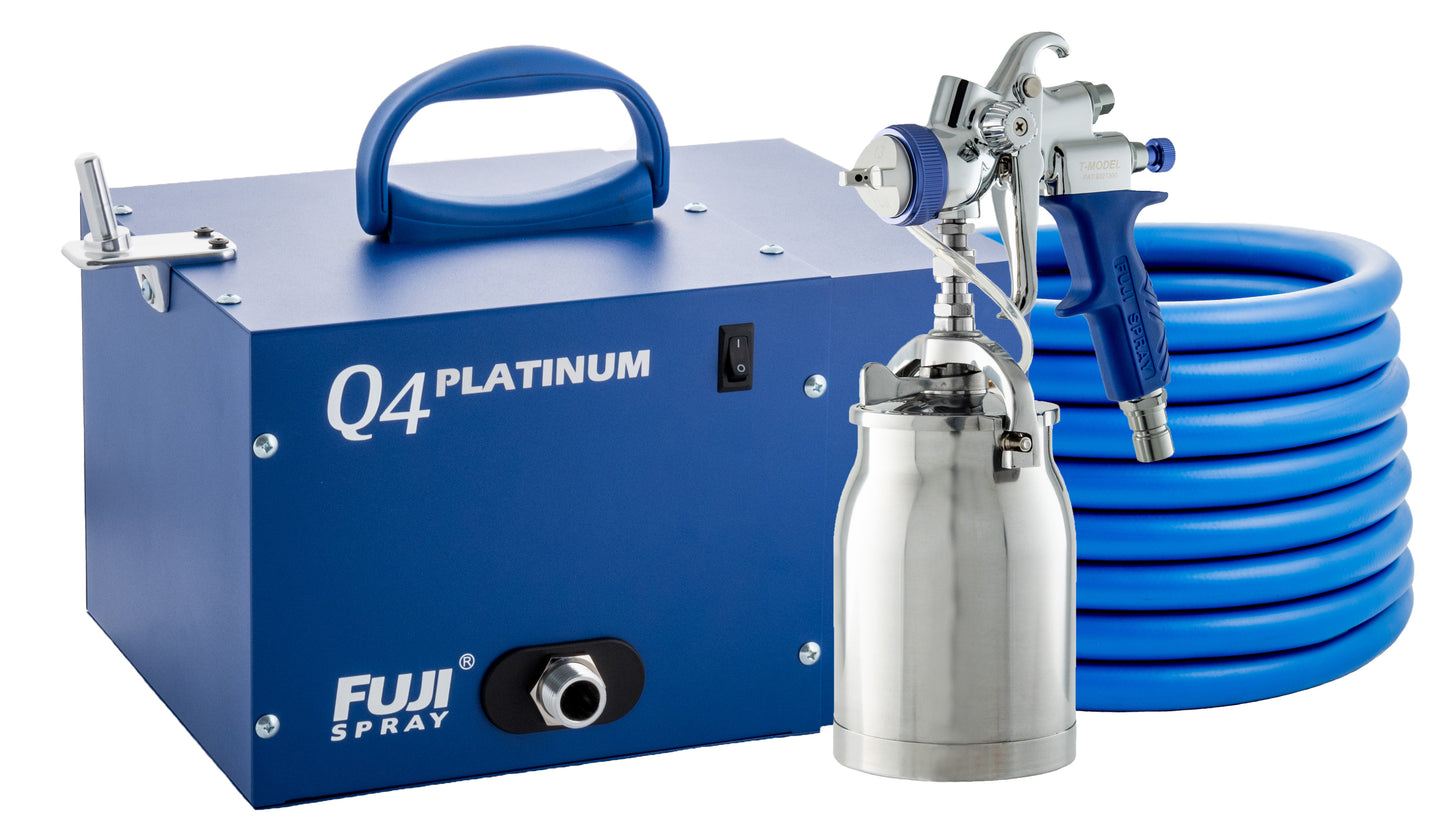

Fuji Spray Q Platinum™ Turbine System with Spray Gun, Hose, and Turbine

The Fuji Spray® Q PLATINUM™ Series is for those who simply want the best spray experience. Considered the quietest operating turbine on the market today, the Q PLATINUM™ Series is the ultimate tool in terms of power and control, allowing you to focus on what really matters – the quality of your work. The patented noise reduction technology coupled with the unique Heat Dissipation Chamber™ makes the Q PLATINUM™ series stand out in the industry. The Q PLATINUM™ Series systems are perfect for medium to heavy painting projects, as well as finishing cabinets, furniture, trim and more. Exclusive to Fuji Spray® – The Fuji Spray® Heat Dissipation Chamber™

Keeping the consumer in mind Fuji Spray has managed to expertly balance the heat dissipation and sound caused by the turbine motor. This industry-leading method results in an increase of the lifespan of your Fuji Spray turbine motor, compared to standard turbines. Excess heat is channeled to a Heat Dissipation Chamber™ located at the rear of the case. Since the hot air is dissipated evenly through an optimum surface area of 60 holes, there is no added hiss or loud whistling noise, and no blowing around of debris.

The Q PLATINUM^TM Series Difference:

• U.S. Patented noise reduction technology, reducing operating decibel levels by 50%, creating the quietest operating turbine on the market
• Powerful and versatile regardless with PSI ranging from 6.5(3-stage) to 9.5(5-stage)
• Rugged metal turbine case with quick-change friction fit filter
  • • Choose between 3 different HVLP turbine spray guns (T70™, T75G™, G-XPC™) all with:
    • Non-bleed stainless steel needle, nozzle, and fluid passages
    • Side-mounted Fan Pattern Control – Adjustable incremental fan pattern with three orientations: horizontal, vertical, circle
    • Easy to disassemble spray gun with a few internal components
• Cup capacity ranging from 3oz (89cc) to 1Qt (1000cc)
• Can be used with a range of materials (high to low viscosity) and suitable for both waterborne and solvent-based coatings
• Easy to disassemble spray gun with a few internal components
• 2-year warranty on parts and labor
• High Transfer Efficiency – a minimum of 65% TE

• Feed Type: Bottom Feed
• Spray Gun Included: T70™
• Cup Capacity: 1000cc
• Air Cap Included: 1.3mm
• Air Filters Included: Single #5029
• Hose Included: Hi-Flex™ Hose 25 ft
• Motor Type: 3-Stage
• Turbine Dimensions: 14.87" x 11.5" x 9"
• Turbine Weight: 31.6 lbs
• Voltage - Hz: 110-120 volts - 60Hz
• Amps: 12
• PSI: 6.5
• Warranty: 24 Months - Parts & Labor

• 3-Stage Q PLATINUM™ Series Turbine (6.5 PSI)
• Professional Grade Non-Bleed Spray Gun (T-70™) with Stainless Steel Fluid Passages (1.3mm Air Cap Included)
• Patented Side-Mounted Fan Pattern Control™
• Heat Dissipation Chamber™
• Patented Noise Reduction Technology
• 25ft Hi-Flex™ Hose
• Quick Connect Coupling & Air Control Valve
• Detailed User Manual
• #4 Ford Viscosity Cup
• Wrench & Cleaning Brush
• 2-Year Warranty On Parts & Labor
