Description

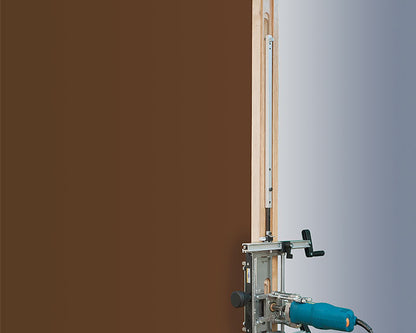

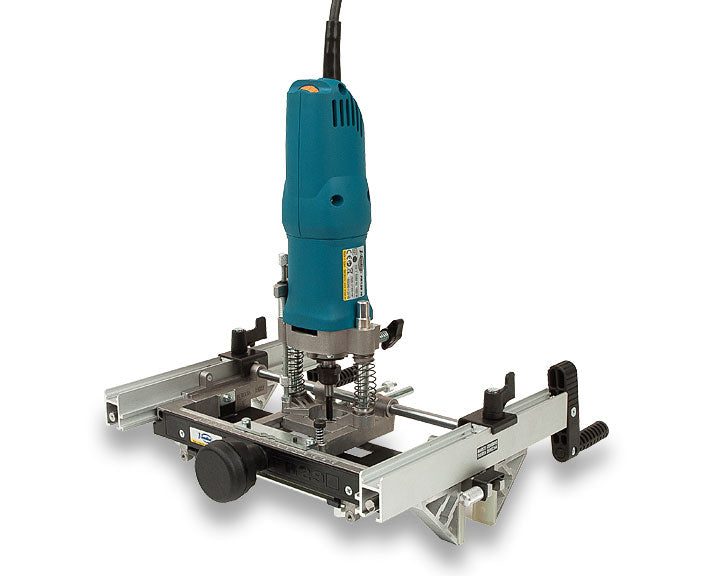

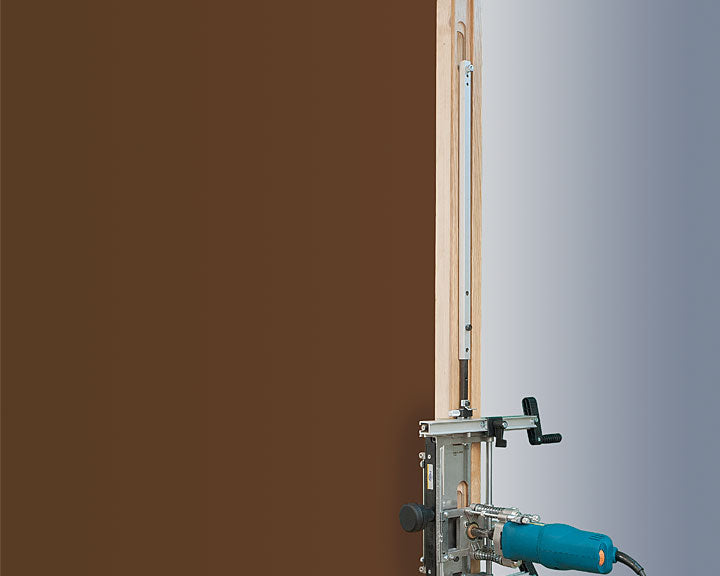

Special router for installation of all kind of hinges on frames and door leaves. Easy fitting of 3 or 4 hinges per door (right or left open), without measurements and marking.

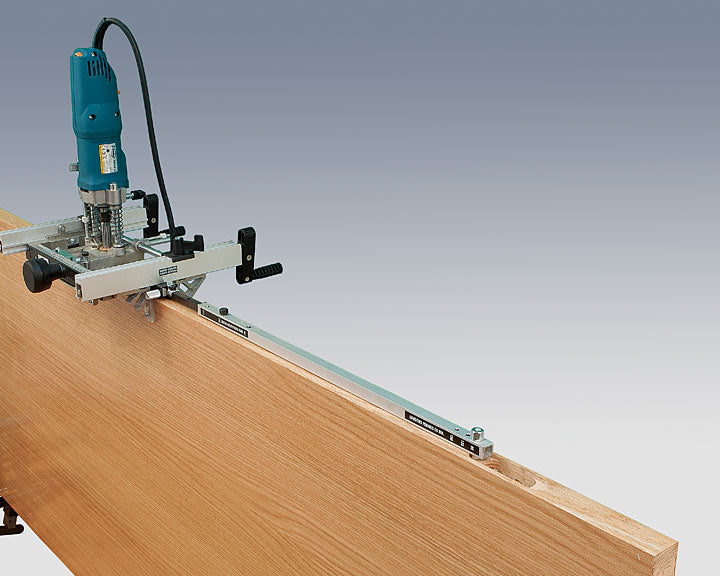

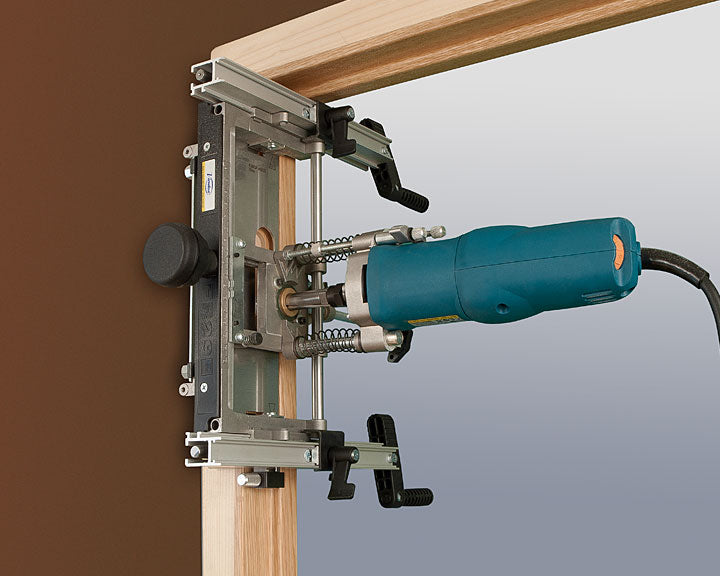

New and easily adjusted clamp system holds the router perfectly on the door and frame, without damaging its surface. Installation of the template is also very fast, it’s fixed and ready to use by pressing it inside the guide.

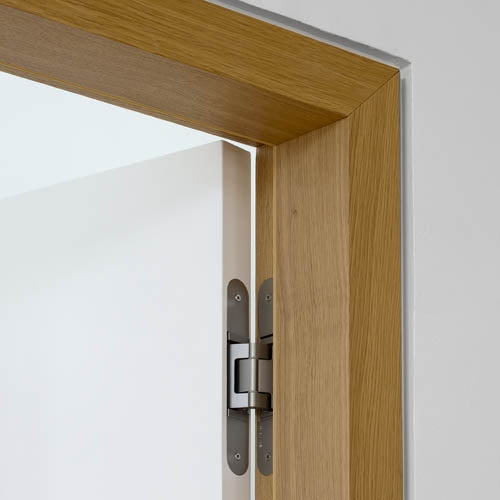

Installation of concealed hinges in fast and one step operation. Double depth stopper allows to mortise both depths of concealed hinges in one operation, without changing the template.

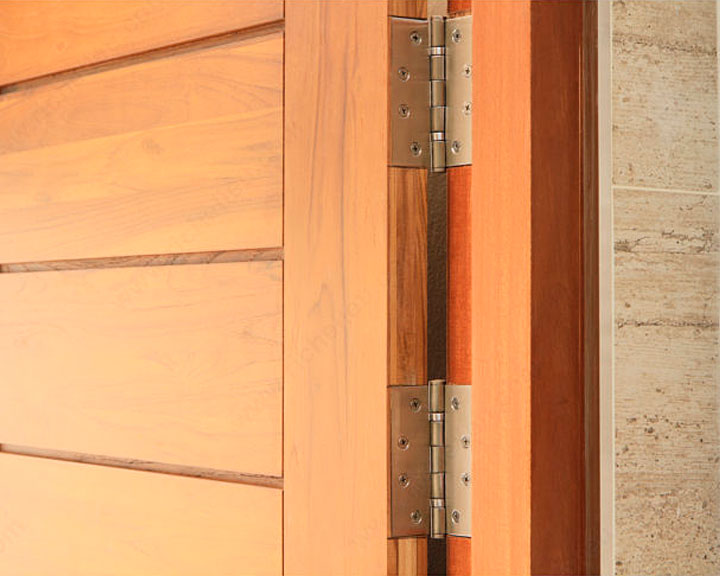

Standard square hinges of 1/4" radius can be done straight away with included 1/2" bit by adjusting the stoppers to correct positions. To make square hinges with 5/8" radius an additional template is needed.
Router it’s equipped with strong 1000 W motor, electronic speed regulation and electronic system to maintain constant speed under load.
For fitting:
- standard square hinges
- concealed hinges
- cremone locks
- strikes plates
Spacers for rabbets highest than 13 mm.
Specification
- Input Power: 1000 Watts
- Chuck Diameter: 1/4"
- Weight: 11 lbs
- Milling Cut Travel: In length, 6-1/2" (165 mm); Sideways, 3" (74 mm)
- Min. Opening Between Clamp Vises: 1-5/16" (33 mm)
- Max. Opening Between Clamp Vises: 10" (250 mm)
- Cutter Bit Maximum Diameter: 1" or 25 mm
- Max. Milling Depth: 7/16" (11 mm)
- Max. Milling Depth (w/ kit for concealed hinges): 1-1/2" (40 mm)
What’s Included
- Router for Fitting Hinges FR129VB
- Carrying Case
- Carbide Bit w/ 1/2" Diameter
- Guide Ring
- 2 Recess Distributor Rods for 3 or 4 hinges
- Service Keys
- Wooden Box
