Specifications

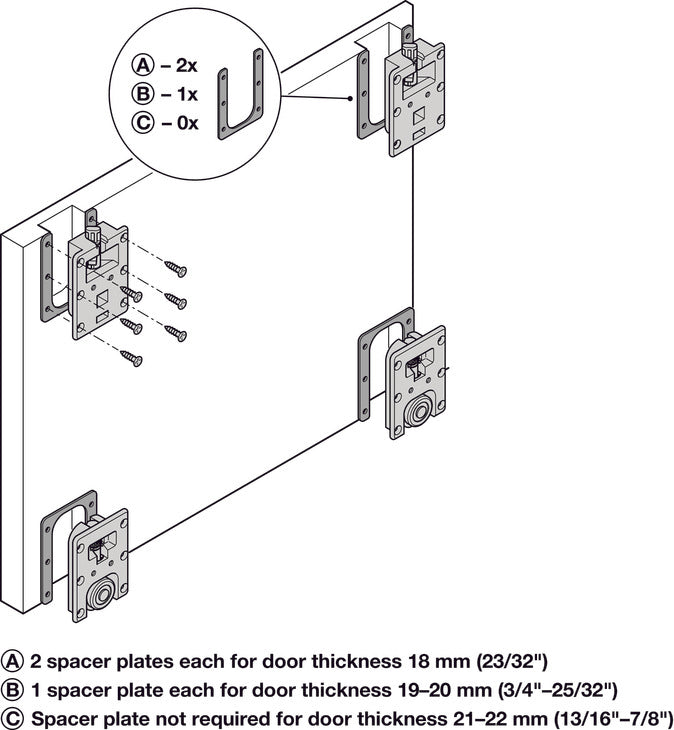

  • For door thickness: 18 – 22 mm
  • Door thickness max. including handle: 45.00 mm
  • For door weight: ≤20 kg
  • Running position: Bottom
  • Version: Without handles, with recessed grip profiles or inset handles
  • Note on door thickness: 7/8" - 23/32"
  • Door width max.: 7/8"
  • Length (inch): 2' 1 19/32"

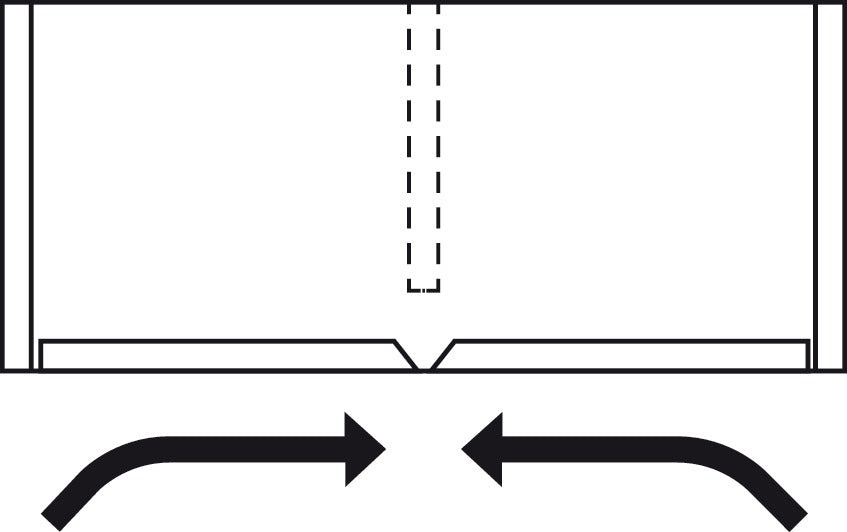

  • Area of application: For 2 symmetrical doors
  • Note on door weight: ≤ 44 lbs
  • For door height: ≤1,600 mm
  • Note on door height: 63"
  • Adjustment facility: ±2 mm (±1/16")
  • Door adjustment via: Knurled nut (without tools)
  • Installation depth, bottom: 70.00 mm

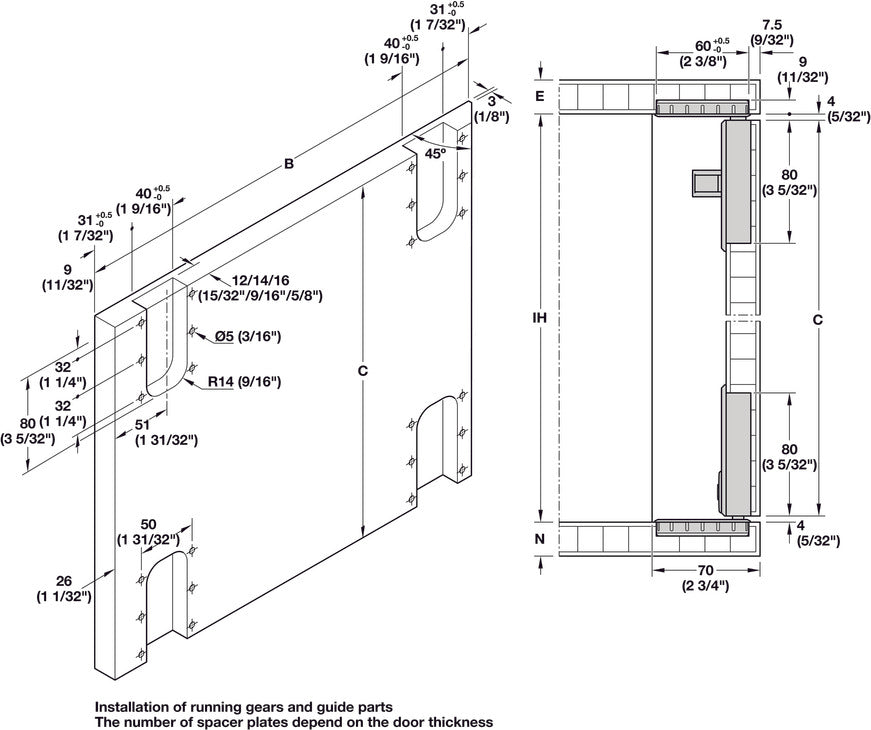

  • Installation: Running and guide track inside the body for groove in
  • Door processing: With recess

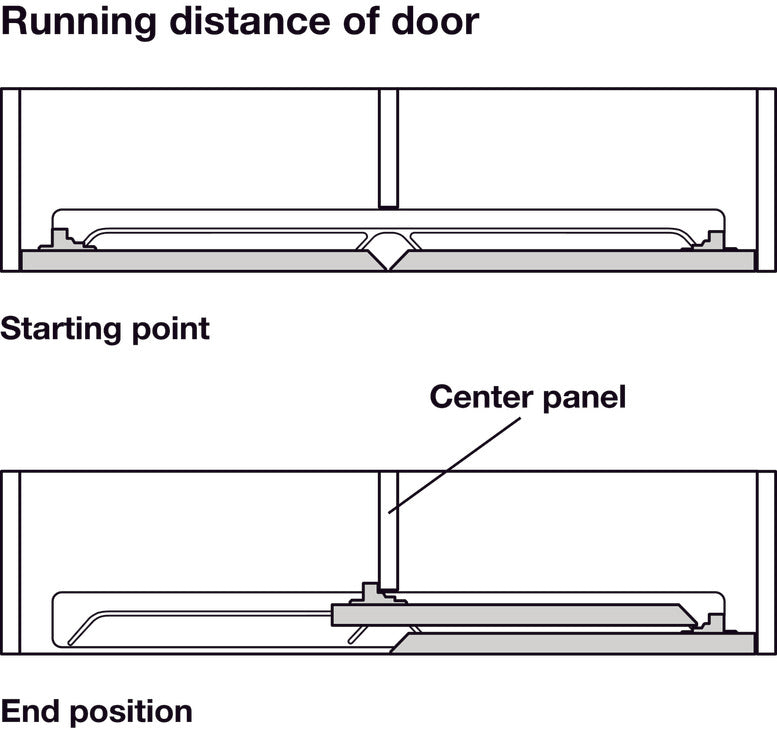

  • Installation reference: A center panel is mandatory.
  • Number of doors per system max.: 2

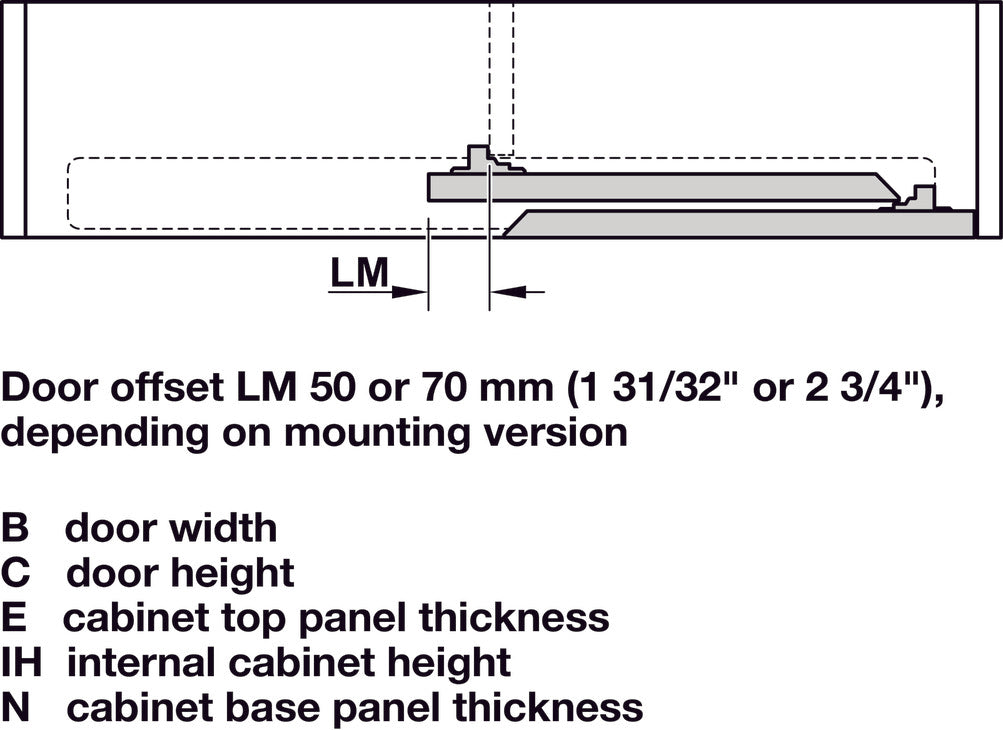

  • Door offset: 70 mm
Fulfill

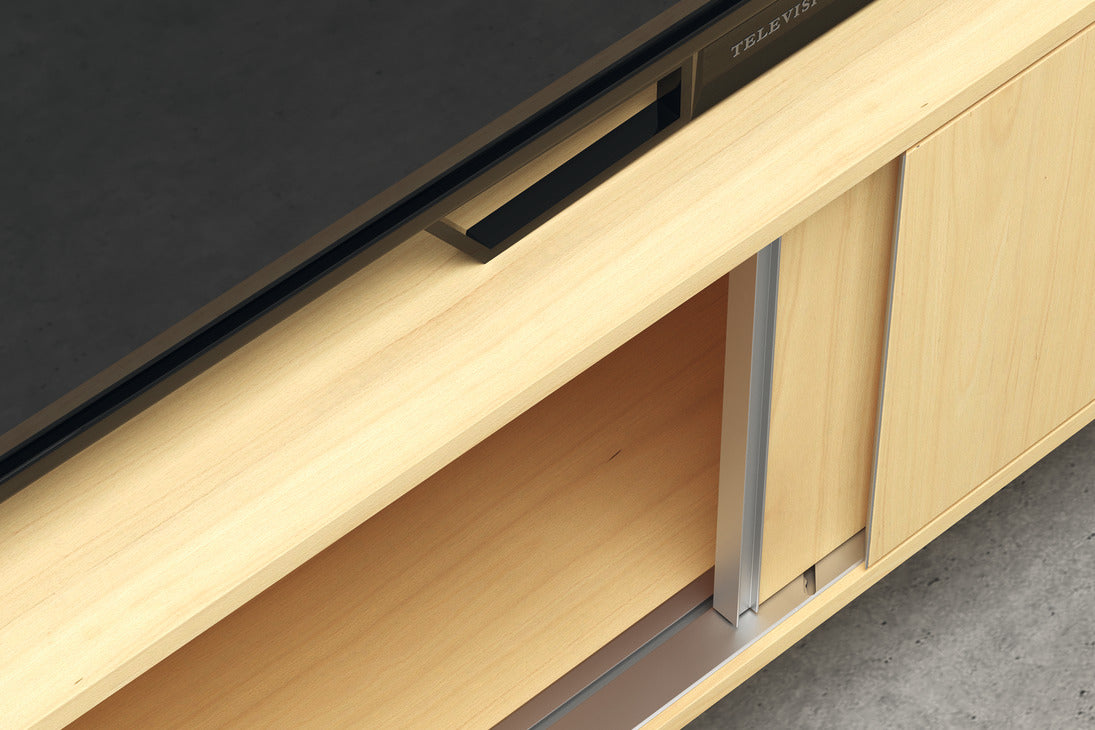

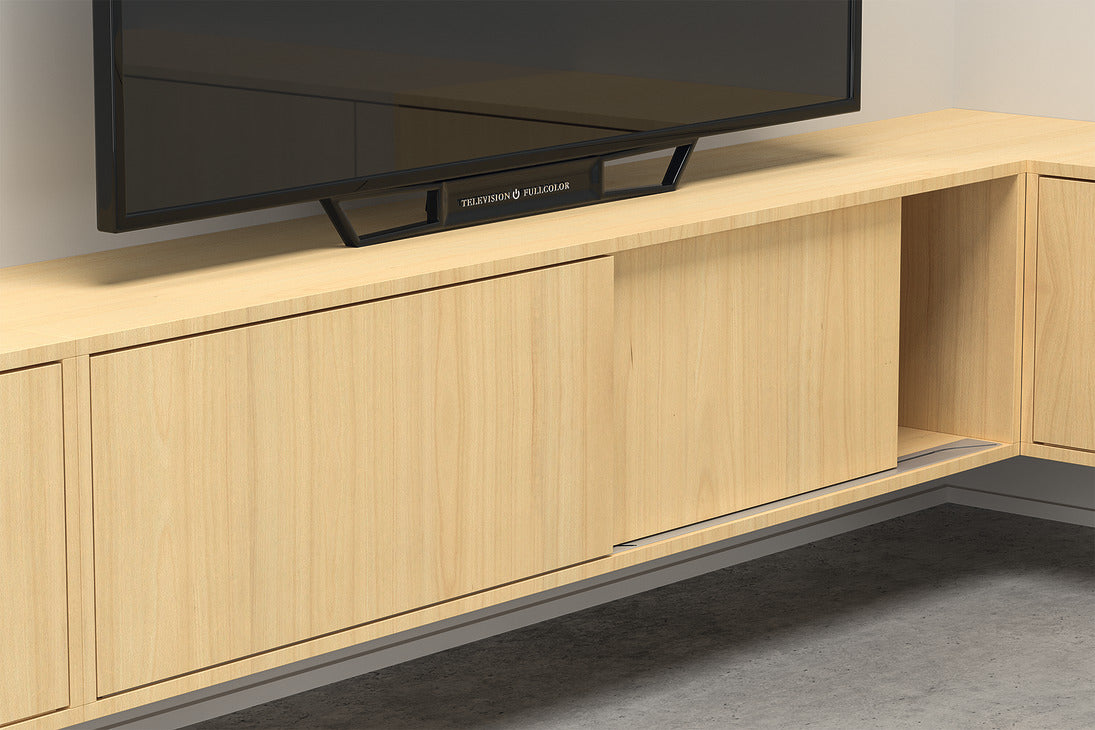

Hafele Slido F-Flush52 20A Sliding Door Hardware, Two Door Set, Black Anodized, for Door Width 450 mm

Hafele Slido F-Flush52 20A Sliding Door Hardware, Two Door Set, Black Anodized, for Door Width 450 mm

Add to wishlist Add to wishlist

SKU: HA-407.40.093

$457.28
$571.60 $457.28
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 7-10 business days . (Minimum order quantity: 1)

Specifications

  • For door thickness: 18 – 22 mm
  • Door thickness max. including handle: 45.00 mm
  • For door weight: ≤20 kg
  • Running position: Bottom
  • Version: Without handles, with recessed grip profiles or inset handles
  • Note on door thickness: 7/8" - 23/32"
  • Door width max.: 7/8"
  • Length (inch): 2' 1 19/32"
  • Area of application: For 2 symmetrical doors
  • Note on door weight: ≤ 44 lbs
  • For door height: ≤1,600 mm
  • Note on door height: 63"
  • Adjustment facility: ±2 mm (±1/16")
  • Door adjustment via: Knurled nut (without tools)
  • Installation depth, bottom: 70.00 mm
  • Installation: Running and guide track inside the body for groove in
  • Door processing: With recess
  • Installation reference: A center panel is mandatory.
  • Number of doors per system max.: 2
  • Door offset: 70 mm
