Description
Description
Soft closing mechanism integrated in the running track

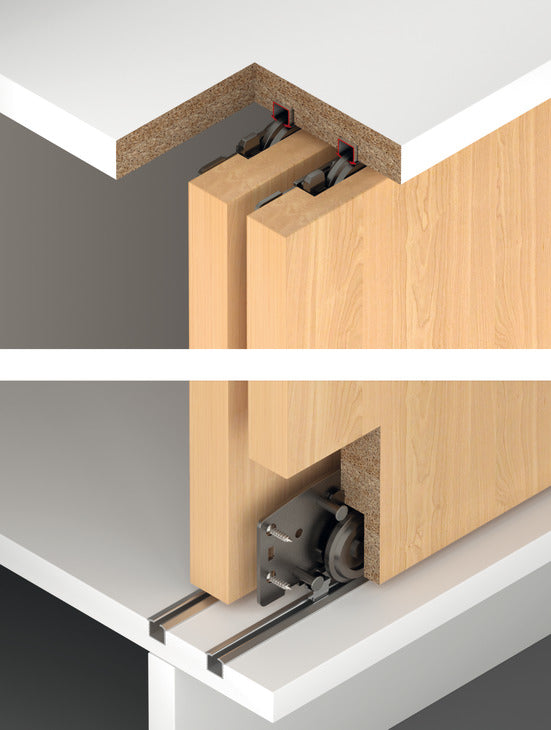

Surface-mounted or recess-mounted installation of the running gears
Specifications
Specifications
- Cabinet version: with bottom running door wings
- Note on door width: With soft and self closing mechanism at both sides
- For aluminum frame width: 50 mm

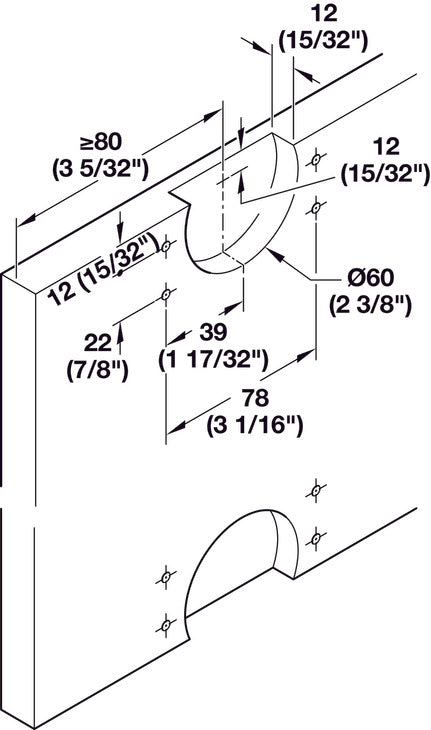

- Door processing: for screw fixing

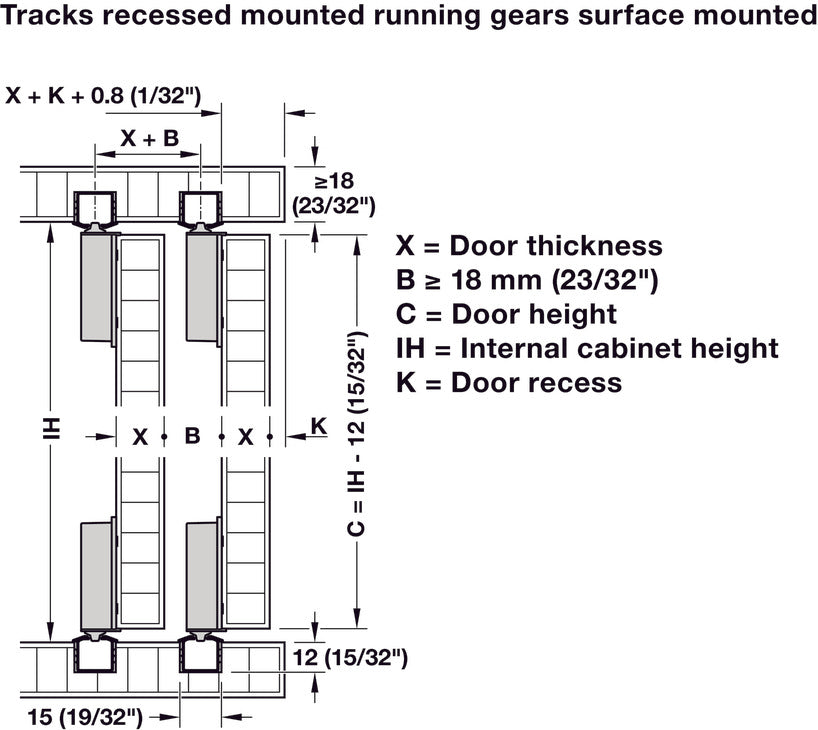

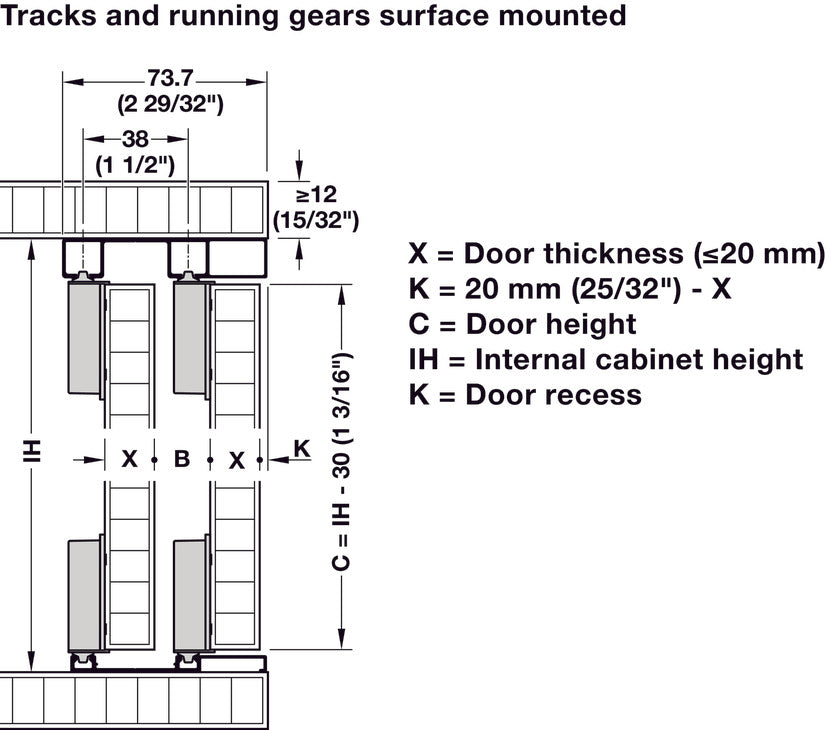

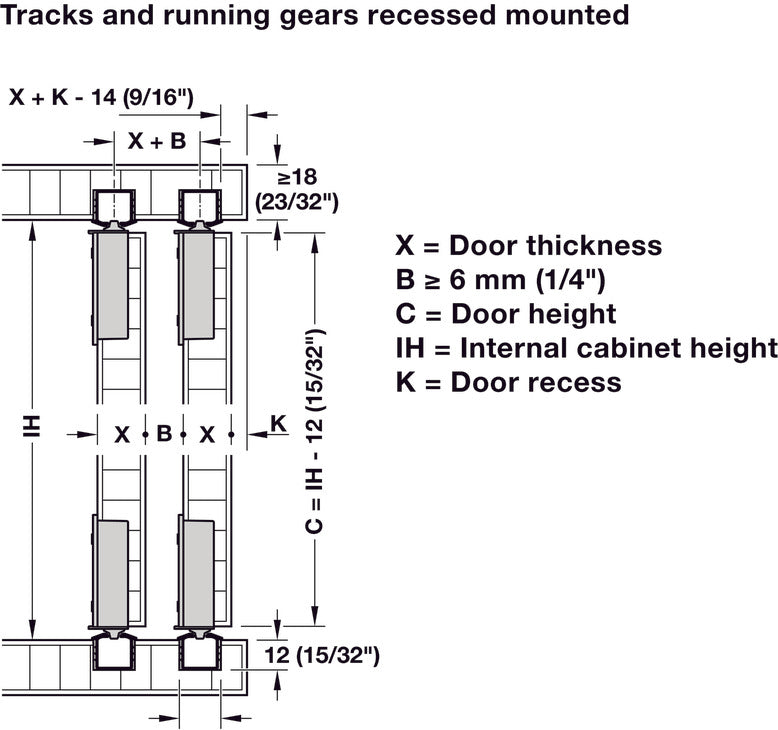

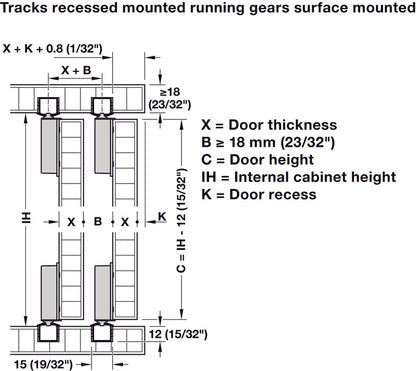

- Installation reference: For surface-mounted or recess-mounted installation of the running gears for aluminium frames from 42 mm in width
- Set: Set without tracks
- Type of opening: linear
- Number of doors per system max.: 2 to 3
What's Included
What's Included
- 8 Running gears (4 top and 4 bottom),
- 8 End caps for recessed track,
- 4 Soft and self closing mechanism,
- 40 Fixing screws,
- 2 Hex key
